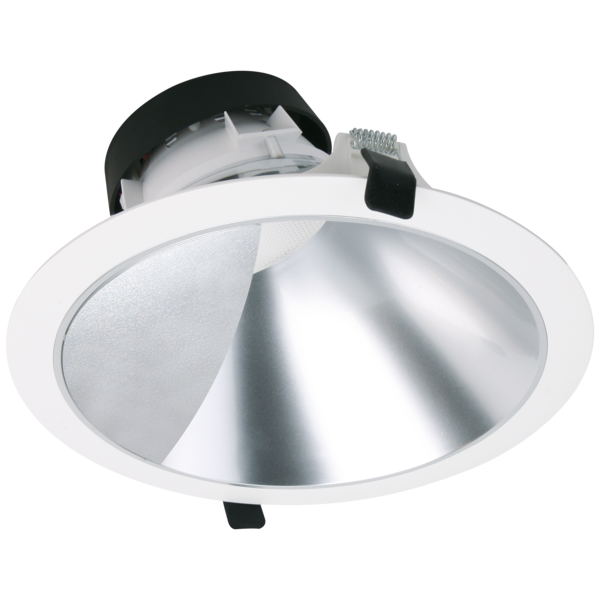

Ibiza 200 Commercial LED downlight

The Ibiza is a commercial grade recessed LED wall wash downlight. Constructed with a fixed body design and offering a IP44 ingress protection rating and high performance Osram LEDs, the Ibiza is suited to commercial and retail applications.

Application

High performance LED downlight suited to specific wall wash applications in: Commercial environments, foyers, offices, corridors, museums and retail installations

Design Specifications

  • 205mm lightweight recessed wall wash downlight

  • High output COB LED chip, L70 > 50.000 hours, CRI 90 and dual CCT selectable with 3000K and 4000K

  • Efficient transmission diffuser and matt reflector for uniformed distribution

  • Constant current non-dimmable driver as standard



  • Available Options

    • 3000K and 3500K
    • Remote DALI dimmable driver

  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

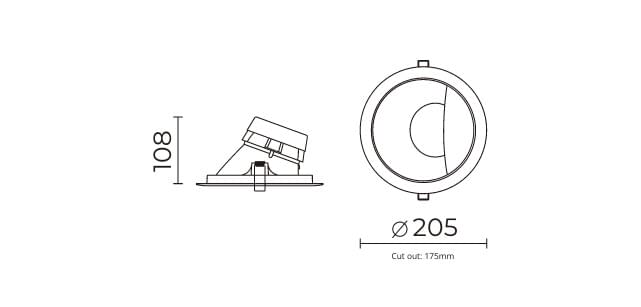

  • Dimensions - Wiring Diagrams
  • Design Options

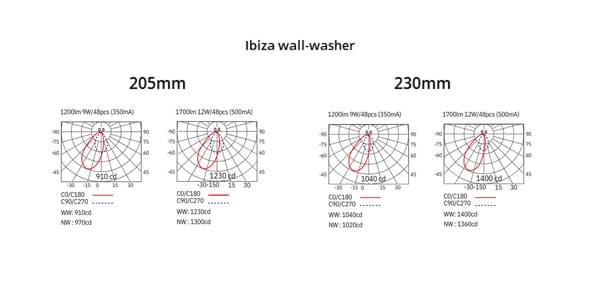

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Input Voltage Power Lumens CCT CRI Diameter Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.DIB201340N DescriptionRecessed LED wallwash downlight, 205mm, non dimmable Input Voltage240 Power13 Lumens1428 CCT4000 CRI90 Diameter205 Add to Enquiry Add Remove Remove

    Code Methodology: DIZ20 = Size  |  10 = Wattage  |  40 = CCT  |  N = Dimming Type

    CCT - 27 = 2700K / 30 = 3000K / 40 = 4000K
    Dimming type - N = Non Dim (As Standard) / D = DALI
    Trim Colour White (As Standard) - BK = Black
    Beam Angle (60° nominated as standard) - 36 = 36 degree
