• Commercial LED Downlights

Milano 110

110mm IP54 Commercial Low Glare LED Downlight

Introducing the Milano commercial LED downlight range. With quality and performance in mind, the Milano commercial LED downlight family offers a wide range of sizes, wattages, beam optics, colours and specifications

Application

Designed completely in house , this IP54 LED downlight is suited to a wide range of applications: Commercial facilities, office areas, hospital wards and corridors, foyers and retail applications.

CLICK HERE: Learn more about the vandalproof model

Design Specifications

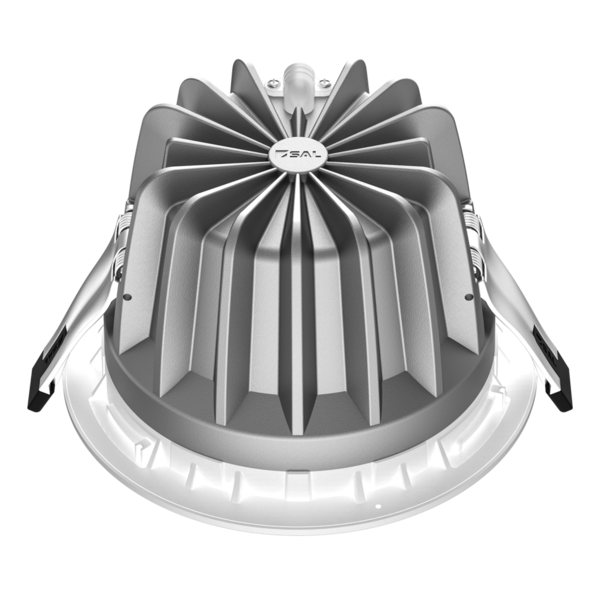

  • 110mm Ø lightweight die-cast aluminium body for efficient heat dissipation

  • High performanace COB LED chip - L90 > 50,000 hours, SDCM<3, CRI 90 and 4000K as standard with White Trim

  • Excellent UGR glare control with set back optical design, 60° beam optic as standard

  • Remote Class II Non-Dimmable / DALI2 / Phase Dimmable Driver options

  • Quick release mounting clips for easy installation or maintenance



  • Available Options

    • Black Trim (M17BTR), Silver Trim (M17SVR)
    • Tuneable White - Price On Application - subject to Minimum Order Quantities
    • 3500K - Price On Application - subject to Minimum Order Quantities
    • Cyanosis COI Compliant

  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

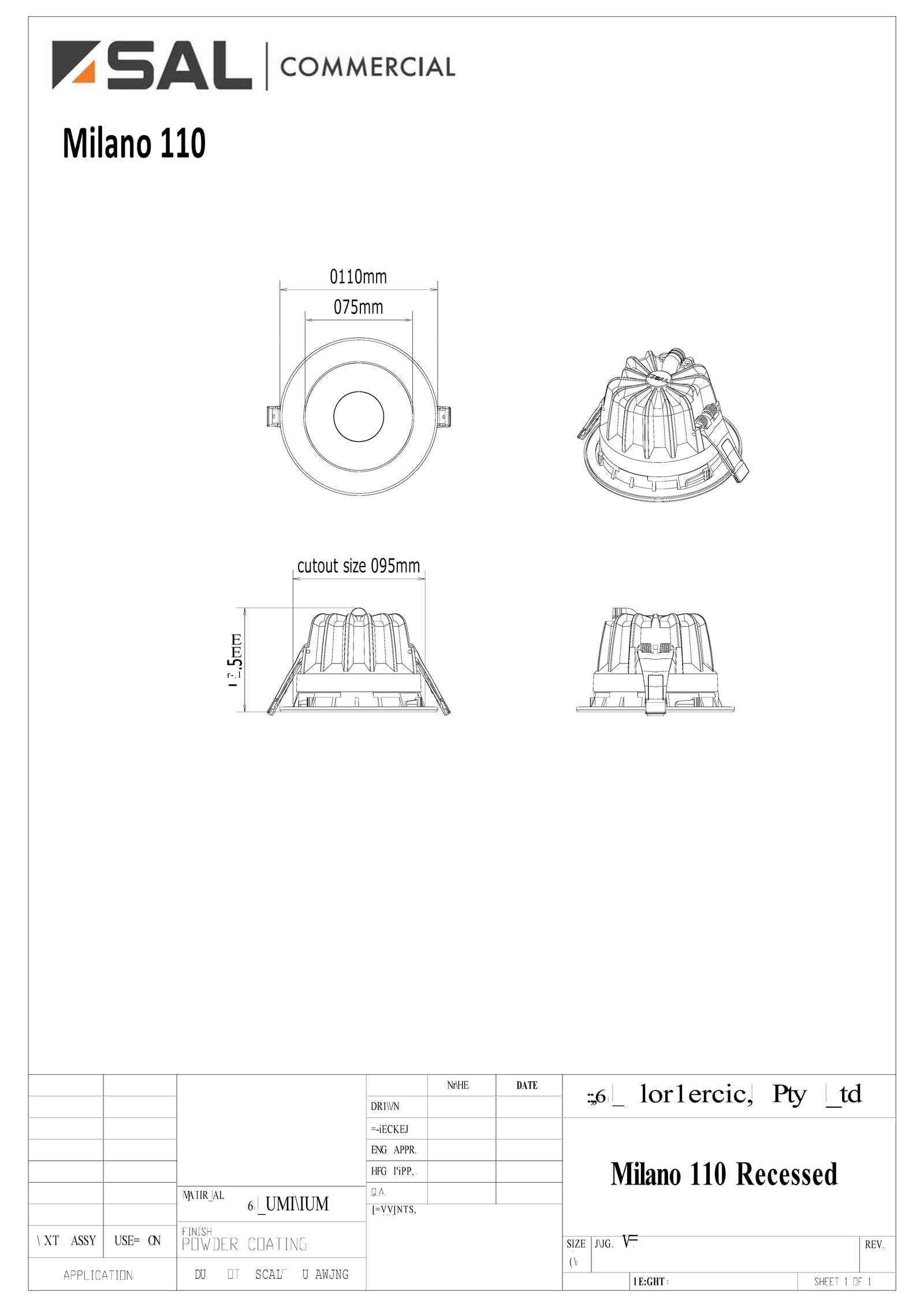

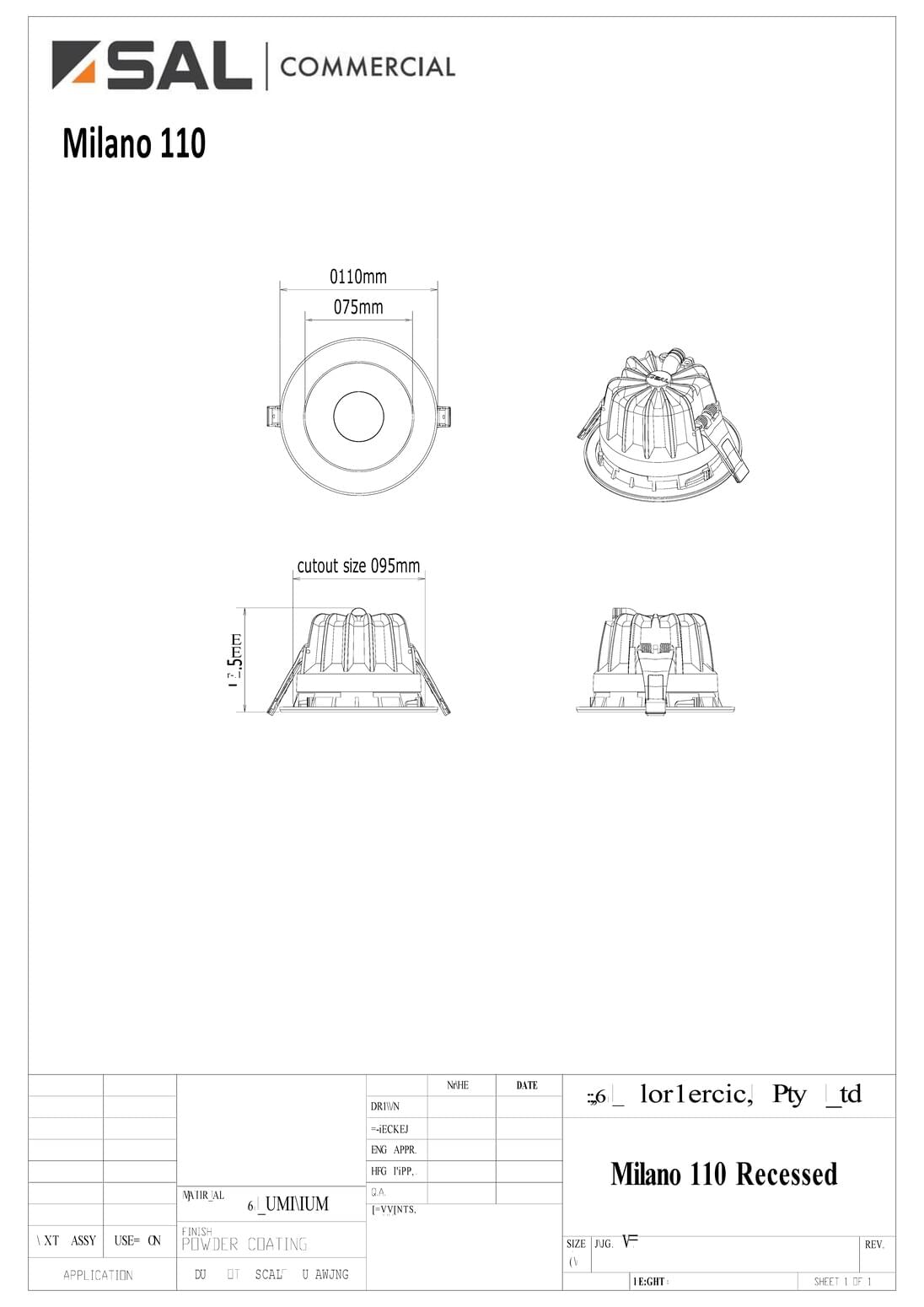

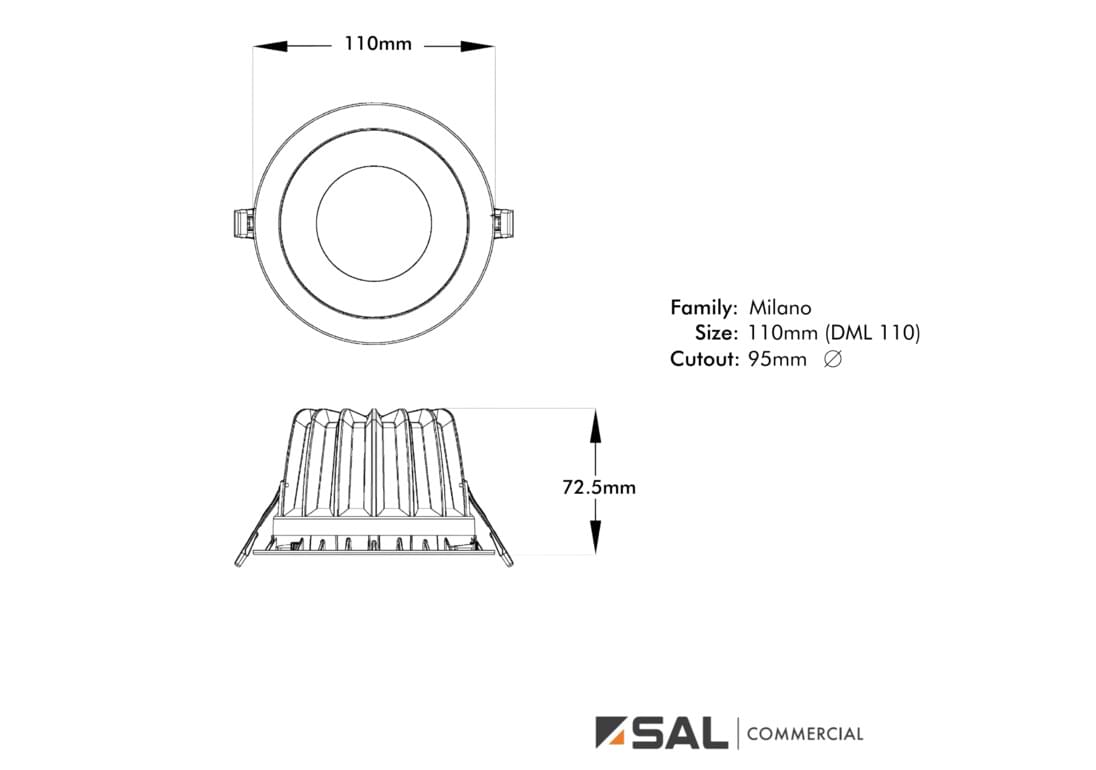

  • Dimensions - Wiring Diagrams
  • Design Options

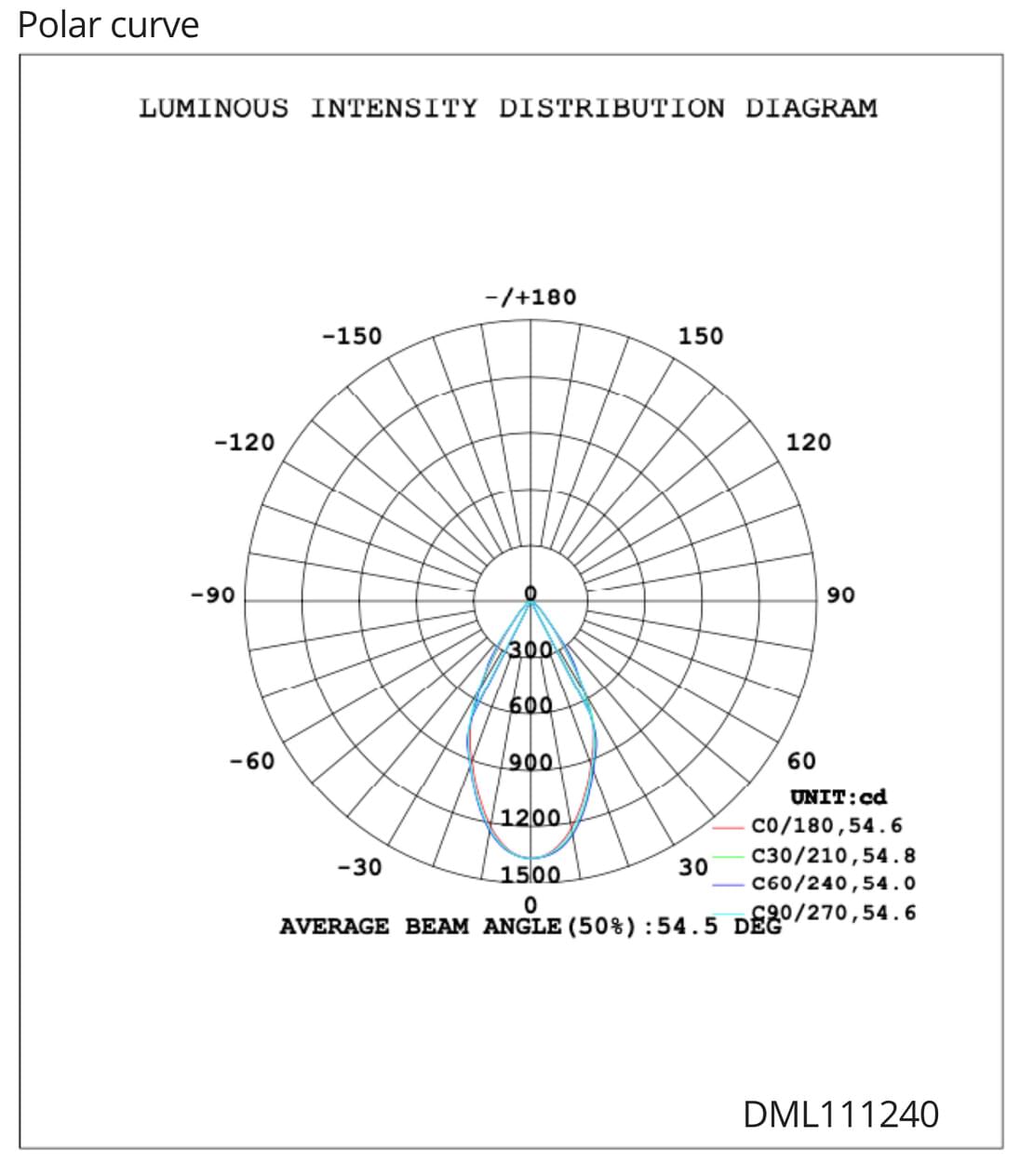

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle CRI Dimmable Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.DML110840NWH DescriptionRecessed IP54 LED Downlight c/w Remote Non-Dimmable Driver Power8 Lumens800 CCT4000 Beam Angle60 CRI90 Dimmable NO Add to Enquiry Add Remove Remove
    Model No.DML110840DWH DescriptionRecessed IP54 LED Downlight c/w Remote DALI2 Dimmable Driver Power8 Lumens800 CCT4000 Beam Angle60 CRI90 Dimmable YES Add to Enquiry Add Remove Remove
    Model No.DML110840PWH DescriptionRecessed IP54 LED Downlight c/w Remote Phase Dimmable Driver Power8 Lumens800 CCT4000 Beam Angle60 CRI90 Dimmable YES Add to Enquiry Add Remove Remove
    Model No.DML111240NWH DescriptionRecessed IP54 LED Downlight c/w Remote Non-Dimmable Driver Power12 Lumens1200 CCT4000 Beam Angle60 CRI90 Dimmable NO Add to Enquiry Add Remove Remove
    Model No.DML111240DWH DescriptionRecessed IP54 LED Downlight c/w Remote DALI2 Dimmable Driver Power12 Lumens1200 CCT4000 Beam Angle60 CRI90 Dimmable YES Add to Enquiry Add Remove Remove
    Model No.DML111240PWH DescriptionRecessed IP54 LED Downlight c/w Remote Phase Dimmable Driver Power12 Lumens1200 CCT4000 Beam Angle60 CRI90 Dimmable YES Add to Enquiry Add Remove Remove

    Code Methodology: DML11 = Size  |  08 = Wattage  |  40 = CCT  |  N = Dimming Type  |  WH = Trim colour  |  40 = Beam angle
    Variants Available:
    Wattage - 8 / 12
    CCT - 30 = 3000K / 40 = 4000k / CY = Cyanosis
    Dimming type - N = Non Dim / D = DALI / P = Phase Dim
    Trim Colour - WH = White / BK = Black / SL = Silver
    Beam Angle (60° nominated as standard) - 24 = 24 degree / 40 = 40 degree

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
