Milano 170

170mm IP54 Commercial UGR <19 LED Downlight

Application

Designed for performance and visual comfort, the Milano LED Downlight offers a clean architectural aesthetic, low-glare illumination, and versatile configurations to suit commercial, healthcare and retail environments. With a focus on reliability, optical control, and seamless integration, Milano is an ideal choice for projects requiring both form and function.



Design Specifications

  • 170mm Ø lightweight die-cast aluminium body for efficient heat dissipation

  • CRI 90 / R9 > 50 / L90B10 > 50,000 Hours

  • Excellent UGR glare control with set back optical design, 60° beam optic

  • Remote Class II constant current non-dimmable LED driver as standard

  • Quick release mounting clips for easy installation or maintenance

  • Available Options

    • Drivers:
      • Non-Dimmable (N)
      • DALI-2 (D)
      • Phase dimmable (P)
      • DALI Type8 (D8)
    • Silver (SL) / Black Trim (BK) *White as standard
    • Price On Application *subject to minimum order quantities
      • 3500K (35)
      • Tuneable White
      • Cyanosis compliant
      • RGBW

Milano 170

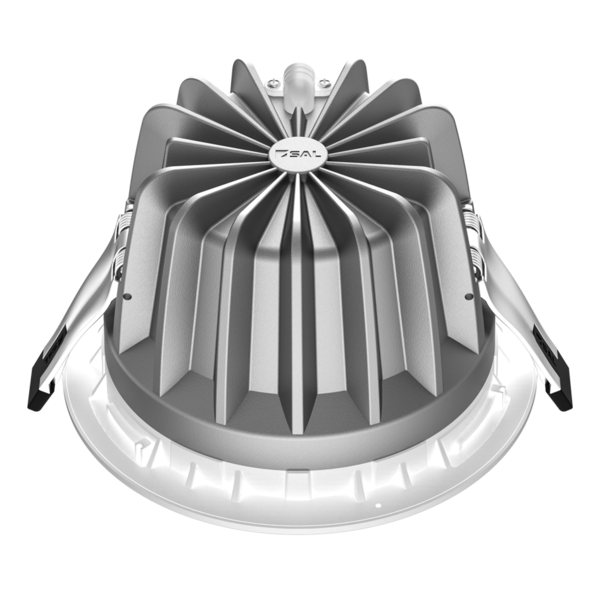

Milano 170mm top view detail - Commercial LED downlight
Milano 170mm top view detail - Commercial LED downlight
Milano downlight trim options - Commercial LED downlight
Milano downlight trim options - Commercial LED downlight
Milano 170mm top view detail - Commercial LED downlight
Milano 170mm top view detail - Commercial LED downlight
Milano downlight trim options - Commercial LED downlight
Milano downlight trim options - Commercial LED downlight
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

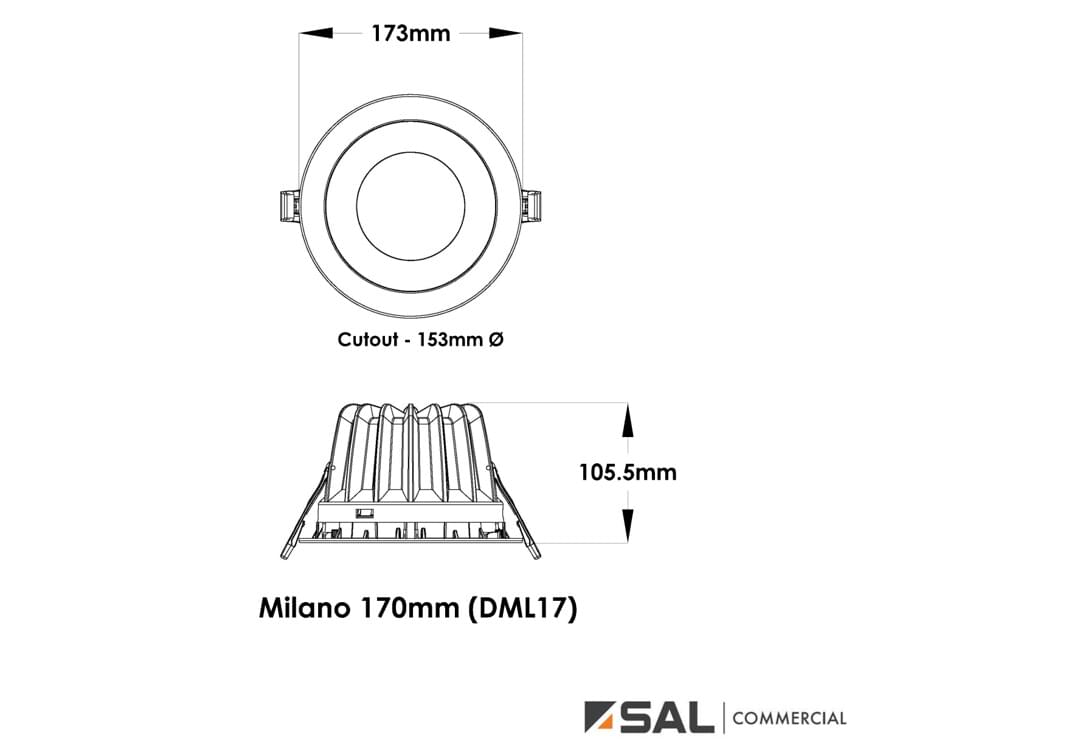

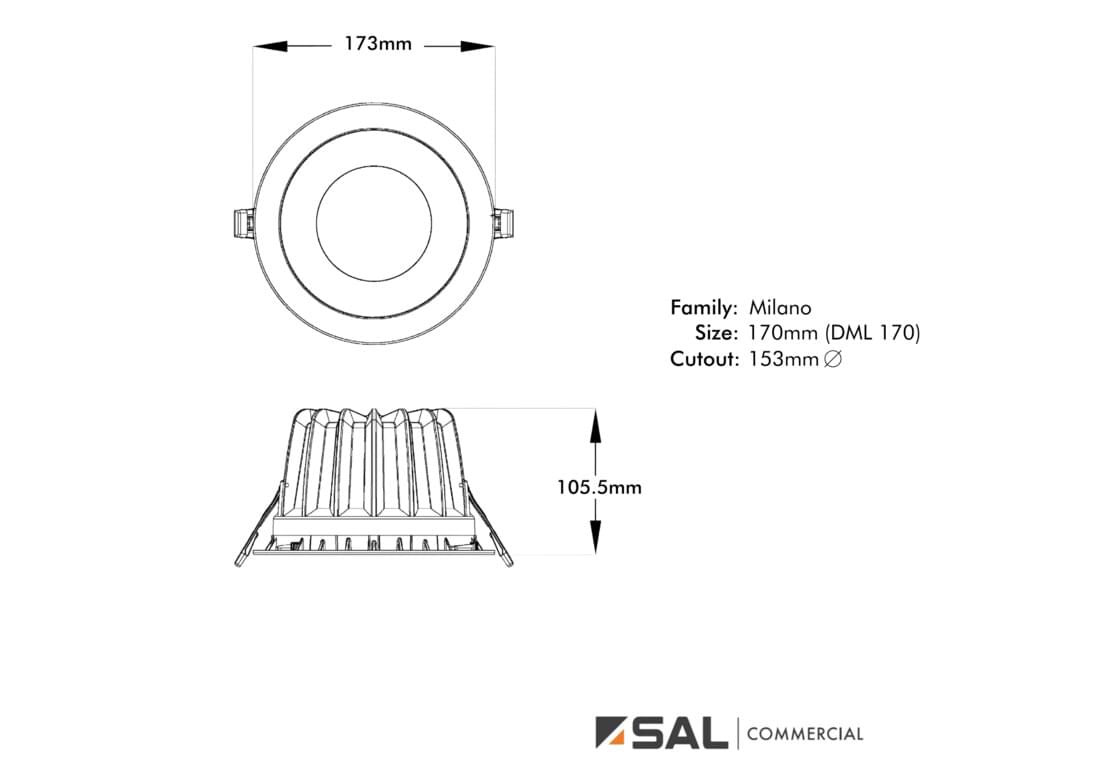

    • Dimensions - Wiring Diagrams
    • Design Options

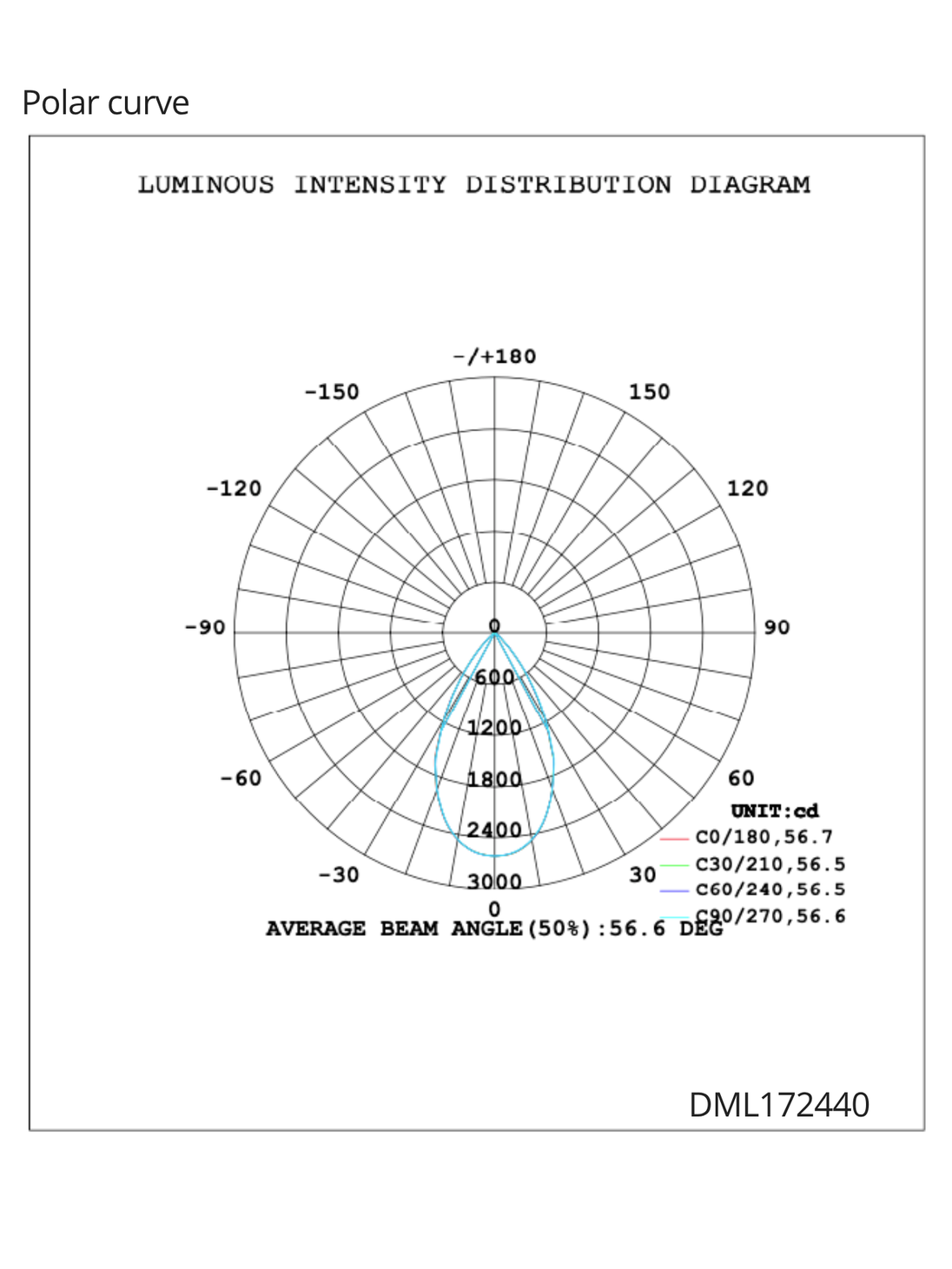

    • Photometric Data
    • Model No. & Technical Specification
      Datasheet Model No. Description Power Lumens CCT Beam Angle R9 CRI Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Datasheet Model No. DML171030DWH Description Milano 170 Recessed IP54 Downlight with DALI-2 Driver, White Power 10 Lumens 1000 CCT 3000 Beam Angle 60 R9 >50 CRI 90 Add to Enquiry Add Remove Remove
      Datasheet Model No. DML171040DWH Description Milano 170 Recessed IP54 Downlight with DALI-2 Driver, White Power 10 Lumens 1000 CCT 4000 Beam Angle 60 R9 >50 CRI 90 Add to Enquiry Add Remove Remove
      Datasheet Model No. DML171430DWH Description Milano 170 Recessed IP54 Downlight with DALI-2 Driver, White Power 14 Lumens 1400 CCT 3000 Beam Angle 60 R9 >50 CRI 90 Add to Enquiry Add Remove Remove
      Datasheet Model No. DML171440DWH Description Milano 170 Recessed IP54 Downlight with DALI-2 Driver, White Power 14 Lumens 1400 CCT 4000 Beam Angle 60 R9 >50 CRI 90 Add to Enquiry Add Remove Remove
      Datasheet Model No. DML172030DWH Description Milano 170 Recessed IP54 Downlight with DALI-2 Driver, White Power 20 Lumens 2000 CCT 3000 Beam Angle 60 R9 >50 CRI 90 Add to Enquiry Add Remove Remove
      Datasheet Model No. DML172040DWH Description Milano 170 Recessed IP54 Downlight with DALI-2 Driver, White Power 20 Lumens 2000 CCT 4000 Beam Angle 60 R9 >50 CRI 90 Add to Enquiry Add Remove Remove
      Datasheet Model No. DML172430DWH Description Milano 170 Recessed IP54 Downlight with DALI-2 Driver, White Power 24 Lumens 2300 CCT 3000 Beam Angle 60 R9 >50 CRI 90 Add to Enquiry Add Remove Remove
      Datasheet Model No. DML172440DWH Description Milano 170 Recessed IP54 Downlight with DALI-2 Driver, White Power 24 Lumens 2300 CCT 4000 Beam Angle 60 R9 >50 CRI 90 Add to Enquiry Add Remove Remove



    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
