• Commercial LED Downlights

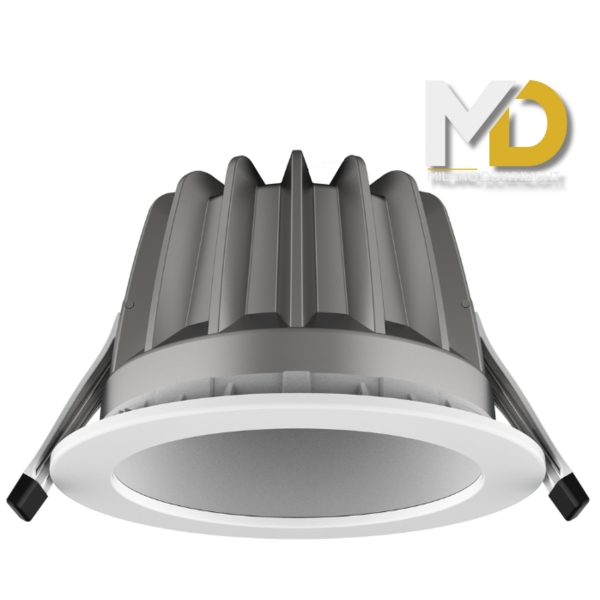

Milano 200 Commercial LED downlight



Introducing the Milano commercial LED downlight range. With quality and performance in mind, the Milano commercial LED downlight family offers a wide range of sizes, wattages, beam optics, colours and specifications

Application

Designed completely in house , this IP54 LED downlight is suited to a wide range of applications: Commercial facilities, office areas, hospital wards and corridors, foyers and retail applications.

CLICK HERE: Learn more about the vandalproof model


Design Specifications

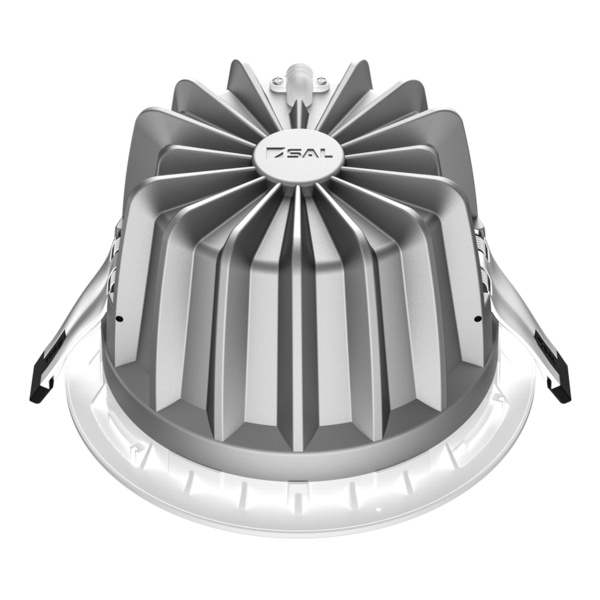

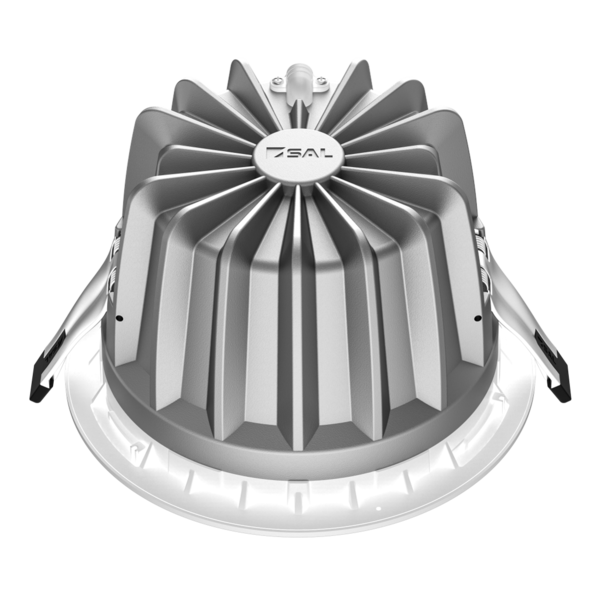

  • 200mm Ø Light weight die-cast aluminium body for efficient heat dissipation

  • High output CREE SMD LED chips, L90 > 50,000 hours, CRI 90 and 4000K as standard with white trim

  • Excellent glare control with set back optical design, 60° beam optic as standard

  • Tridonic remote constant current non-dimmable LED driver as standard

  • Quick release mounting clips for easy installation or maintenance



  • Available Options

    • Remote Tridonic DALI dimmable driver

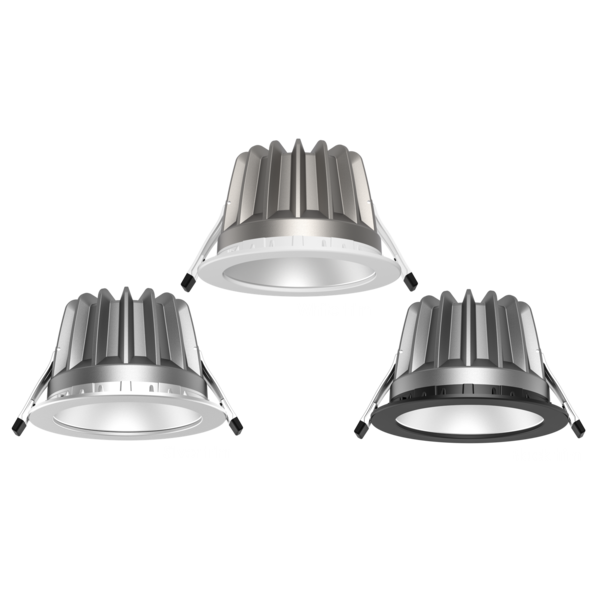

    • Black, silver trim
    • Tuneable white - POA
    • 3500K - POA
    • Cyanosis COI compliant - POA

  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

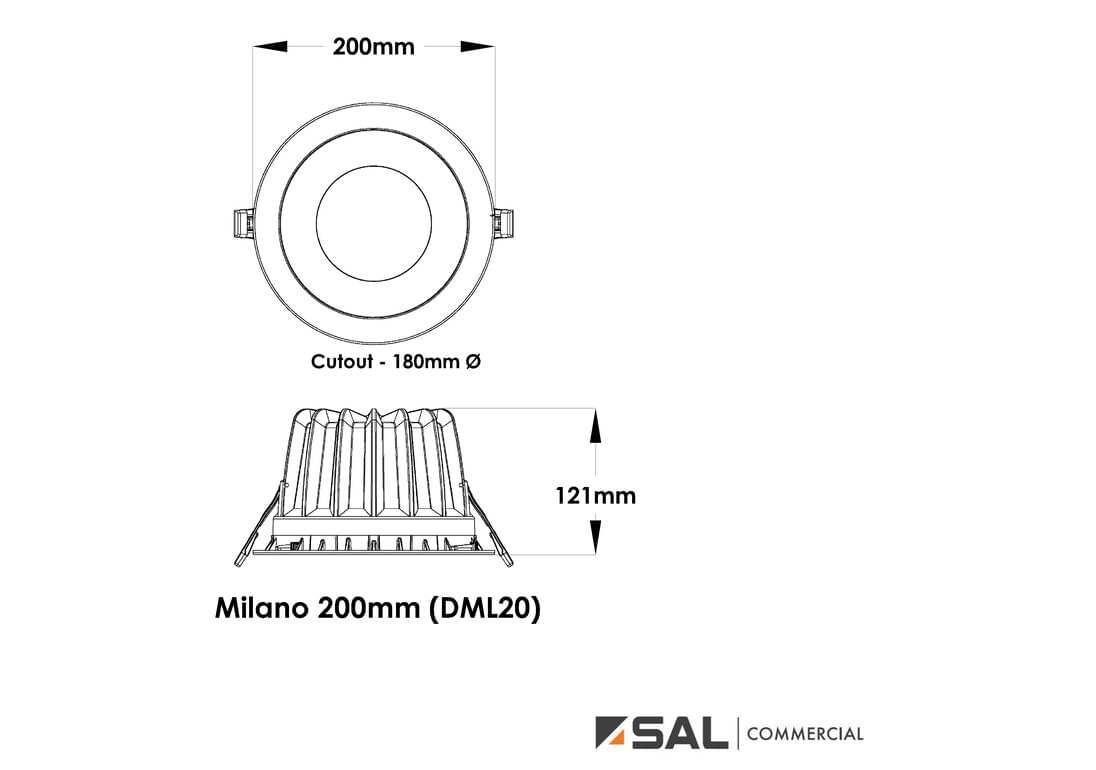

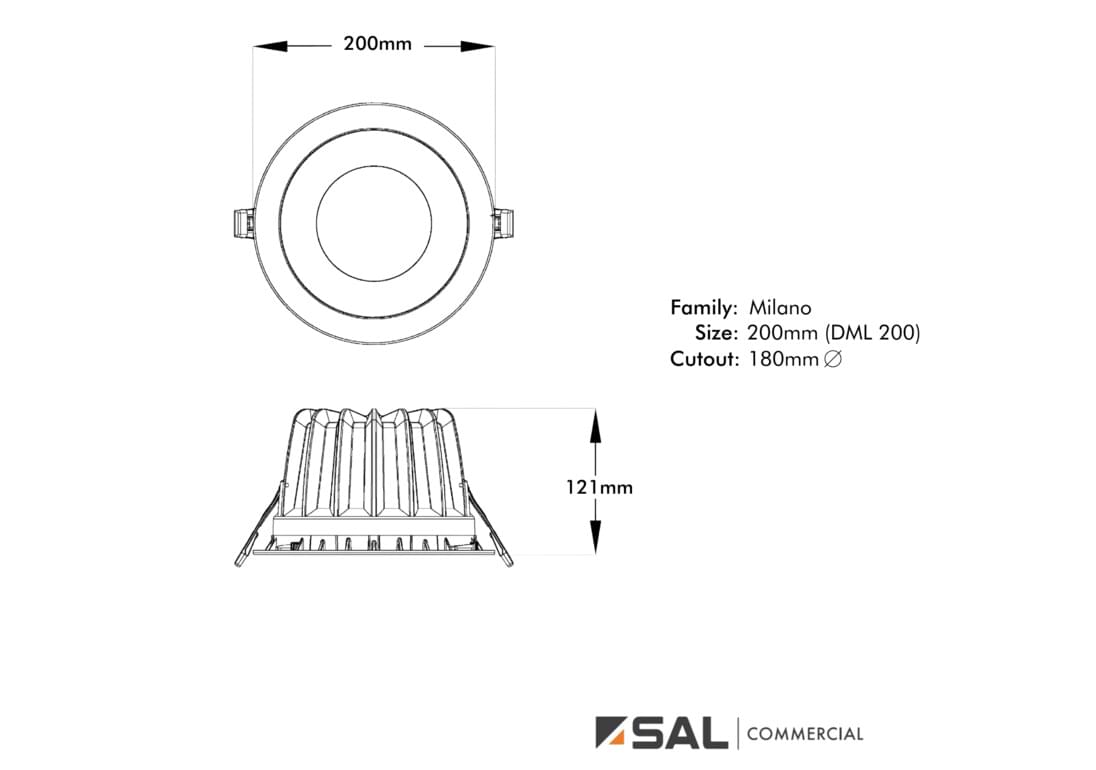

  • Dimensions - Wiring Diagrams
  • Design Options

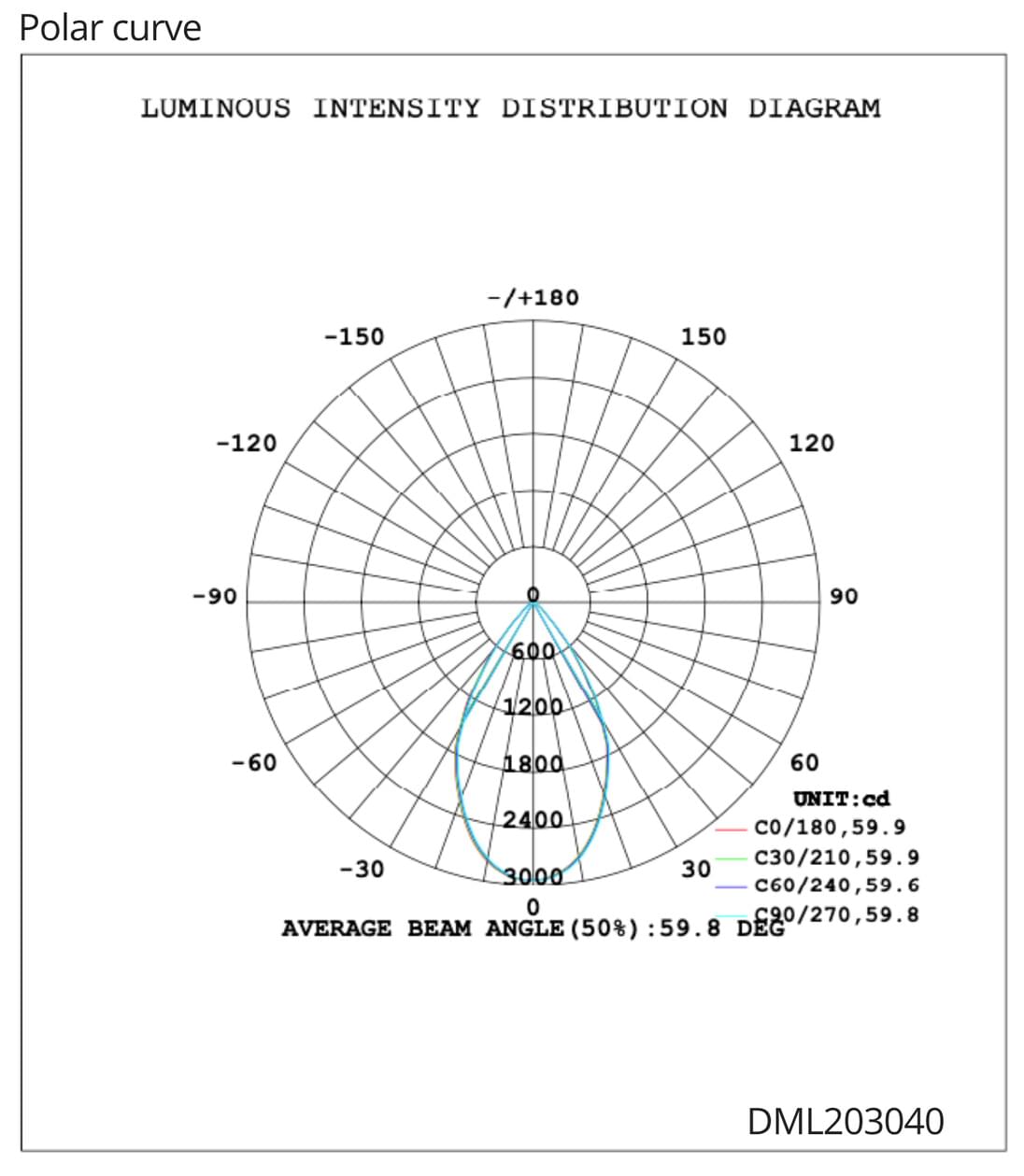

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Input Voltage Power Lumens CCT CRI Diameter Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.DML201440NWH DescriptionRecessed LED downlight 200mm non dimmable Input Voltage240 Power14 Lumens1554 CCT4000 CRI90 Diameter200mm Add to Enquiry Add Remove Remove
    Model No.DML201840NWH DescriptionRecessed LED downlight 200mm non dimmable Input Voltage240 Power18 Lumens1997 CCT4000 CRI90 Diameter200mm Add to Enquiry Add Remove Remove
    Model No.DML202140NWH DescriptionRecessed LED downlight 200mm non dimmable Input Voltage240 Power21 Lumens2330 CCT4000 CRI90 Diameter200mm Add to Enquiry Add Remove Remove
    Model No.DML202440NWH DescriptionRecessed LED downlight 200mm non dimmable Input Voltage240 Power24 Lumens2763 CCT4000 CRI90 Diameter200mm Add to Enquiry Add Remove Remove
    Model No.DML203140NWH DescriptionRecessed LED downlight 200mm non dimmable Input Voltage240 Power31 Lumens3329 CCT4000 CRI90 Diameter200mm Add to Enquiry Add Remove Remove

    Code Methodology: DML20 = Size  |  31 = Wattage  |  40 = CCT  |  N = Dimming Type  |  WH = Trim colour
    Variants Available:
    Wattage - 14 / 18 / 21 / 25 / 31
    CCT - 30 = 3000K / 40 = 4000K / CY = Cyanosis
    Dimming type - N = Non Dim / = DALI
    Trim Colour - WH = White / BK = Black / SL = Silver
    *DML203140COI cyanosis observation index variant is made to order and POA

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
