Milano 200 KP

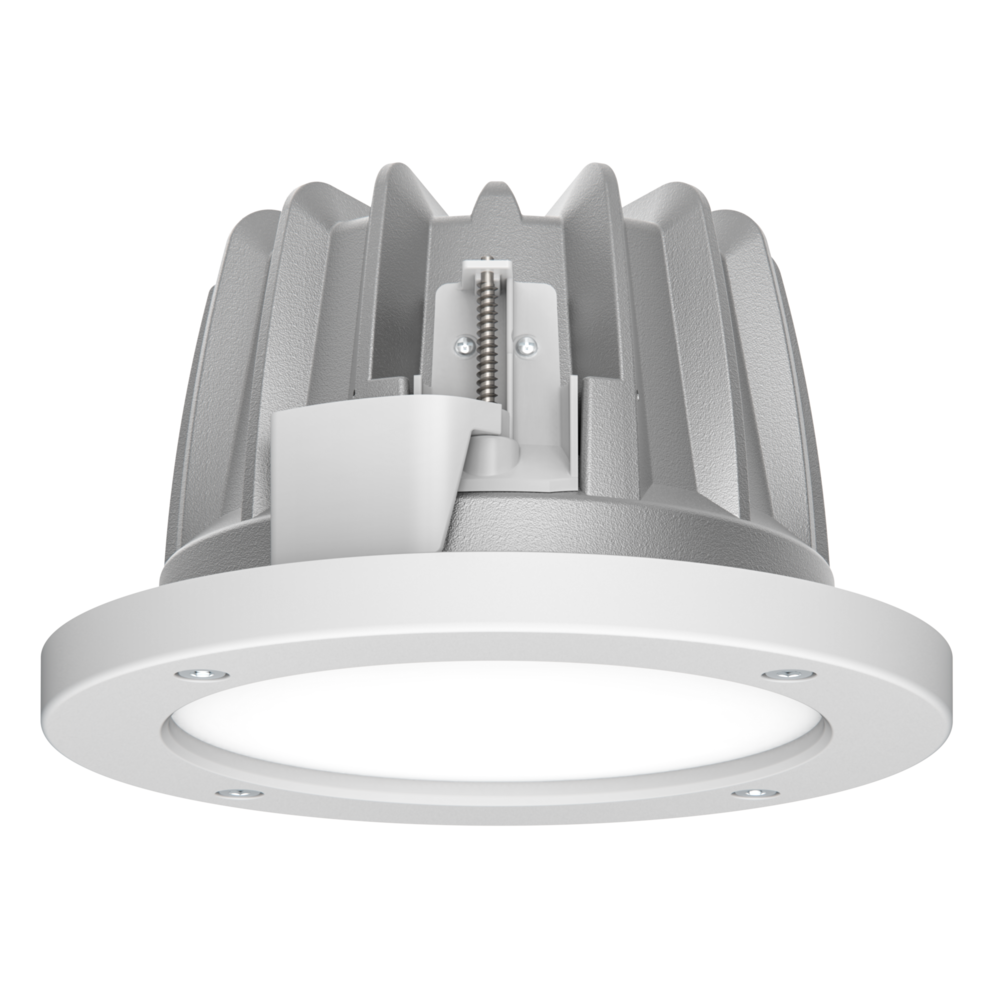

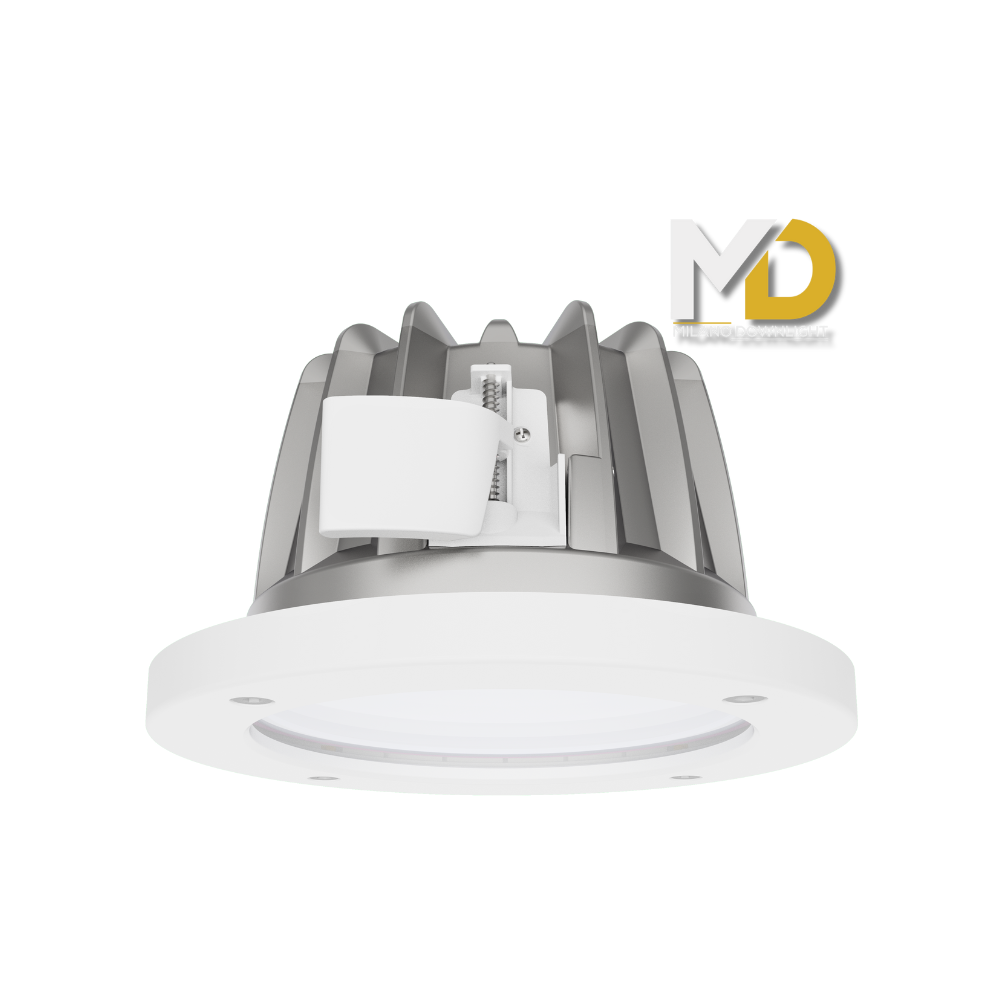

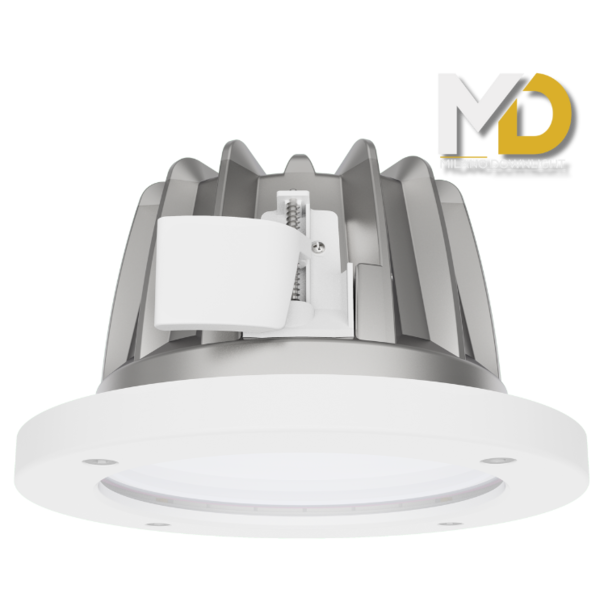

200mm IP65 / IK10 Commercial Low Glare LED Downlight with Die-Cast Aluminum Trim



Introducing the Milano commercial LED downlight range. With quality and performance in mind, the Milano commercial LED downlight family offers a wide range of sizes, wattages, beam optics, colours and specifications

Application

Designed completely in house , this IP65 IK10 LED downlight is suited to a wide range of applications: Exterior and vandalproof installations.

CLICK HERE: Learn more about the Milano range

Design Specifications

  • 200mm Ø Light weight die-cast aluminium body for efficient heat dissipation with IP65 IK10 trim fitted

  • 20w, 2900lm High output SMD LED chips, L90 > 50,000 hours, CRI 90 and 4000K as standard with white trim

  • Excellent glare control with set back optical design, 60° beam optic as standard

  • Remote constant current non-dimmable LED driver as standard

  • Quick release mounting clips for easy installation or maintenance



  • Available Options

    • Remote DALI2 dimmable driver

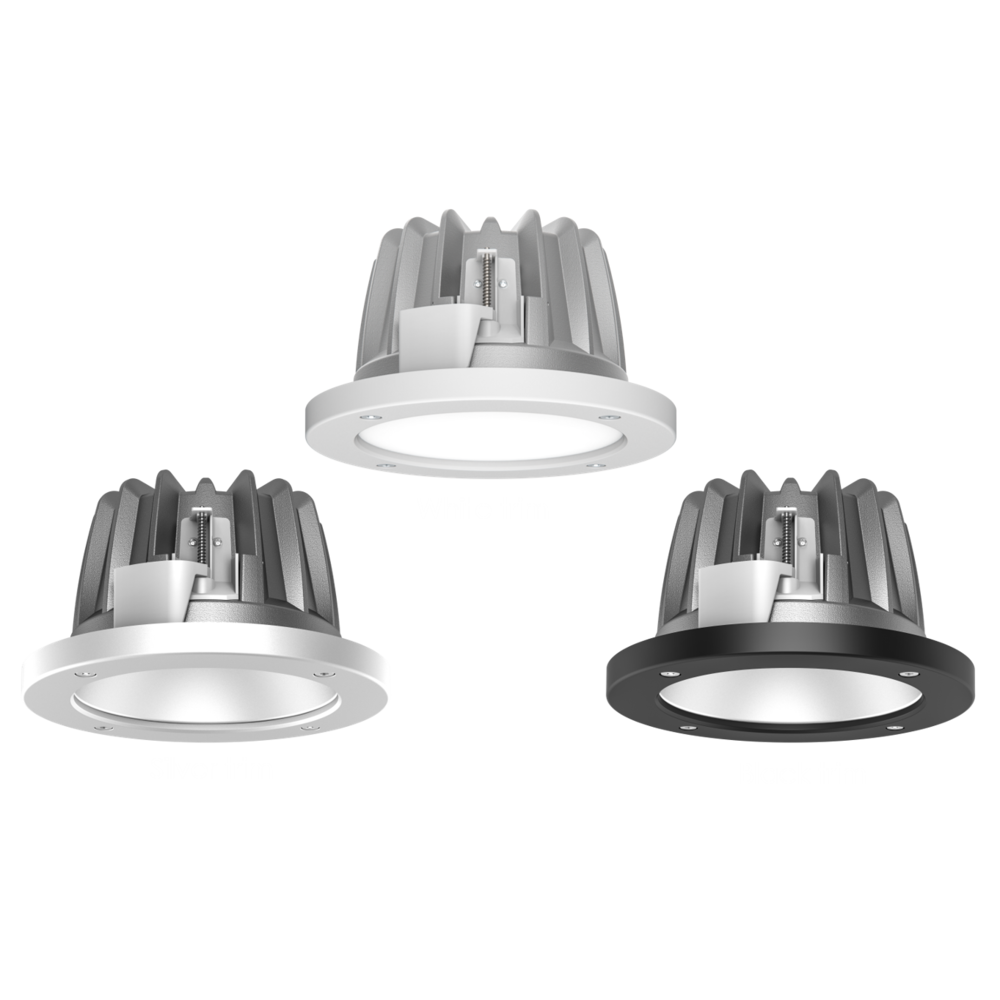

    • Black, silver trim
    • Tuneable white - POA
    • 3500K - POA
    • COI Cyanosis Compliant - POA
    • Torx Security Screws (Add TX to end of code)

Performance

  • Dimmable - OPTIONAL

  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

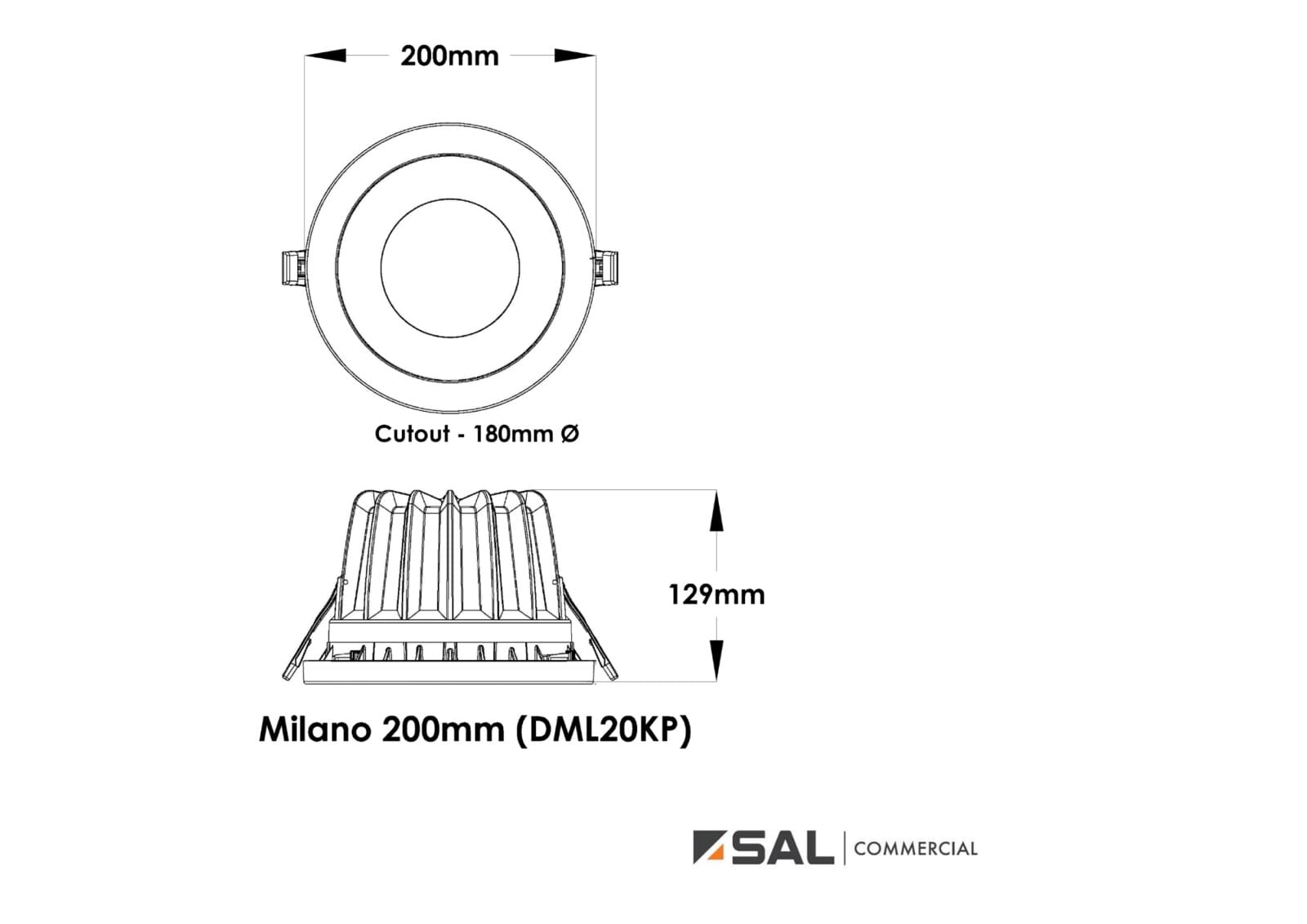

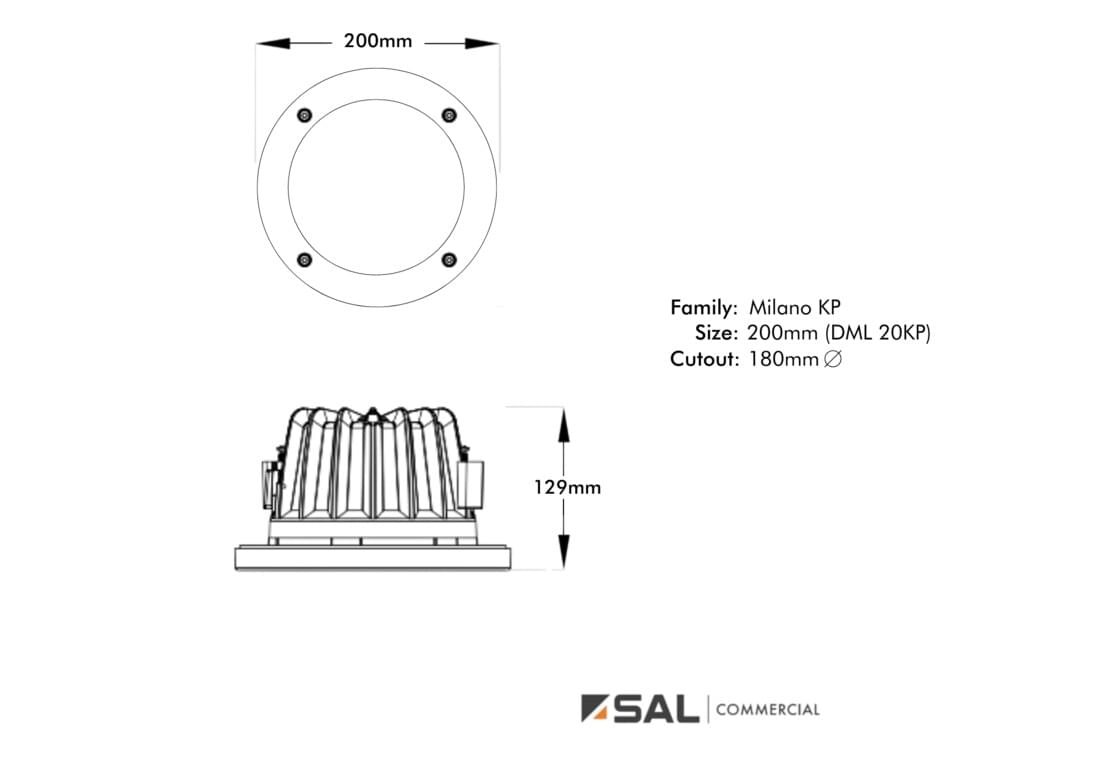

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Input Voltage Power Lumens CCT CRI Diameter Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.DML201440NWHKP DescriptionRecessed IP65 IK10 LED downlight 200mm non dimmable Input Voltage240 Power14 Lumens1554 CCT4000 CRI90 Diameter200mm Add to Enquiry Add Remove Remove
    Model No.DML201840NWHKP DescriptionRecessed IP65 IK10 LED downlight 200mm non dimmable Input Voltage240 Power18 Lumens1997 CCT4000 CRI90 Diameter200mm Add to Enquiry Add Remove Remove
    Model No.DML202140NWHKP DescriptionRecessed IP65 IK10 LED downlight 200mm non dimmable Input Voltage240 Power21 Lumens2330 CCT4000 CRI90 Diameter200mm Add to Enquiry Add Remove Remove
    Model No.DML202440NWHKP DescriptionRecessed IP65 IK10 LED downlight 200mm non dimmable Input Voltage240 Power24 Lumens2763 CCT4000 CRI90 Diameter200mm Add to Enquiry Add Remove Remove
    Model No.DML203140NWHKP DescriptionRecessed IP65 IK10 LED downlight 200mm non dimmable Input Voltage240 Power31 Lumens3329 CCT4000 CRI90 Diameter200mm Add to Enquiry Add Remove Remove

    Code Methodology: DML20 = Size  |  31 = Wattage  |  40 = CCT  |  N = Dimming Type  |  WH = Trim colour  |  KP = IK10/IP65 kit
    Variants Available:
    Wattage - 14 / 18 / 21 / 25 / 31
    CCT - 30 = 3000K / 40 = 4000K / CY = Cyanosis
    Dimming type - N = Non Dim / D = DALI
    Trim Colour - WH = White / BK = Black / SL = Silver
    IK10/IP65 Trim - KP

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
