Atlanta

IP66 / IK69K LED Food Grade High Bay

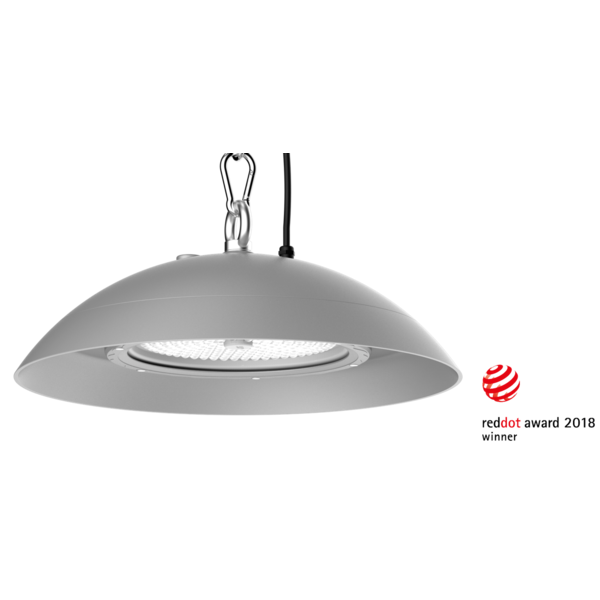

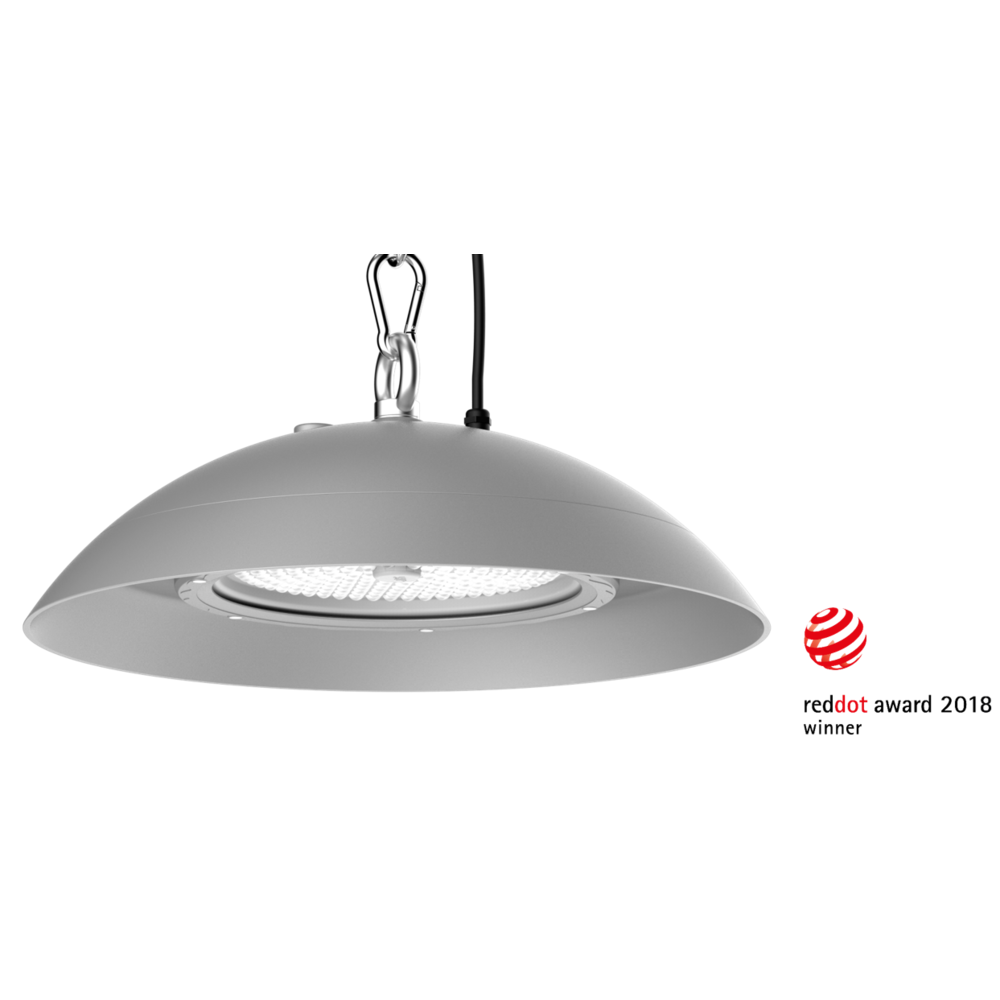

Winner of the RED DOT award in 2018 for outstanding product design

The Red Dot award was established in 1955 with the aim of modernising German consumer goods to make them fit for international export. With more than 18,000 entries yearly from design professionals, companies and organisations from over 70 countries, the Red Dot Award is now one of the worlds largest and the most renowned design competition.

Learn more about the Red Dot Awards here

Application

Introducing the Atlanta food grade high-bay range. A luminaire designed and built to be energy efficient, compliant to the highest standard for food processing areas, and available in a range of specifications to suit your project needs

Designed and manufactured from die-cast aluminium, coated in a durable polyester powder coat, the Atlanta LED high-bay provides a smooth and easy to clean surface. Ensuring compliance with food grade applications, a compliant polycarbonate lens is also fitted as standard

The Atlanta LED food grade high-bay range is available in a range of narrow to wide optics, 50°, 90° and 120° and wattage options, 100w, 120w, 150w and 200w

♦ Food processing plants

♦ Pharmaceutical manufacturing facilities

♦ Pet food production facilities

Design Specifications

  • High output, energy efficient 160lm/w performance LED array

  • L70 >50,000 hours, CRI 80, 5000k CCT, 120° optic nominated as standard

  • IEC 60529:2013 compliant to IP69K. Certified for conditions where equipment must be sanitized to the highest standard

    Rated to 100bar (1450psi) and high temperature steam 80°C

  • Accessories available to suit various installation types:

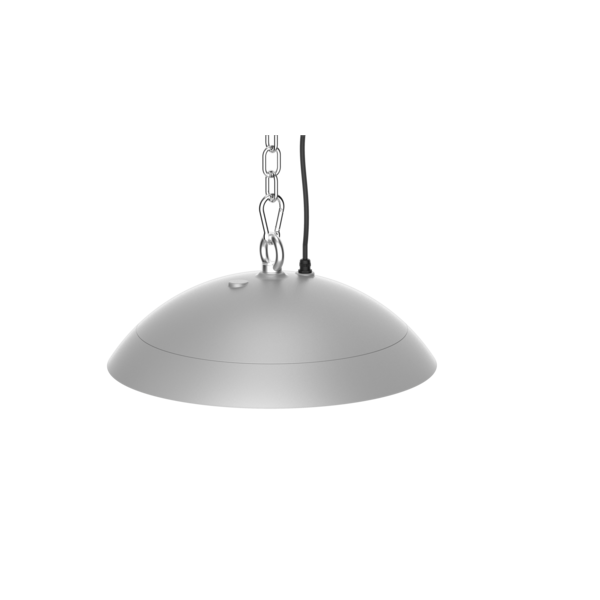

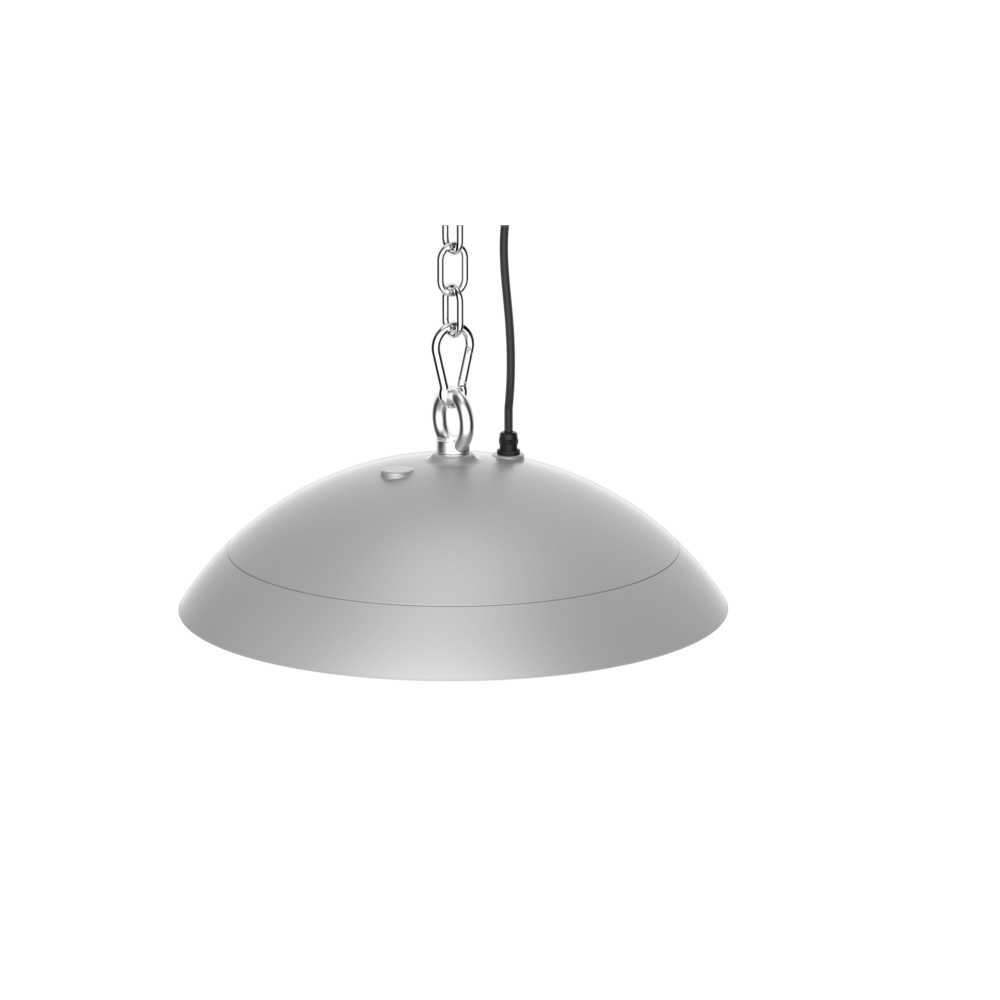

    • suspension loop (standard model)

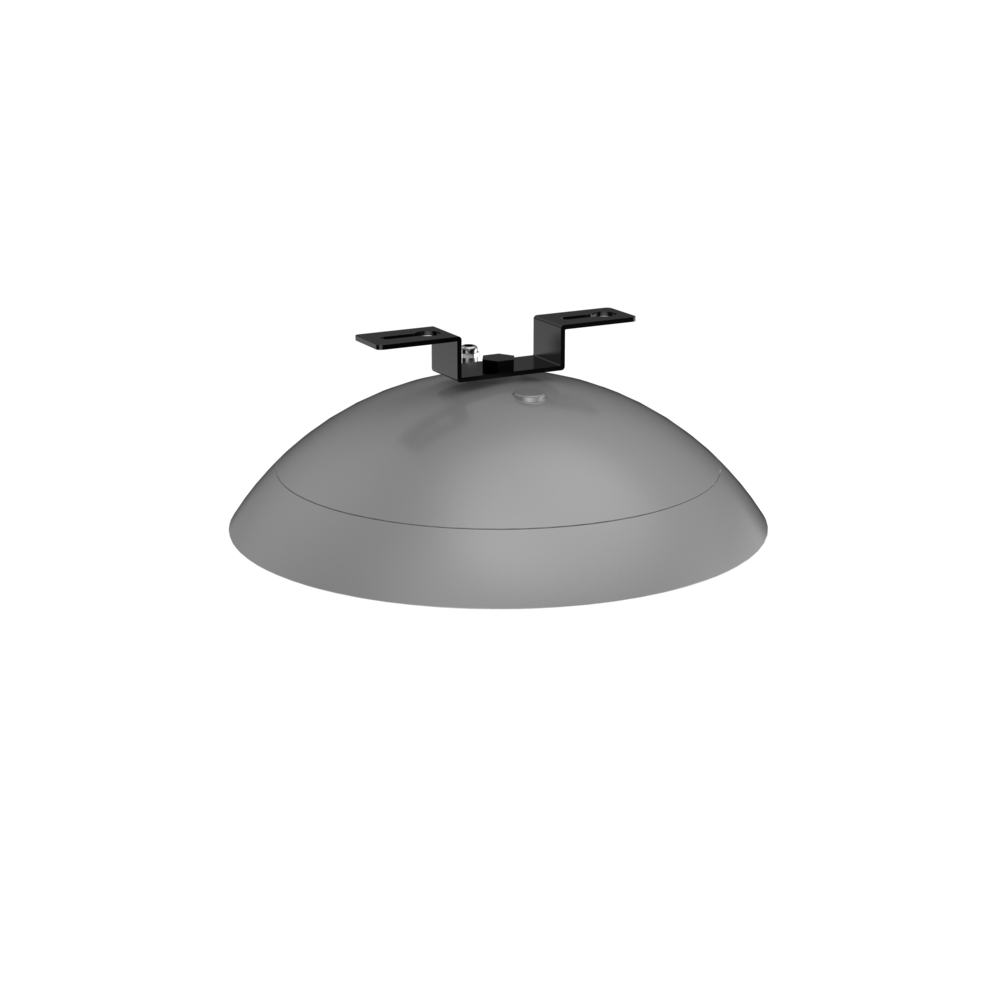

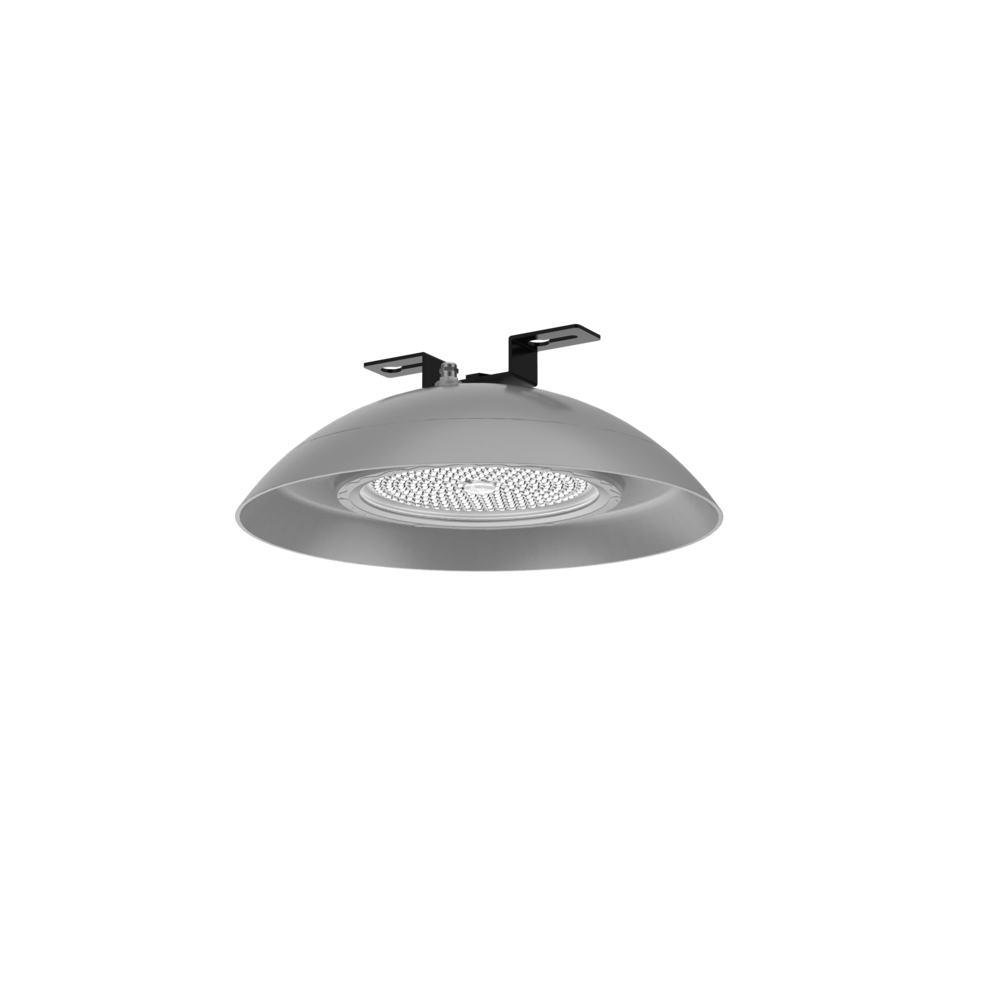

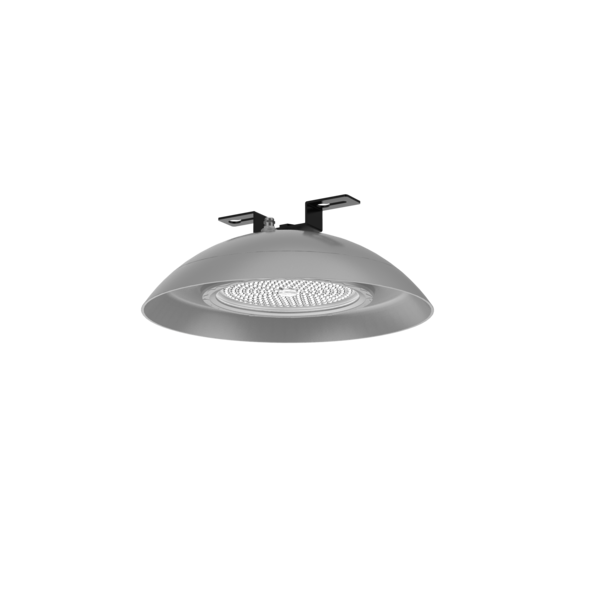

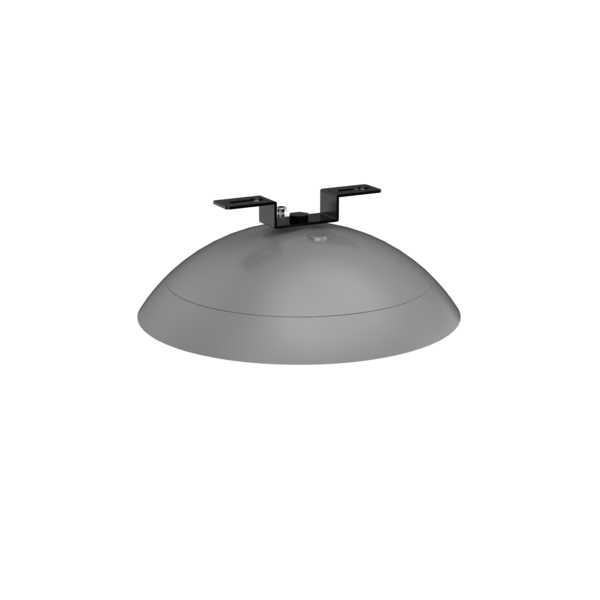

    • Surface mount bracket
    • Pipe mounting

  • Meanwell driver supplied as standard

  • Available Options

    • 3000k, 4000k
    • 50°, 90° beam optics
    • White powder coat finish
    • DALI dimmable driver
    • CRI90

Atlanta
Atlanta
Atlanta
Atlanta
  • 4000KCCT
  • 5000KCCT
  • 4000KCCT
  • 5000KCCT

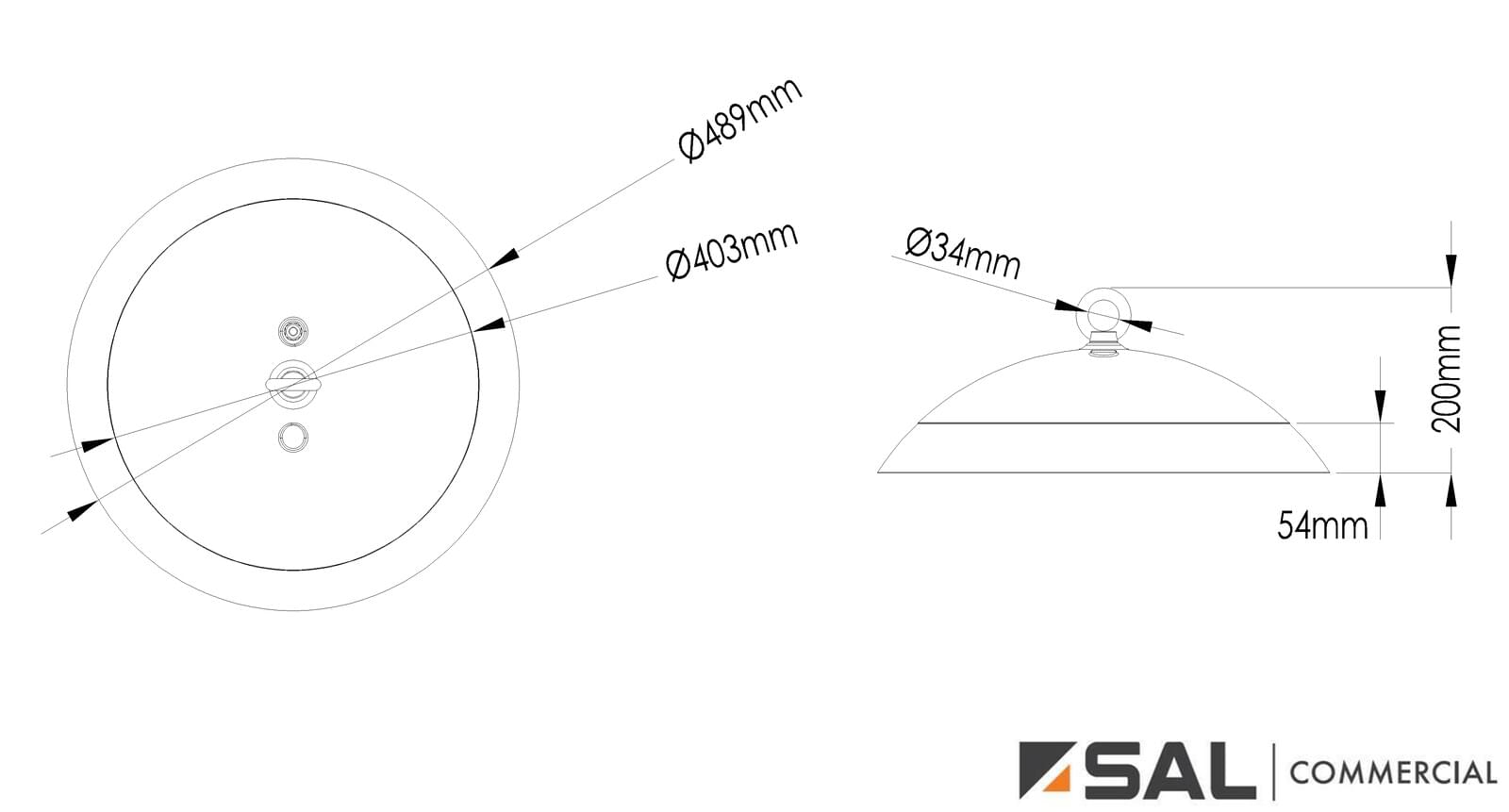

    • Dimensions - Wiring Diagrams
    • Design Options

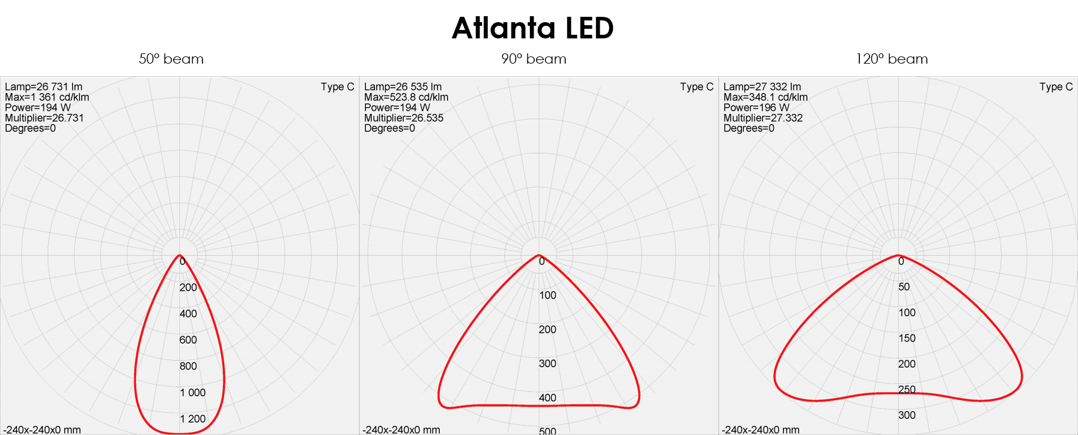

    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Luminous <br/> Efficacy Colour Temp. Lumens CCT Beam Angle CRI Diameter Mass Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. IAT10050N Description Atlanta LED food grade high bay, suspension loop, grey finish Power 100 Luminous
      Efficacy       160       		Colour Temp. 5000 Lumens 16000 CCT 5000 Beam Angle 120 CRI 80 Diameter 490 Mass 7.2 Add to Enquiry Add Remove Remove
      Model No. IAT12050N Description Atlanta LED food grade high bay, suspension loop, grey finish Power 120 Luminous
      Efficacy       160       		Colour Temp. 5000 Lumens 19200 CCT 5000 Beam Angle 120 CRI 80 Diameter 490 Mass 7.2 Add to Enquiry Add Remove Remove
      Model No. IAT15050N Description Atlanta LED food grade high bay, suspension loop, grey finish Power 150 Luminous
      Efficacy       160       		Colour Temp. 5000 Lumens 24000 CCT 5000 Beam Angle 120 CRI 80 Diameter 490 Mass 7.2 Add to Enquiry Add Remove Remove
      Model No. IAT20050N Description Atlanta LED food grade high bay, suspension loop, grey finish Power 200 Luminous
      Efficacy       160       		Colour Temp. 5000 Lumens 32000 CCT 5000 Beam Angle 120 CRI 80 Diameter 490 Mass 7.2 Add to Enquiry Add Remove Remove

    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
