Baltimore LED High Bay

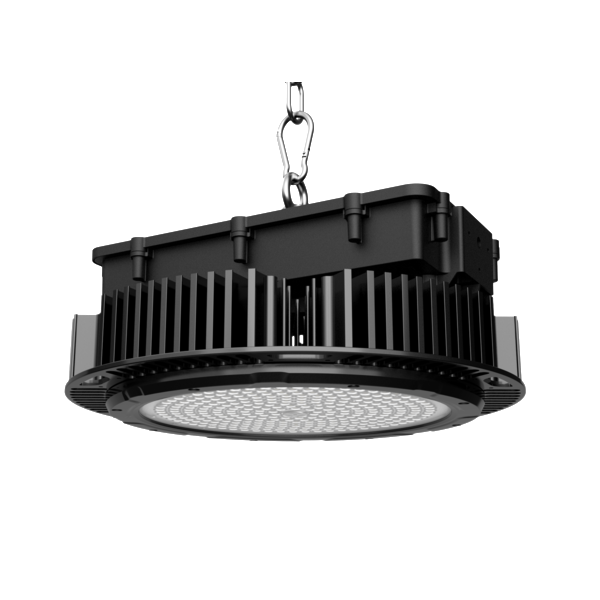

Introducing the Baltimore LED high-bay range

A high output high wattage IP65 product available in both 450w and 600w

Application

The Baltimore LED high-bay range is available in optics ranging from 15° up to 120° and wattage options of 450w and 600w. With a range of accessories including mounting bracket options, visors and lenses, the Baltimore LED high-bay range is suited to:

♦ Distribution centres

♦ Aircraft hangers

♦ Manufacturing facilities

♦ School halls



Design Specifications

  • 160lm/w high output SMD LEDs, 5000k, CRI70 and 120° optic as standard

  • Black powdercoat aluminium alloy body for efficient heat dissipation

  • Operating temperature -30°C to 45°C

  • High temperature polycarbonate optical lens fitted as standard

  • In-built constant current non-dimmable driver as standard



  • Available Options

    • DALI dimming driver
    • Motion sensor, PIR sensor and daylight sensor options
    • 15°, 30°, 60° and 90° beam optics
    • Trunion bracket for use as floodlight with visor accessory
    • Glare sheild

  • 3000KCCT
  • 4000KCCT
  • 5000KCCT
  • 3000KCCT
  • 4000KCCT
  • 5000KCCT
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Colour Temp. Lumens Beam Angle CRI Diameter Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.IBM45030N DescriptionBaltimore LED high-bay non dimmable Power450 Colour Temp.3000 Lumens62000 Beam Angle120 CRI70 Diameter454 Mass12.8 Add to Enquiry Add Remove Remove
    Model No.IBM45040N DescriptionBaltimore LED high-bay non dimmable Power450 Colour Temp.4000 Lumens69000 Beam Angle120 CRI70 Diameter454 Mass12.8 Add to Enquiry Add Remove Remove
    Model No.IBM45050N DescriptionBaltimore LED high-bay non dimmable Power450 Colour Temp.5000 Lumens72000 Beam Angle120 CRI70 Diameter454 Mass12.8 Add to Enquiry Add Remove Remove
    Model No.IBM45030N DescriptionBaltimore LED high-bay non dimmable Power600 Colour Temp.3000 Lumens82000 Beam Angle120 CRI70 Diameter454 Mass13.5 Add to Enquiry Add Remove Remove
    Model No.IBM45040N DescriptionBaltimore LED high-bay non dimmable Power600 Colour Temp.4000 Lumens91000 Beam Angle120 CRI70 Diameter454 Mass13.5 Add to Enquiry Add Remove Remove
    Model No.IBM45060N DescriptionBaltimore LED high-bay non dimmable Power600 Colour Temp.4000 Lumens91000 Beam Angle120 CRI70 Diameter454 Mass13.5 Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
