Calgary

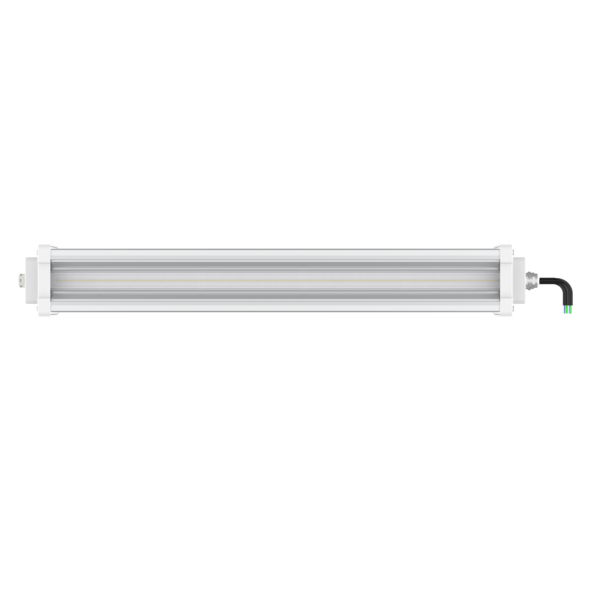

IP66 / IP69K LED Food Industry Linear Batten
Introducing the Calgary Food Grade Linear LED. Designed to withstand the harsh requirements of the food processing industry while providing high performance lighting levels of over 16,000 lumens for the 120W model.
Application
The Calgary LED Linear luminaire comes in multiple wattages, mounting options, optics and control options and is designed to withstand harsh food processing environments;
♦ Food Preparation Areas
♦ Agricultural Applications
♦ Chemical Environments
Design Specifications
5000k, CRI80, 0-10V dimming as Standard with 6kV SPD fitted and LED Lifetime of L80 60,000 hours - 3000k, 4000k and Dali Dimming optional

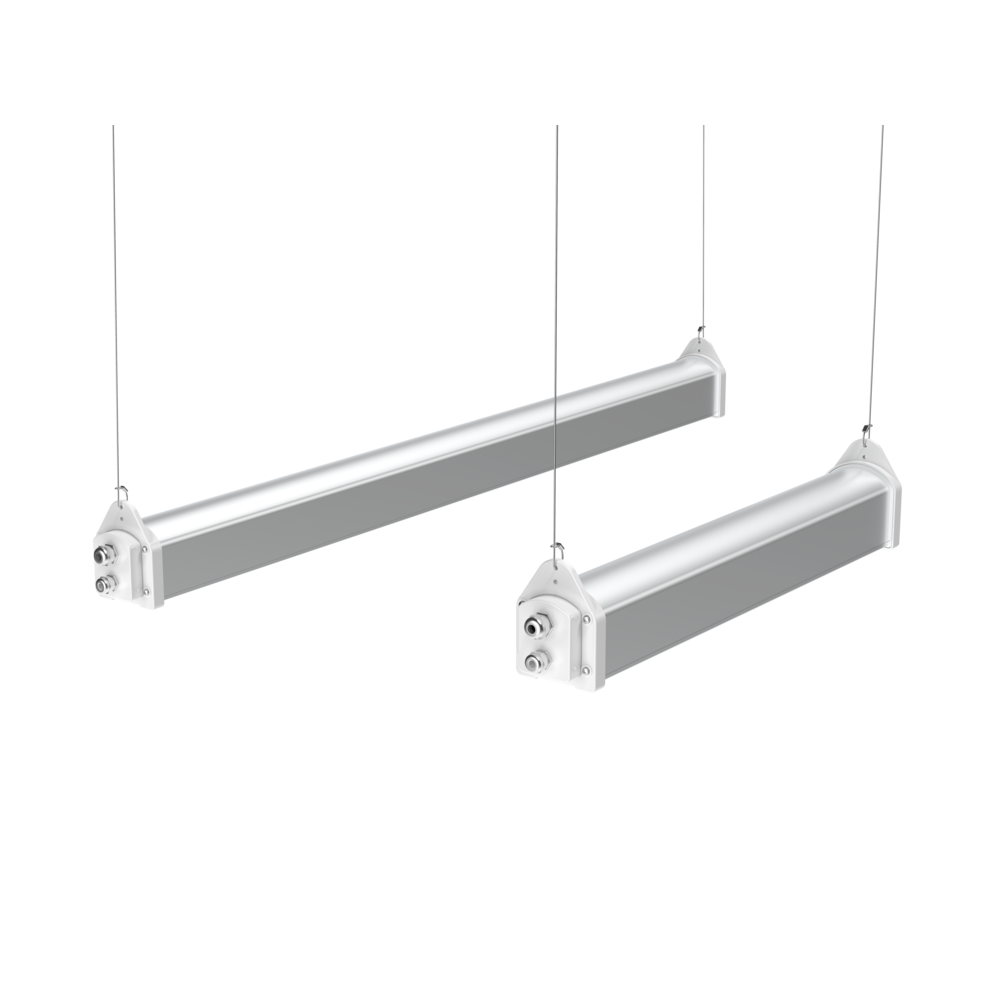

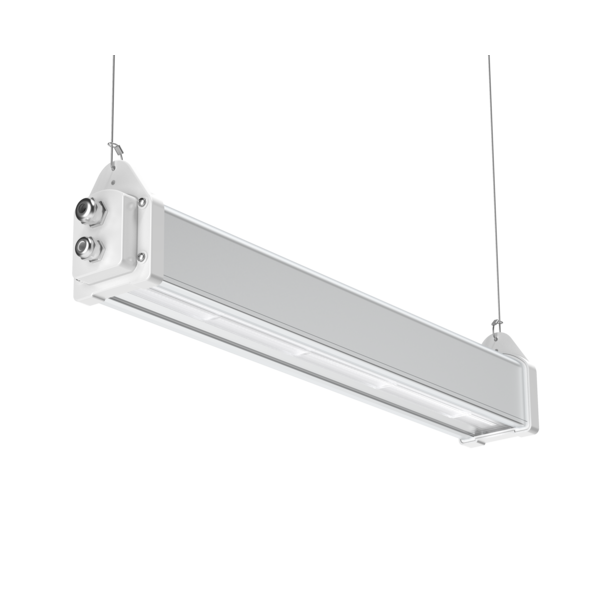

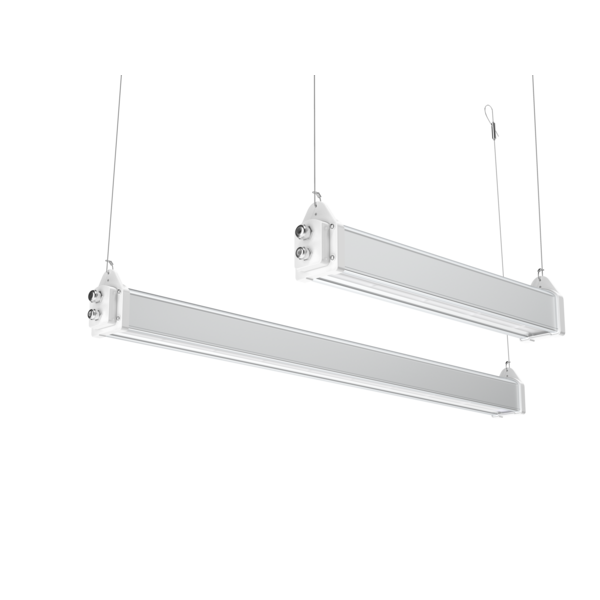

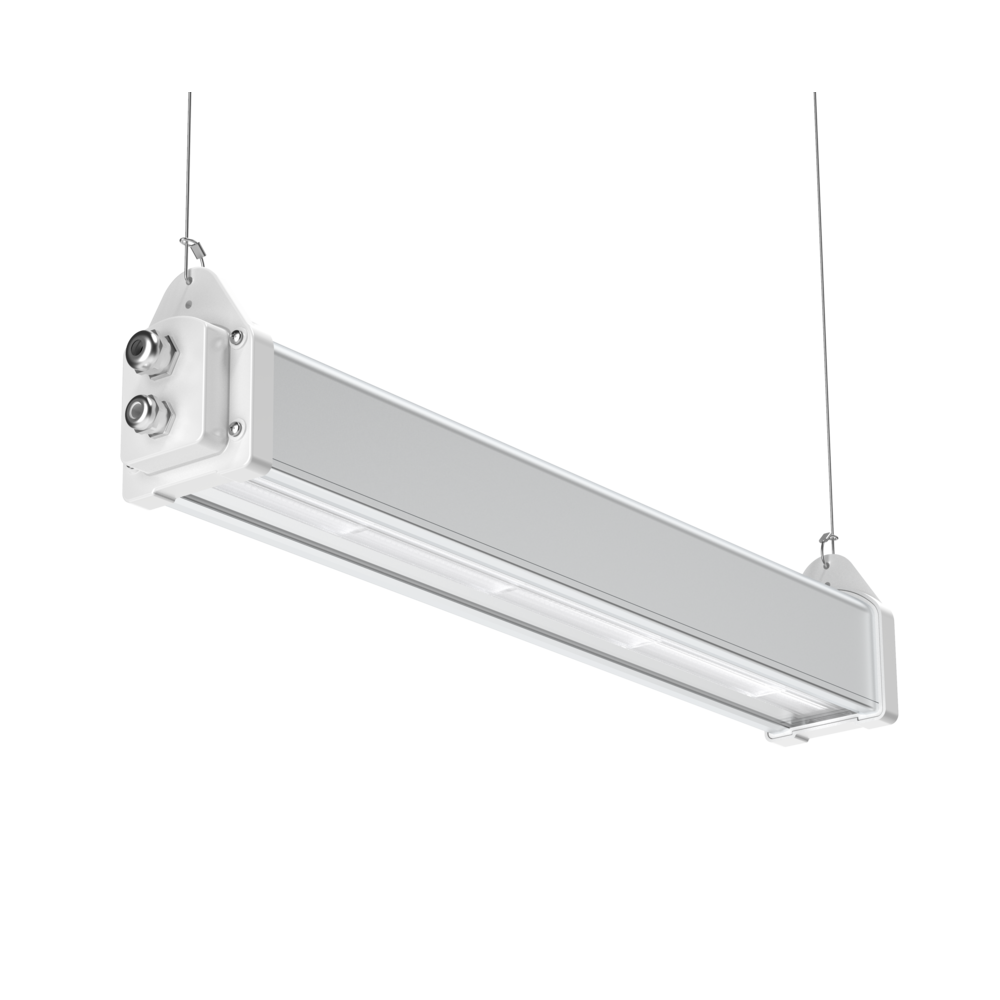

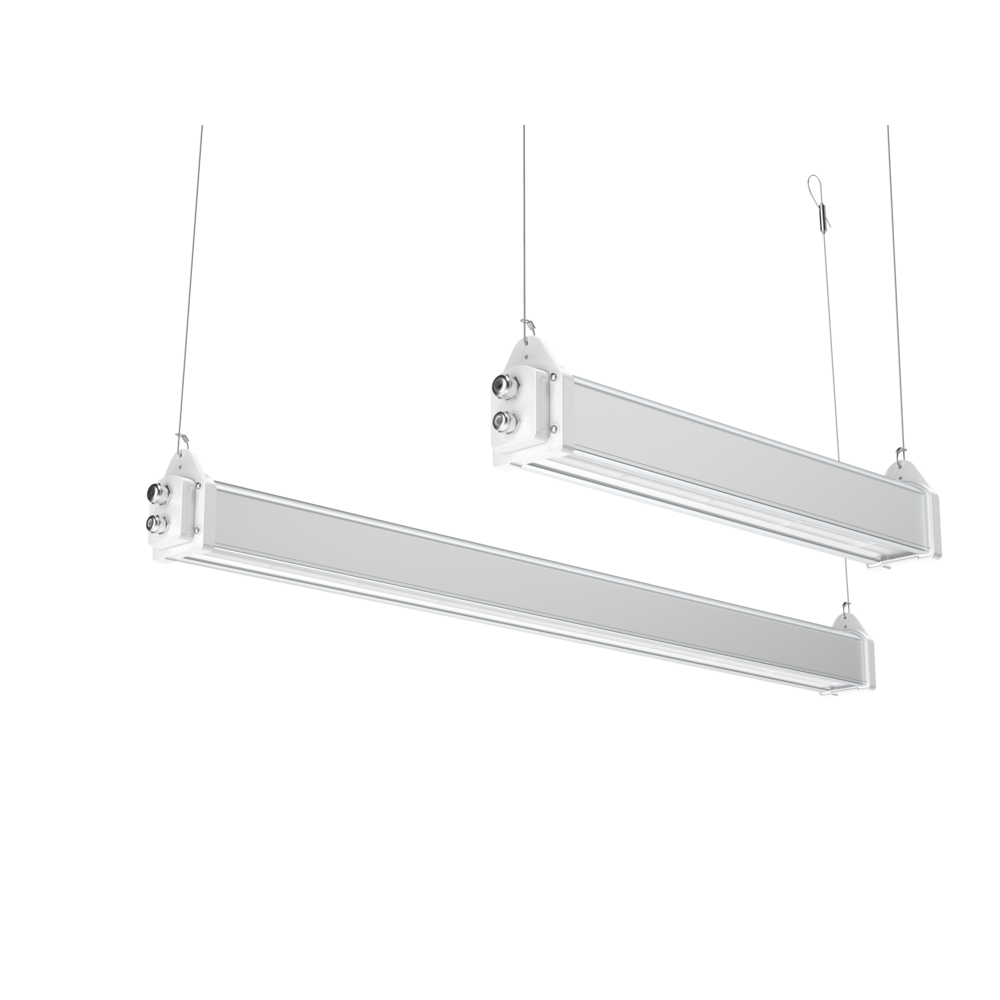

Mounting options available - Wire Suspension and Surface Mounted
IK06 Impact Protection and IP66 Ingress Protection
High quality PMMA diffuser
Beam Optics available: 120º, 100º, 60x90º, 70x100º, 25º, 110x100º, 90x100º
Inventronics constant current 0-10v dimmable driver as standard
3000KCCT
4000KCCT
5000KCCT
3000KCCT
4000KCCT
5000KCCT
-

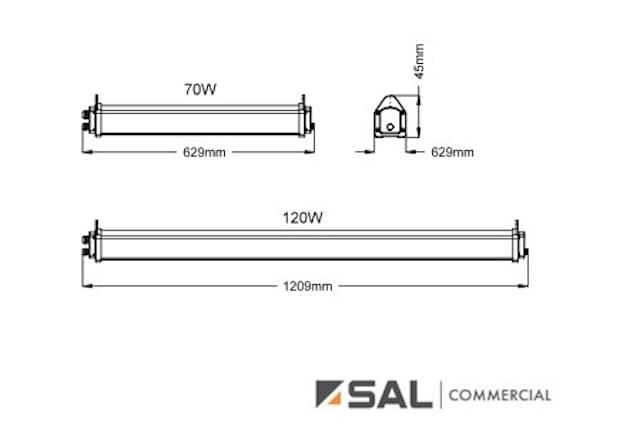

Dimensions - Wiring Diagrams
-
-
Design Options
-

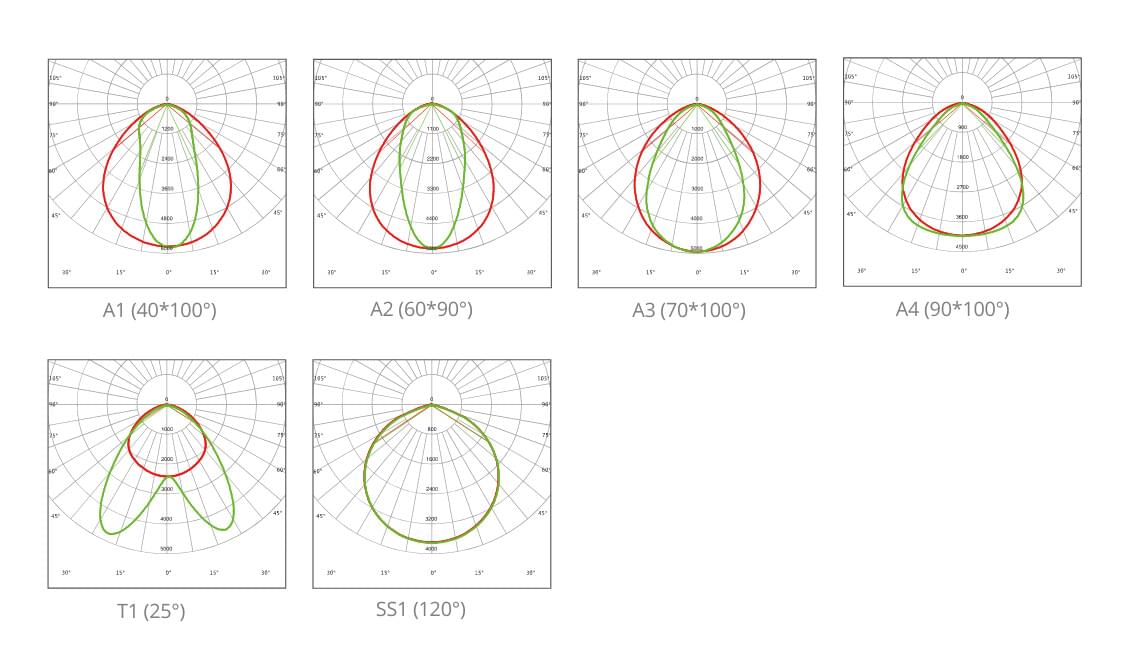

Photometric Data
-
-
Model No. & Technical Specification
Model No. Description Power Colour Temp. Lumens CCT Beam Angle CRI Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickModel No. ICG7050AWSA1 Description Calgary IP69K Food Industry LED Linear Wire Suspension Power 70 Colour Temp. 5000 Lumens 9450 CCT 5000 Beam Angle 40100 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG7050AWSA2 Description Calgary IP69K Food Industry LED Linear Wire Suspension Power 70 Colour Temp. 5000 Lumens 9450 CCT 5000 Beam Angle 6090 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG7050AWSA3 Description Calgary IP69K Food Industry LED Linear Wire Suspension Power 70 Colour Temp. 5000 Lumens 9450 CCT 5000 Beam Angle 70100 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG7050AWSA4 Description Calgary IP69K Food Industry LED Linear Wire Suspension Power 70 Colour Temp. 5000 Lumens 9450 CCT 5000 Beam Angle 90100 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG7050AWST1 Description Calgary IP69K Food Industry LED Linear Wire Suspension Power 70 Colour Temp. 5000 Lumens 9450 CCT 5000 Beam Angle 25 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG7050AWSS1 Description Calgary IP69K Food Industry LED Linear Wire Suspension Power 70 Colour Temp. 5000 Lumens 9450 CCT 5000 Beam Angle 120 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG7050ASMA1 Description Calgary IP69K Food Industry LED Linear Surface Mount Power 70 Colour Temp. 5000 Lumens 9450 CCT 5000 Beam Angle 40100 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG7050ASMA2 Description Calgary IP69K Food Industry LED Linear Surface Mount Power 70 Colour Temp. 5000 Lumens 9450 CCT 5000 Beam Angle 6090 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG7050ASMA3 Description Calgary IP69K Food Industry LED Linear Surface Mount Power 70 Colour Temp. 5000 Lumens 9450 CCT 5000 Beam Angle 70100 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG7050ASMA4 Description Calgary IP69K Food Industry LED Linear Surface Mount Power 70 Colour Temp. 5000 Lumens 9450 CCT 5000 Beam Angle 90100 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG7050ASMT1 Description Calgary IP69K Food Industry LED Linear Surface Mount Power 70 Colour Temp. 5000 Lumens 9450 CCT 5000 Beam Angle 25 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG7050ASMS1 Description Calgary IP69K Food Industry LED Linear Surface Mount Power 70 Colour Temp. 5000 Lumens 9450 CCT 5000 Beam Angle 120 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG12050AWSA1 Description Calgary IP69K Food Industry LED Linear Wire Suspension Power 120 Colour Temp. 5000 Lumens 16200 CCT 5000 Beam Angle 40100 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG12050AWSA2 Description Calgary IP69K Food Industry LED Linear Wire Suspension Power 120 Colour Temp. 5000 Lumens 16200 CCT 5000 Beam Angle 6090 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG12050AWSA3 Description Calgary IP69K Food Industry LED Linear Wire Suspension Power 120 Colour Temp. 5000 Lumens 16200 CCT 5000 Beam Angle 70100 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG12050AWSA4 Description Calgary IP69K Food Industry LED Linear Wire Suspension Power 120 Colour Temp. 5000 Lumens 16200 CCT 5000 Beam Angle 90100 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG12050AWST1 Description Calgary IP69K Food Industry LED Linear Wire Suspension Power 120 Colour Temp. 5000 Lumens 16200 CCT 5000 Beam Angle 25 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG12050AWSS1 Description Calgary IP69K Food Industry LED Linear Wire Suspension Power 120 Colour Temp. 5000 Lumens 16200 CCT 5000 Beam Angle 120 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG12050ASMA1 Description Calgary IP69K Food Industry LED Linear Surface Mount Power 120 Colour Temp. 5000 Lumens 16200 CCT 5000 Beam Angle 40100 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG12050ASMA2 Description Calgary IP69K Food Industry LED Linear Surface Mount Power 120 Colour Temp. 5000 Lumens 16200 CCT 5000 Beam Angle 6090 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG12050ASMA3 Description Calgary IP69K Food Industry LED Linear Surface Mount Power 120 Colour Temp. 5000 Lumens 16200 CCT 5000 Beam Angle 70100 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG12050ASMA4 Description Calgary IP69K Food Industry LED Linear Surface Mount Power 120 Colour Temp. 5000 Lumens 16200 CCT 5000 Beam Angle 90100 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG12050ASMT1 Description Calgary IP69K Food Industry LED Linear Surface Mount Power 120 Colour Temp. 5000 Lumens 16200 CCT 5000 Beam Angle 25 CRI 80 Add to Enquiry Add Remove Remove Model No. ICG12050ASMS1 Description Calgary IP69K Food Industry LED Linear Surface Mount Power 120 Colour Temp. 5000 Lumens 16200 CCT 5000 Beam Angle 120 CRI 80 Add to Enquiry Add Remove Remove Available Options
- Adjustable ceiling bracket
- Safety Lanyard
