Columbia

IP66 / IP69K Corrosive Environment LED Linear

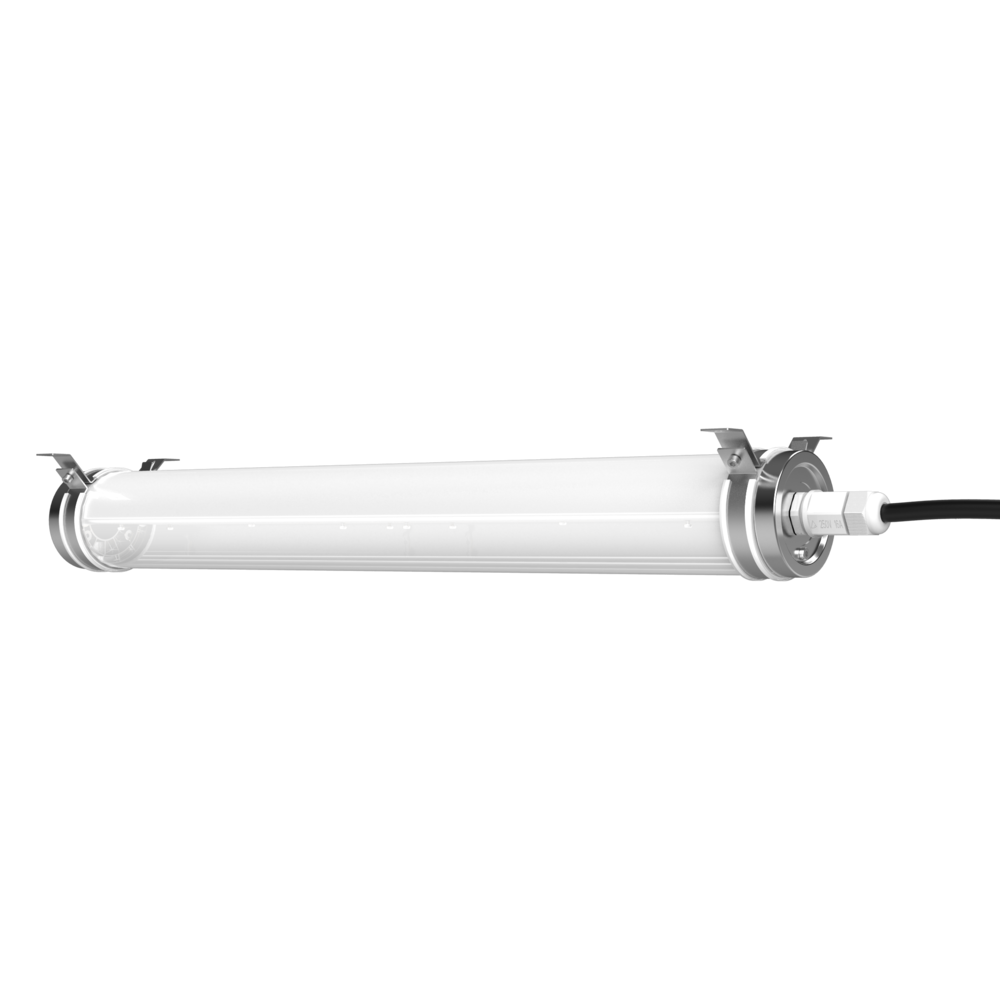

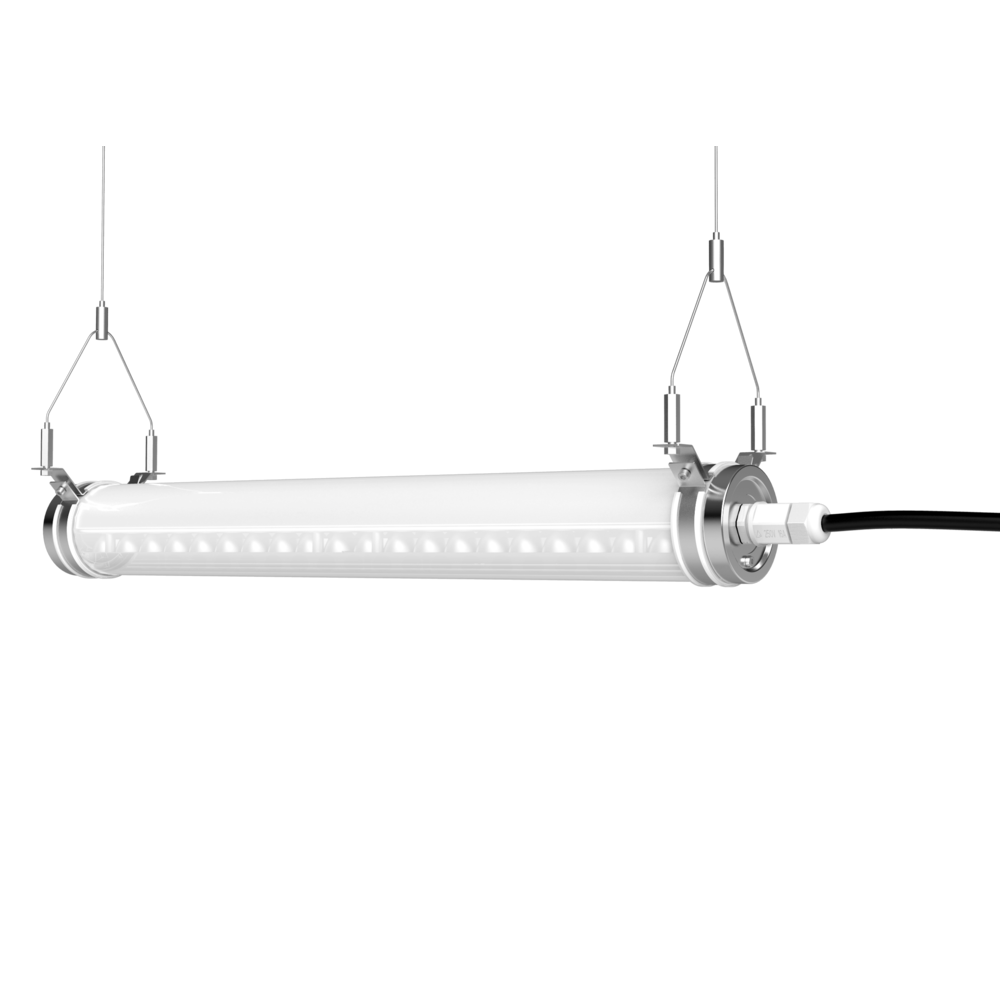

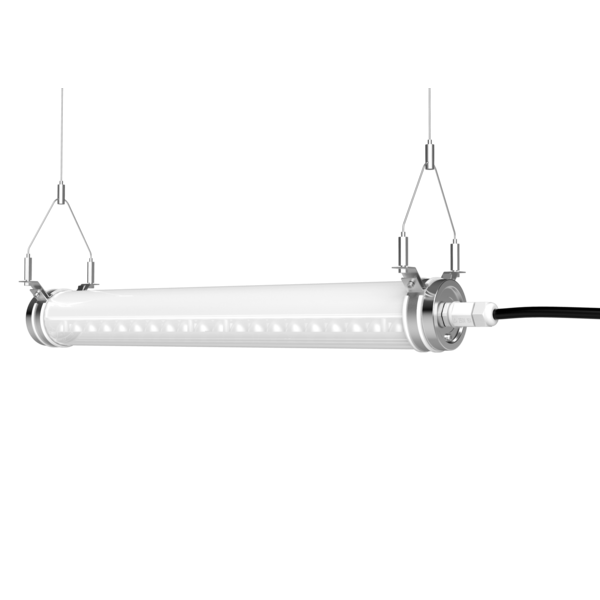

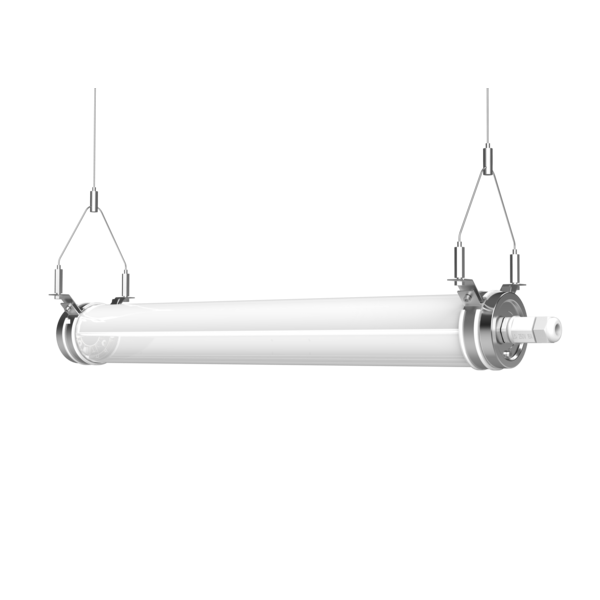

Introducing the Columbia Linear LED Tubelight - Ideal for Food Preparation and harsh environments

Application

The Columbia LED Tubelight comes in multiple wattages, optics and control options - and is suitable for the below applications;

♦ Food Preparation Areas

♦ Agricultural Applications

♦ Chemical Environments

Design Specifications

  • 4000k, CRI80, Non-Dimmable as Standard - 3000k, 5000k and Dali Dimming optional

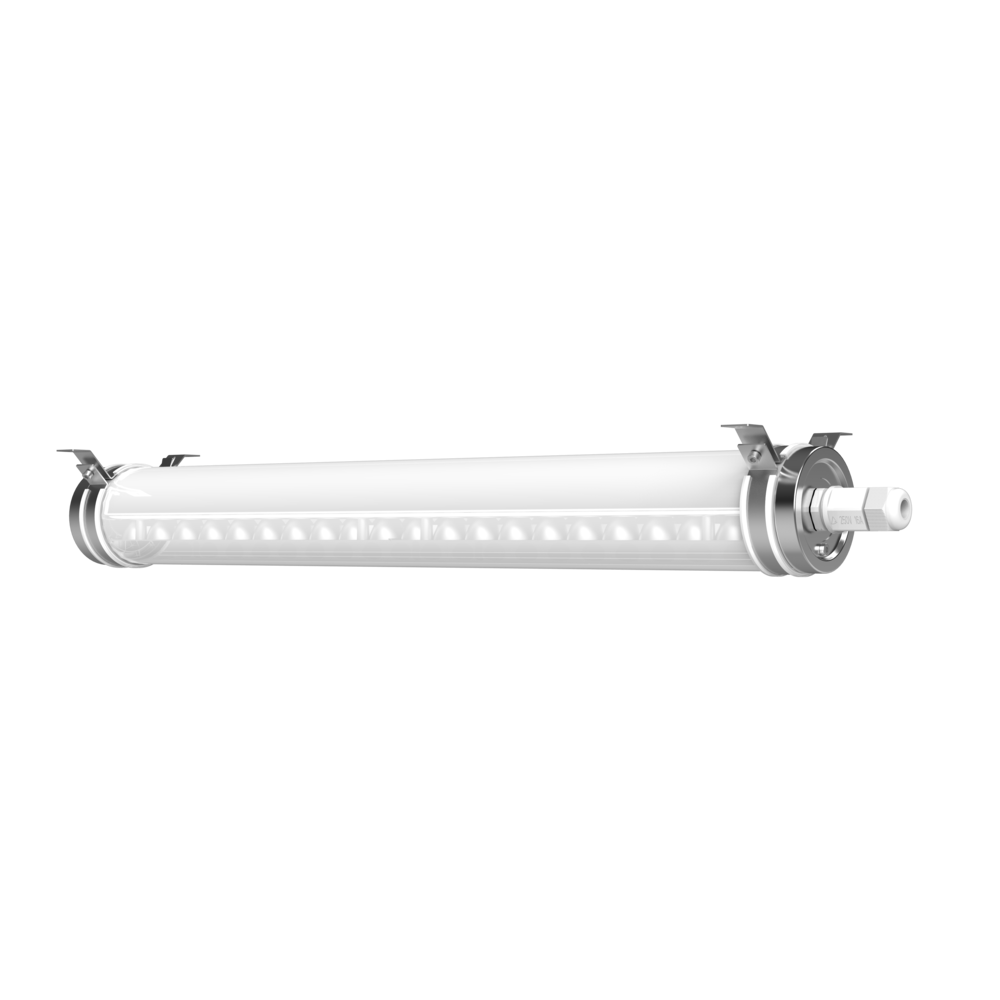

  • Ceiling Mount Bracket as Standard

  • Low Glare UGR<19 Polycarbonate Diffuser as Standard

  • 120° Beam Optics as standard

  • IK10, IP69K, against water pressure of 100bar (1450psi) and temperature of 80°C

  • Available Options

    • Anti Corrosive PMMA Lens - POA
    • Dali Dimming

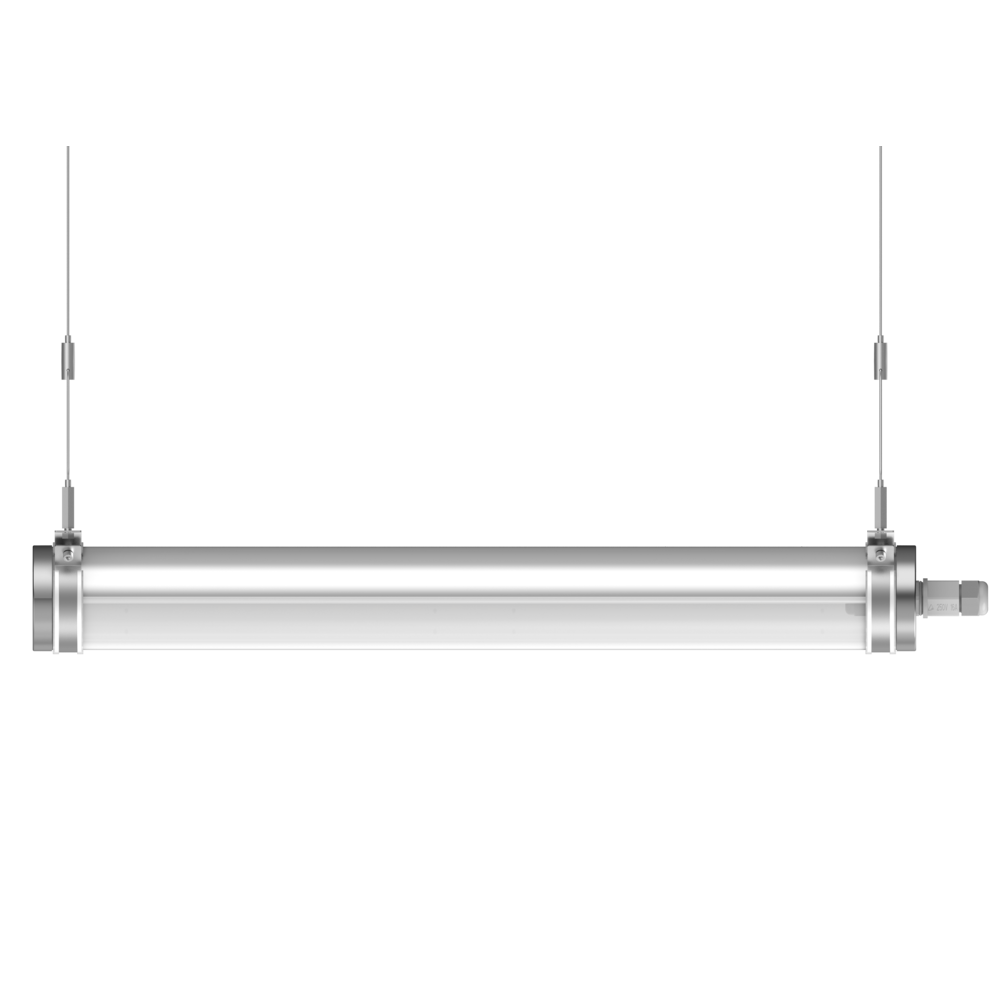

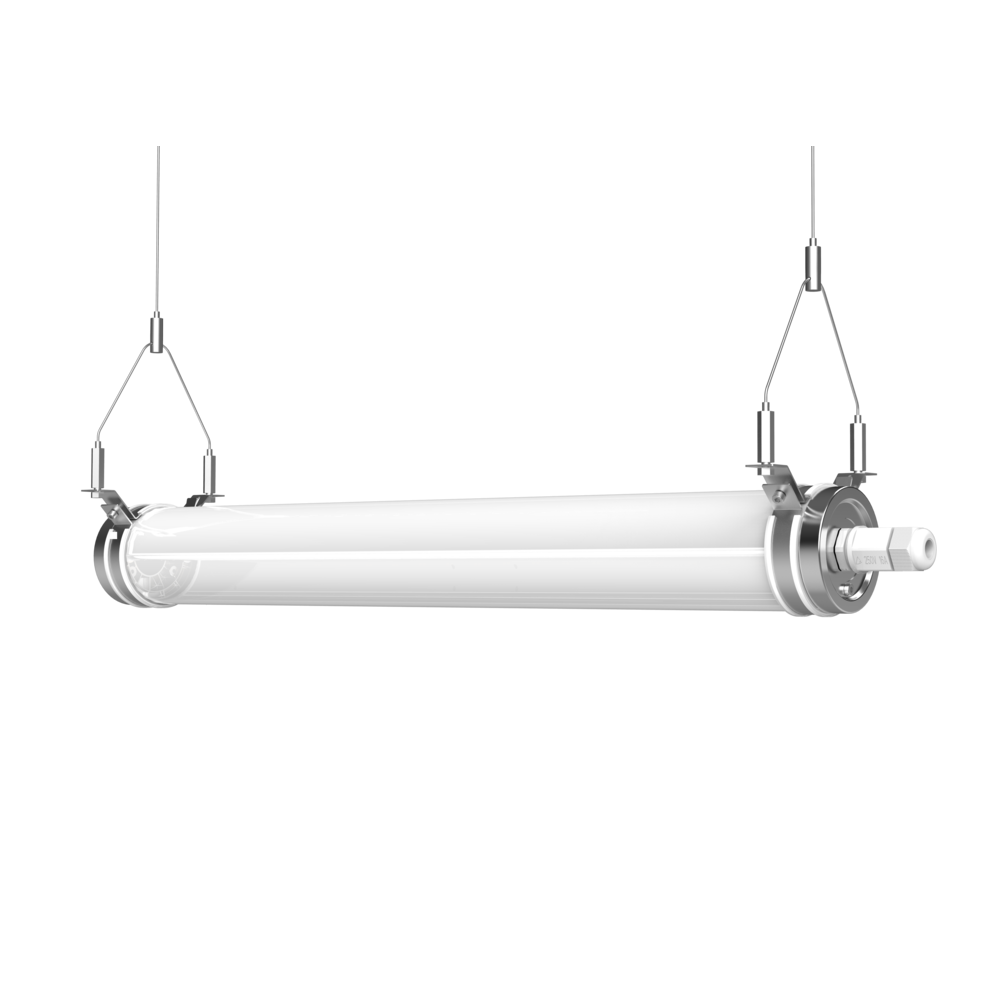

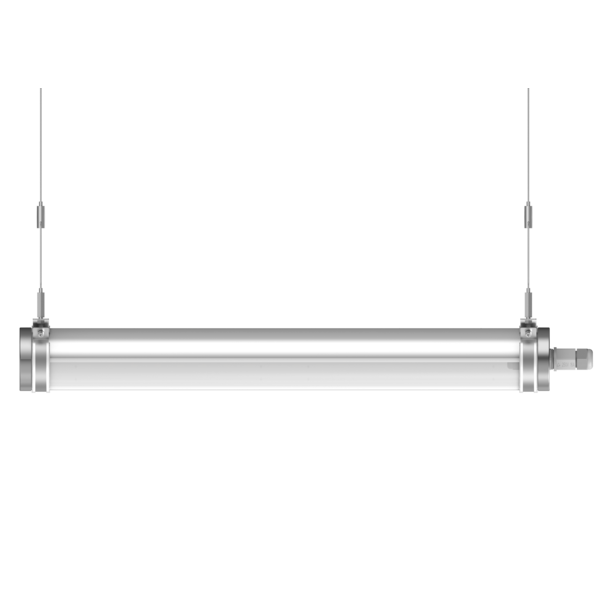

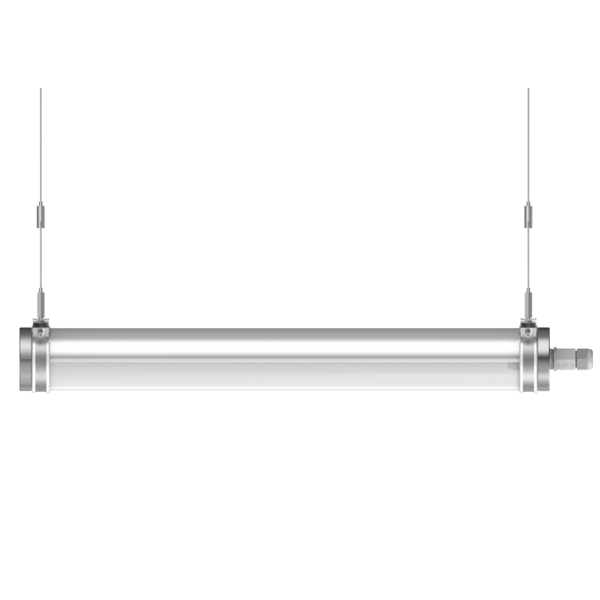

    • Wire Suspension Kit - Code ICASSKIT
    • 60° / 90° Beam Optics

  • 4000KCCT
  • 3000KCCT
  • 5000KCCT
  • 4000KCCT
  • 3000KCCT
  • 5000KCCT

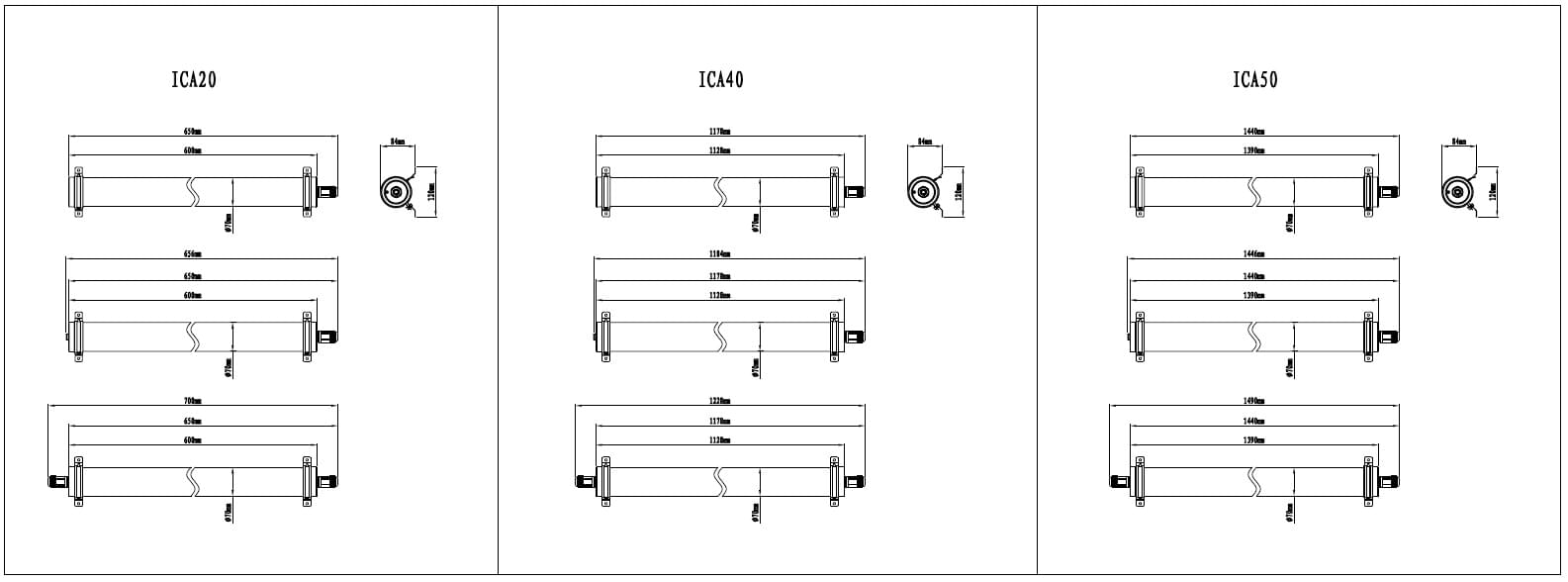

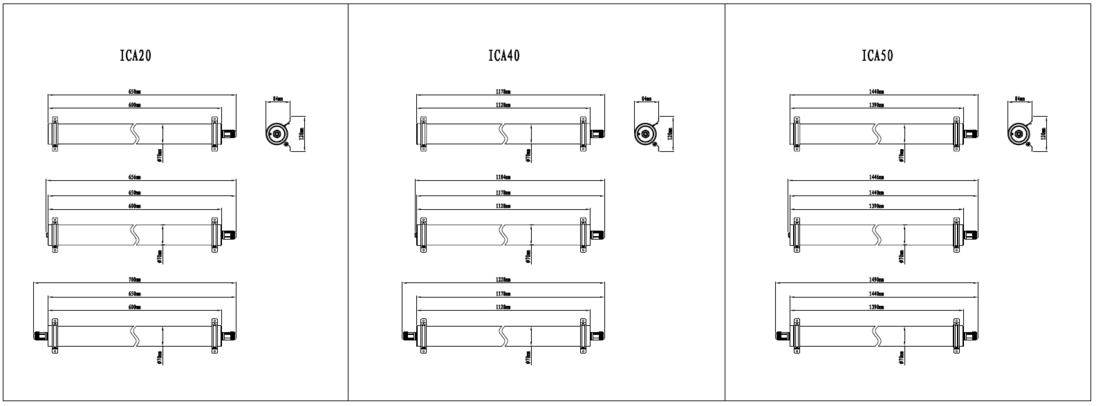

  • Dimensions - Wiring Diagrams
  • Design Options

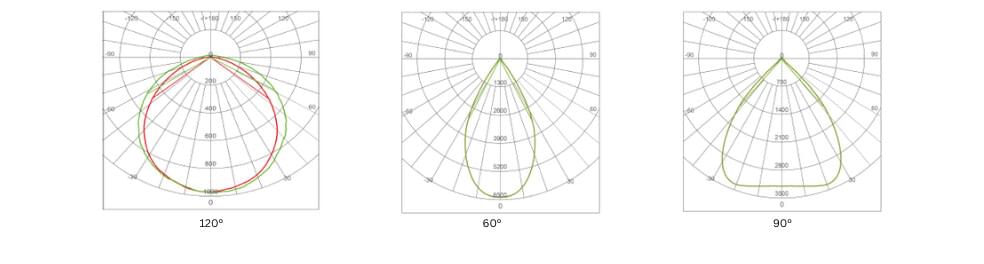

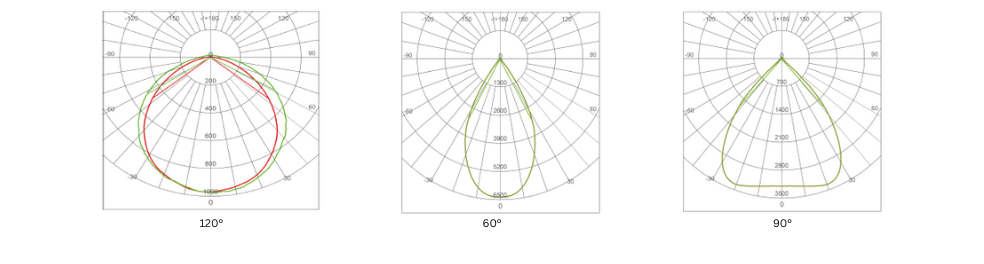

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Colour Temp. Lumens CCT Beam Angle CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.ICA2040N DescriptionColumbia Linear LED Tubelight 600mm Non-Dim Opal Diffuser Ceiling Mount Power20 Colour Temp.4000 Lumens2800 CCT4000 Beam Angle120 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICA2040D DescriptionColumbia Linear LED Tubelight 600mm Dali-Dim Opal Diffuser Ceiling Mount Power20 Colour Temp.4000 Lumens2800 CCT4000 Beam Angle120 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICA4040N DescriptionColumbia Linear LED Tubelight 1128mm Non-Dim Opal Diffuser Ceiling Mount Power40 Colour Temp.4000 Lumens5600 CCT4000 Beam Angle120 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICA4040D DescriptionColumbia Linear LED Tubelight 1128mm Dali-Dim Opal Diffuser Ceiling Mount Power40 Colour Temp.4000 Lumens5600 CCT4000 Beam Angle120 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICA5040N DescriptionColumbia Linear LED Tubelight 1390mm Non-Dim Opal Diffuser Ceiling Mount Power50 Colour Temp.4000 Lumens7000 CCT4000 Beam Angle120 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICA5040D DescriptionColumbia Linear LED Tubelight 1390mm Dali-Dim Opal Diffuser Ceiling Mount Power50 Colour Temp.4000 Lumens7000 CCT4000 Beam Angle120 CRI80 Add to Enquiry Add Remove Remove

    Code Methodology: ICA = Model Prefix  |  20 = Wattage  |  40 = CCT  |  N = Dimming Type

    Variants Available:
    Columbia Series Prefix: ICA
    Wattage: 20 / 40 / 50
    CCT: 40 = 4000k / 30 = 3000k / 50 = 5000k
    Dimming type: N = Non Dim / D = Dali
    Beam Angle (60° as Standard): -60D = 60° / -120D = 120°

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
