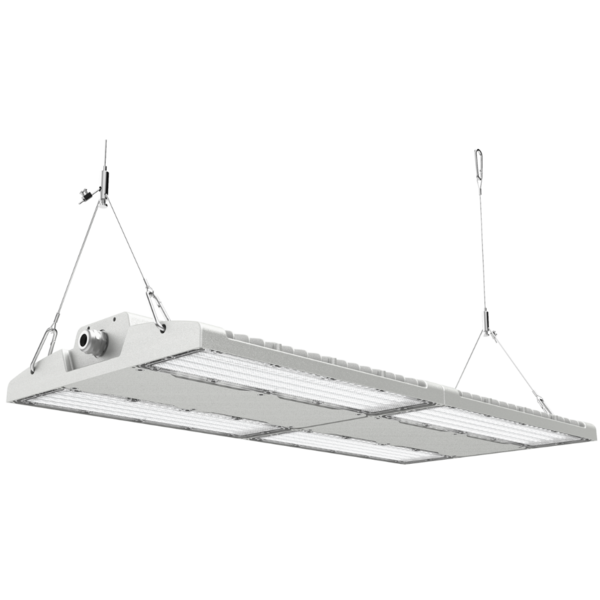

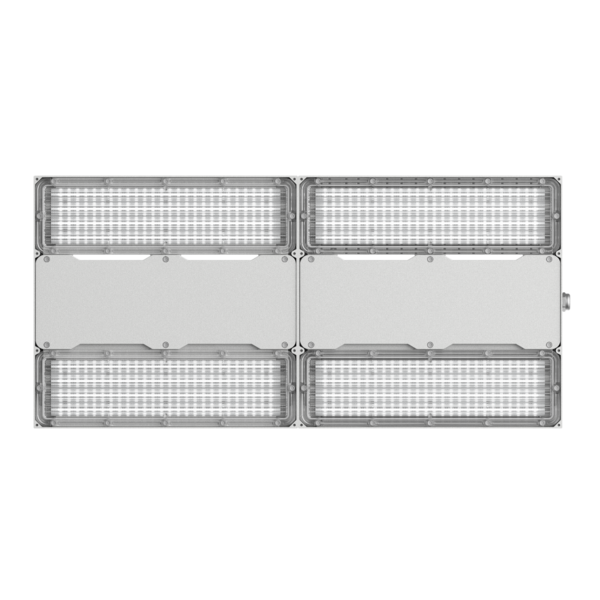

Denver 2
200w / 240w / 300w IP66 / IK10 LED Linear High Bay
Denver is available in a wide range of sizes, lumen packages and optics. Click below to see the complete range of order codes:
Complete list of ORDER CODES AVAILABLE
Application

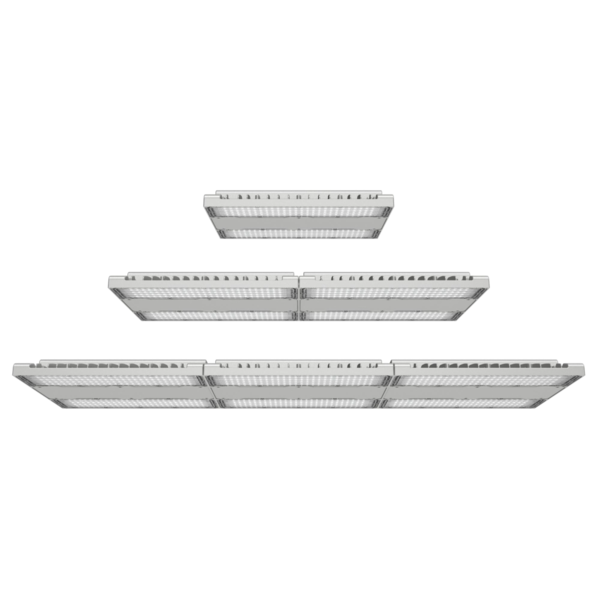

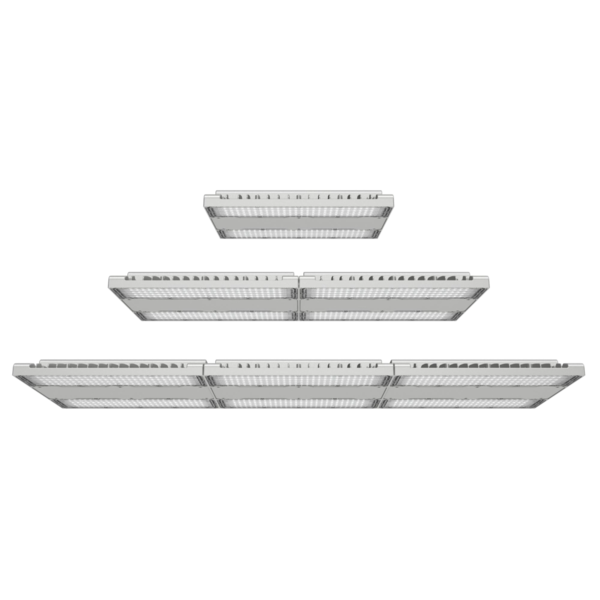

The Denver High bay range is a modular, linear style High Bay luminaire designed for hi-rack installations used in warehouse applications. The range incorporates 3 sizes, 7 driver options and 8 optics to suit most modern industrial applications.
With a die-cast aluminium construction offering IP66 and IK10, and a temperature range of -30° to 50°, the Denver High-bay range is suited to a large range of applications:
Interior and Exterior applications, Warehousing, Industrial and Exhibition halls.
Design Specifications
>150lm/w Output / CRI 80 / SDCM 3
LED lifetime: L80 @ 82,000 hours
Low glare LED optimised optics including a range of both Symmetrical and Asymmetric optics
High efficiency polycarbonate lens
Available Options:
- 3000K, 4000K CCT

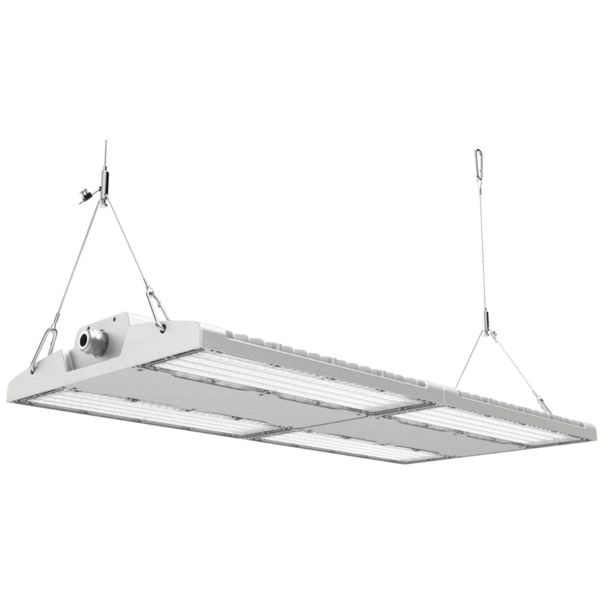

- Suspension mounted (standard)

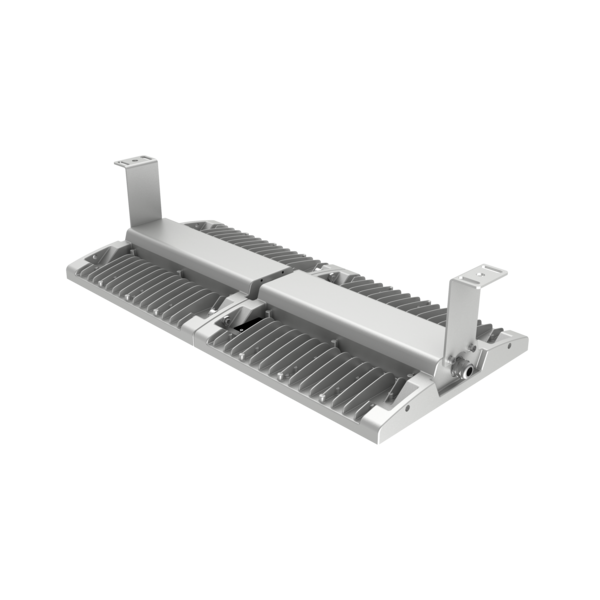

- Ceiling/surface mount

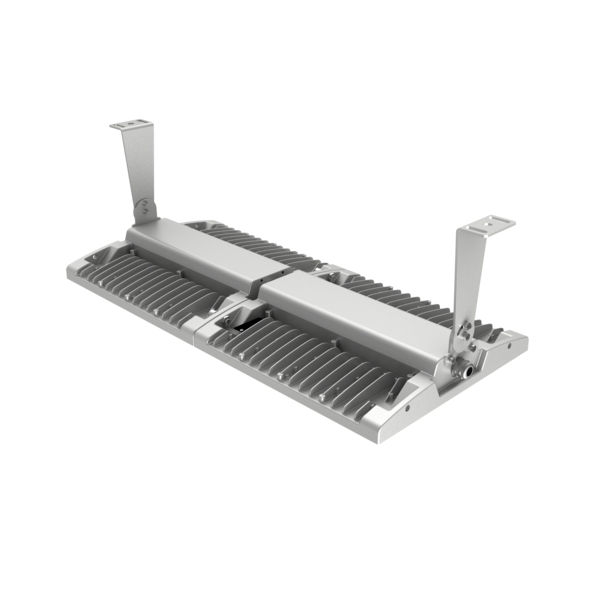

- Adjustable surface mount with 60° of adjustability
- Plug and play motion sensor
- Glare control louvres
Click below to view ALL order codes available:
Complete list of ORDER CODES AVAILABLE
4000KCCT
5000KCCT
-

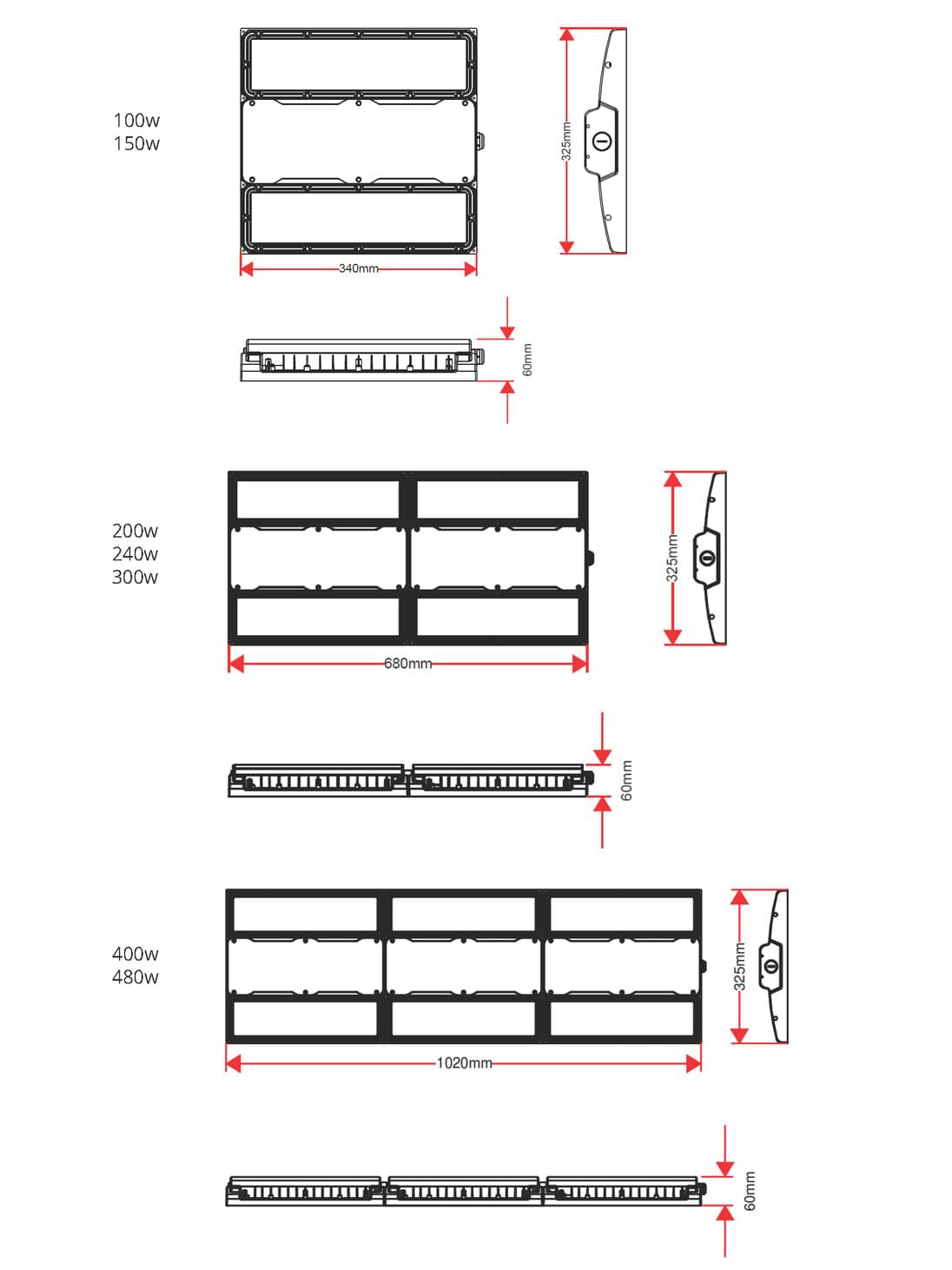

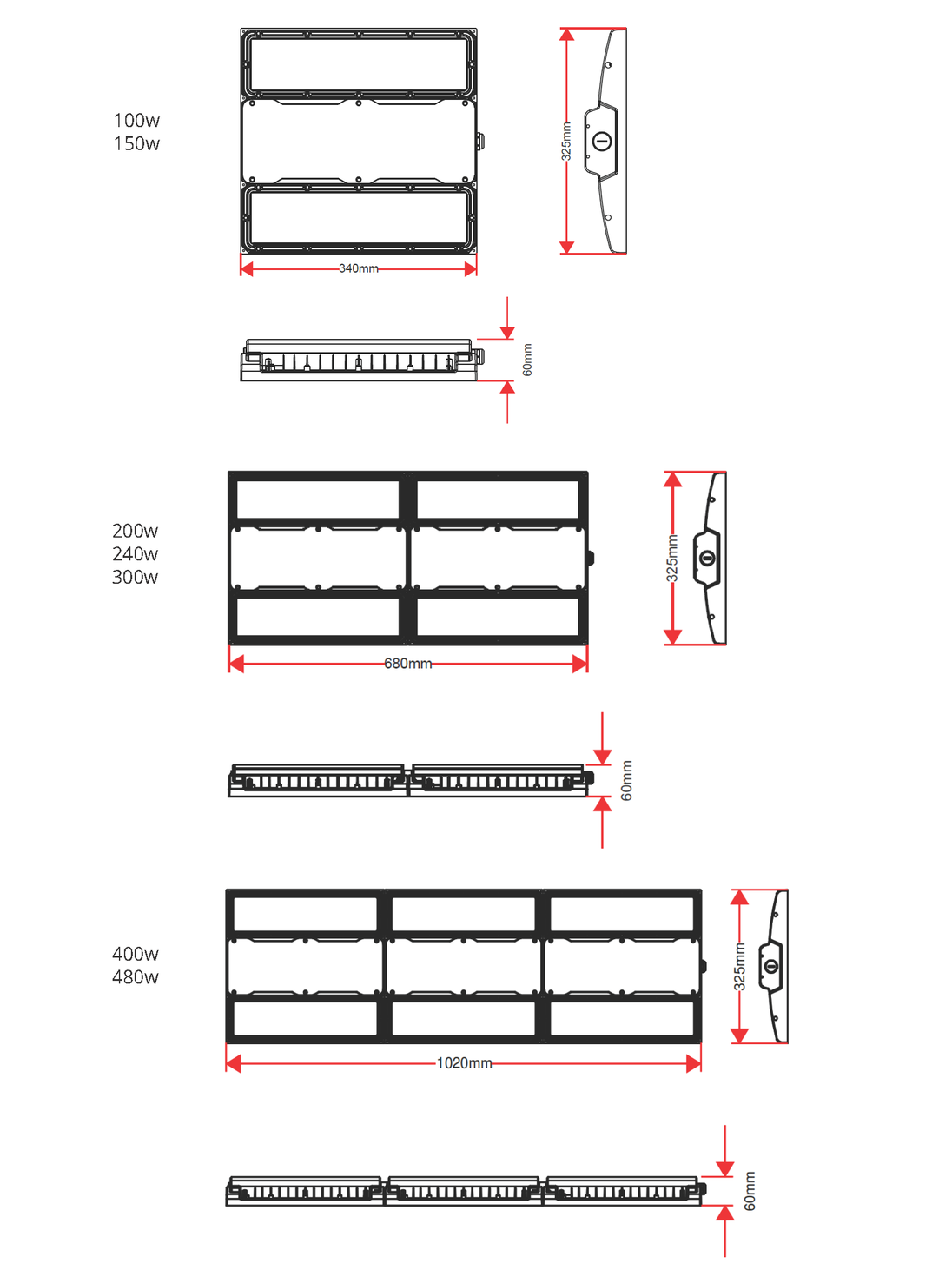

Dimensions - Wiring Diagrams
-
-
Model No. & Technical Specification
Model No. Description Power Luminous <br/> Efficacy Lumens CCT Beam Angle CRI Mass Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickModel No. IDV20050NS55 Description Denver linear LED high-bay, IP66, IK10 Power 200 Luminous
Efficacy 155Lumens 31000 CCT 5000 Beam Angle 55 CRI 80 Mass 6.7 Add to Enquiry Add Remove Remove Model No. IDV20050NS60 Description Denver linear LED high-bay, IP66, IK10 Power 200 Luminous
Efficacy 155Lumens 31000 CCT 5000 Beam Angle 60 CRI 80 Mass 6.7 Add to Enquiry Add Remove Remove Model No. IDV20050NS85 Description Denver linear LED high-bay, IP66, IK10 Power 200 Luminous
Efficacy 155Lumens 31000 CCT 5000 Beam Angle 85 CRI 80 Mass 6.7 Add to Enquiry Add Remove Remove Model No. IDV20050NS90 Description Denver linear LED high-bay, IP66, IK10 Power 200 Luminous
Efficacy 155Lumens 31000 CCT 5000 Beam Angle 90 CRI 80 Mass 6.7 Add to Enquiry Add Remove Remove Model No. IDV20050NS120 Description Denver linear LED high-bay, IP66, IK10 Power 200 Luminous
Efficacy 155Lumens 31000 CCT 5000 Beam Angle 120 CRI 80 Mass 6.7 Add to Enquiry Add Remove Remove Model No. IDV20050NA2585 Description Denver linear LED high-bay, IP66, IK10 Power 200 Luminous
Efficacy 155Lumens 31000 CCT 5000 Beam Angle 2585 CRI 80 Mass 6.7 Add to Enquiry Add Remove Remove Model No. IDV20050NA60105 Description Denver linear LED high-bay, IP66, IK10 Power 200 Luminous
Efficacy 155Lumens 31000 CCT 5000 Beam Angle 60105 CRI 80 Mass 6.7 Add to Enquiry Add Remove Remove Model No. IDV20050NA80100 Description Denver linear LED high-bay, IP66, IK10 Power 200 Luminous
Efficacy 155Lumens 31000 CCT 5000 Beam Angle 80100 CRI 80 Mass 6.7 Add to Enquiry Add Remove Remove Model No. IDV24050NS55 Description Denver linear LED high-bay, IP66, IK10 Power 240 Luminous
Efficacy 155Lumens 37200 CCT 5000 Beam Angle 55 CRI 80 Mass 6.8 Add to Enquiry Add Remove Remove Model No. IDV24050NS90 Description Denver linear LED high-bay, IP66, IK10 Power 240 Luminous
Efficacy 155Lumens 37200 CCT 5000 Beam Angle 90 CRI 80 Mass 6.8 Add to Enquiry Add Remove Remove Model No. IDV24050NS60 Description Denver linear LED high-bay, IP66, IK10 Power 240 Luminous
Efficacy 155Lumens 37200 CCT 5000 Beam Angle 60 CRI 80 Mass 6.8 Add to Enquiry Add Remove Remove Model No. IDV24050NS85 Description Denver linear LED high-bay, IP66, IK10 Power 240 Luminous
Efficacy 155Lumens 37200 CCT 5000 Beam Angle 85 CRI 80 Mass 6.8 Add to Enquiry Add Remove Remove Model No. IDV24050NS120 Description Denver linear LED high-bay, IP66, IK10 Power 240 Luminous
Efficacy 155Lumens 37200 CCT 5000 Beam Angle 120 CRI 80 Mass 6.8 Add to Enquiry Add Remove Remove Model No. IDV24050NA2585 Description Denver linear LED high-bay, IP66, IK10 Power 240 Luminous
Efficacy 155Lumens 37200 CCT 5000 Beam Angle 2585 CRI 80 Mass 6.8 Add to Enquiry Add Remove Remove Model No. IDV24050NA60105 Description Denver linear LED high-bay, IP66, IK10 Power 240 Luminous
Efficacy 155Lumens 37200 CCT 5000 Beam Angle 60105 CRI 80 Mass 6.8 Add to Enquiry Add Remove Remove Model No. IDV24050NA80100 Description Denver linear LED high-bay, IP66, IK10 Power 240 Luminous
Efficacy 155Lumens 37200 CCT 5000 Beam Angle 80100 CRI 80 Mass 6.8 Add to Enquiry Add Remove Remove Model No. IDV30050NS55 Description Denver linear LED high-bay, IP66, IK10 Power 300 Luminous
Efficacy 155Lumens 46500 CCT 5000 Beam Angle 55 CRI 80 Mass 7.8 Add to Enquiry Add Remove Remove Model No. IDV30050NS60 Description Denver linear LED high-bay, IP66, IK10 Power 300 Luminous
Efficacy 155Lumens 46500 CCT 5000 Beam Angle 60 CRI 80 Mass 7.8 Add to Enquiry Add Remove Remove Model No. IDV30050NS85 Description Denver linear LED high-bay, IP66, IK10 Power 300 Luminous
Efficacy 155Lumens 46500 CCT 5000 Beam Angle 85 CRI 80 Mass 7.8 Add to Enquiry Add Remove Remove Model No. IDV30050NS90 Description Denver linear LED high-bay, IP66, IK10 Power 300 Luminous
Efficacy 155Lumens 46500 CCT 5000 Beam Angle 90 CRI 80 Mass 7.8 Add to Enquiry Add Remove Remove Model No. IDV30050NS120 Description Denver linear LED high-bay, IP66, IK10 Power 300 Luminous
Efficacy 155Lumens 46500 CCT 5000 Beam Angle 120 CRI 80 Mass 7.8 Add to Enquiry Add Remove Remove Model No. IDV30050NA2585 Description Denver linear LED high-bay, IP66, IK10 Power 300 Luminous
Efficacy 155Lumens 46500 CCT 5000 Beam Angle 2585 CRI 80 Mass 7.8 Add to Enquiry Add Remove Remove Model No. IDV30050NA60105 Description Denver linear LED high-bay, IP66, IK10 Power 300 Luminous
Efficacy 155Lumens 46500 CCT 5000 Beam Angle 60105 CRI 80 Mass 7.8 Add to Enquiry Add Remove Remove Model No. IDV30050NA80100 Description Denver linear LED high-bay, IP66, IK10 Power 300 Luminous
Efficacy 155Lumens 46500 CCT 5000 Beam Angle 80100 CRI 80 Mass 7.8 Add to Enquiry Add Remove Remove
