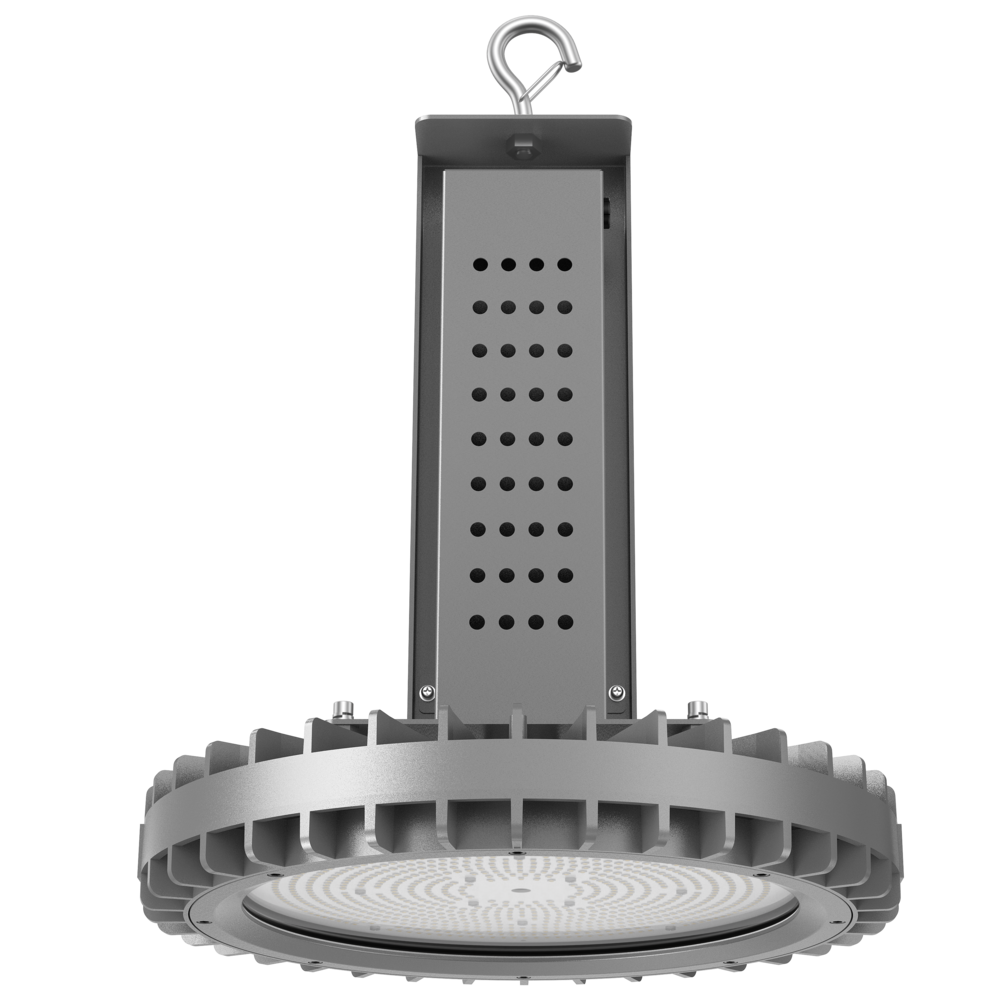

Mojave
High Temperature LED High Bay
The Mojave High-Bay is an industrial-grade luminaire purpose-built for reliable operation in high-temperature environments up to 70°C. It is designed to deliver consistent performance and longevity in demanding industrial and commercial applications where thermal management and durability are critical.
Application
The Mojave High-Bay delivers a luminous efficacy of 160 lm/W, providing high-output illumination with exceptional energy efficiency. It is rated IP66 for protection against dust and water ingress and IK08 for impact resistance, ensuring suitability for harsh and exposed environments.

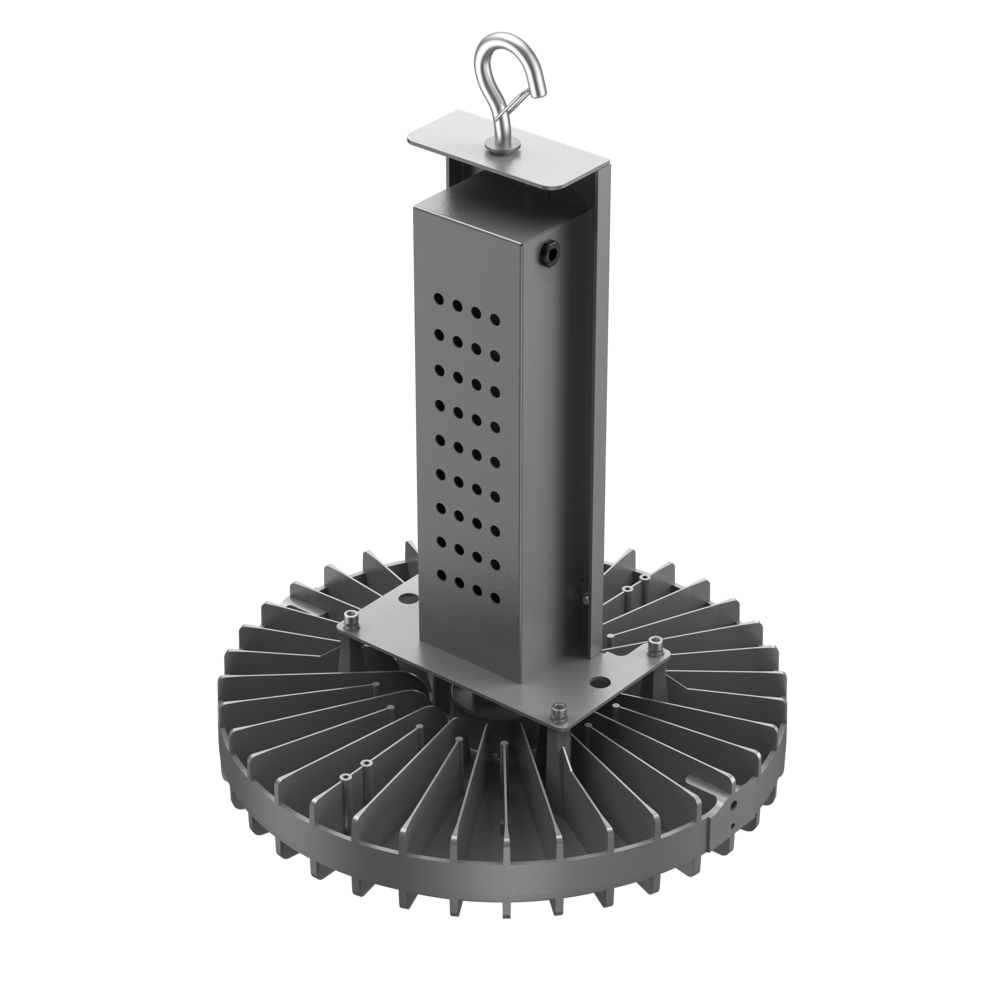

A precision-engineered heat sink constructed from high-conductivity materials enables efficient thermal dissipation, maintaining optimal operating temperatures and ensuring the stability and lifespan of electronic components under sustained high-heat conditions.
- Industrial facilities
- Manufacturing
- Foundries
Design Specifications
160lm/w high efficiency SMD LED
L90/B10 >50,000 hours lifetime
Philips driver 0-10v dimmable
Narrow, medium and wide (standard model) optics available
High efficiency polycarbonate lens
Available Options
- 4000k CCT
- 4000KCCT
- 5000KCCT

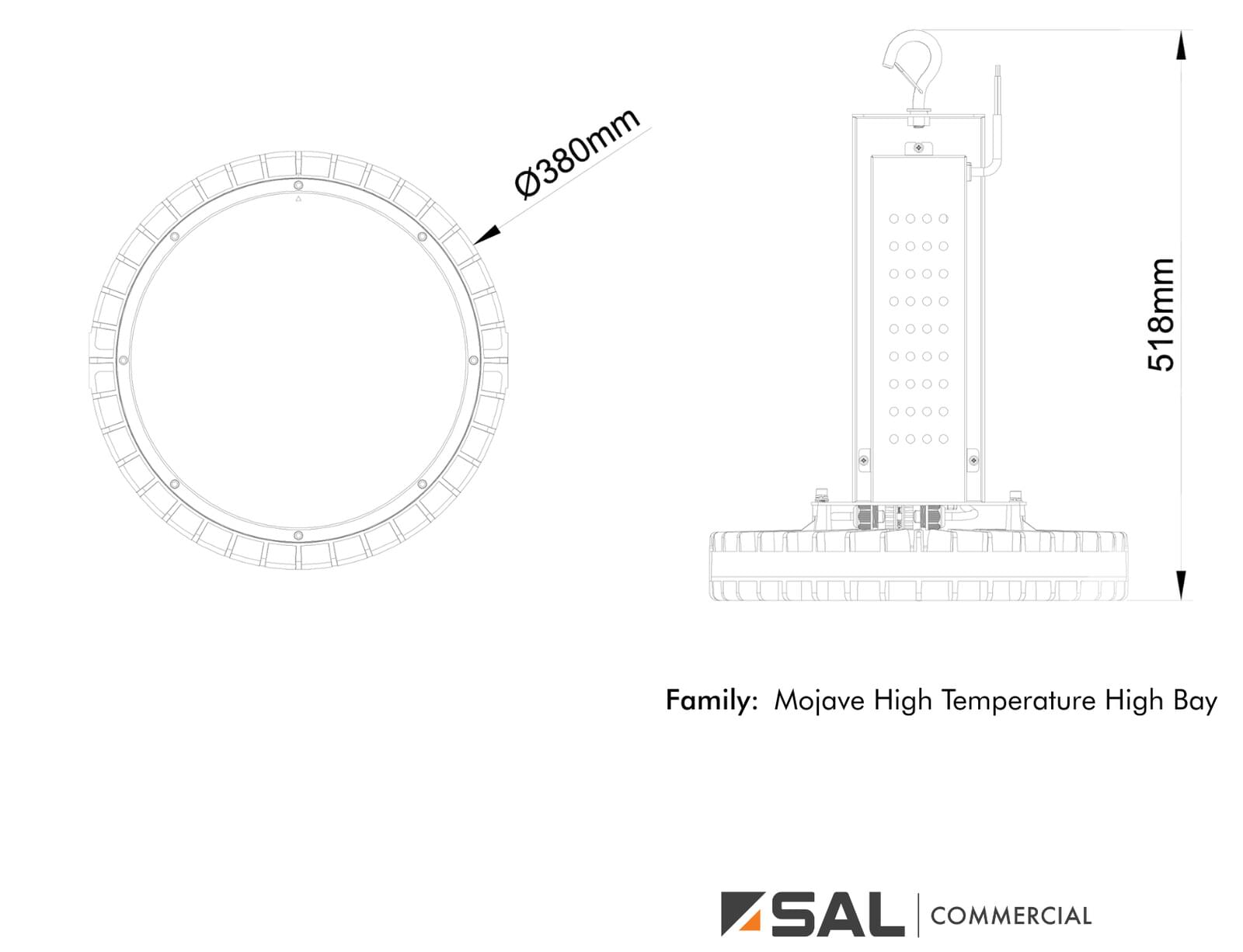

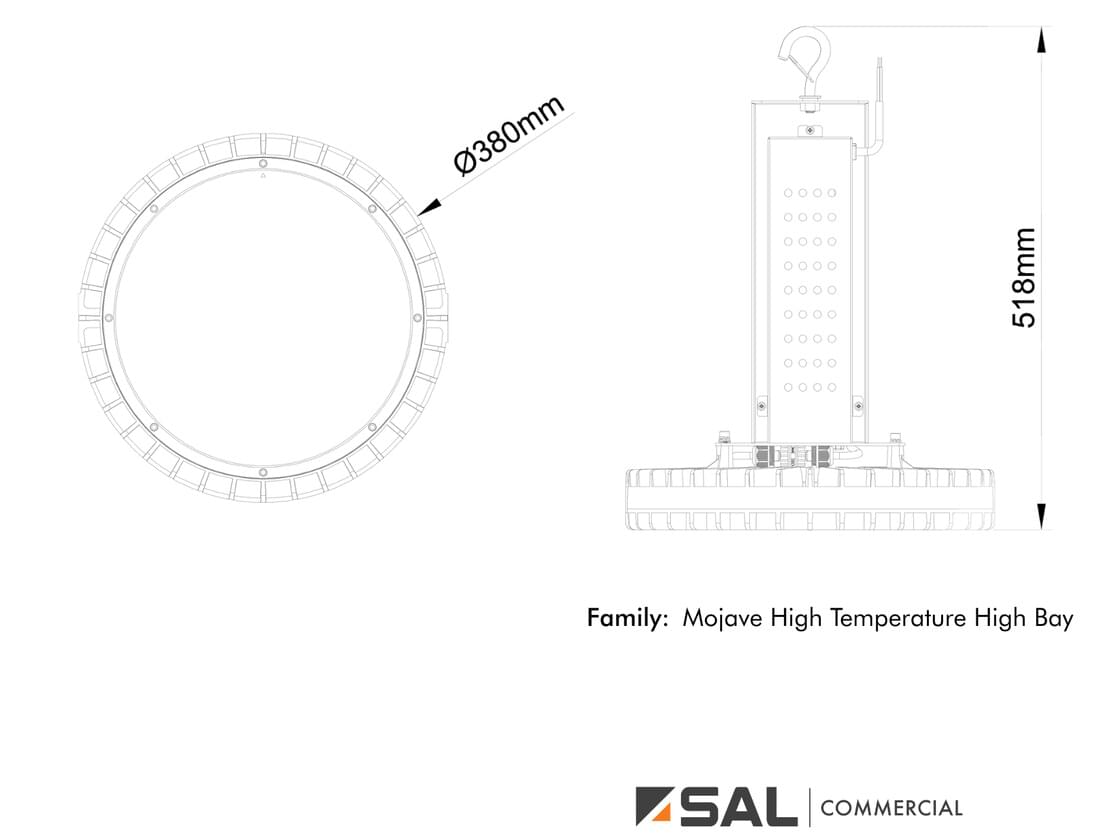

- Dimensions - Wiring Diagrams
-
- Model No. & Technical Specification
Model No. Description Power Luminous
EfficacyColour Temp. Lumens CCT Beam Angle CRI Diameter Mass Add to Enquiry - Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
Model No.IMJ20050N DescriptionMojave High Temp LED high-bay, non-dimmable Power200 Luminous
Efficacy160Colour Temp.5000 Lumens32000 CCT5000 Beam Angle120 CRI80 Diameter445 Mass8 Add to Enquiry Add Remove Remove
