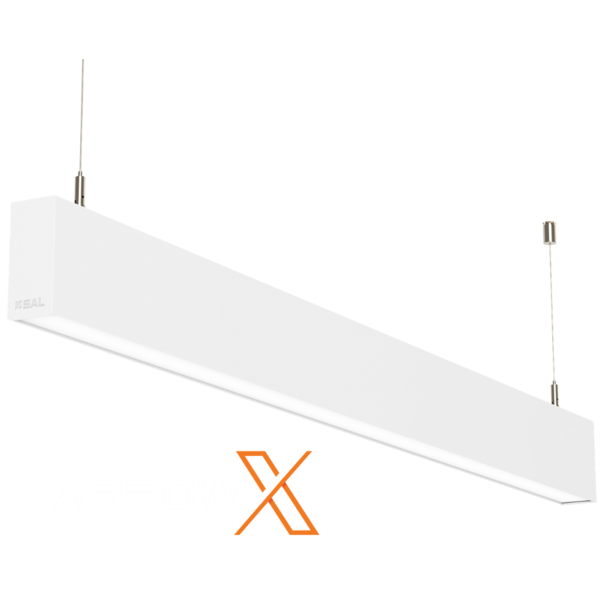

Arrow X S45R

LED Linear Pendant

Arrow X™ is a linear LED lighting system designed and manufactured in Australia. Incorporating Tridonic drivers and class leading LED technology, the Arrow X™ range is designed to complement modern interior architecture.

Arrow X™ Pendants is a range of pre-configured pendants. Available in sizes ranging from 900mm to 2400mm, simply select your choice of profile, length, light source and finish.

Application

The Arrow X ™ S45R pendant range is suited to a large range of applications. The elegant and modern profile aesthetic has been engineered to feel right at home in healthcare facilities, educational installations and commercial workspaces.

The Arrow X™ Pendants range offers the simplicity of pre-configured lengths and specifications to choose from.



Design Specifications

  • High output linear LED light engine technology

  • Samsung LED technology, LED lifetime L80/B10 @ 81,000 hours

  • Light leak free construction

  • CRI 90 - >100lm/w

  • arrow-x-s45r-pendants

  • Available Options

    • CRI 90
    • DALI2 driver
    • Casambi wireless control
    • 3000K

Arrow X S45R
Arrow X S45R
Commercial LED linear lighting - Arrow X LED range
Commercial LED linear lighting - Arrow X LED range
Arrow X S45R
Arrow X S45R
Arrow X S45R
Arrow X S45R
Arrow X S45R
Arrow X S45R
Arrow X S45R
Arrow X S45R
Commercial LED linear lighting - Arrow X LED range
Commercial LED linear lighting - Arrow X LED range

  • 140lm/w efficiency
  • Opalised low glare diffuser
  • Spot free diffuser and end-cap design
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT




    •

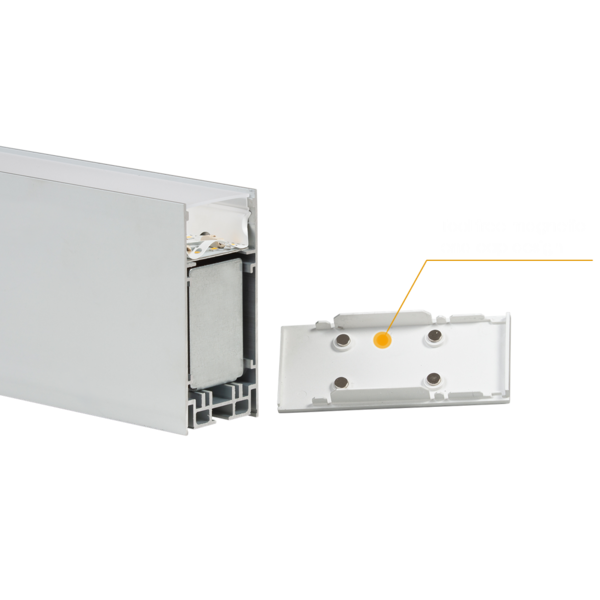

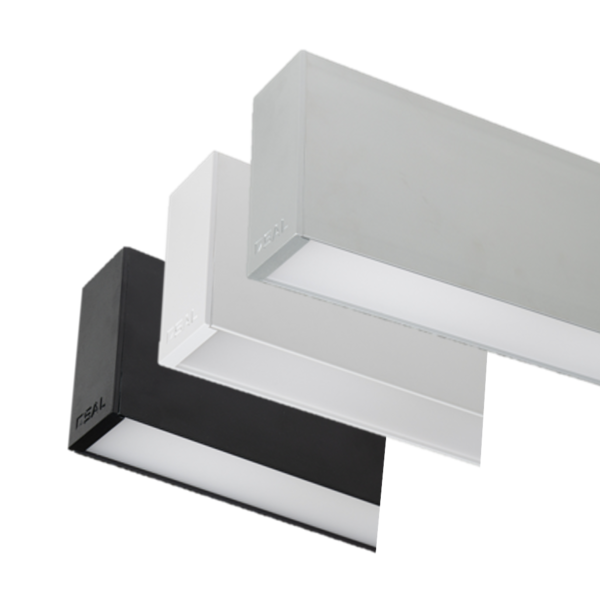

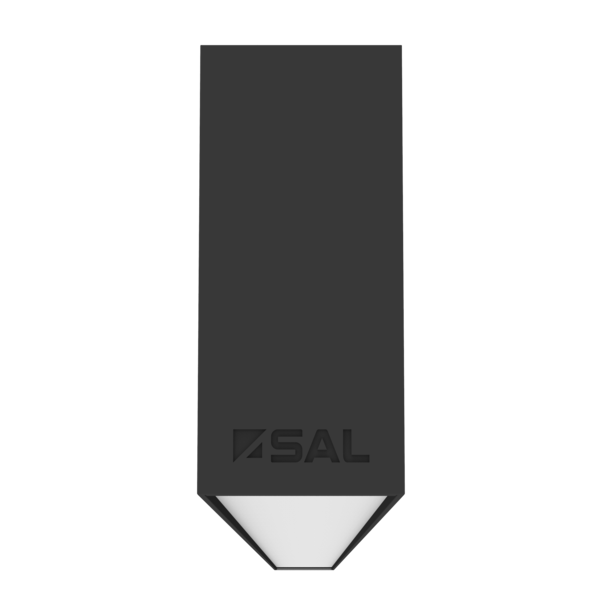

    A tool-free magnetic end cap design on all Arrow X™ profiles ensures easy efficient access for installation and maintenance requirements.

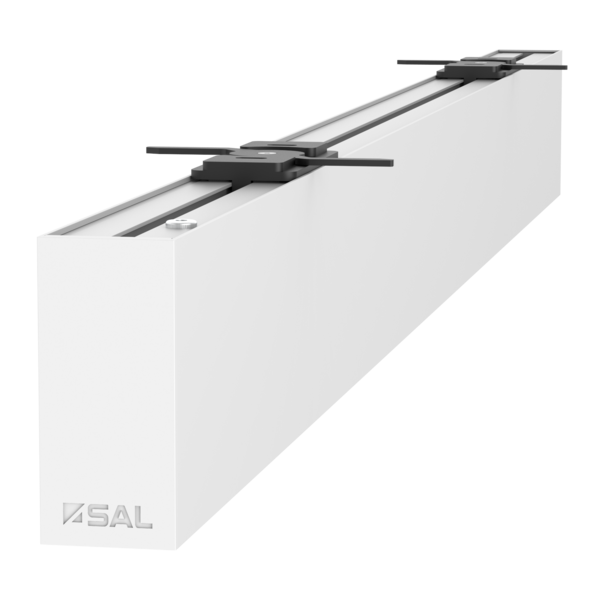

    The Arrow X™ Project linear LED profile range is available in suspension, surface mount and recessed options. Made to your project specifications, all Arrow X™ profiles are made to order in our NSW based facility.

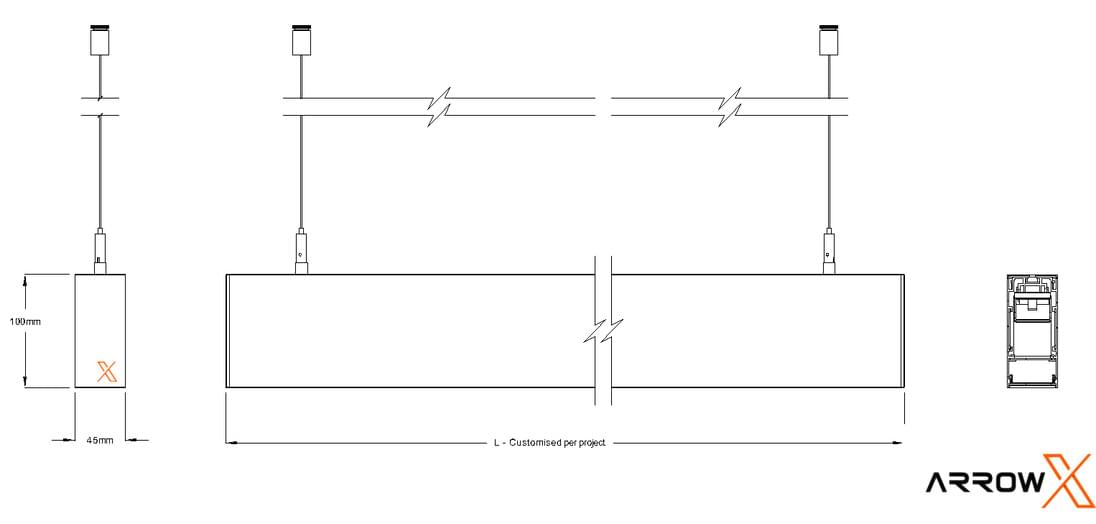

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Datasheet Model No. Description Power Lumens CRI CCT Dim Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click

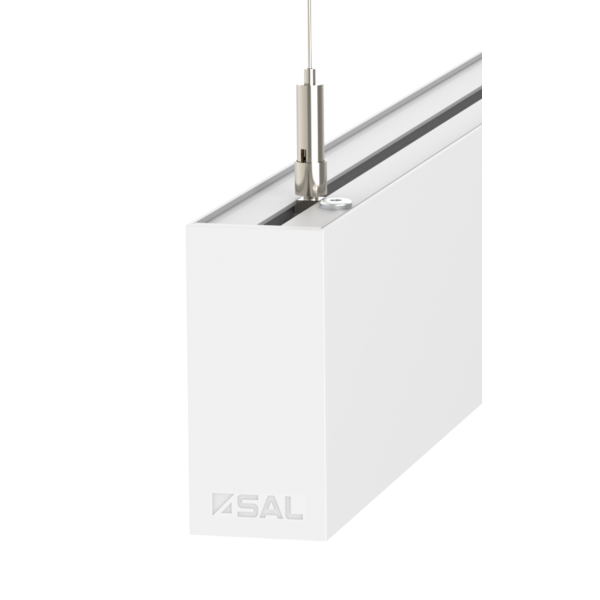

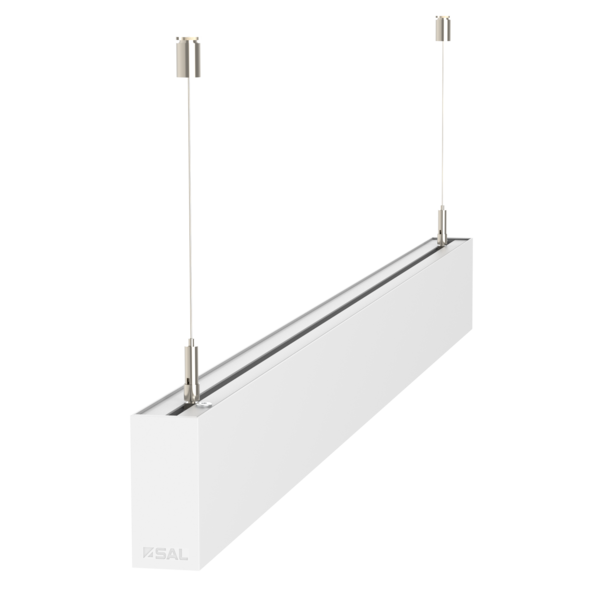

      Datasheet Model No. AXS45R09D40NW Description Arrow X, Pendant, 900mm, direct only, non-dimmable, c/w wire suspension kit Power 23 Lumens 2100 CRI 80 CCT 4000 Dim 900(L) x 45(W) x 100(H) Add to Enquiry Add Remove Remove
      Model No. AXS45R12D40NW Description Arrow X, Pendant, 1200mm, direct only, non-dimmable, c/w wire suspension kit Power 30 Lumens 2700 CRI 80 CCT 4000 Dim 1200(L) x 45(W) x 100(H) Add to Enquiry Add Remove Remove
      Model No. AXS45R15D40NW Description Arrow X, Pendant, 1500mm, direct only, non-dimmable, c/w wire suspension kit Power 38 Lumens 3400 CRI 80 CCT 4000 Dim 1500(L) x 45(W) x 100(H) Add to Enquiry Add Remove Remove
      Model No. AXS45R18D40NW Description Arrow X, Pendant, 1800mm, direct only, non-dimmable, c/w wire suspension kit Power 47 Lumens 4200 CRI 80 CCT 4000 Dim 1800(L) x 45(W) x 100(H) Add to Enquiry Add Remove Remove
      Model No. AXS45R24D40NW Description Arrow X, Pendant, 2400mm, direct only, non-dimmable, c/w wire suspension kit Power 63 Lumens 5700 CRI 80 CCT 4000 Dim 2400(L) x 45(W) x 100(H) Add to Enquiry Add Remove Remove
    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
