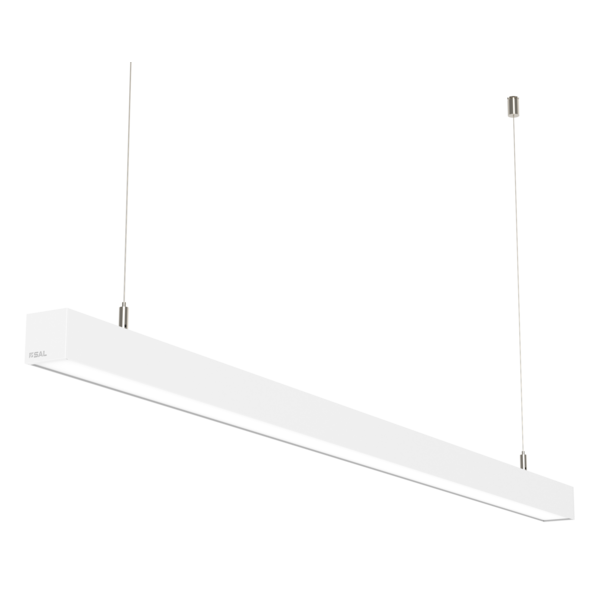

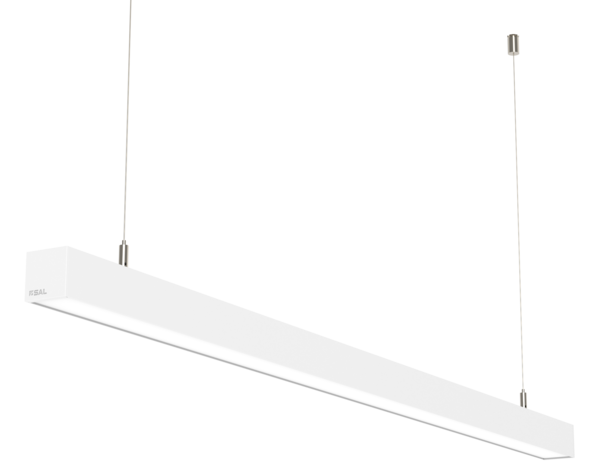

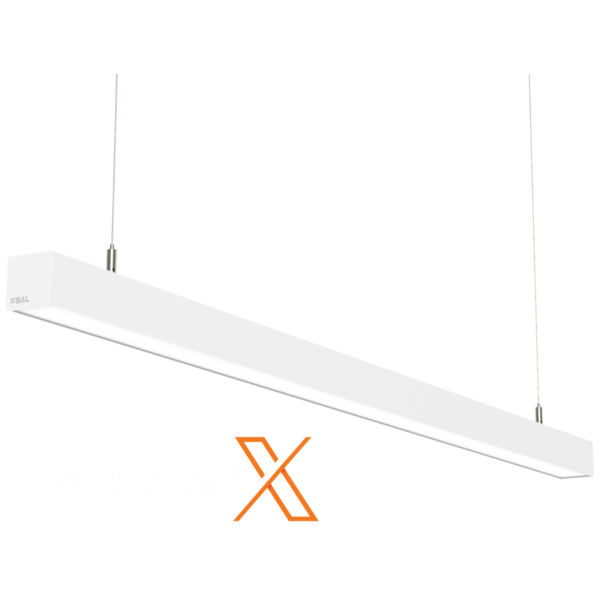

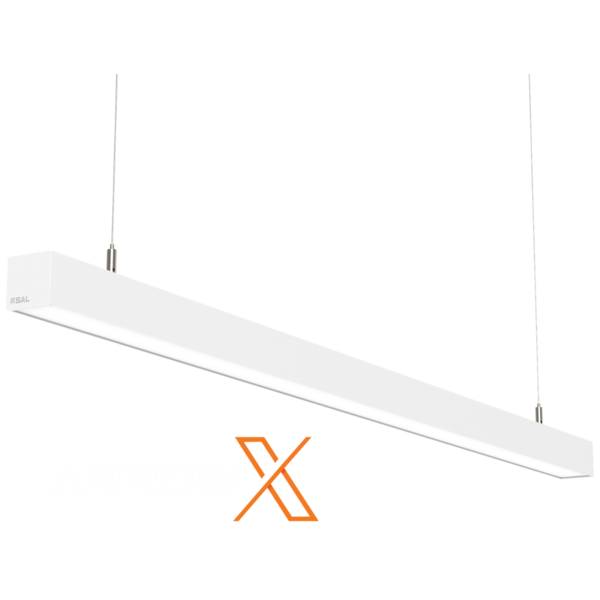

Arrow X S45S

LED Linear Pendant

Arrow X™ is a linear LED lighting system designed and manufactured in Australia. Incorporating Tridonic drivers and class leading LED technology, the Arrow X™ range is designed to complement modern interior architecture.

Arrow X™ Pendants is a range of pre-configured pendants. Available in sizes ranging from 900mm to 2400mm, simply select your choice of profile, length, light source and finish.

Application

The Arrow X ™ S45S pendant range is suited to a large range of applications. The elegant and modern profile aesthetic has been engineered to feel right at home in healthcare facilities, educational installations and commercial workspaces.

The Arrow X™ Pendants range offers the simplicity of pre-configured lengths and specifications to choose from.



Design Specifications

  • High output linear LED light engine technology

  • Samsung LED technology, LED lifetime L80/B10 @ 81,000 hours

  • Light leak free construction

  • arrow-x-s45s-pendants

  • Available Options

    • CRI 90
    • DALI2 driver
    • Casambi wireless control
    • 3000K
    • Direct / Indirect (Please note will require remote drivers)


  • 140lm/w efficiency
  • Opalised low glare diffuser
  • Spot free diffuser and end-cap design
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT





The Arrow X™ Project linear LED profile range is available in suspension, surface mount and recessed options. Made to your project specifications, all Arrow X™ profiles are made to order in our NSW based facility.





A tool-free magnetic end cap design on all Arrow X™ profiles ensures easy efficient access for installation and maintenance requirements.

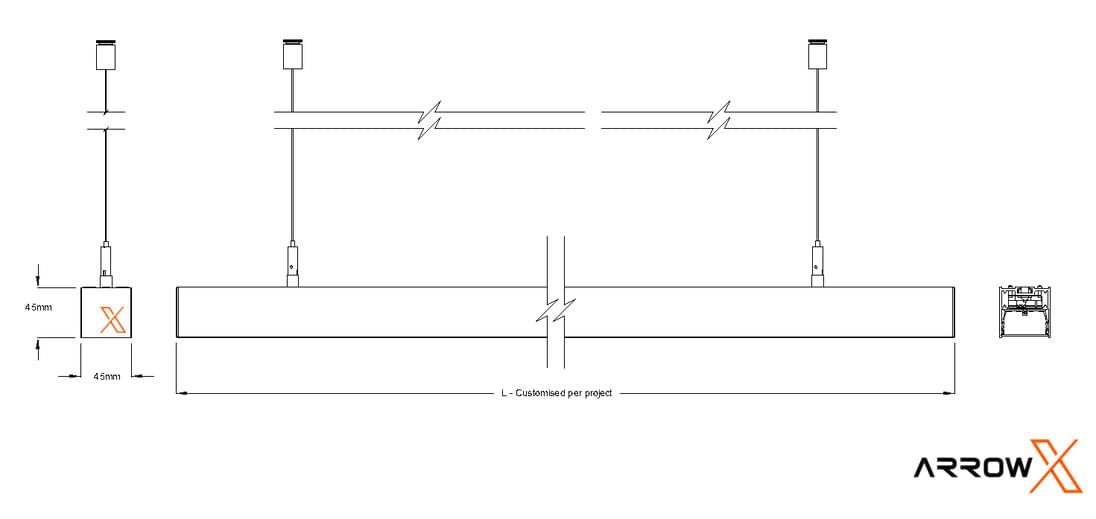

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CRI CCT Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.AXS45S09D40NW DescriptionArrow X, Pendant, 900mm, direct only, non-dimmable, c/w wire suspension kit Power23 Lumens2100 CRI80 CCT4000 Dim900(L) x 45(W) x 45(H) Add to Enquiry Add Remove Remove
    Model No.AXS45S12D40NW DescriptionArrow X, Pendant, 1200mm, direct only, non-dimmable, c/w wire suspension kit Power30 Lumens2700 CRI80 CCT4000 Dim1200(L) x 45(W) x 45(H) Add to Enquiry Add Remove Remove
    Model No.AXS45S15D40NW DescriptionArrow X, Pendant, 1500mm, direct only, non-dimmable, c/w wire suspension kit Power38 Lumens3400 CRI80 CCT4000 Dim1500(L) x 45(W) x 45(H) Add to Enquiry Add Remove Remove
    Model No.AXS45S18D40NW DescriptionArrow X, Pendant, 1800mm, direct only, non-dimmable, c/w wire suspension kit Power47 Lumens4200 CRI80 CCT4000 Dim1800(L) x 45(W) x 45(H) Add to Enquiry Add Remove Remove
    Model No.AXS45S24D40NW DescriptionArrow X, Pendant, 2400mm, direct only, non-dimmable, c/w wire suspension kit Power63 Lumens5700 CRI80 CCT4000 Dim2400(L) x 45(W) x 45(H) Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
