Arrow X S80

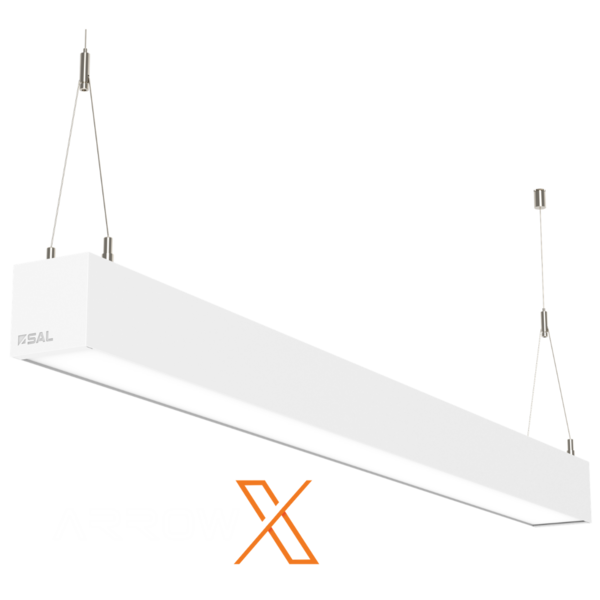

LED Linear Pendant

Arrow X™ is a linear LED lighting system designed and manufactured in Australia. Incorporating Tridonic drivers and class leading LED technology, the Arrow X™ range is designed to complement modern interior architecture.

Arrow X™ Pendants is a range of pre-configured pendants. Available in sizes ranging from 900mm to 2400mm, simply select your choice of profile, length, light source and finish.

Application

The Arrow X ™ S80 pendant range is suited to a large range of applications. The elegant and modern profile aesthetic has been engineered to feel right at home in healthcare facilities, educational installations and commercial workspaces.

The Arrow X™ Pendants range offers the simplicity of pre-configured lengths and specifications to choose from.



Design Specifications

  • High output linear LED light engine technology

  • Samsung LED technology, LED lifetime L80/B10 @ 81,000 hours

  • Light leak free construction

  • Available Options

    • CRI 90
    • DALI2 driver
    • Casambi wireless control
    • 3000K

Arrow X S80
Arrow X S80
Arrow X S80
Arrow X S80
Arrow X S80
Arrow X S80
Arrow X S80
Arrow X S80
Arrow X S80
Arrow X S80
Arrow X S80

  • 140lm/w efficiency
  • Opalised low glare diffuser
  • Spot free diffuser and end-cap design
  •
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT




    •

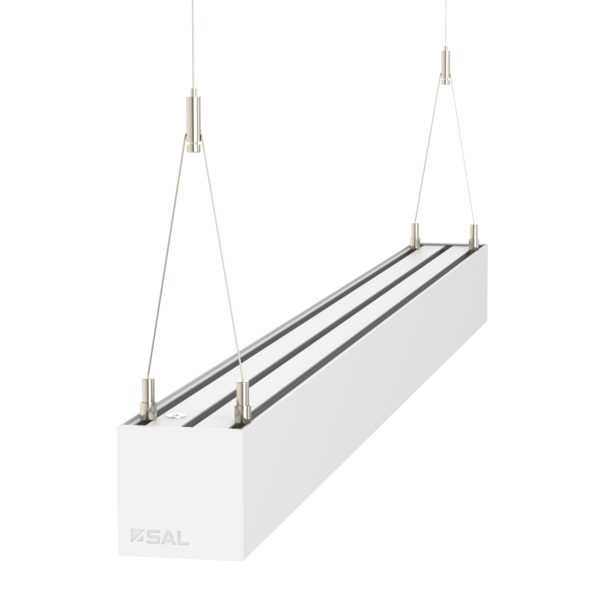

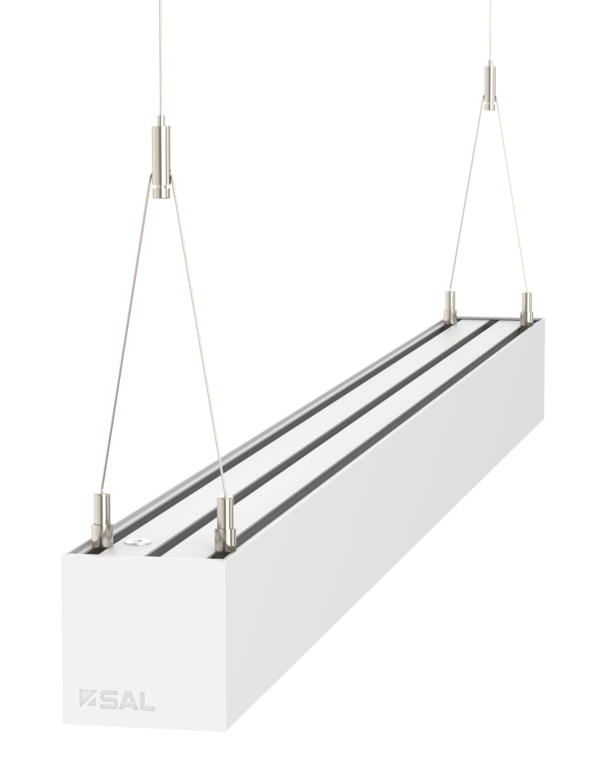

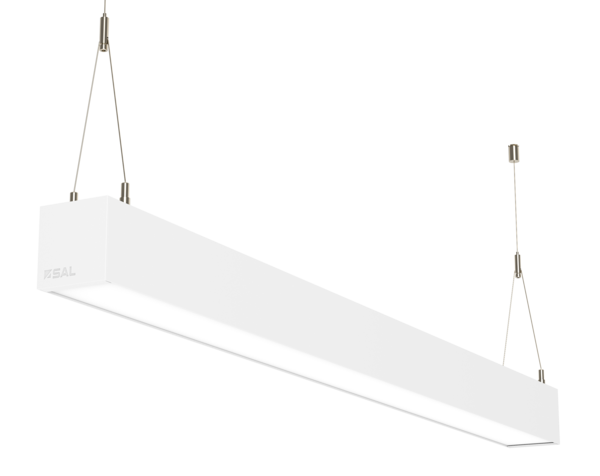

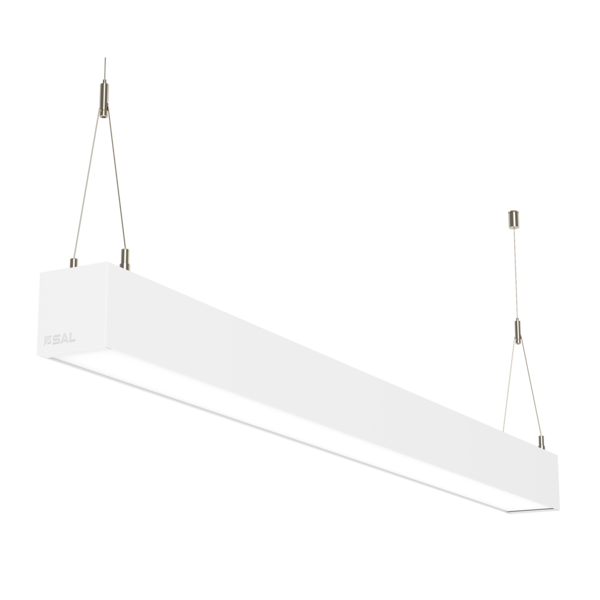

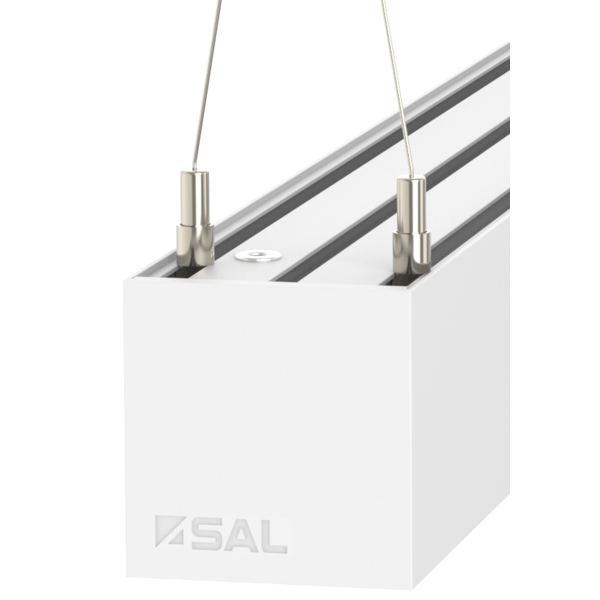

    The Arrow X™ Pendant profile is supplied as standard with a wire suspension kit. Rod suspension is available on request.

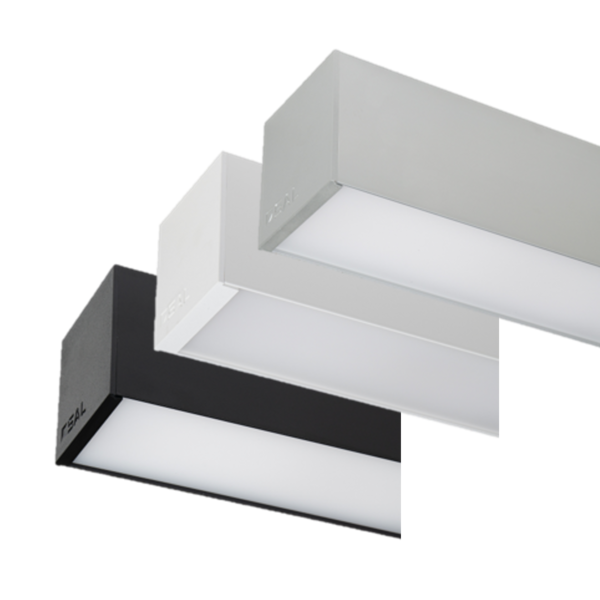

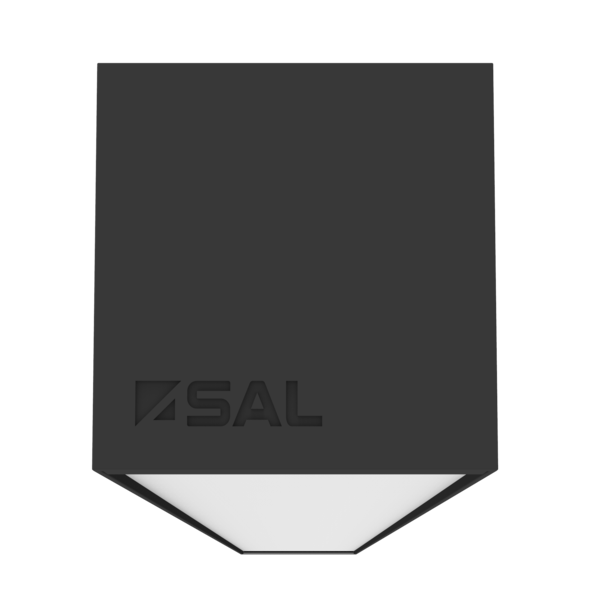

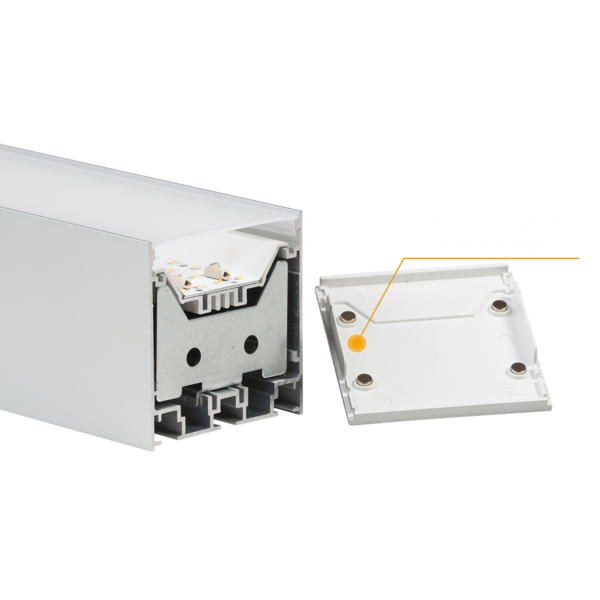

    A tool-free magnetic end cap design on all Arrow X™ profiles ensures easy efficient access for installation and maintenance requirements.

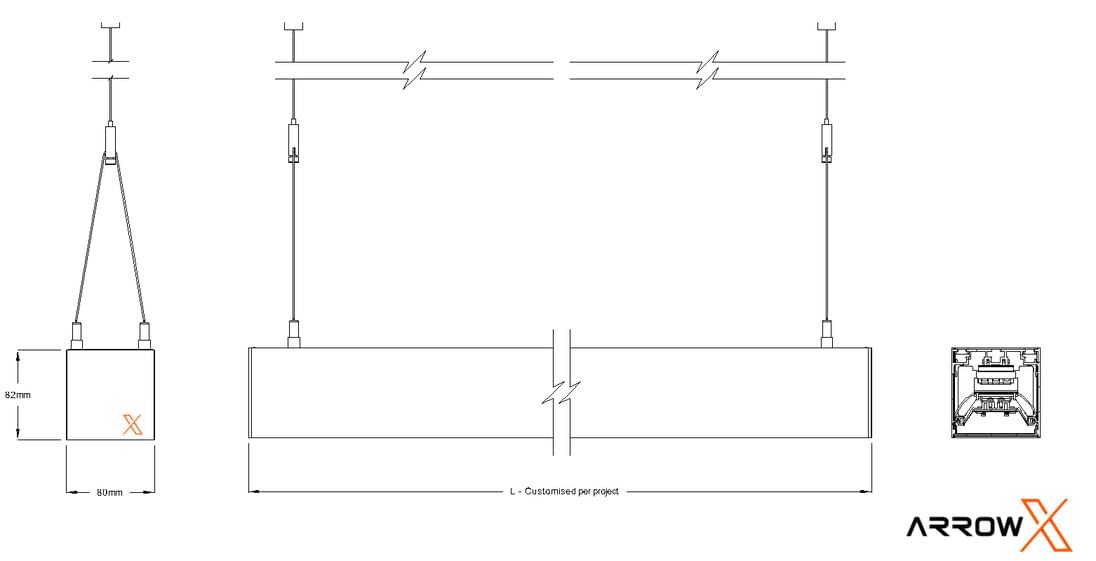

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Lumens CRI CCT Dim Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. AXS8009D40NW Description Arrow X, Pendant, 900mm, direct only, non-dimmable, c/w wire suspension kit Power 23 Lumens 3200 CRI 80 CCT 4000 Dim 900(L) x 80(W) x 82(H) Add to Enquiry Add Remove Remove
      Model No. AXS8012D40NW Description Arrow X, Pendant, 1200mm, direct only, non-dimmable, c/w wire suspension kit Power 30 Lumens 4200 CRI 80 CCT 4000 Dim 1200(L) x 80(W) x 82(H) Add to Enquiry Add Remove Remove
      Model No. AXS8015D40NW Description Arrow X, Pendant, 1500mm, direct only, non-dimmable, c/w wire suspension kit Power 38 Lumens 5200 CRI 80 CCT 4000 Dim 1500(L) x 80(W) x 82(H) Add to Enquiry Add Remove Remove
      Model No. AXS8018D40NW Description Arrow X, Pendant, 1800mm, direct only, non-dimmable, c/w wire suspension kit Power 47 Lumens 6500 CRI 80 CCT 4000 Dim 1800(L) x 80(W) x 82(H) Add to Enquiry Add Remove Remove
      Model No. AXS8024D40NW Description Arrow X, Pendant, 2400mm, direct only, non-dimmable, c/w wire suspension kit Power 63 Lumens 8800 CRI 78 CCT 4000 Dim 2400(L) x 80(W) x 82(H) Add to Enquiry Add Remove Remove

      Code Methodology:
      AXS80
      Size - 09 = 900mm / 12 = 1200mm / 15 = 1500mm / 18 = 1800mm / 24 = 2400mm
      D = Direct Only
      CCT -  40 = 4000K / 30 = 3000K
      Dimming type - N = Non Dim / D = DALI Tridonic

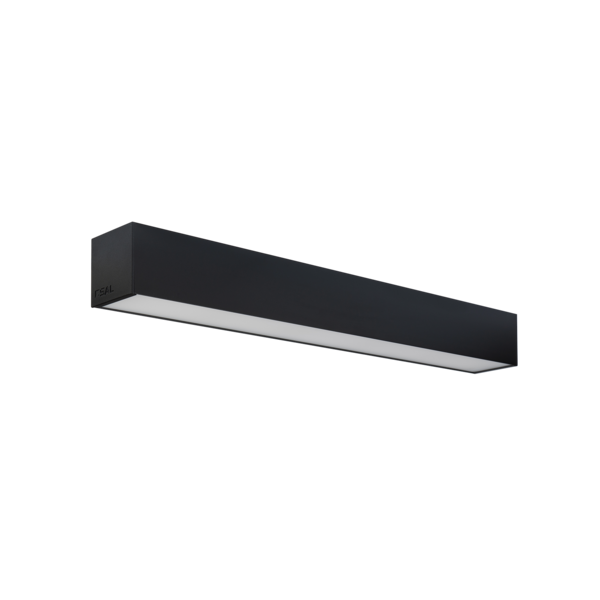

      Trim Colour - W = White / B = Black / S = Silver
