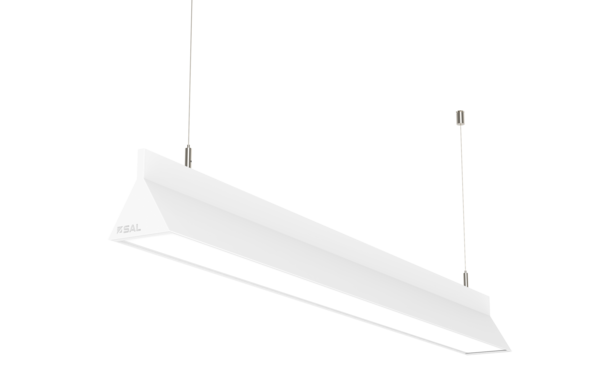

Arrow X Summit

LED Linear Pendant

Arrow X™ is a linear LED lighting system designed and manufactured in Australia. Incorporating Tridonic drivers and class leading LED technology, the Arrow X™ range is designed to complement modern interior architecture.

Arrow X™ Pendants is a range of pre-configured pendants. Available in sizes ranging from 900mm to 2400mm, simply select your choice of profile, length, light source and finish.

Application

The Arrow X ™ Summit pendant range is suited to a large range of applications. The elegant and modern profile aesthetic has been engineered to feel right at home in healthcare facilities, educational installations and commercial workspaces.

The Arrow X™ Pendants range offers the simplicity of pre-configured lengths and specifications to choose from.



Design Specifications

  • High output linear LED light engine technology

  • Samsung LED technology, LED lifetime L80/B10 @ 81,000 hours

  • Powered by Tridonic integral driver designarrow-x-summit-pendants

  • Light leak free construction

  • Available Options

    • CRI 90
    • DALI2 driver
    • Casambi wireless control
    • 3000K

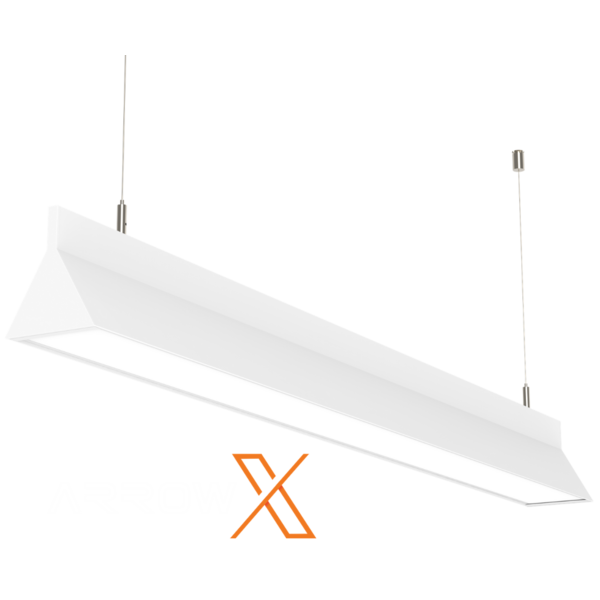

Arrow X Summit
Arrow X Summit
Arrow X Summit
Arrow X Summit
Arrow X Summit



  • 140lm/w efficiency
  • Opalised low glare diffuser
  • Spot free diffuser and end-cap design
  •
  • 4000KCCT
  • 4000KCCT




    •

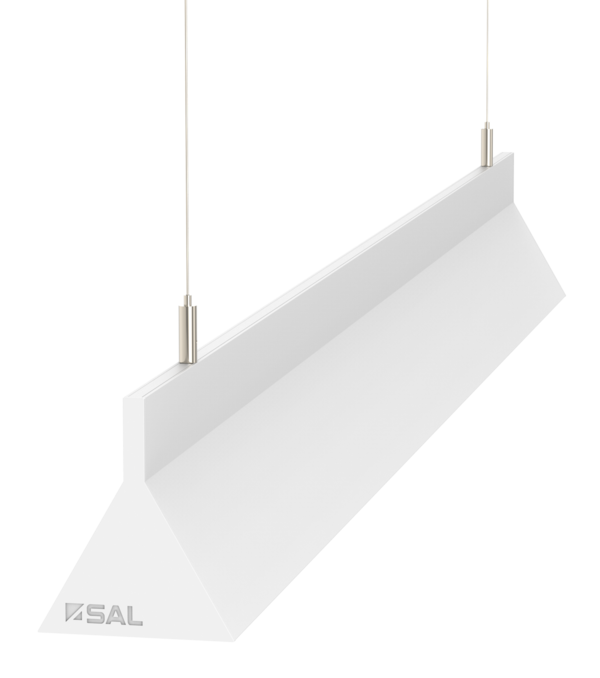

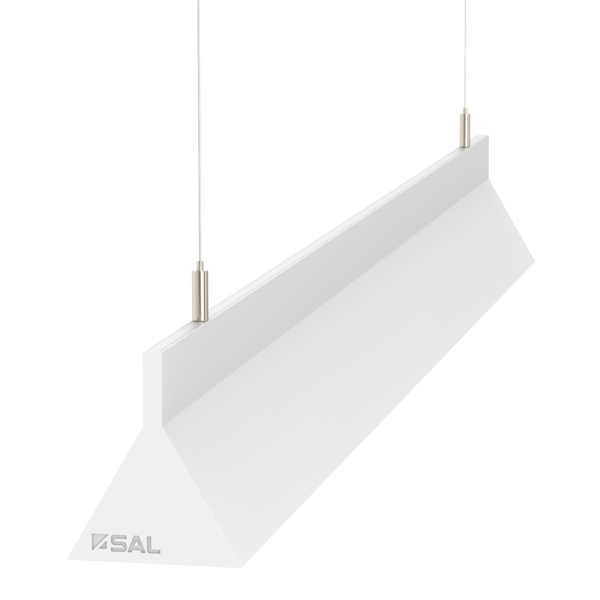

    The Arrow X™ Summit profile is the latest addition to the range. A unique, modern profile to make a statement in any interior installation.

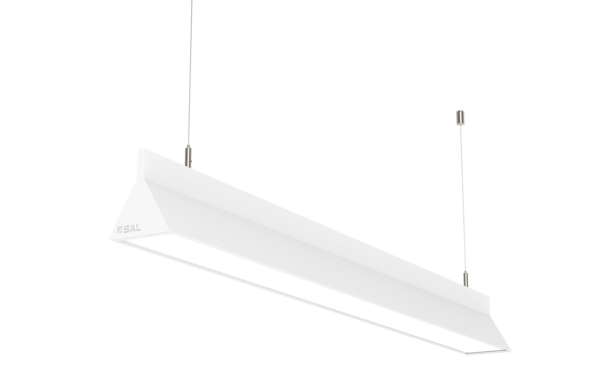

    Arrow X™ Summit is available in a rod suspension variant with a choice of direct only or direct and indirect light source.

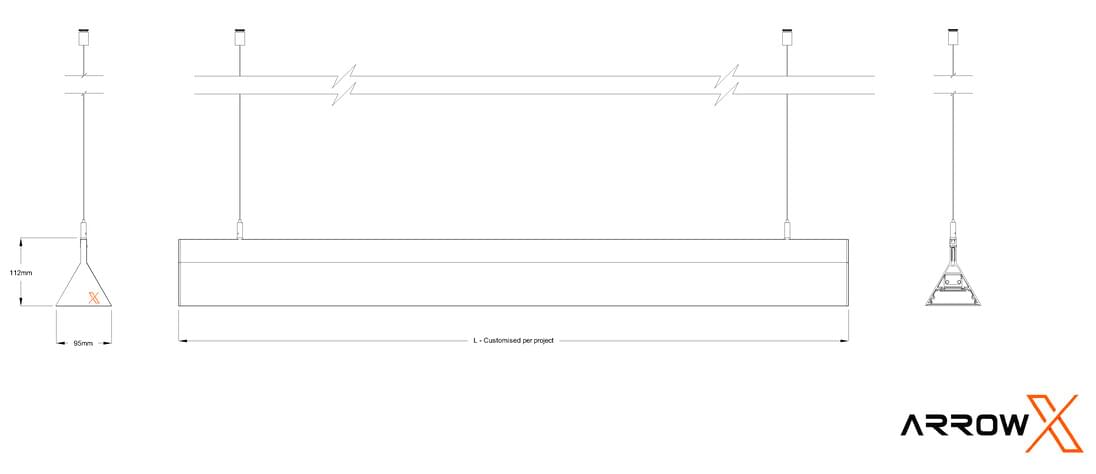

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Lumens CRI CCT Dim Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. AXS9509D40NW Description Arrow X, Pendant, 900mm, direct only, non-dimmable, c/w wire suspension kit Power 23 Lumens 3200 CRI 80 CCT 4000 Dim 900(L) x 95(W) x 112(H) Add to Enquiry Add Remove Remove
      Model No. AXS9512D40NW Description Arrow X, Pendant, 1200mm, direct only, non-dimmable, c/w wire suspension kit Power 30 Lumens 4200 CRI 80 CCT 4000 Dim 1200(L) x 95(W) x 112(H) Add to Enquiry Add Remove Remove
      Model No. AXS95015D40NW Description Arrow X, Pendant, 1500mm, direct only, non-dimmable, c/w wire suspension kit Power 38 Lumens 5200 CRI 80 CCT 4000 Dim 1500(L) x 95(W) x 112(H) Add to Enquiry Add Remove Remove
      Model No. AXS9518D40NW Description Arrow X, Pendant, 1800mm, direct only, non-dimmable, c/w wire suspension kit Power 47 Lumens 6500 CRI 80 CCT 4000 Dim 1800(L) x 95(W) x 112(H) Add to Enquiry Add Remove Remove
      Model No. AXS9524D40NW Description Arrow X, Pendant, 2400mm, direct only, non-dimmable, c/w wire suspension kit Power 63 Lumens 8800 CRI 78 CCT 4000 Dim 2400(L) x 95(W) x 112(H) Add to Enquiry Add Remove Remove
    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
