Arrow X S80

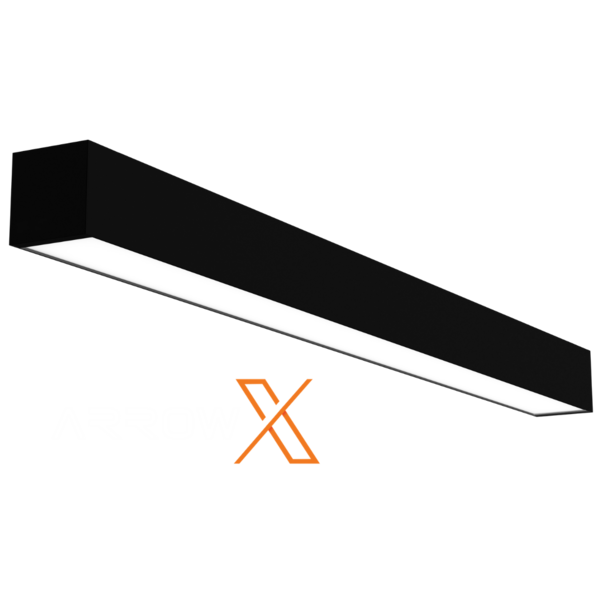

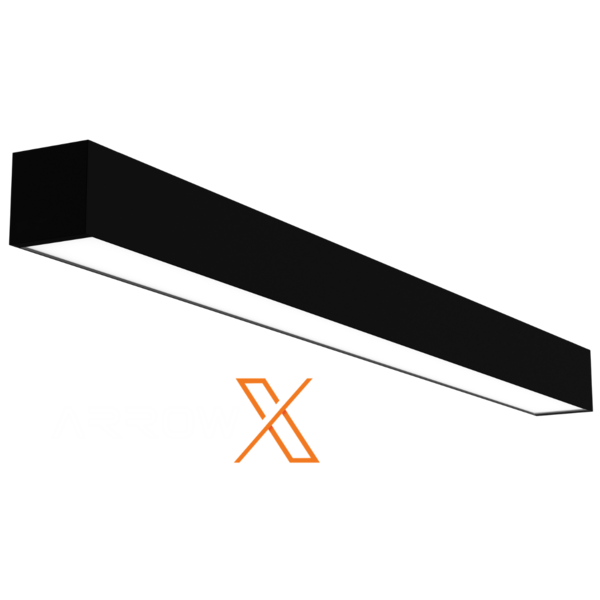

LED Linear Profile

Arrow X™ is a linear LED lighting system designed and manufactured in Australia. Incorporating Tridonic drivers and class leading LED technology, the Arrow X™ range is designed to complement modern interior architecture.

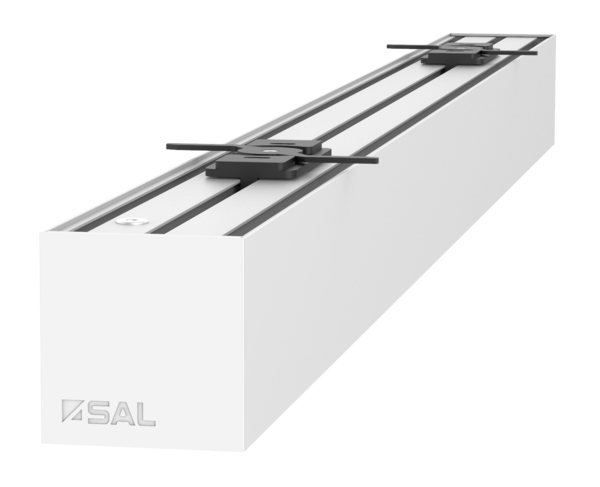

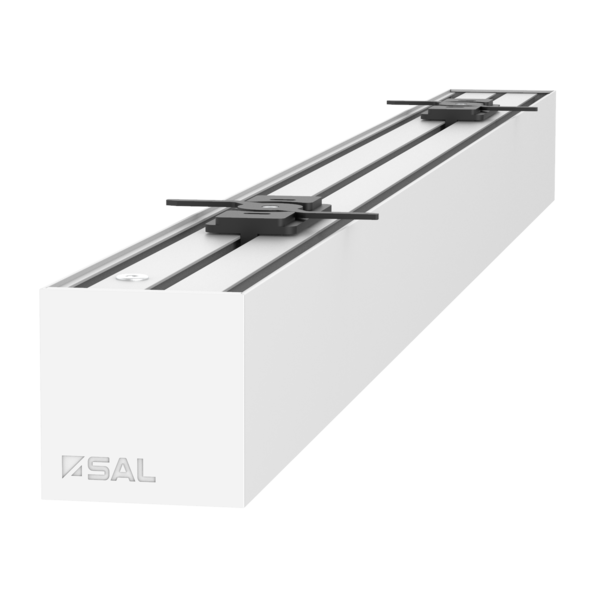

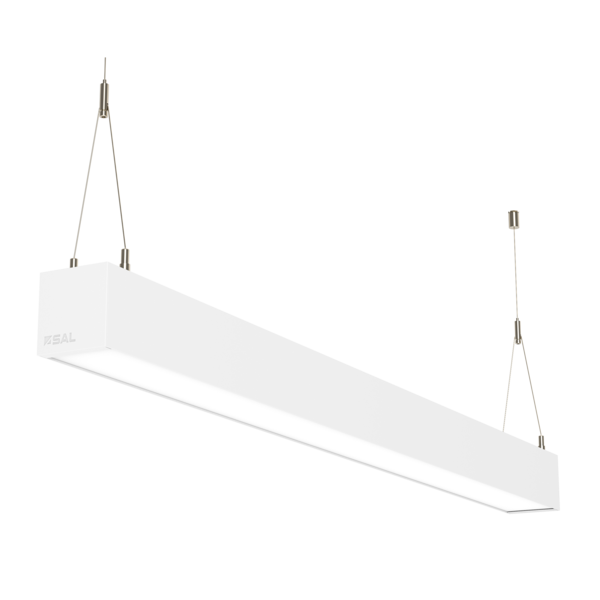

Arrow X™ is available in suspended, surface mounted and recessed models.

Application

The Arrow X ™ S80 square linear LED profile is suited to a large range of applications. The elegant profile shape has been engineered to fit into modern facilities across a range of applications throughout healthcare, educational and commercial spaces.

The Arrow X™ Projects range is manufactured to the exact specifications of your project.



Design Specifications

  • > 100lm/w / CRI 90 / SDCM 3 as Standard

  • Samsung LED technology, LED lifetime L80/B10 @ 81,000 hours

  • Powered by Tridonic integral driver design

  • Engineered for ultimate modularity to suit project requirements

  • Available Options

    • DALI2 driver
    • DALI type 8 driver
    • Casambi wireless control
    • 3000K, 3500K and tuneable white CCT


  • 140lm/w efficiency
  • Quick connect locking device for accurate end to end mounting
  • Opalised low glare diffuser
  • Spot free diffuser and end-cap design
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

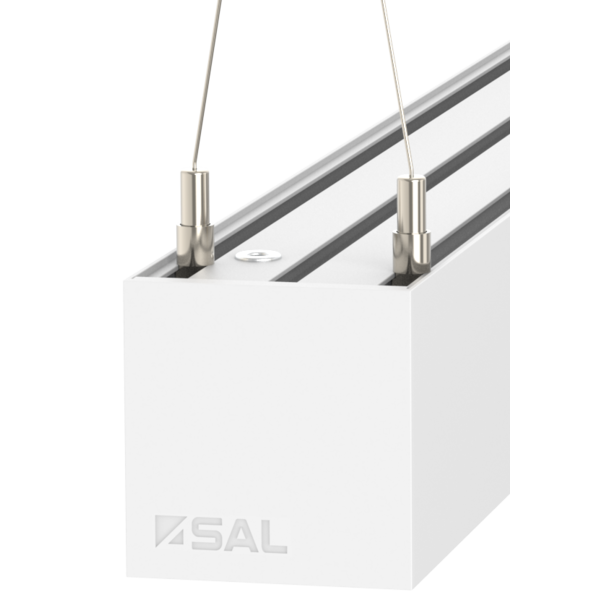

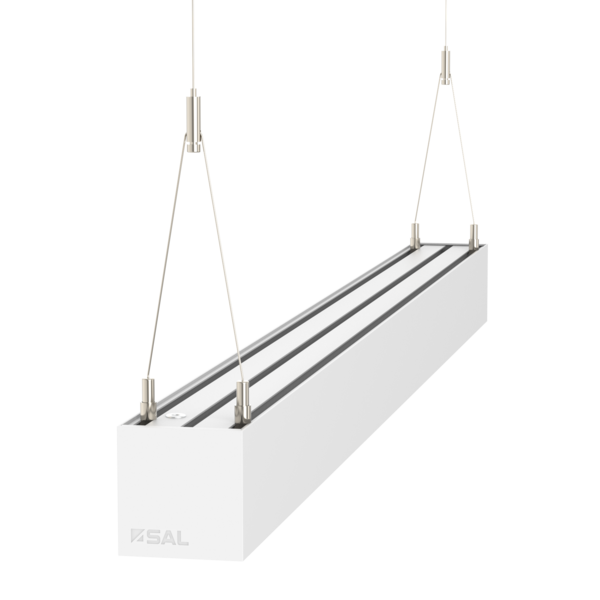

The Arrow X™ Project linear LED profile range is available in suspension, surface mount and recessed options. Made to your project specifications, all Arrow X™ profiles are made to order in our NSW based facility.

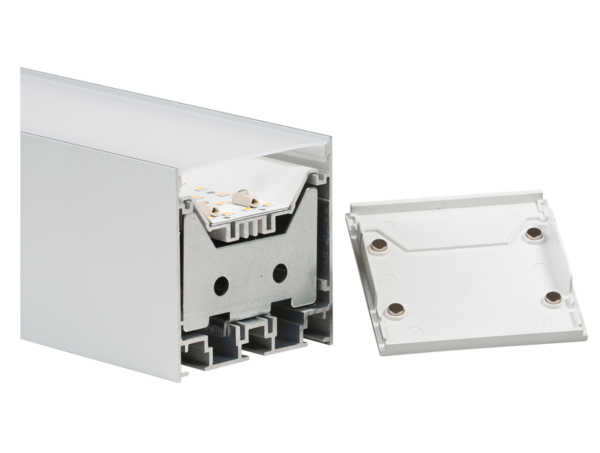

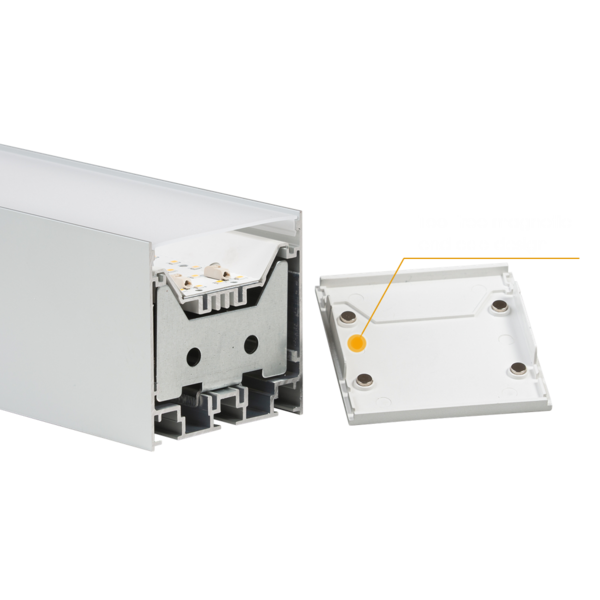

A tool-free magnetic end cap design on all Arrow X™ profiles ensures easy efficient access for installation and maintenance requirements.

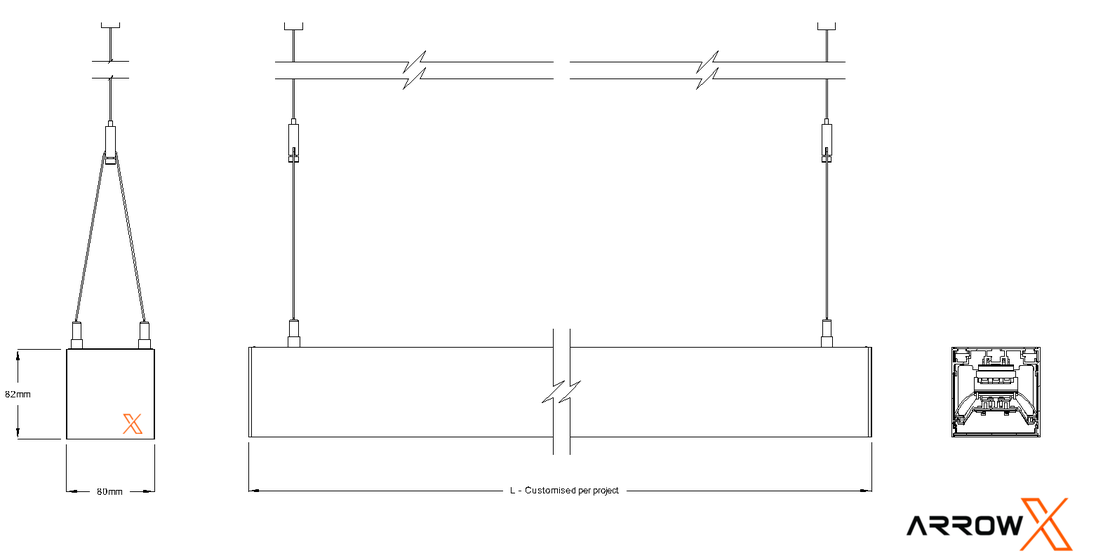

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
