• Commercial LED Troffers

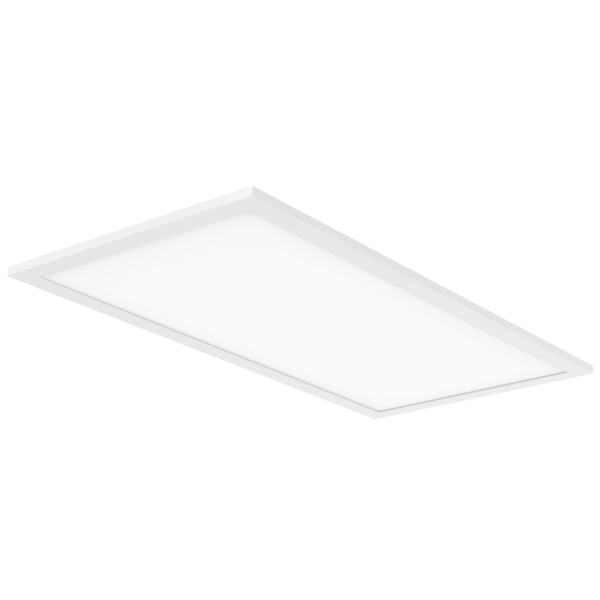

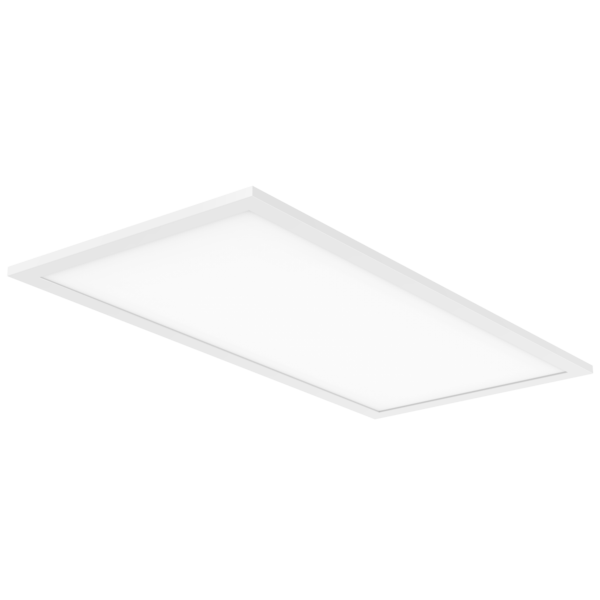

Platinum V

Commercial IP40 LED UGR Compliant Panel

Platinum V is a commercial specification LED panel, designed to suit commercial applications where high performance and low glare is required. Manufactured with high output SMD LEDs and supplied with a flicker free driver.​​​​​

Application

Designed for installation in commercial office spaces, healthcare facilities and education precincts

The Platinum V is multi-facated and can be mounted in a T-Bar celling grid, plaster ceiling, surface mount frame or wire suspended



Design Specifications

  • White Powdercoat Trim as standard - 600mm x 300mm / 600mm x 600mm / 1200mm x 300mm / *1200mm x 600mm *Minimum Order Quantity May Apply

  • High Efficacy 98lm/w High Output Sidelit SMD LED Chips

    Integral D25 Emergency option available

  • SDCM <3, CRI 90 and 4000K, IC-4 rated as standard

    L90B10 > 50,000 Hours

  • (UGR) Low Glare PMMA Diffuser

  • Remote Class II Non-Dimmable Constant Current LED Driver

  • Available Options

    • 3000K / 5700K - Minimum Order Quantity May Apply
    • Remote Class II DALI2 Dimmable LED Driver
    • Remote Class II Phase Dimmable LED Driver
    • Plaster Frame Kit
    • Wire Suspension Kit (Code: P5SPKIT)
    • Surface Mount Frame - S-FM Surface Frames

Performance

  • Dimmable - NO

Platinum V
  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT
    • Dimensions - Wiring Diagrams
    • Design Options

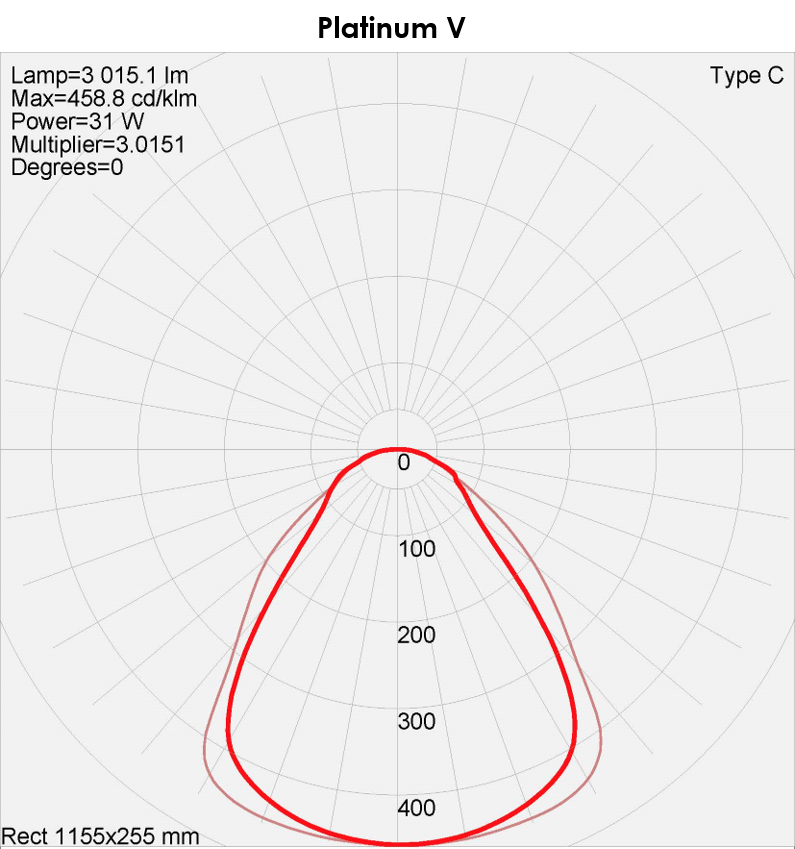

    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Luminous <br/> Efficacy Power Lumens CCT R9 CRI Height Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. P5A3040N Description Platinum V UGR Compliant LED Panel c/w Remote Non-Dimmable Driver - 1200mm x 300mm Luminous
      Efficacy       100       		Power 30 Lumens 3000 CCT 4000 R9 64 CRI 90 Height 12 Add to Enquiry Add Remove Remove
      Model No. P5A3040D Description Platinum V UGR Compliant LED Panel c/w Remote DALI2 Dimmable Driver - 1200mm x 300mm Luminous
      Efficacy       100       		Power 30 Lumens 3000 CCT 4000 R9 64 CRI 90 Height 12 Add to Enquiry Add Remove Remove
      Model No. P5A3240N Description Platinum V UGR Compliant LED Panel c/w Remote Non-Dimmable Driver - 1200mm x 300mm Luminous
      Efficacy       100       		Power 32 Lumens 3200 CCT 4000 R9 64 CRI 90 Height 12 Add to Enquiry Add Remove Remove
      Model No. P5B1840N Description Platinum V UGR Compliant LED Panel c/w Remote Non-Dimmable Driver - 600mm x 300mm Luminous
      Efficacy       100       		Power 18 Lumens 1900 CCT 4000 R9 64 CRI 90 Height 12 Add to Enquiry Add Remove Remove
      Model No. P5B1840D Description Platinum V UGR Compliant LED Panel c/w Remote DALI2 Dimmable Driver - 600mm x 300mm Luminous
      Efficacy       100       		Power 18 Lumens 1900 CCT 4000 R9 64 CRI 90 Height 12 Add to Enquiry Add Remove Remove
      Model No. P5C3040N Description Platinum V UGR Compliant LED Panel c/w Remote Non-Dimmable Driver - 600mm x 600mm Luminous
      Efficacy       100       		Power 30 Lumens 3000 CCT 4000 R9 64 CRI 90 Height 12 Add to Enquiry Add Remove Remove
      Model No. P5C3040D Description Platinum V UGR Compliant LED Panel c/w Remote DALI2 Dimmable Driver - 600mm x 600mm Luminous
      Efficacy       100       		Power 30 Lumens 3000 CCT 4000 R9 64 CRI 90 Height 12 Add to Enquiry Add Remove Remove

      Code methodology (example P2A=1200x300mm)  A=1200x300mm   B=600x300mm   C=600x600mm
