Platinum I

Commercial IP20 LED UGR Compliant Miro 5 Louvre Troffer

The Platinum I low glare louvred LED troffer is designed to suit commercial applications where high performance and low glare lighting is required. Manufactured with high output Samsung LEDs and supplied with a flicker free remote driver.​​​​​

Application

Designed to fit T-Bar ceilings and utilising Miro 5 aluminium louvres, the Platinum I commercial LED troffer is suited to: Offices, open-plan work spaces, healthcare and education applications

Design Specifications

  • White powdercoat finish available in 1200 x 300mm, 600 x 300mm and 1500 x 300mm (Note MOQ's apply for 1500x300)

  • High efficacy Samsung SMD LED chip, L90>50,000 hours

  • SDCM <3, CRI 80 and 4000K as standard

  • Miro 5 low glare, aluminium louvre

  • Remote constant current driver supplied

  • Available Options

    • CRI 90 available
    • Remote DALI2 dimmable driver
    • Tunable white w/DALI type 8 driver
    • Air return or air supply trims - Note MOQ's will apply
    • Custom widths available - Note MOQ's will apply

Performance

  • Dimmable - NO

Platinum I
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

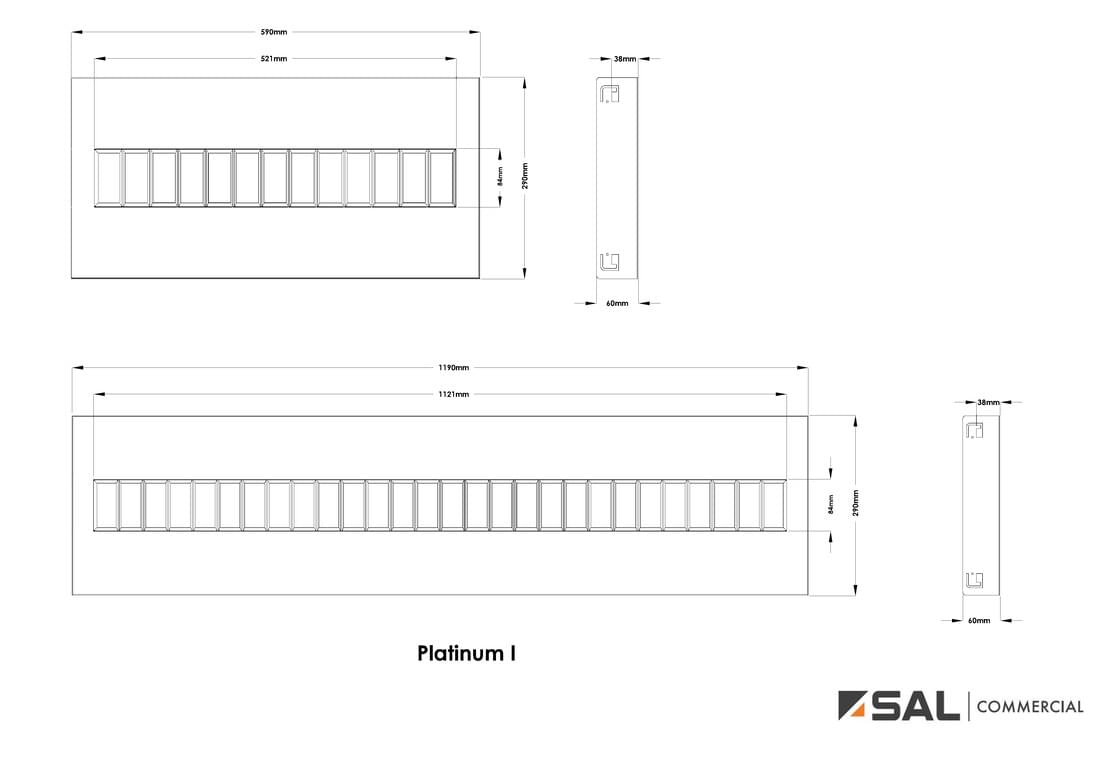

    • Dimensions - Wiring Diagrams
    • Design Options

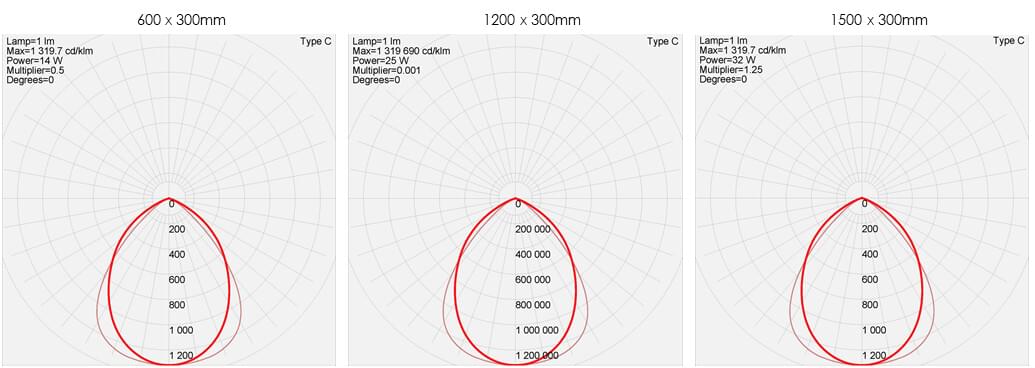

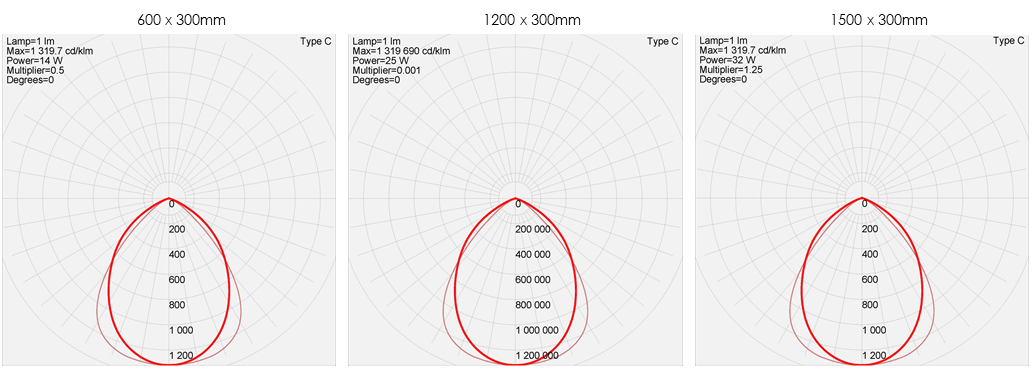

    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Luminous <br/> Efficacy Power Lumens CCT CRI Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. P1B1440N Description LED louvred troffer 600x300mm non-dimmable Luminous
      Efficacy       100       		Power 14 Lumens 1400 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P1B1440D Description LED louvred troffer 600x300mm DALI dimmable Luminous
      Efficacy       100       		Power 14 Lumens 1400 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P1A2540N Description LED louvred troffer 1200x300mm non-dimmable Luminous
      Efficacy       100       		Power 25 Lumens 2500 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P1A2540D Description LED louvred troffer 1200x300mm DALI dimmable Luminous
      Efficacy       100       		Power 25 Lumens 2500 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P1A2840N Description LED louvred troffer 1200x300mm non-dimmable Luminous
      Efficacy       100       		Power 28 Lumens 2800 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P1A2840D Description LED louvred troffer 1200x300mm DALI dimmable Luminous
      Efficacy       100       		Power 28 Lumens 2800 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P1C2540N Description LED louvred troffer 600x600mm Non Dimmable Luminous
      Efficacy       100       		Power 25 Lumens 2500 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P1C2540D Description LED louvred troffer 600x600mm DALI Dimmable Luminous
      Efficacy       100       		Power 25 Lumens 2500 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P1D3240N Description LED louvred troffer 1500x300mm non-dimmable Luminous
      Efficacy       100       		Power 32 Lumens 3200 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P1D3240D Description LED louvred troffer 1500x300mm DALI dimmable Luminous
      Efficacy       100       		Power 32 Lumens 3200 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove

      Code Methodology: (example P1A=1200mmx300mm)  A=1200mmx300mm / B=600mmx300mm / C=600mmx600mm / D=1500mmx300mm / E=1200x600mm / F=1200mm x 400mm / G=600mmx400mm

    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
