Platinum II

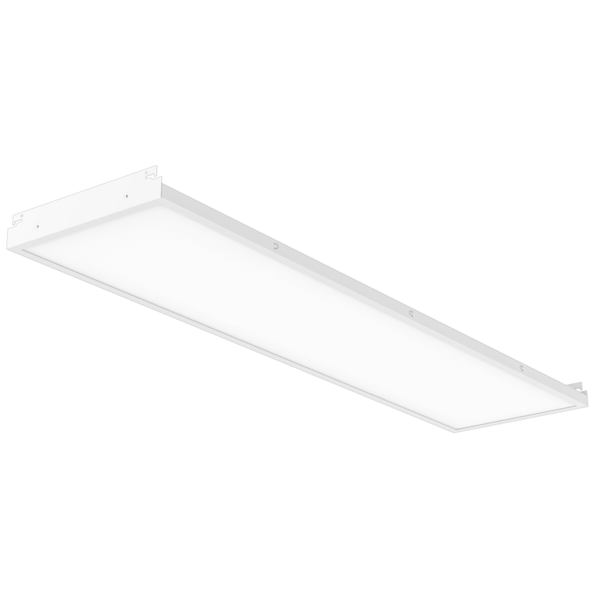

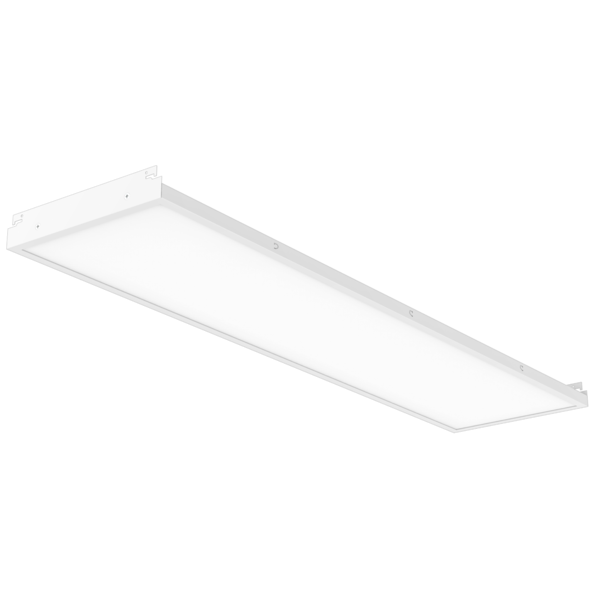

Commercial IP54 / IC-4 LED UGR Compliant Diffused Troffer

The Platinum II IP54 and IC4 compliant, commercial LED Diffused Troffer is designed to suit commercial applications where a high performance and optimum glare control is required. The Platinum II is a sheet metel, powdercoated body and utilises best in class - LED chips, remote Class II LED Driver's - Non-Dimmable or Dimmable via Class II DALI2 or Phase and low glare, PMMA Diffuser

Application

Manufactured to suit T-Bar /Plaster Ceilings or Surface Mount, the Platinum II Commercial LED Diffused Troffer is perfect for Healthcare, Education and Commercial Office applications

Design Specifications

  • IP54 from below and IC-4 rated. Standard sizes - 600mm x 300mm / 600mm x 600mm and 1200mm x 300mm *Special sizes are subject to MOQ's

  • Delivered >105lm/w SMD LED Chips - L90 > 50,000 Hours

  • SDCM <3 and 4000K as standard

  • Low Glare Opalised PMMA Diffuser for glare control and superior uniformity

  • Remote Class II Constant Current LED Driver

  • Available Options

    • Remote Class II DALI2 Dimmable LED Driver
    • Remote Phase Dimmable LED Driver
    • 3000K / 3500K / 5700K available upon request *MOQ's Apply
    • Tuneable White c/w DALI Type 8 Dimmable LED Driver *MOQ'a Apply
    • Air Return Trim *MOQ's Apply
    • CRI 90 available - Add 9 to end of code
    • Cyanosis COI Compliant available - Replace 40 with CY in code

Performance

  • Dimmable - NO

Platinum II
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

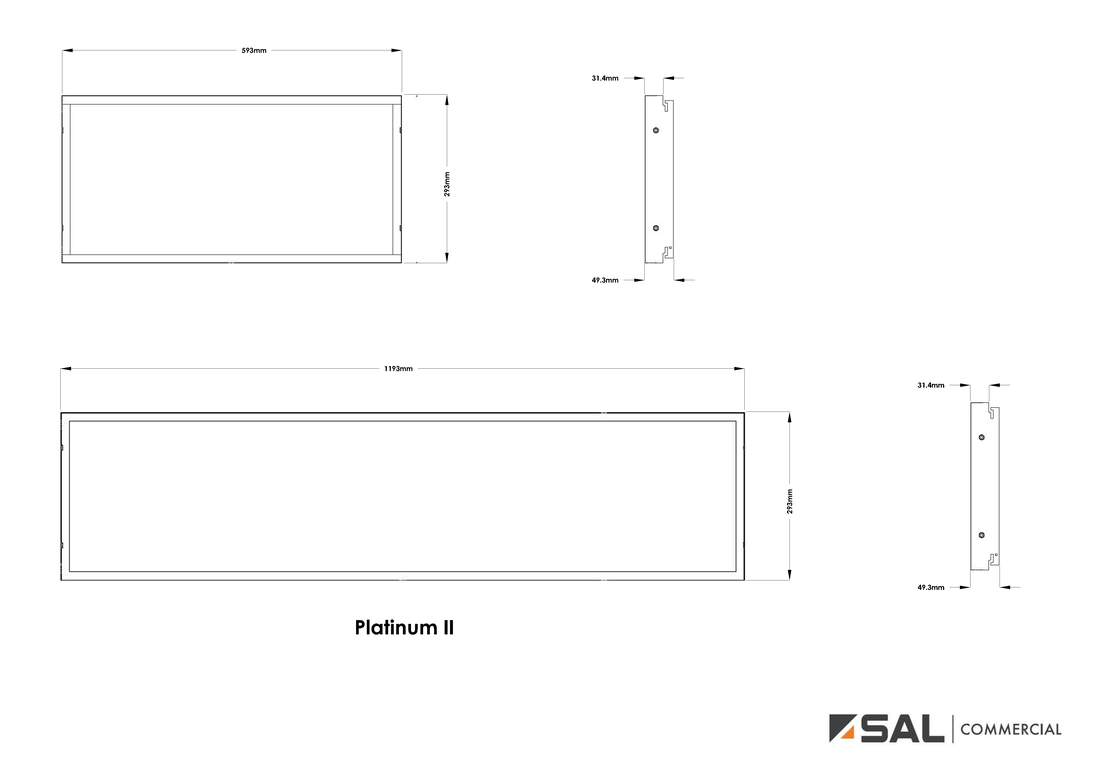

    • Dimensions - Wiring Diagrams
    • Design Options

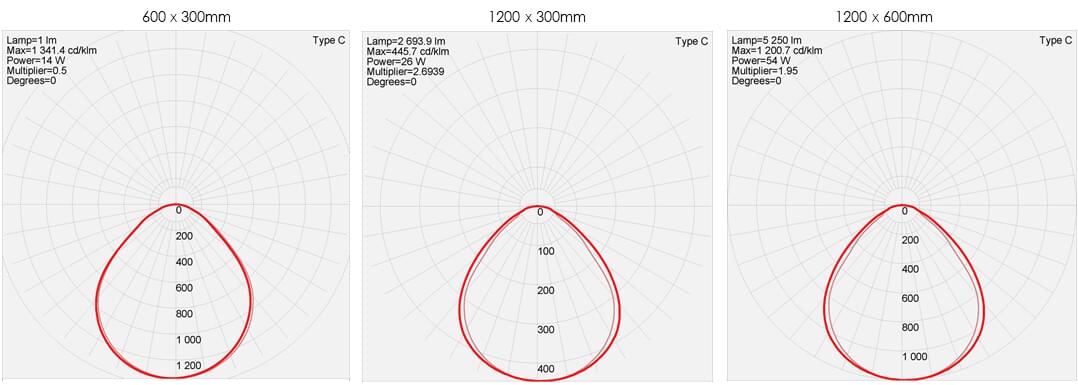

    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Luminous <br/> Efficacy Power Lumens CCT CRI Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. P2B1440N Description LED Diffused T-Bar Troffer, Remote Non-Dimmable Driver, 600mm x 300mm Luminous
      Efficacy       105       		Power 14 Lumens 1500 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P2B1440D Description LED Diffused T-Bar Troffer, Remote DALI2 Driver, 600mm x 300mm Luminous
      Efficacy       105       		Power 14 Lumens 1500 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P2A2740N Description LED Diffused T-Bar Troffer, Remote Non-Dimmable Driver, 1200mm x 300mm Luminous
      Efficacy       105       		Power 27 Lumens 2700 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P2A2740D Description LED Diffused T-Bar Troffer, Remote DALI2 Driver, 1200mm x 300mm Luminous
      Efficacy       105       		Power 27 Lumens 2700 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P2A3640N Description LED Diffused T-Bar Troffer, Remote Non-Dimmable Driver, 1200mm x 300mm Luminous
      Efficacy       105       		Power 36 Lumens 4000 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P2A3640D Description LED Diffused T-Bar Troffer, Remote DALI2 Driver, 1200mm x 300mm Luminous
      Efficacy       105       		Power 36 Lumens 4000 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P2C3040N Description LED Diffused T-Bar Troffer, Remote Non-Dimmable Driver, 600mm x 600mm Luminous
      Efficacy       100       		Power 30 Lumens 3000 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P2C3040D Description LED Diffused T-Bar Troffer, Remote DALI2 Driver, 600mm x 600mm Luminous
      Efficacy       100       		Power 30 Lumens 3000 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P2E3440N Description LED Diffused T-Bar Troffer, Remote Non-Dimmable Driver, 1200mm x 600mm Luminous
      Efficacy       105       		Power 34 Lumens 3570 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P2E3440D Description LED Diffused T-Bar Troffer, Remote DALI2 Driver, 1200mm x 600mm Luminous
      Efficacy       105       		Power 34 Lumens 3570 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P2E5440N Description LED Diffused T-Bar Troffer, Remote Non-Dimmable Driver, 1200mm x 600mm Luminous
      Efficacy       105       		Power 54 Lumens 5700 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
      Model No. P2E5440D Description LED Diffused T-Bar Troffer, Remote DALI2 Driver, 1200mm x 600mm Luminous
      Efficacy       105       		Power 54 Lumens 5700 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove

      Code Methodology: (example - P2A=1200mmx300mm)  A=1200mmx300mm / B=600mmx300mm / C=600mmx600mm / D=1500mmx300mm / E=1200x600mm / F=1200mm x 400mm / G=600mmx400mm

      CCT: 4000K is standard:  For variant CCT, replace 40 with 30 (3000K) / 35 (3500K) /  57 (5700K) / CY (Cyanosis - 4000K) - (example - P2A2730N / P2A27CYN)

      CRI 90: Add 9 to the end of the code (example - P2A2740N9)

      MOQ's: Minimum Order Quantities Apply



    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
