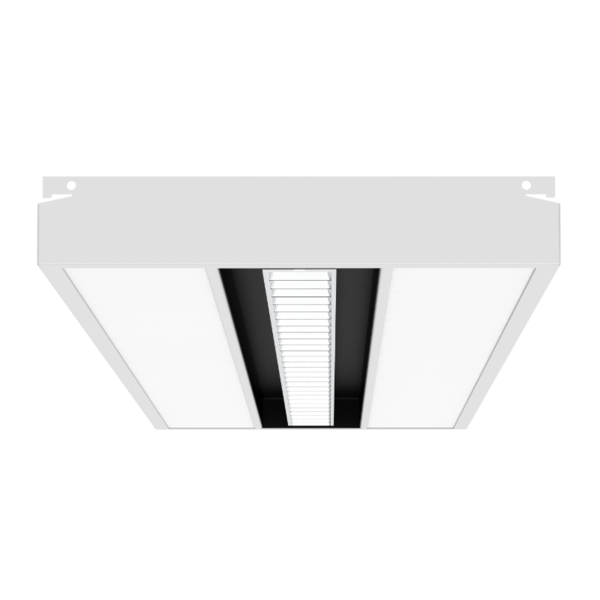

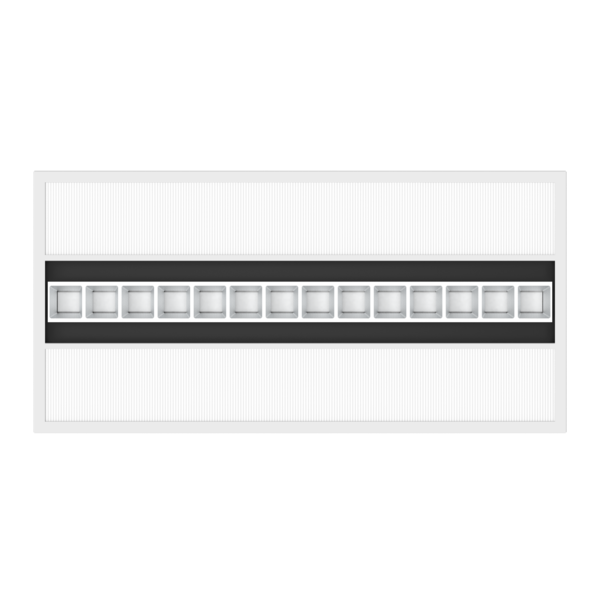

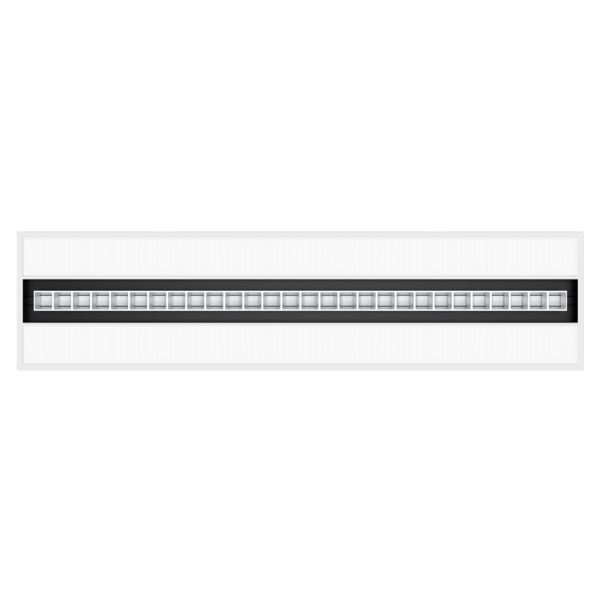

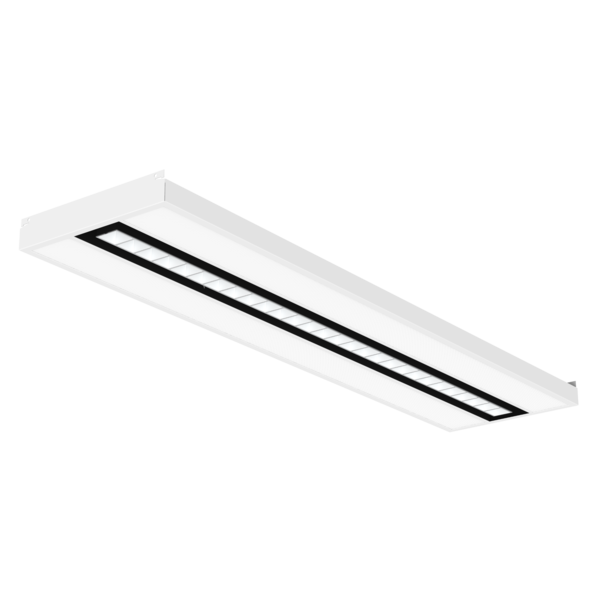

Platinum III Commercial LED Concealed Air Return Troffer

The Platinum III commercial LED troffer is designed with a discreet shadow-line air return system and a diffused cell LED system. Designed to suit commercial applications where a high performance LED troffer is required. The Platinum III is available with ambient side lit diffuser panels and is manufactured with high output LEDs.

Application

Designed to fit T-bar ceilings, the Platinum III commercial LED diffused troffer is suited to: Healthcare, Education and Commercial office applications

Design Specifications

  • White powdercoat finish available in 1200 x 300mm, 600 x 300mm and 1500 x 300mm (Note MOQ's apply for 1500x300)

  • High efficacy Samsung SMD LED chip, L90>50,000 hours

  • SDCM <3, CRI 90 and 4000K as standard

  • Available in 3000K, 3500K and 4000K CCT

  • Remote constant current driver supplied

  • Available Options

    • CRI 90 available

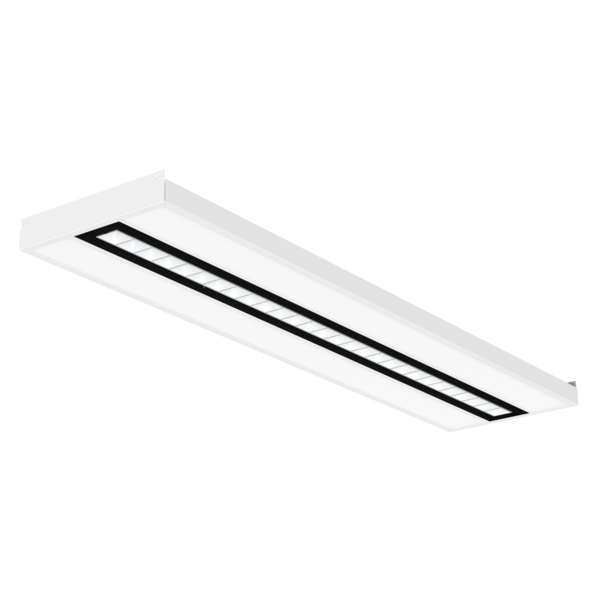

    • Remote DALI dimmable driver
    • Tunable white w/DALI type 8 driver
    • Custom widths available - Note MOQ's will apply

  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

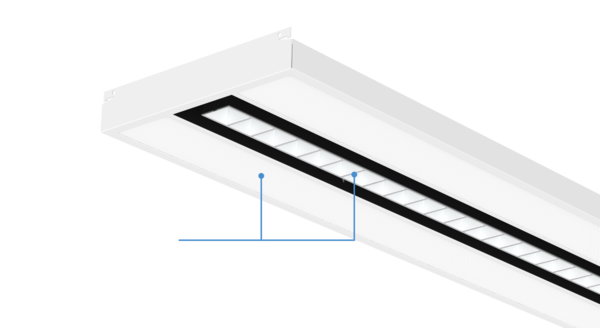

Encompassing the latest in LED and diffuser technology and offering a low glare and high efficiency solution, the Platinum III troffer has been designed to suit the modern day office environment

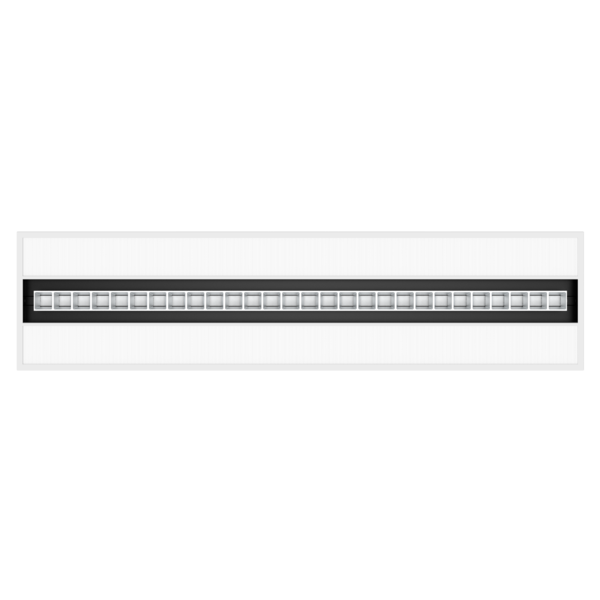

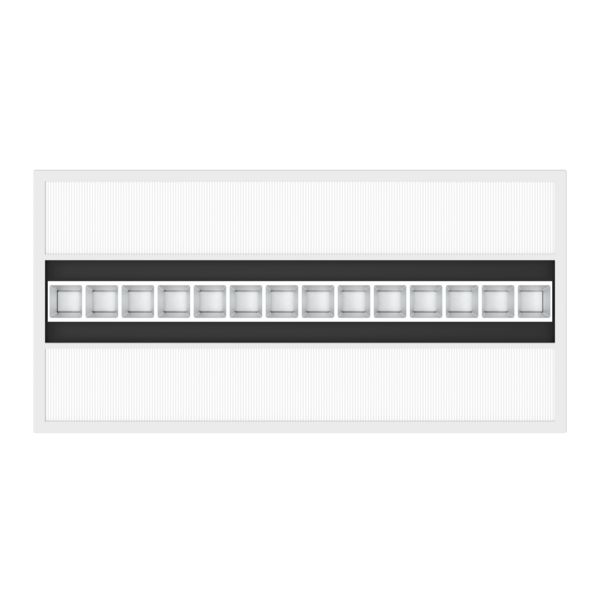

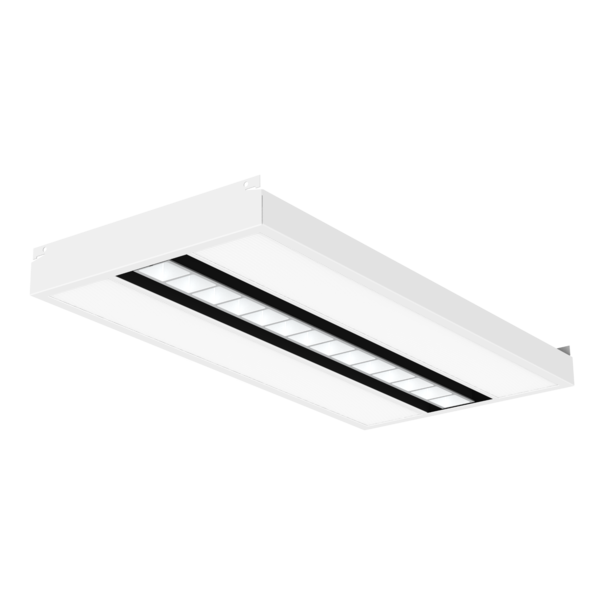

Designed in-house by the SAL Commercial engineering team, Platinum III is available in 600 x 300mm, 1200 x 300mm and 1500 x 300mm sizes

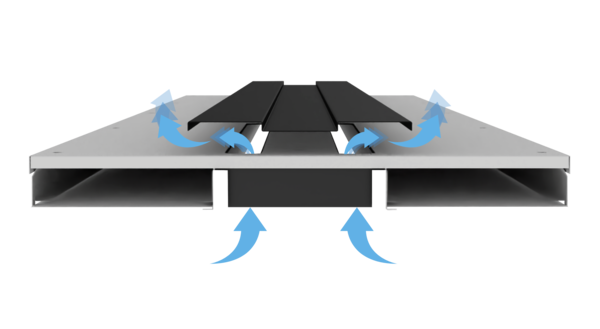

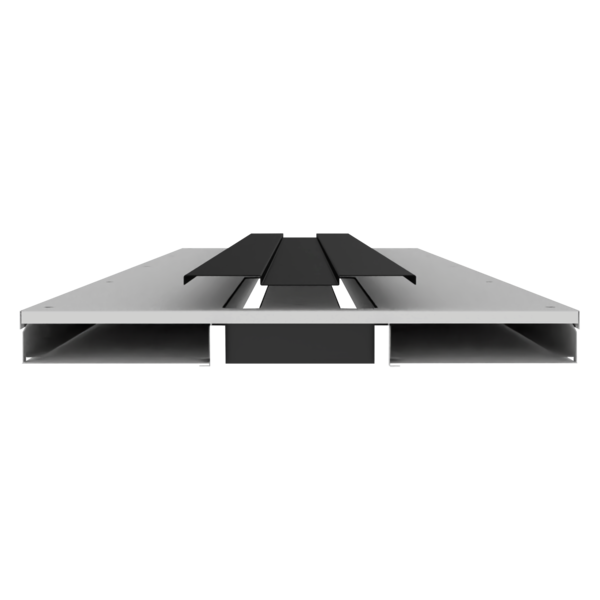

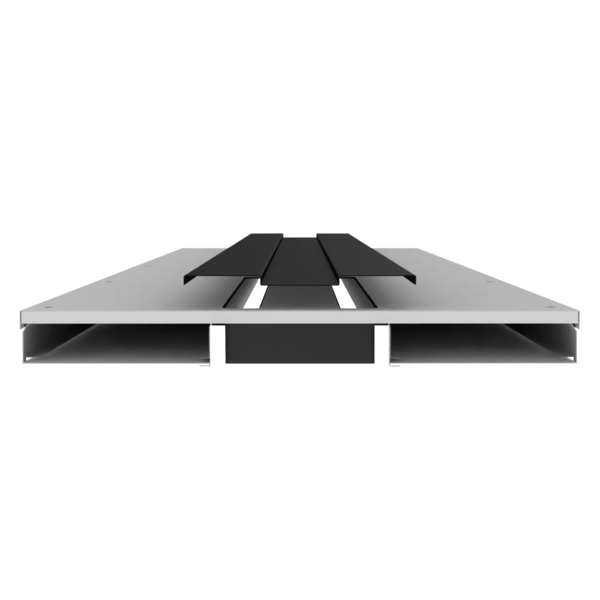

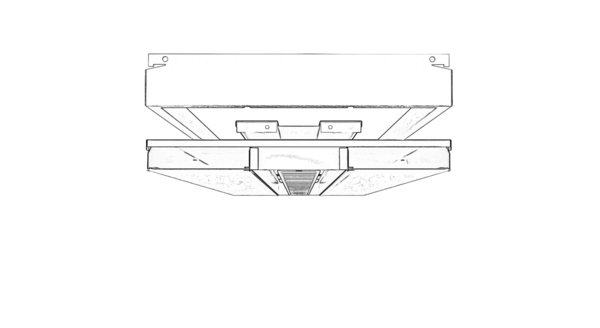

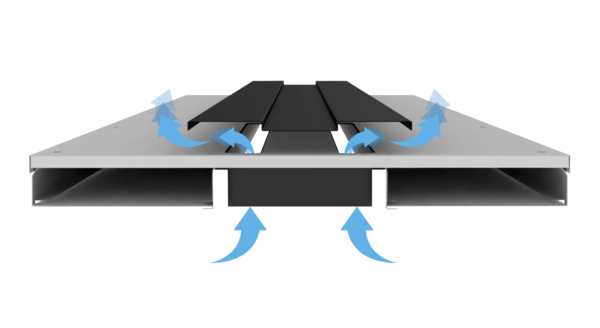

Designed to suit modern commercial architecture, the Platinum III troffer is available with an optional air return design concept concealing the air slots alongside the central diffused cell light source

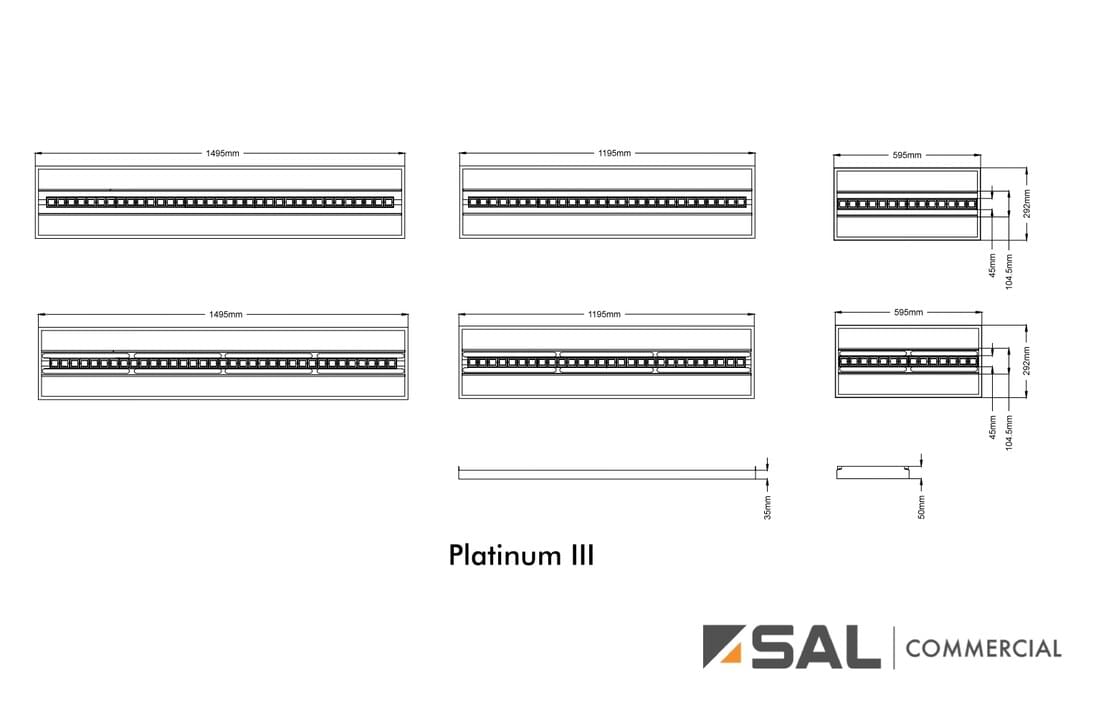

  • Dimensions - Wiring Diagrams
  • Design Options

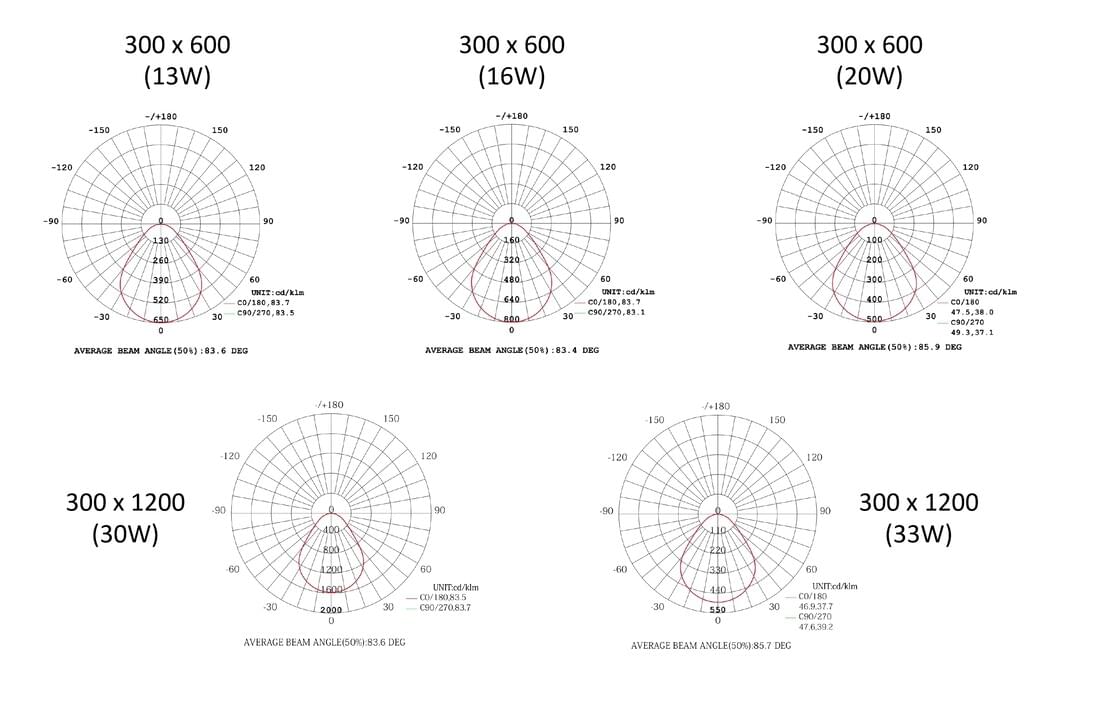

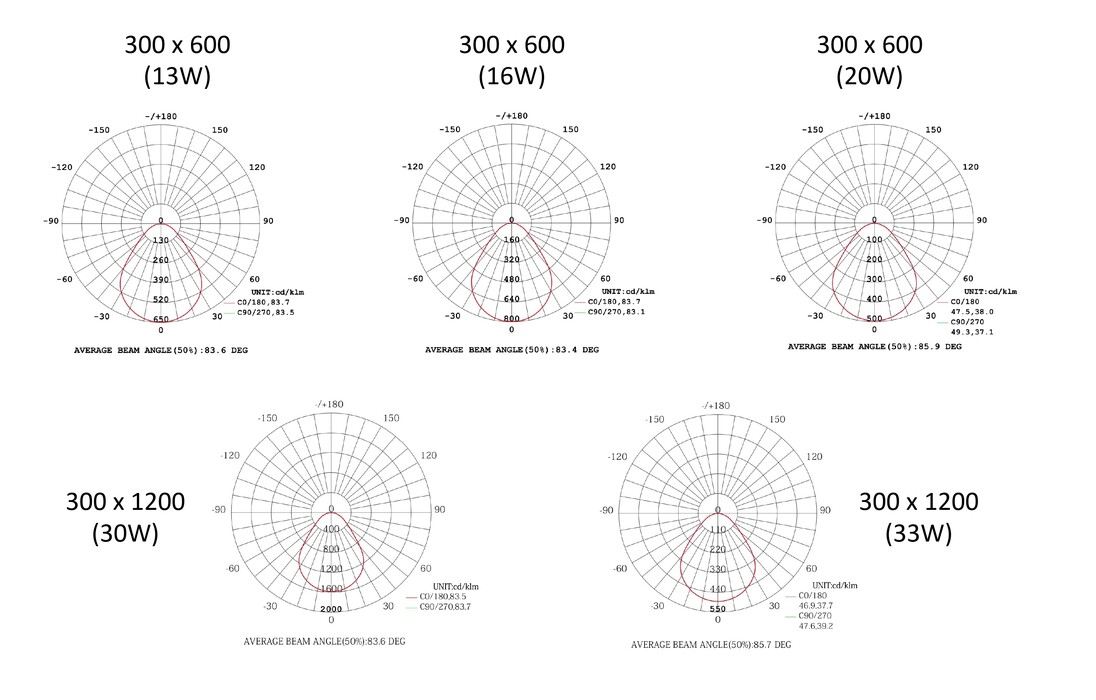

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Luminous
    Efficacy    		 Power Lumens CCT CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.P3B1440N DescriptionLED troffer 600x300mm non-dimmable Luminous
    Efficacy    104    		 Power14 Lumens1500 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3B1440NAR DescriptionLED concealed air return troffer 600x300mm non-dimmable Luminous
    Efficacy    104    		 Power14 Lumens1500 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3B1440D DescriptionLED troffer 600x300mm DALI dimmable Luminous
    Efficacy    104    		 Power14 Lumens1500 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3B1440DAR DescriptionLED concealed air return troffer 600x300mm DALI dimmable Luminous
    Efficacy    104    		 Power14 Lumens1500 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3A2540N DescriptionLED troffer 1200x300mm non-dimmable Luminous
    Efficacy    104    		 Power25 Lumens2600 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3A2540NAR DescriptionLED concealed air return troffer 1200x300mm non-dimmable Luminous
    Efficacy    104    		 Power25 Lumens2600 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3A2540D DescriptionLED troffer 1200x300mm DALI dimmable Luminous
    Efficacy    104    		 Power25 Lumens2600 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3A2540DAR DescriptionLED concealed air return troffer 1200x300mm DALI dimmable Luminous
    Efficacy    104    		 Power25 Lumens2600 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3A3040N DescriptionLED troffer 1200x300mm non-dimmable Luminous
    Efficacy    104    		 Power30 Lumens3100 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3A3040NAR DescriptionLED concealed air return troffer 1200x300mm non-dimmable Luminous
    Efficacy    104    		 Power30 Lumens3100 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3A3040D DescriptionLED troffer 1200x300mm DALI dimmable Luminous
    Efficacy    104    		 Power30 Lumens3100 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3A3040DAR DescriptionLED concealed air return troffer 1200x300mm DALI dimmable Luminous
    Efficacy    104    		 Power30 Lumens3100 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3A3340N DescriptionLED troffer 1200x300mm non-dimmable Luminous
    Efficacy    104    		 Power33 Lumens3400 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3A3340NAR DescriptionLED concealed air return troffer 1200x300mm non-dimmable Luminous
    Efficacy    104    		 Power33 Lumens3400 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3A3340D DescriptionLED troffer 1200x300mm DALI dimmable Luminous
    Efficacy    104    		 Power33 Lumens3400 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3A3340DAR DescriptionLED concealed air return troffer 1200x300mm DALI dimmable Luminous
    Efficacy    104    		 Power33 Lumens3400 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3D3540N DescriptionLED troffer 1500x300mm non-dimmable Luminous
    Efficacy    104    		 Power35 Lumens3700 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3D3540NAR DescriptionLED concealed air return troffer 1500x300mm non-dimmable Luminous
    Efficacy    104    		 Power35 Lumens3700 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3D3540D DescriptionLED troffer 1500x300mm DALI dimmable Luminous
    Efficacy    104    		 Power35 Lumens3700 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.P3D3540DAR DescriptionLED concealed air return troffer 1500x300mm DALI dimmable Luminous
    Efficacy    104    		 Power35 Lumens3700 CCT4000 CRI90 Add to Enquiry Add Remove Remove

    Code methodology: (example P3A=1200x300mm) A=1200x300mm   B=600x300mm   C=600x600mm   D=1500x300mm   E=1200x600mm



Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
