Platinum Surface Mount Frame

Commercial Straight Side Frame

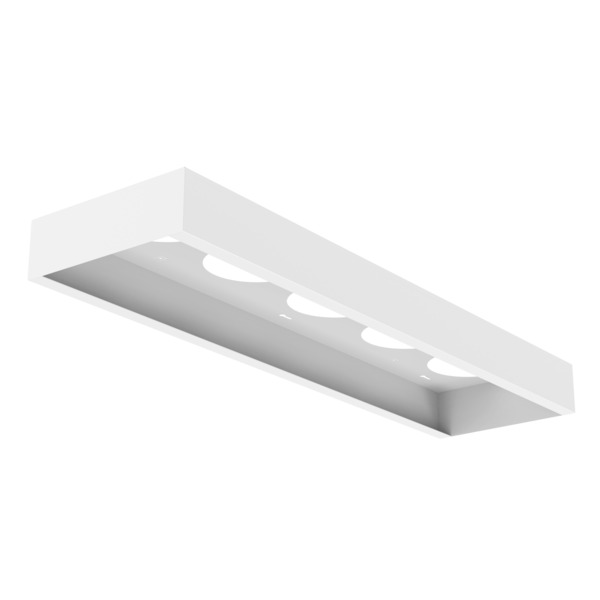

Low Profile Surface Mount Frame, Manufactured From Sheet Metal & Powdercoated White t/s Platinum I (P1) / Platinum II (P2) & Platinum III (P3)

Application

Suitable To Be Surface Mounted In Classrooms, Corridors & Offices

Design Specifications

  • Available In Four Sizes - 600mm x 300mm / 600mm x 600mm / 1200mm x 300mm / 1200mm x 600mm

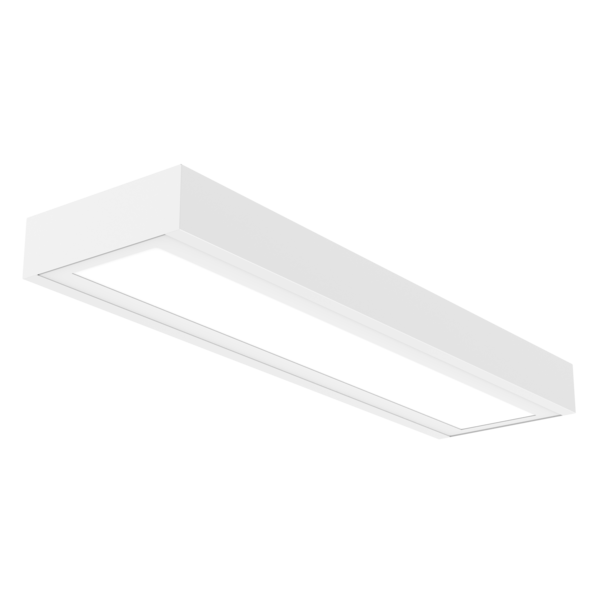

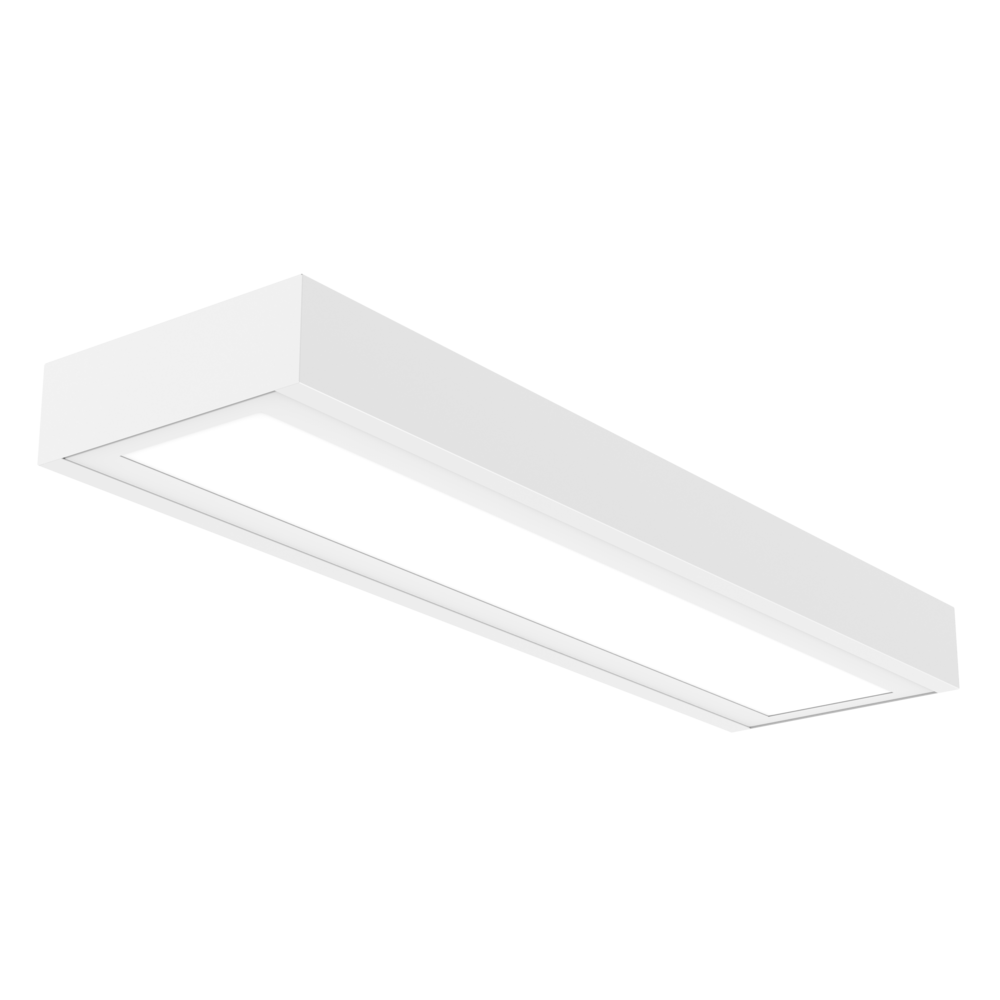

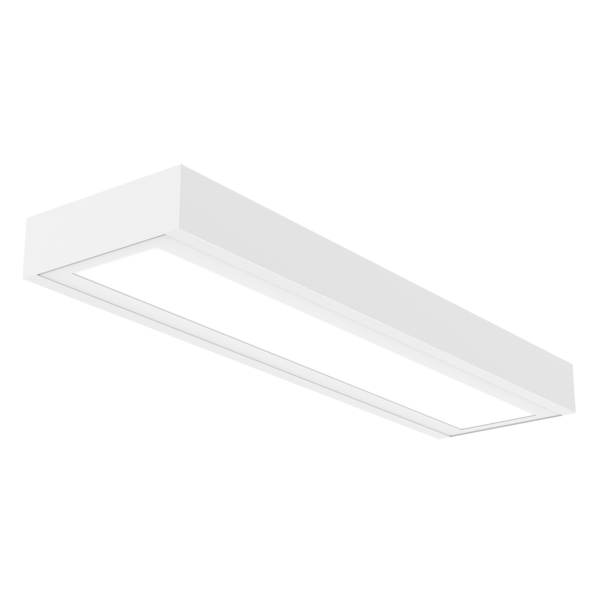

  • Low Profile, Straight Sided Surface Mount Frame With Plug & Play Power Outlet & Safety Lanyards

  • White Powdercoat Finish To Match Platinum Series Troffers

  • Simple Installation Of The Frame & Luminaire

  • *Note: Not Suitable For The Platinum V (P5) LED Panel

    Please click below for Platinum V Surface Mount Frame Option
    - P5 Surface Frames

Performance

  • Dimmable - NO

Platinum Surface Mount Frame
Platinum Surface Mount Frame
Platinum Surface Mount Frame
Platinum Surface Mount Frame
Platinum Surface Mount Frame
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Length Width Height Body Colour Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click

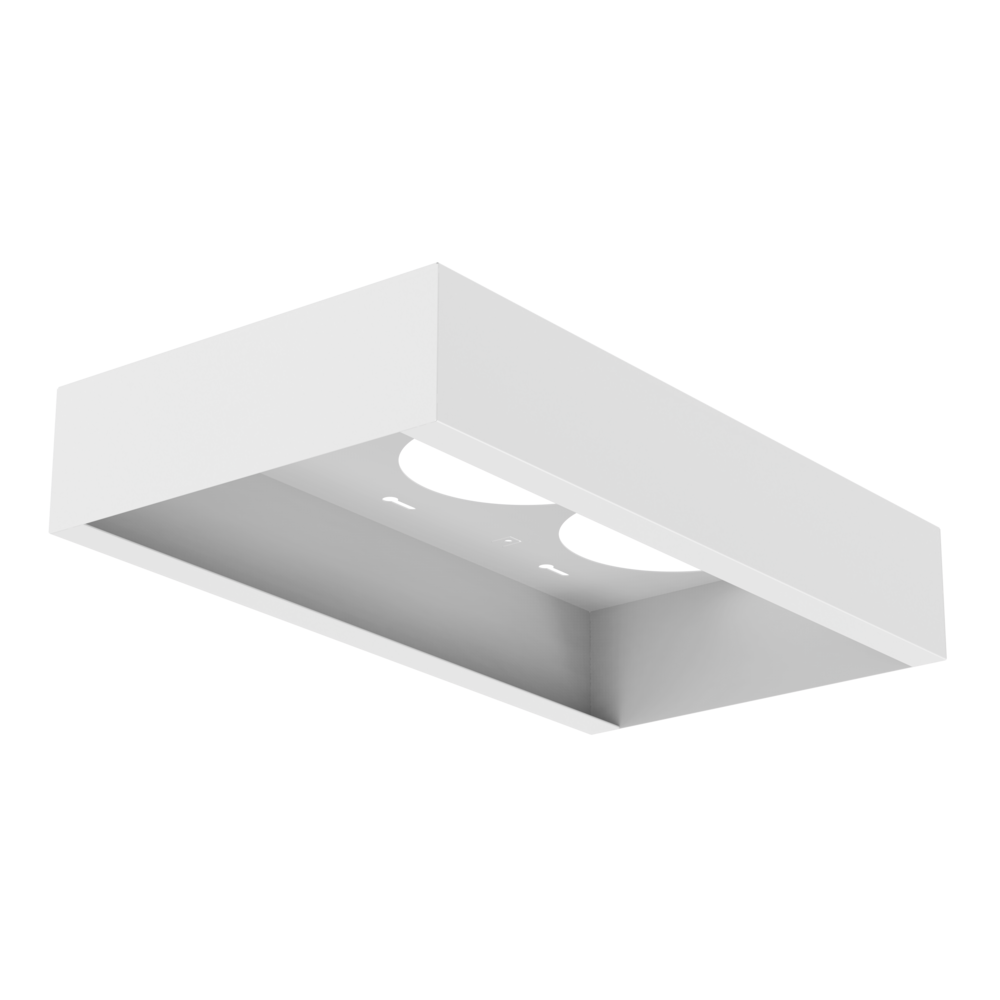

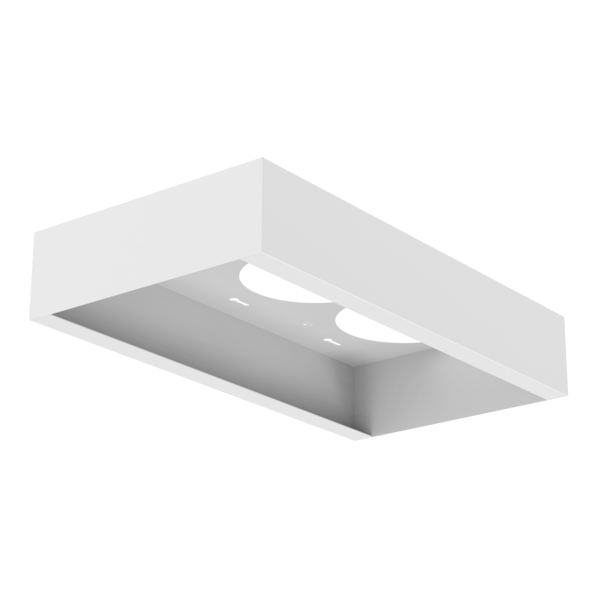

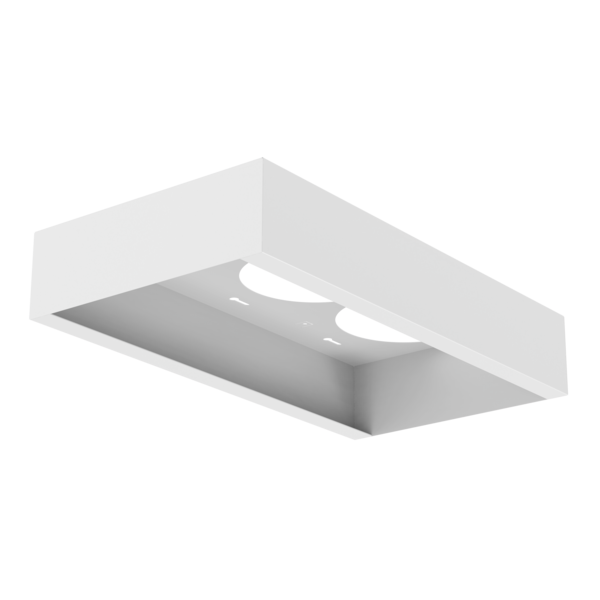

      Model No. PLBSMF Description White Surface Mount Kit - 600mm x 300mm Length 602 Width 330 Height 105 Body Colour White Add to Enquiry Add Remove Remove

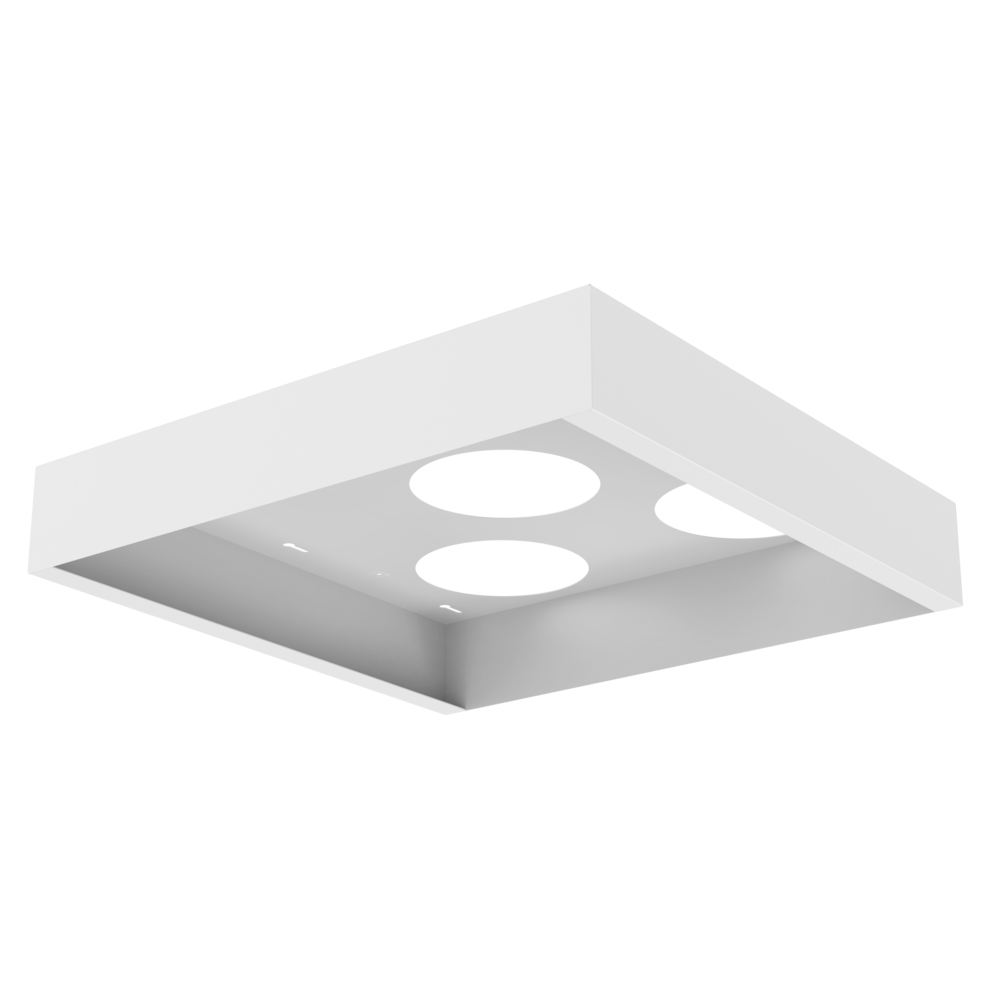

      Model No. PLCSMF Description White Surface Mount Kit - 600mm x 600mm Length 602 Width 630 Height 105 Body Colour White Add to Enquiry Add Remove Remove

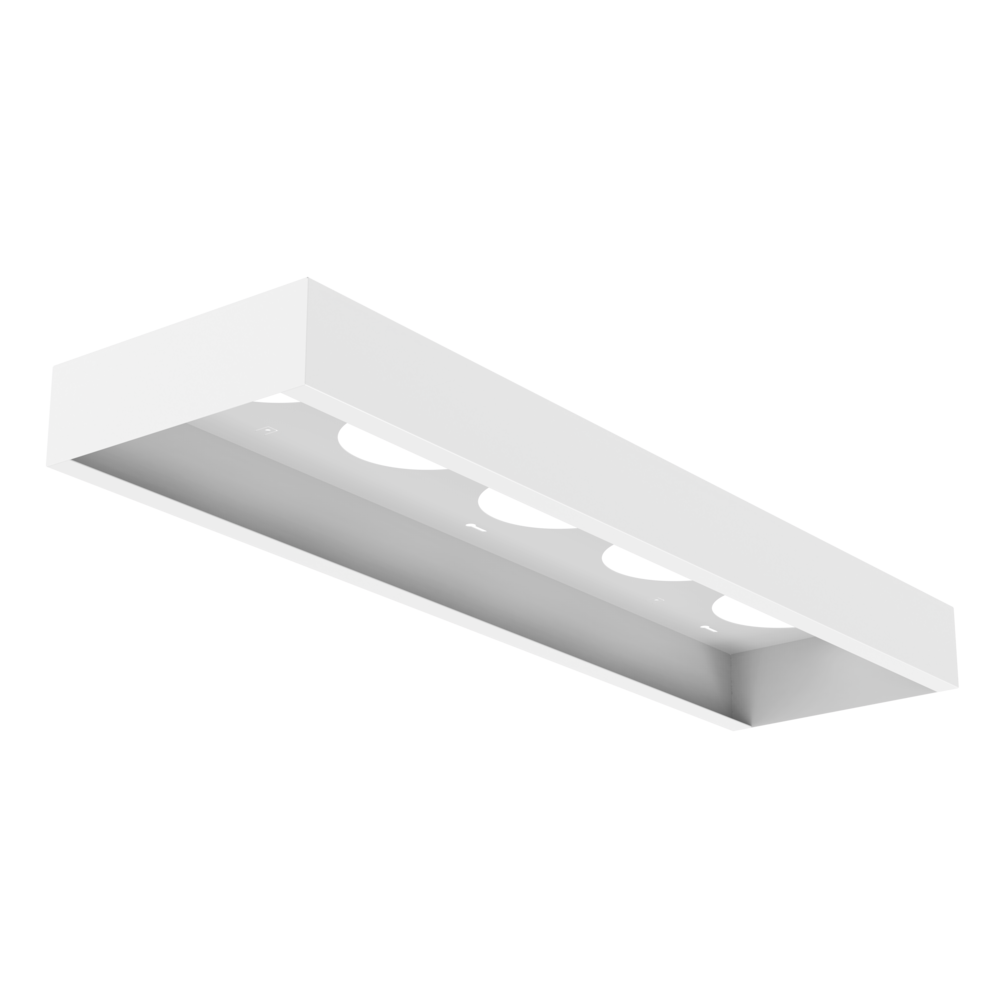

      Model No. PLASMF Description White Surface Mount Kit - 1200mm x 300mm Length 1202 Width 330 Height 105 Body Colour White Add to Enquiry Add Remove Remove

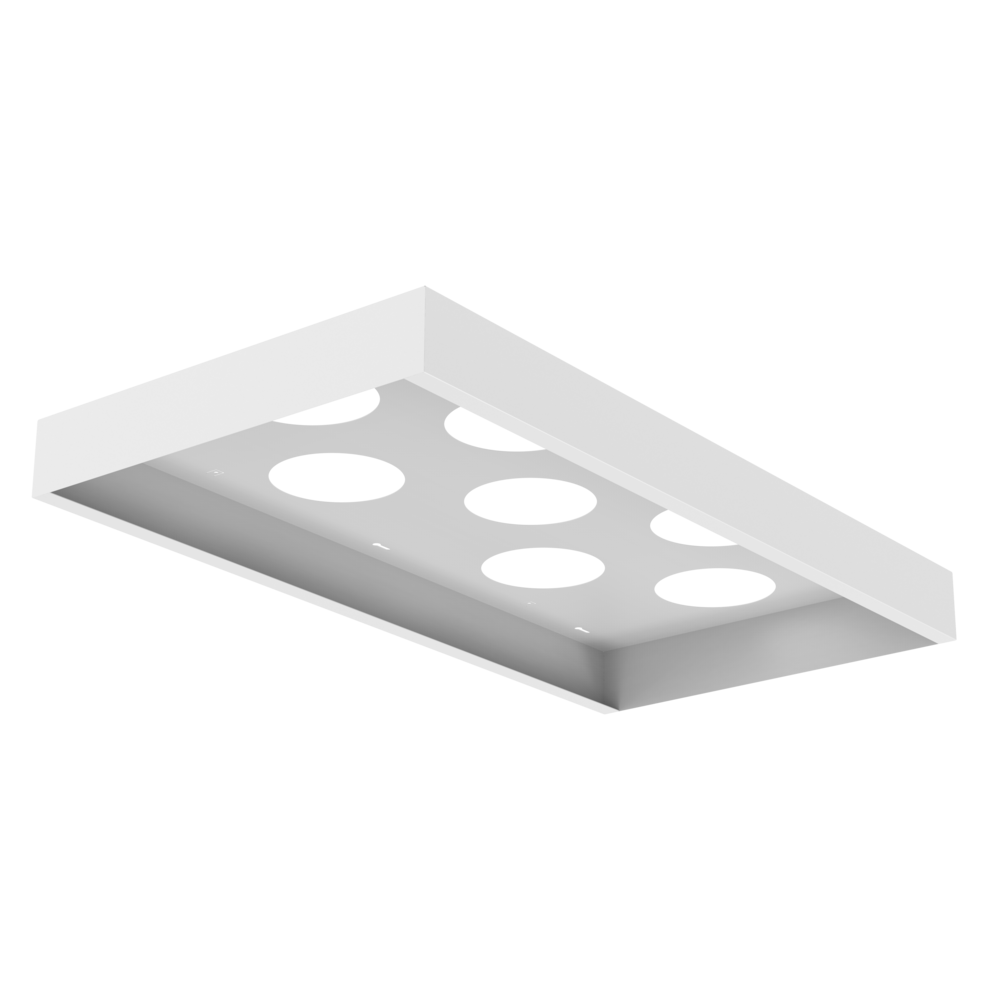

      Model No. PLESMF Description White Surface Mount Kit - 1200mm x 600mm Length 1202 Width 630 Height 105 Body Colour White Add to Enquiry Add Remove Remove

      PLEASE NOTE:

      Platinum V (P5) Is Not Suitable For The Platinum Surface Mount Frame

      Please Click The Link Below For The Platinum V Surface Mount Frame Options

      - P5 Surface Frames

    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
