Grandlux Multi-colour
LED Vandal Proof
Introducing Grandlux. A die-cast aluminium vandalproof LED luminaire designed to withstand the toughest Australian conditions.
NATA certified test reports available for IP66 ingress protection and IK10 impact protection rating. Available in both 2ft and 4ft. The Grandlux range includes Emergency, Integrated night light, In-built motion sensor and Multi-colour models.
Application
Designed in house with 40 reinforced internal rib supports offering exceptional strength and rigidity, the Grandlux vandalproof LED luminaire is capable of operating at temperatures of -30°C to 50°C
Applications: Correctional facilities, Mining facilities and specific areas in Industrial facilities
Design Specifications

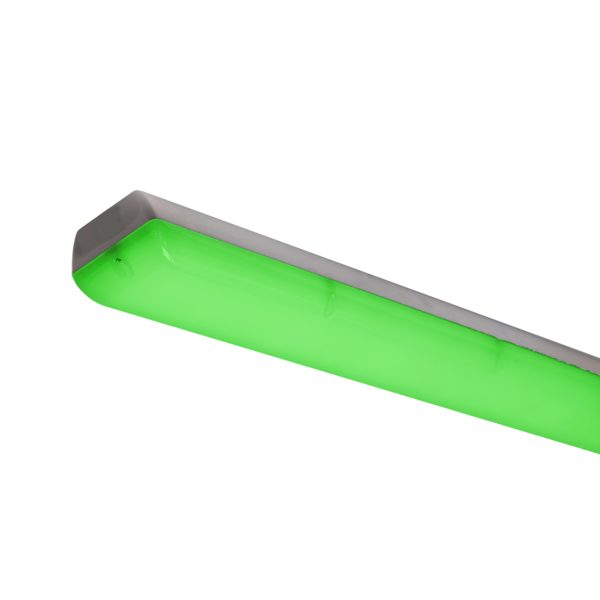

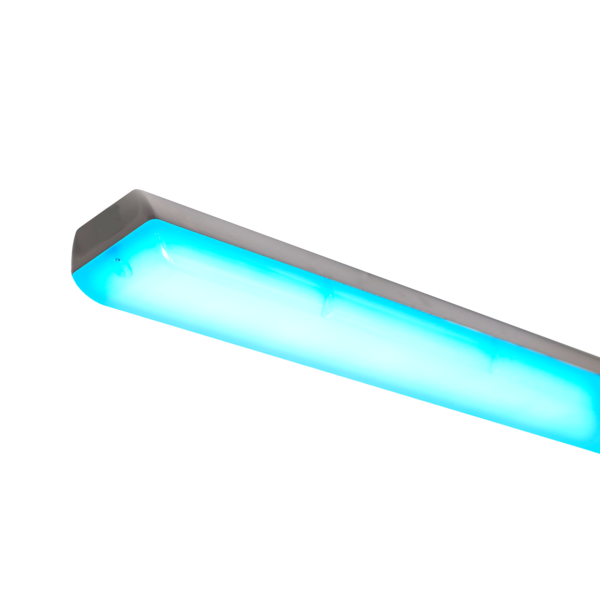

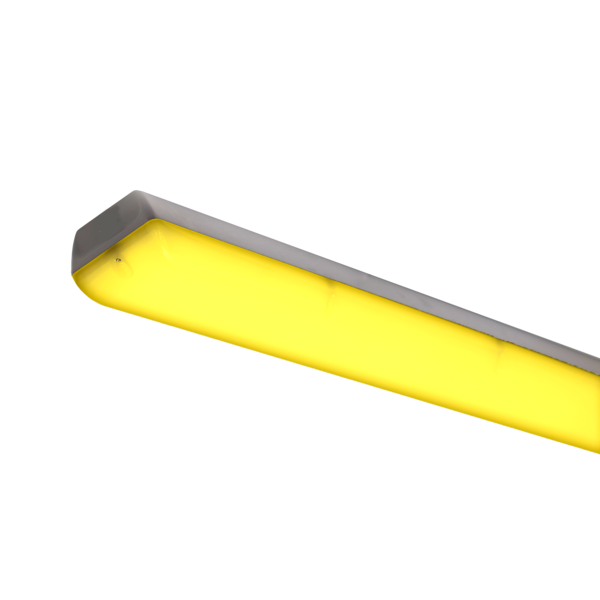

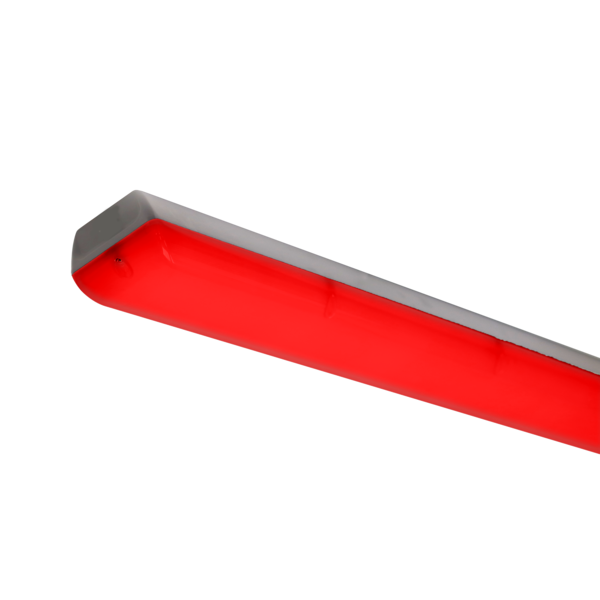

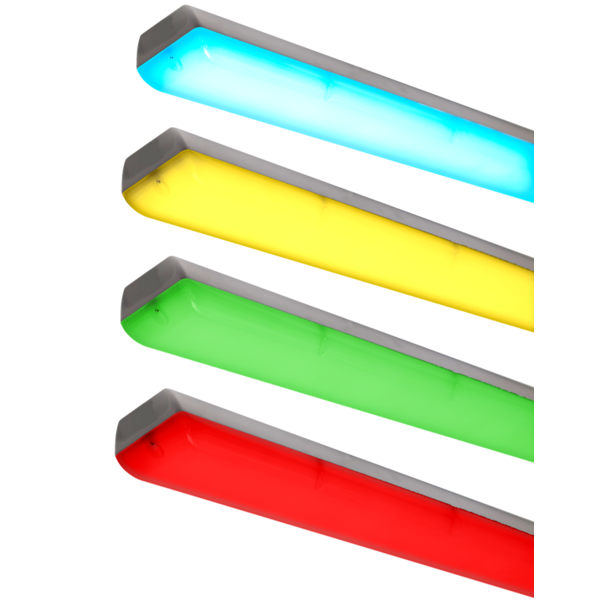

Available in two models Blue/Green and Amber/Red
High lumen output LED gear tray specifically designed to applications where coloured LED lighting solutions are required

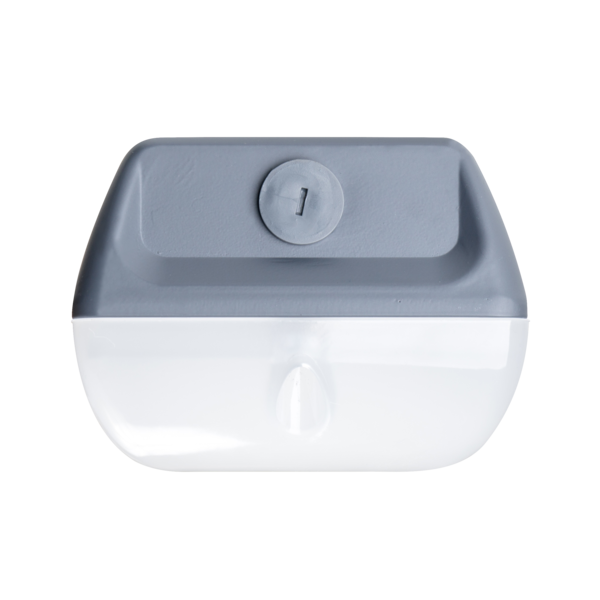

Die-cast aluminium body (dark grey RAL7015) supplied with high transmission opal diffuser with anti-tamper captive screws

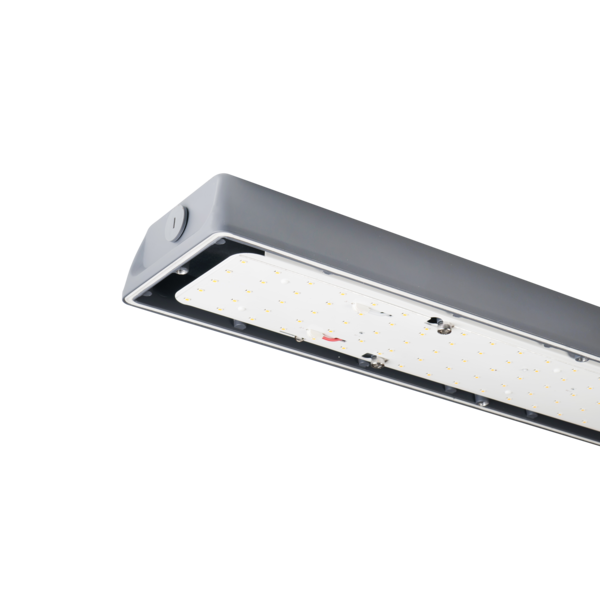

Removable LED gear tray, L90/B10 >50,000 hours, 10KV surge protection device fitted as standard
Terminal block to suit 6mm² cabling fitted as standard
M20 cable gland supplied as standard
Accessories Available
- Stainless steel suspension kit (CGXSSSK)
- Surface mount bracket (CGXSMB)
- Spigot adaptor plate (CGXOSB)
Available Options
- High transmission clear diffuser
- DALI control gear
- Emergency (Add EM to end of code)
- Torx Security Screws (Add TX to end of code)
CLICK HERE: Read why Grandlux Vandal Proof LED Lighting Fixtures are Best in Class
-

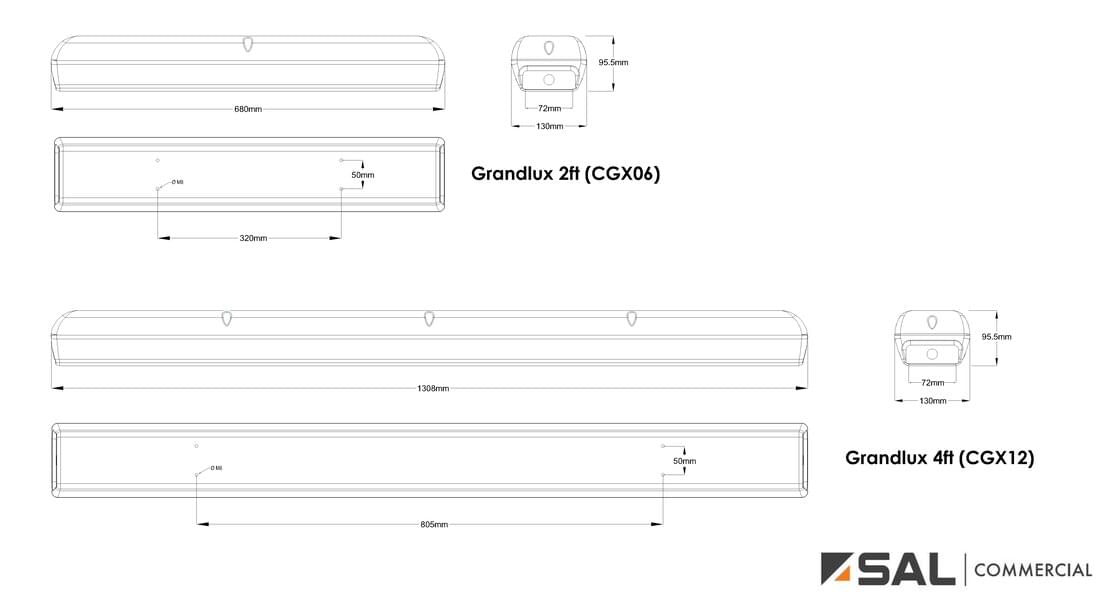

Dimensions - Wiring Diagrams
-

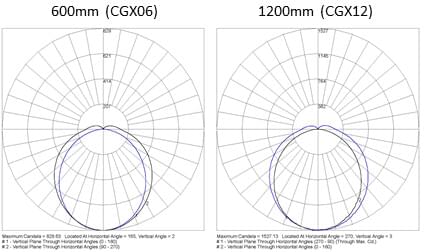

- Photometric Data
-
Model No. & Technical Specification
Model No. Description Power CRI Dim Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickModel No. CGX0625BGN Description Dual Output IP66 IK10 Blue (450nm) / Green (520nm) LED vandalproof luminaire Power 25 CRI 80 Dim 680(L) Add to Enquiry Add Remove Remove Model No. CGX0625ARN Description Dual Output IP66 IK10 Amber (2200k) / Red (620nm) LED vandalproof luminaire Power 25 CRI 80 Dim 680(L) Add to Enquiry Add Remove Remove Model No. CGX1242BGN Description Dual Output IP66 IK10 Blue (450nm) / Green (520nm) LED vandalproof luminaire Power 42 CRI 80 Dim 1308(L) Add to Enquiry Add Remove Remove Model No. CGX1242ARN Description Dual Output IP66 IK10 Amber (2200k) / Red (620nm) LED vandalproof luminaire Power 42 CRI 80 Dim 1308(L) Add to Enquiry Add Remove Remove
