Grandlux Night Light
LED Vandal Proof

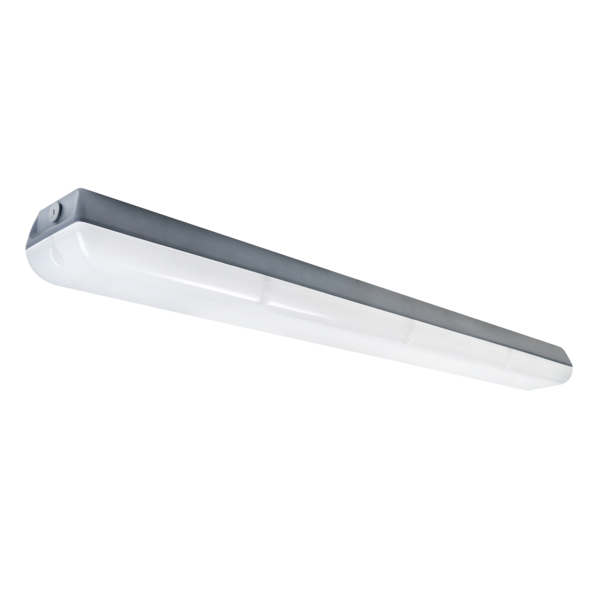

Introducing Grandlux. A die-cast aluminium vandalproof LED luminaire designed to withstand the toughest Australian conditions.
NATA certified test reports available for IP66 ingress protection and IK10 impact protection rating. Available in both 2ft and 4ft. The Grandlux range includes Emergency, Integrated night light, In-built motion sensor and Multi-colour models.
Application
Designed for the most arduous environements with 40 re-inforced internal rib supports offering exceptional strength and rigidity, the Grandlux IP66 IK10 vandalproof LED luminaire is suitable for most hazardous locations
Suitable applications include - Correctional Facilities, Transport Tunnels, Railway Platforms, School Security & Walkways, Stairwells & Corridors, Maintenance Pits, Public Amenities, Public Carparks, Warhouse & Dock Yards
Design Specifications
Dual night light feature (red/white) selectable via internal switch
High lumen output > 130lm/w, 4000K (standard specification)
Die-cast aluminium body (dark grey RAL7015) supplied with high transmission opal diffuser with anti-tamper captive screws

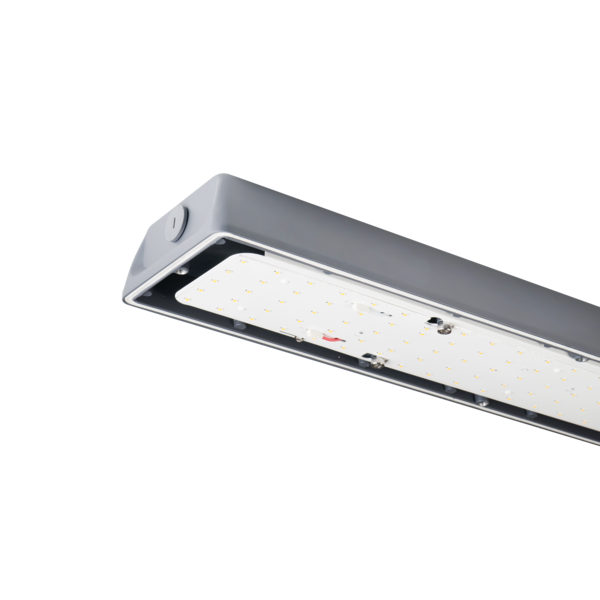

Removable LED gear tray, L90/B10 >50,000 hours, 10KV surge protection device fitted as standard, four lumen output selections on the driver
Terminal block to suit 6mm² cabling fitted as standard
M20 cable gland supplied as standard
Accessories Available
- Stainless steel suspension kit (CGXSSSK)
- Surface mount bracket (CGXSMB)
- Spigot adaptor plate (CGXOSB)
Available Options
- 3000k, 5700k CCT options
- High transmission clear diffuser
- DALI control gear
- Torx Security Screws (Add TX to end of code)
CLICK HERE: Read why Grandlux Vandal Proof LED Lighting Fixtures are Best in Class
-

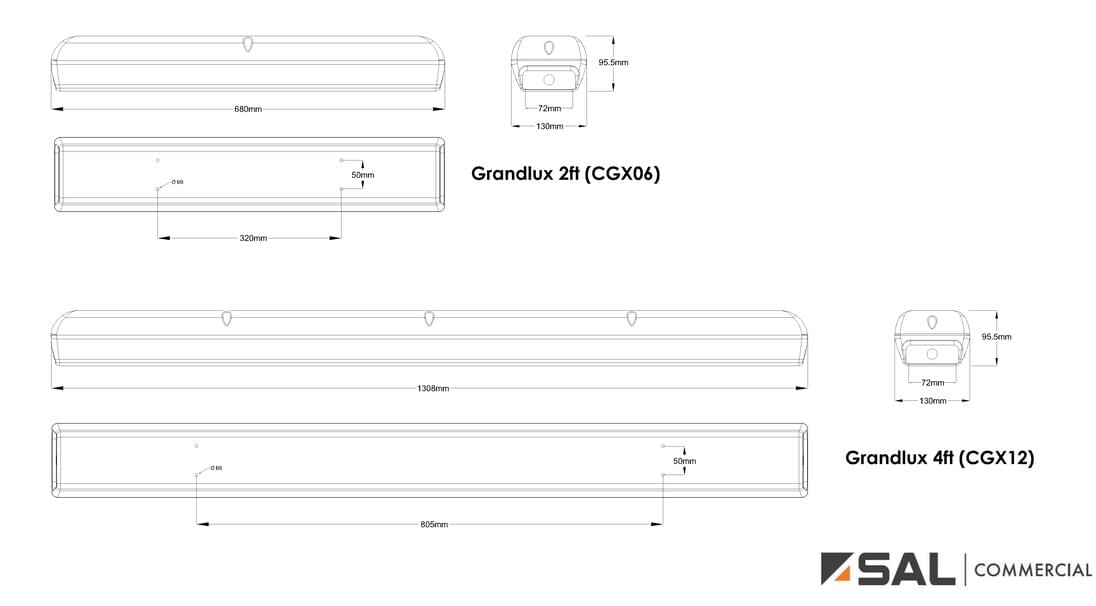

Dimensions - Wiring Diagrams
-

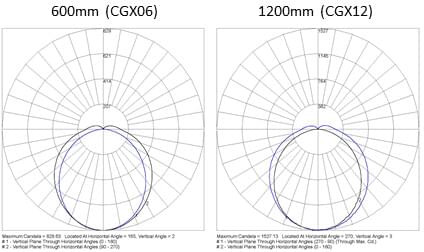

- Photometric Data
-
Model No. & Technical Specification
Model No. Description Power Lumens CCT CRI Dim Body Colour Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickModel No. CGX062540NNL Description IP66 IK10 LED vandalproof luminaire with dual night light Power 25 Lumens 2700 CCT 4000/4000 CRI 80 Dim 680(L) Body Colour black Add to Enquiry Add Remove Remove Model No. CGX124240NNL Description IP66 IK10 LED vandalproof luminaire with dual night light Power 42 Lumens 4900 CCT 4000/4000 CRI 80 Dim 1308(L) Add to Enquiry Add Remove Remove
