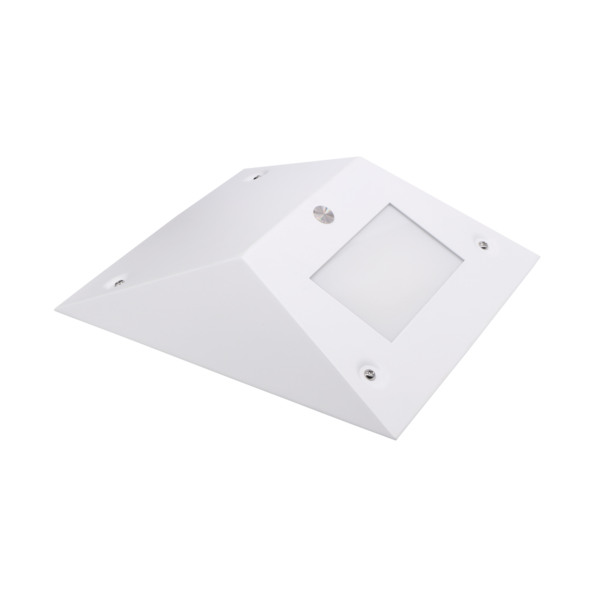

Pentridge

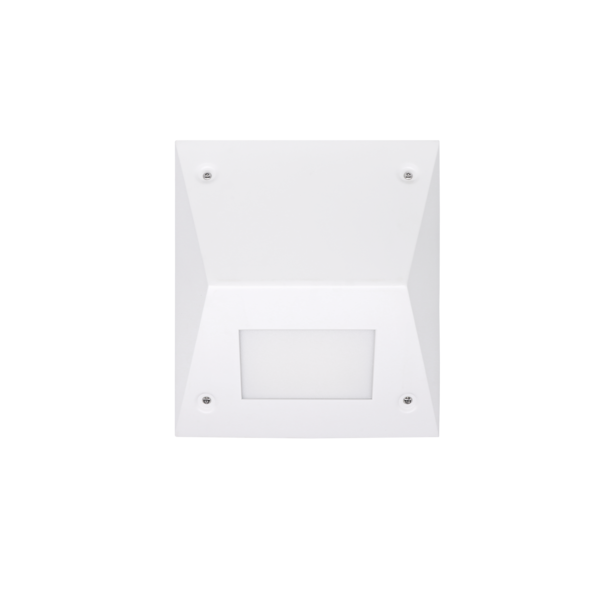

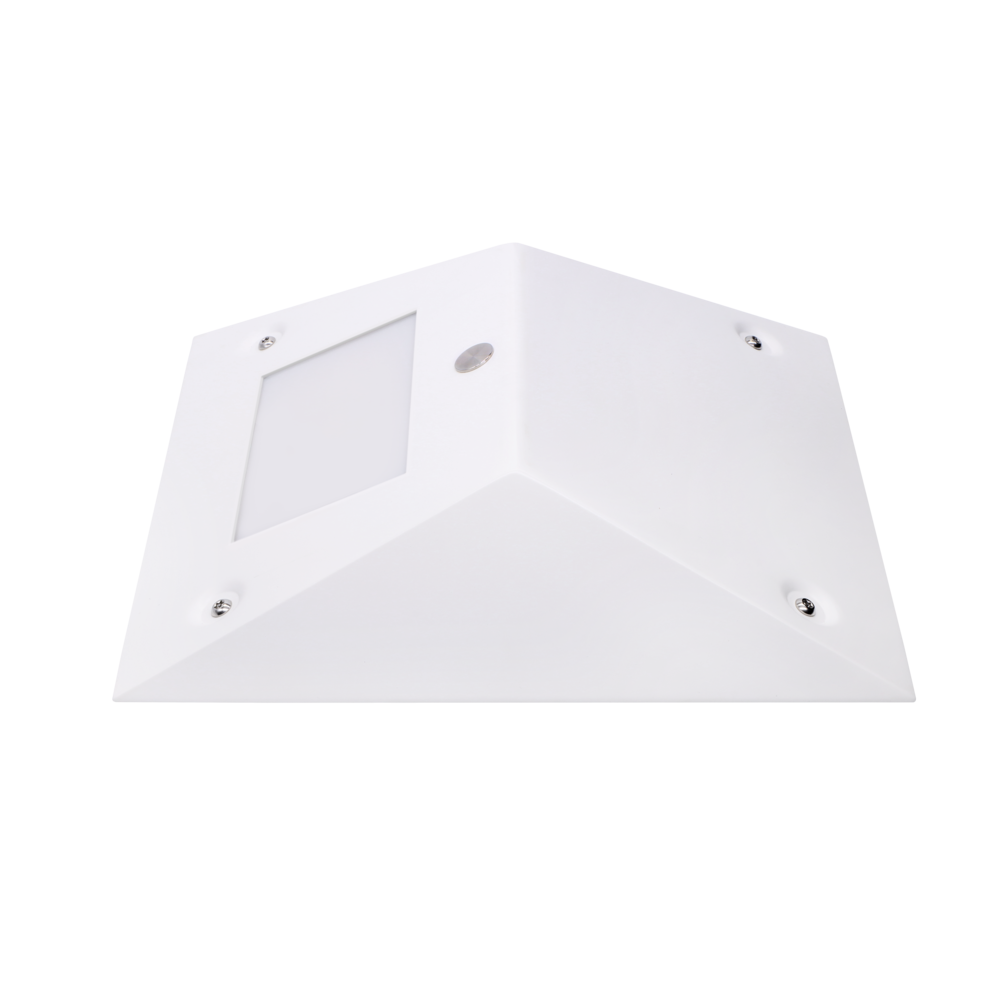

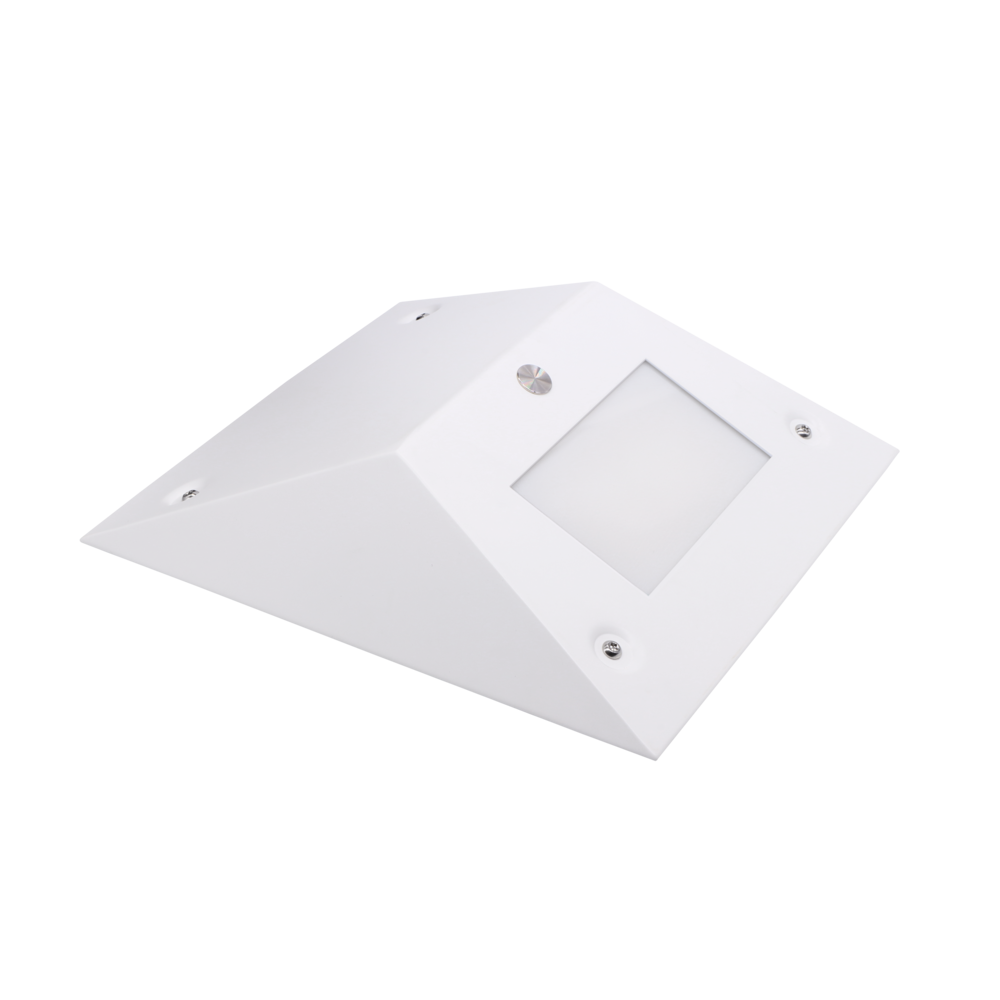

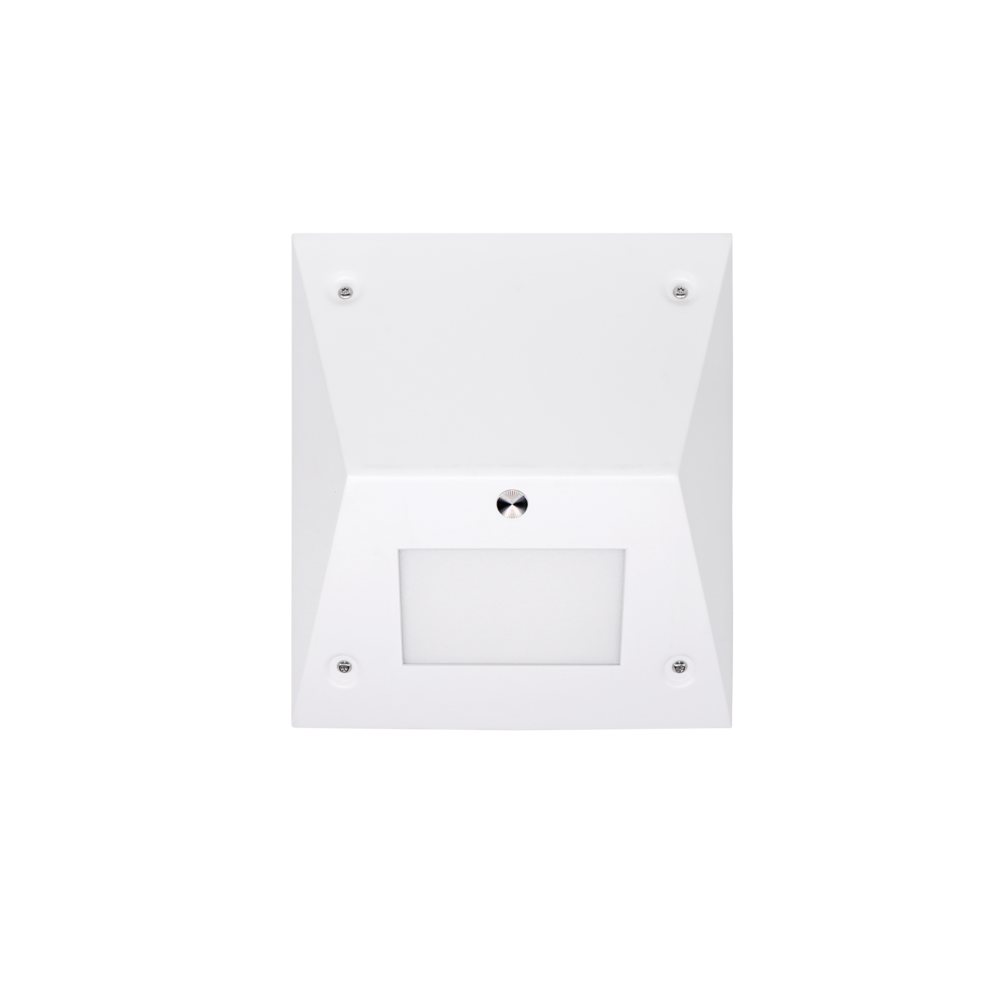

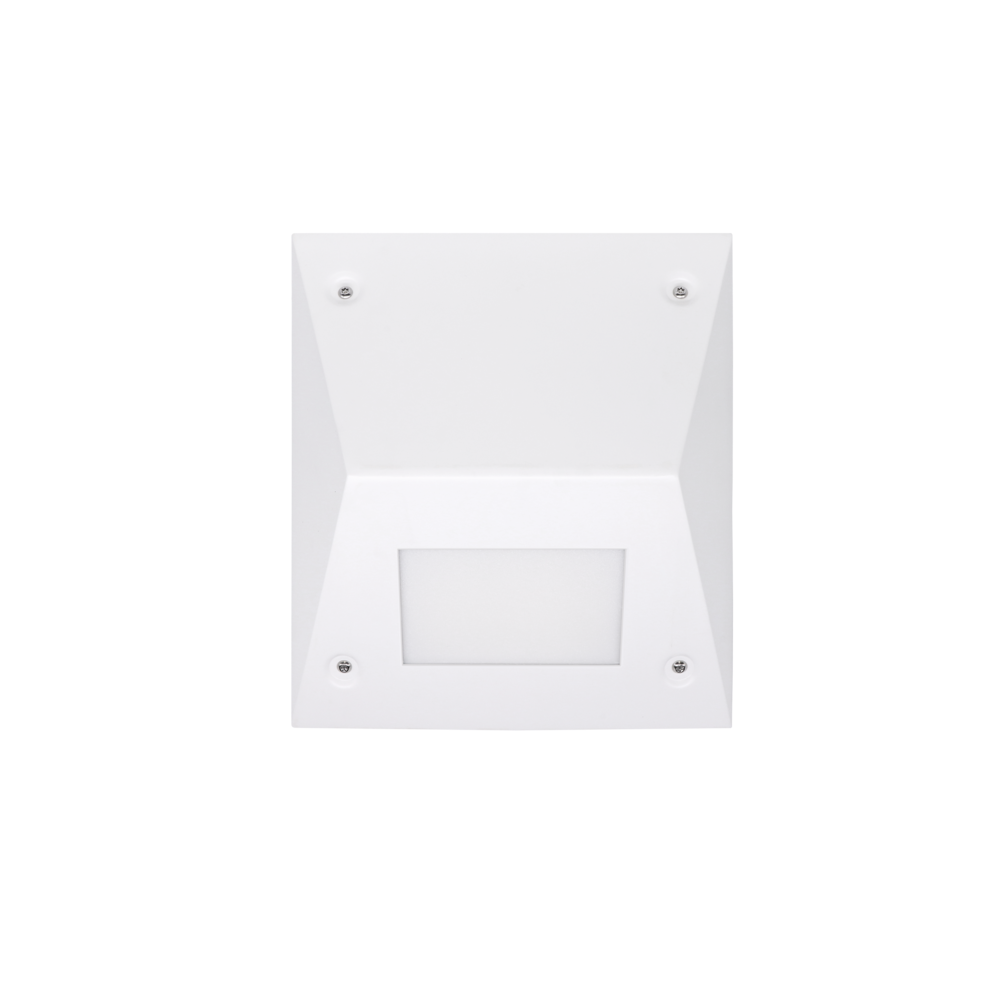

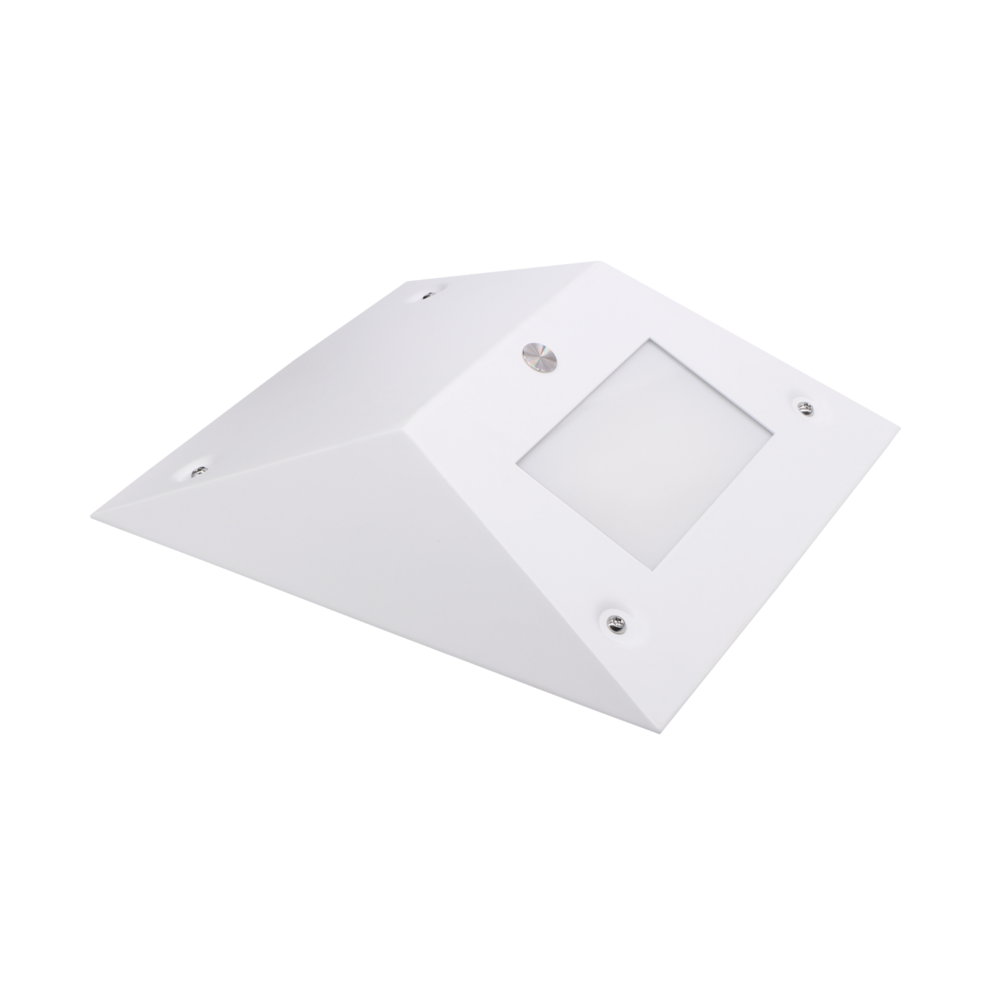

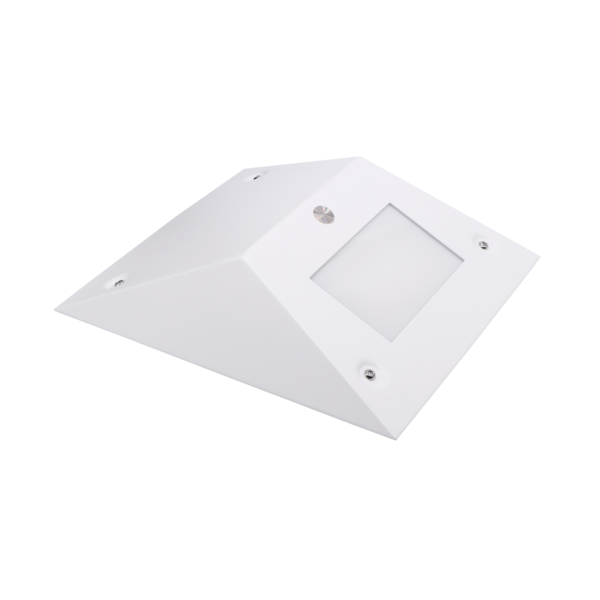

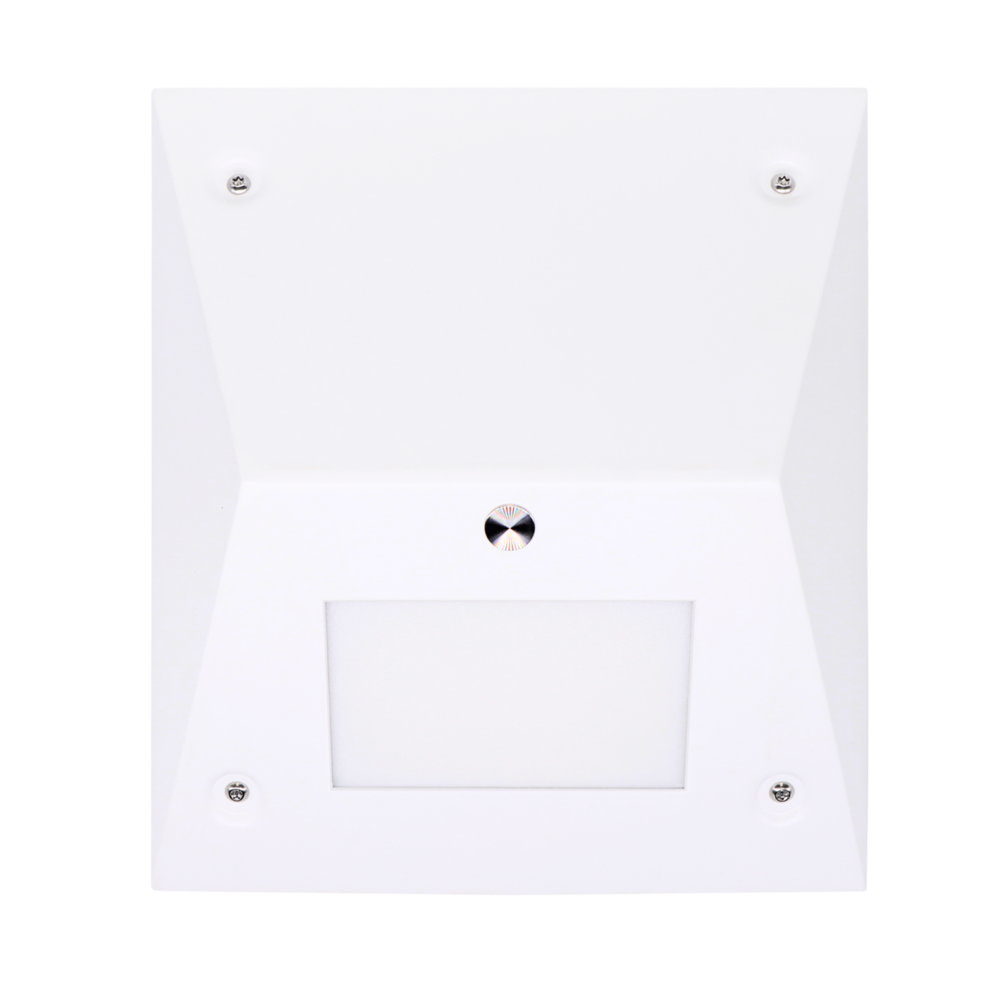

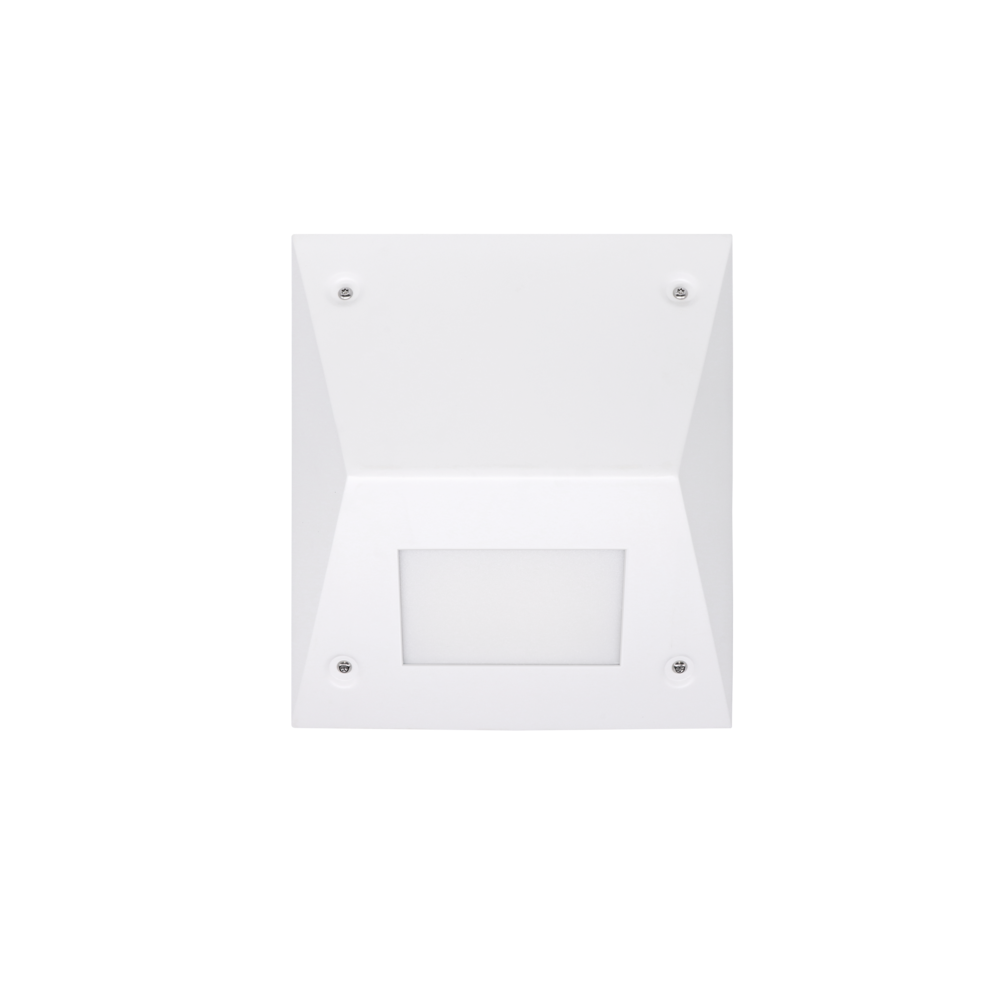

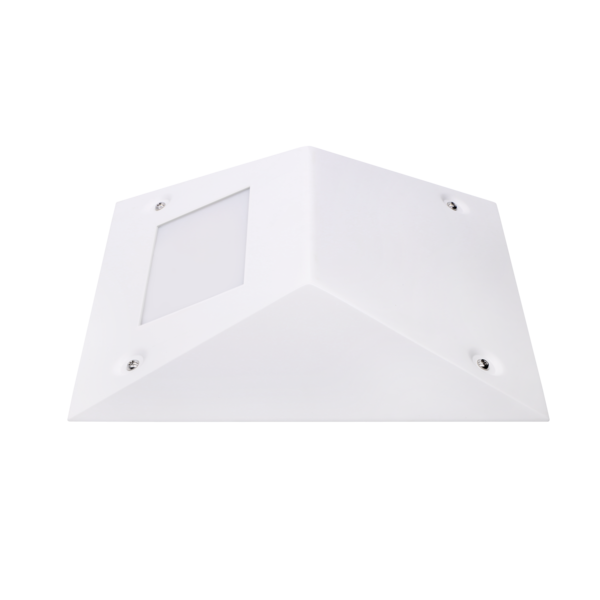

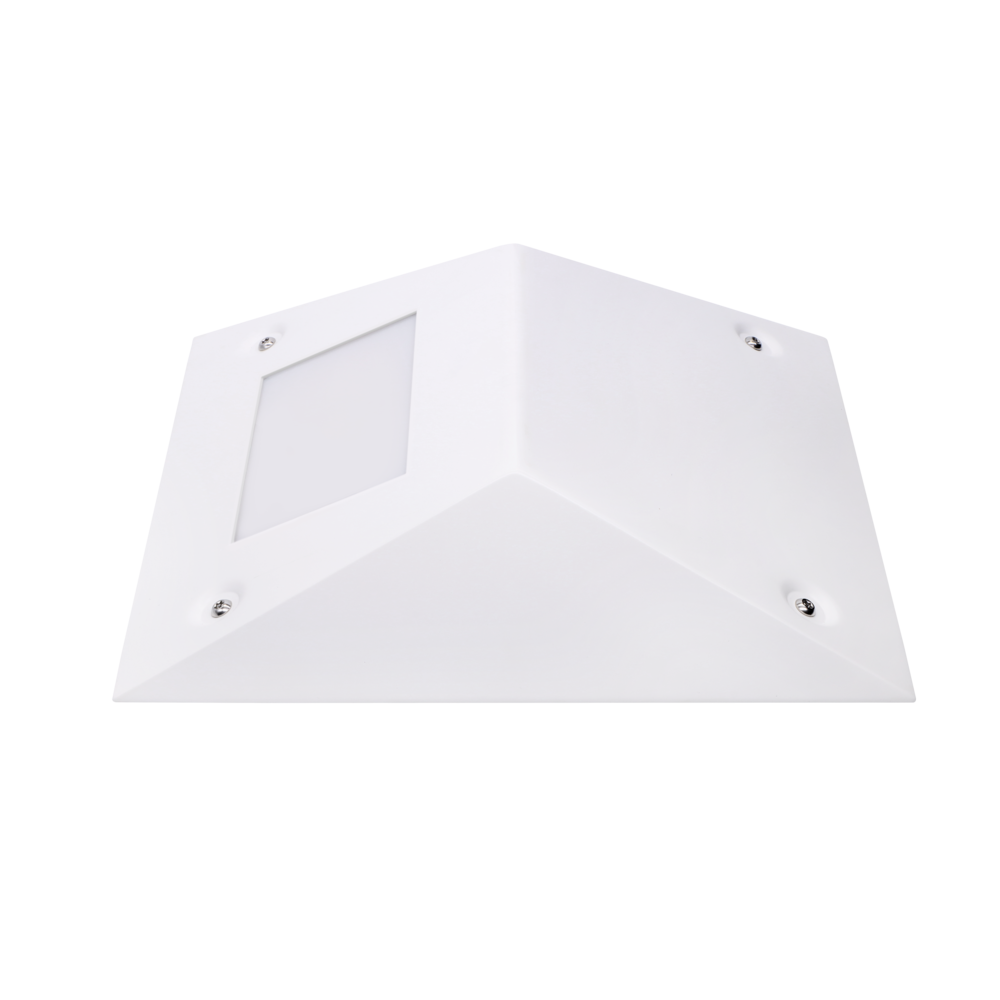

IK10 Vandalproof Wall Light

Heavy gauge steel LED vandal proof, wall mounted reading Light

Application

Designed in house to withstand the most adverse conditions.

Suitable for custodial and healthcare applications

Design Specifications

  • IK10 Heavy gauge steel with anti-ligature, one piece metal face plate with smoothed corners

  • High transmission opal diffuser with anti-tamper captive screws fitted as standard, removable LED gear tray

  • 6w, 280 lumens, CRI80, 4000k as standard with high performance >110lm/w, L70 > 50,000 hours

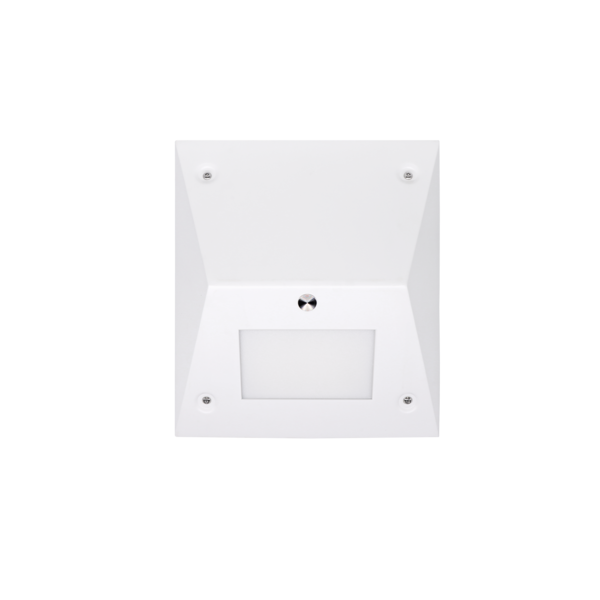

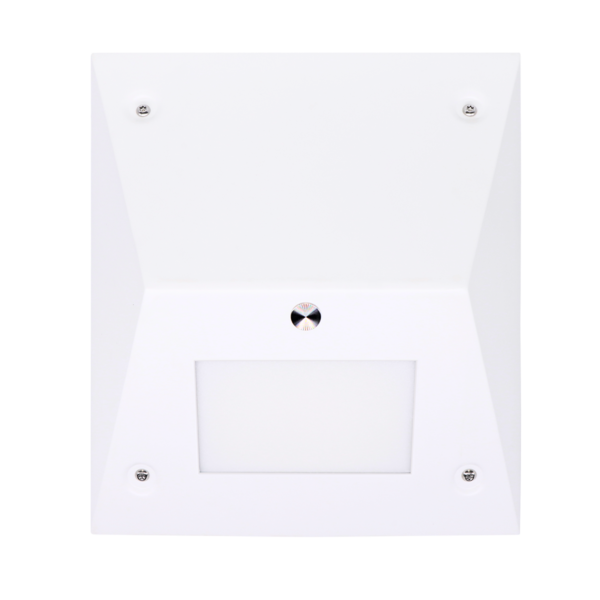

  • IK10 switch fitted with the option of constant CCT or tri-colour (3000K, 4000K, 6500K)

  • Terminal block suited to 6mm² cable for easy installation, terminal block positioned more than 40mm from the cable entry



  • Available Options

    • Clear diffuser
    • DALI dimmable integrated control gear
    • IK10 switch optional

  • 4000KCCT
  • 4000KCCT

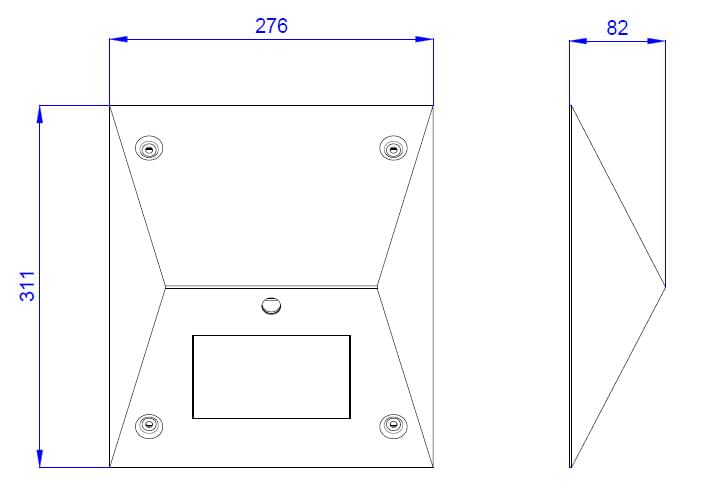

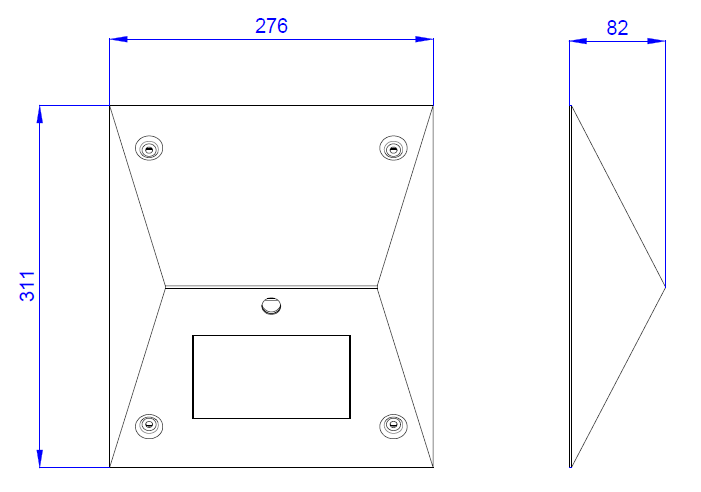

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT CRI IK Rating Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.CPT640NS DescriptionHeavy Gauge Steel IK10 Vandalproof Reading Light c/w Integral Non-Dimmable Driver Power6 Lumens280 CCT4000 CRI80 IK Rating10 Add to Enquiry Add Remove Remove

    Code Methodology: CPT = Model
    Variants Available:
    Wattage - 6 = 6w
    CCT - 30 = 3000K / 40 = 4000K
    Dimming type - N = Non Dim / D = DALI
    S = IK10 Switch
