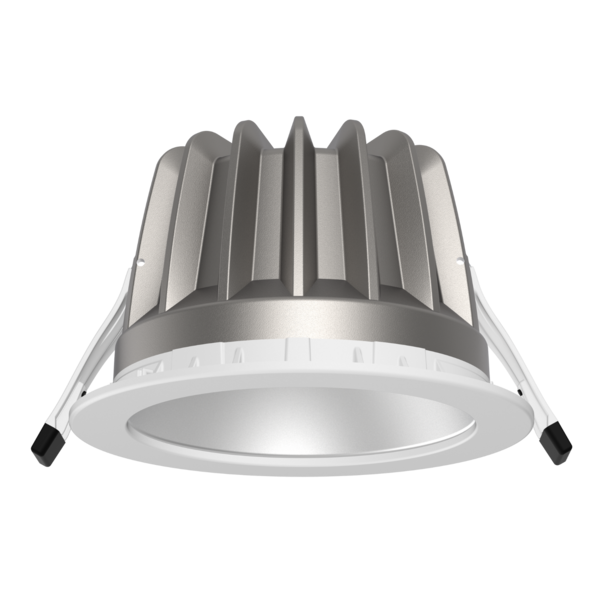

Milano 230

230mm IP54 Commercial UGR <19 LED Downlight

Application

Designed for performance and visual comfort, the Milano LED Downlight offers a clean architectural aesthetic, low-glare illumination, and versatile configurations to suit commercial, healthcare and retail environments. With a focus on reliability, optical control, and seamless integration, Milano is an ideal choice for projects requiring both form and function.

Design Specifications

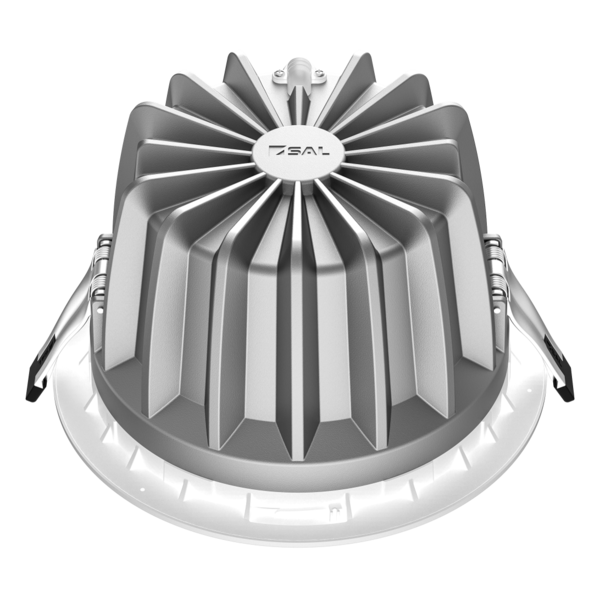

  • 230mm Ø Light weight die-cast aluminium body for efficient heat dissipation

  • CRI 90 / R9 > 50 / L90B10 > 50,000 Hours

  • Excellent glare control with set back optical design, 60° beam optic as standard

  • Remote constant current non-dimmable LED driver as standard

  • Quick release mounting clips for easy installation or maintenance



  • Available Options

    • Remote DALI2 dimmable driver

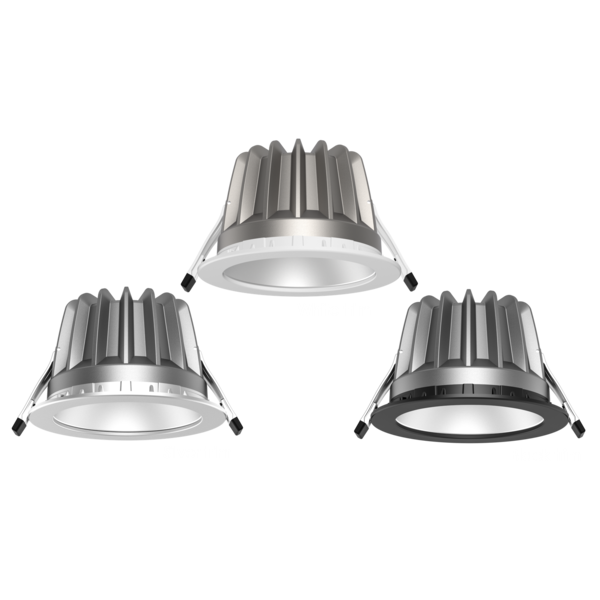

    • Black Trim (M23BTR), Silver Trim (M23SVR)
    • Tuneable white - POA
    • 3500K - POA
    • Cyanosis COI compliant - POA

  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

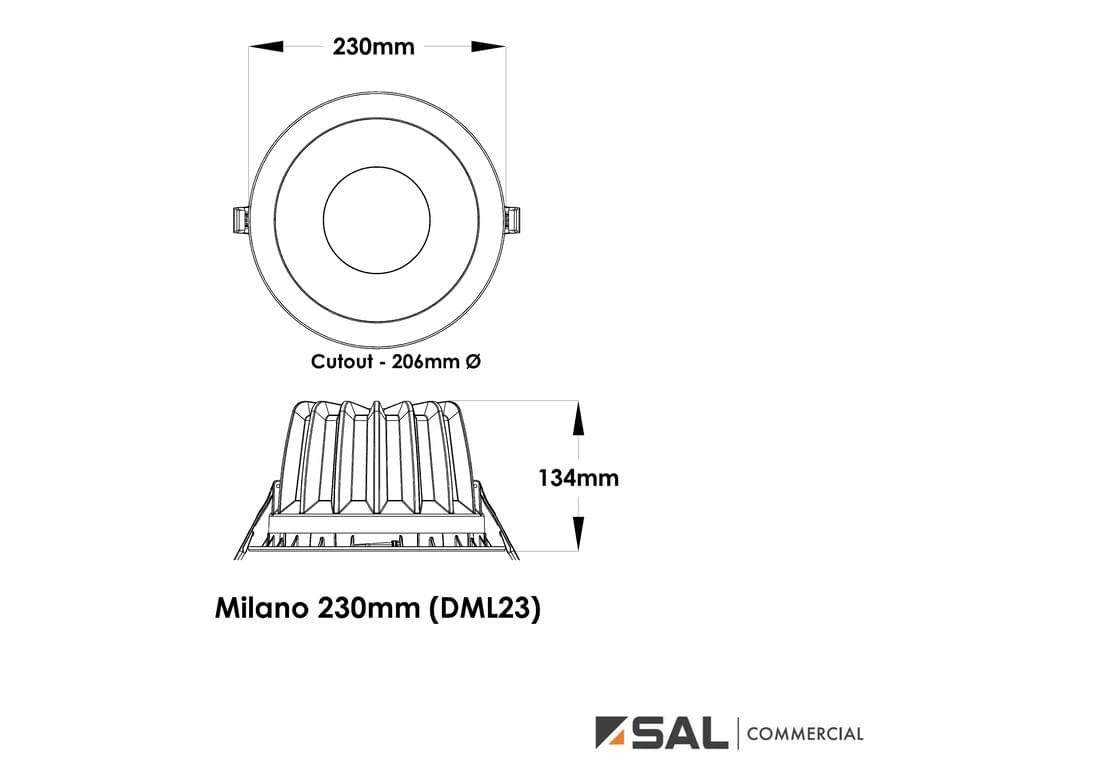

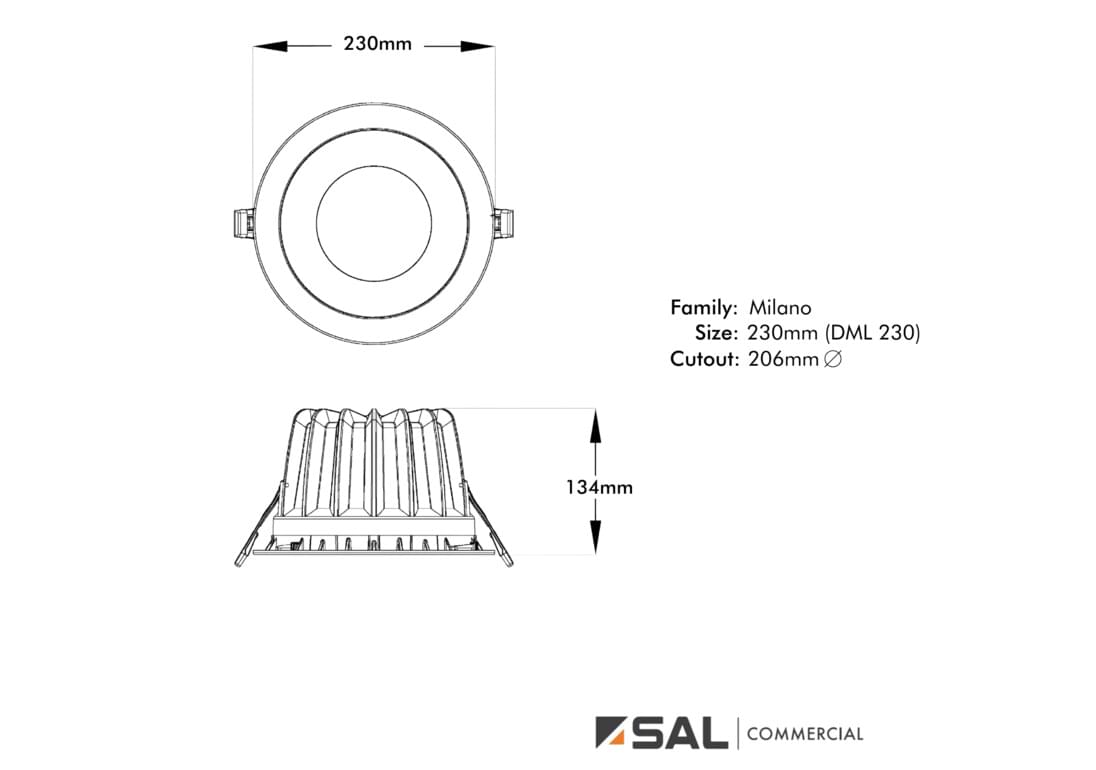

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle R9 CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.DML232540DWH DescriptionMilano 230 Recessed IP54 Downlight with DALI-2 Driver, White Power25 Lumens2500 CCT4000 Beam Angle60 R9>50 CRI90 Add to Enquiry Add Remove Remove
    Model No.DML233340DWH DescriptionMilano 230 Recessed IP54 Downlight with DALI-2 Driver, White Power33 Lumens3400 CCT4000 Beam Angle60 R9>50 CRI90 Add to Enquiry Add Remove Remove
    Model No.DML234040DWH DescriptionMilano 230 Recessed IP54 Downlight with DALI-2 Driver, White Power40 Lumens3700 CCT4000 Beam Angle60 R9>50 CRI90 Add to Enquiry Add Remove Remove

    Code Methodology: DML23 = Size  |  40 = Wattage  |  40 = CCT  |  N = Dimming Type  |  WH = Trim colour
    Variants Available:
    Wattage - 21 / 25 / 29 / 34 / 40
    CCT - 30 = 3000K / 40 = 4000K / CY = Cyanosis
    Dimming type - N = Non Dim / D = DALI
    Trim Colour - WH = White / BK = Black / SL = Silver

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
