Apulia 220

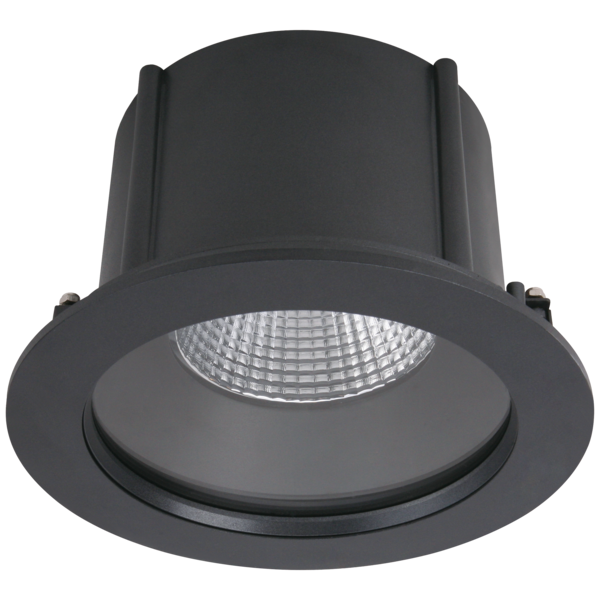

200mm IP66 Above / Below Commercial LED Downlight

Recessed IP66 Above and Below LED Downlight with setback low glare reflector optic. Ideal for exterior applications

Application

Die-cast aluminium body and trim for exterior applications

Building facades, walkways, shopping centres, car parks, public amenities

Design Specifications

  • 220mm Ø Trim die-cast aluminium body for efficient heat dissipation (200mm cutout)

  • 30w, 2850lm High output COB LED chip - L70 > 50,000 hours, CRI 80 and 4000K as standard with white trim

  • Excellent glare control with set back optical design, 70° beam optic as standard

  • Clear tempered glass lens fitted as standard

  • Constant current non-dimmable LED driver as standard



  • Available Options

    • 10°, 20°and 40° beam optics
    • Honeycomb Lens
    • Sculptured Glass Lens
    • Matte Lens
    • Black (RAL9011), silver trim
    • Remote DALI dimmable driver

  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT
  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer Trailing Edge YES
    Dimmer 1-10V YES
    Dimmer DSI YES
    Dimmer DALI YES
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle CRI Diameter Height Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.DAP203040N Description200mm IP66 recessed LED downlight with sculptured glass lens and white trim Power30 Lumens2850 CCT4000 Beam Angle70° CRI80 Diameter220mm Height170mm Add to Enquiry Add Remove Remove

    Cutout Size 200mm Ø

    Code Methodology: DAP20 = Size  |  30 = Wattage  |  40 = CCT  |  N = Dimming Type
    Variants Available:
    Size - DAP20
    Wattage (30w as Standard) - 30 / 20 = 20w
    CCT - 40 = 4000K / 30 = 3000K
    Dimming type - N = Non Dim / D = DALI
    Trim Colour (White as standard) / BK = Black / SV = Silver
    Beam Angle (70° nominated as standard) - 10 = 10 degree / 20 = 20 Degree / 40 = 40 Degree

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
