Denver Linear LED High Bay

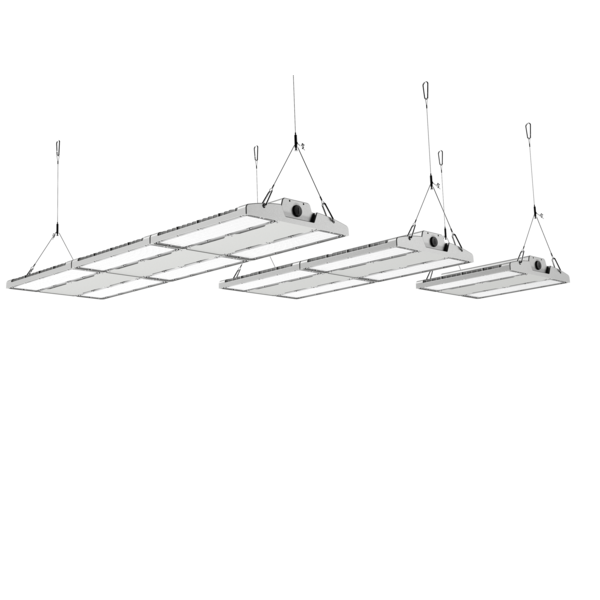

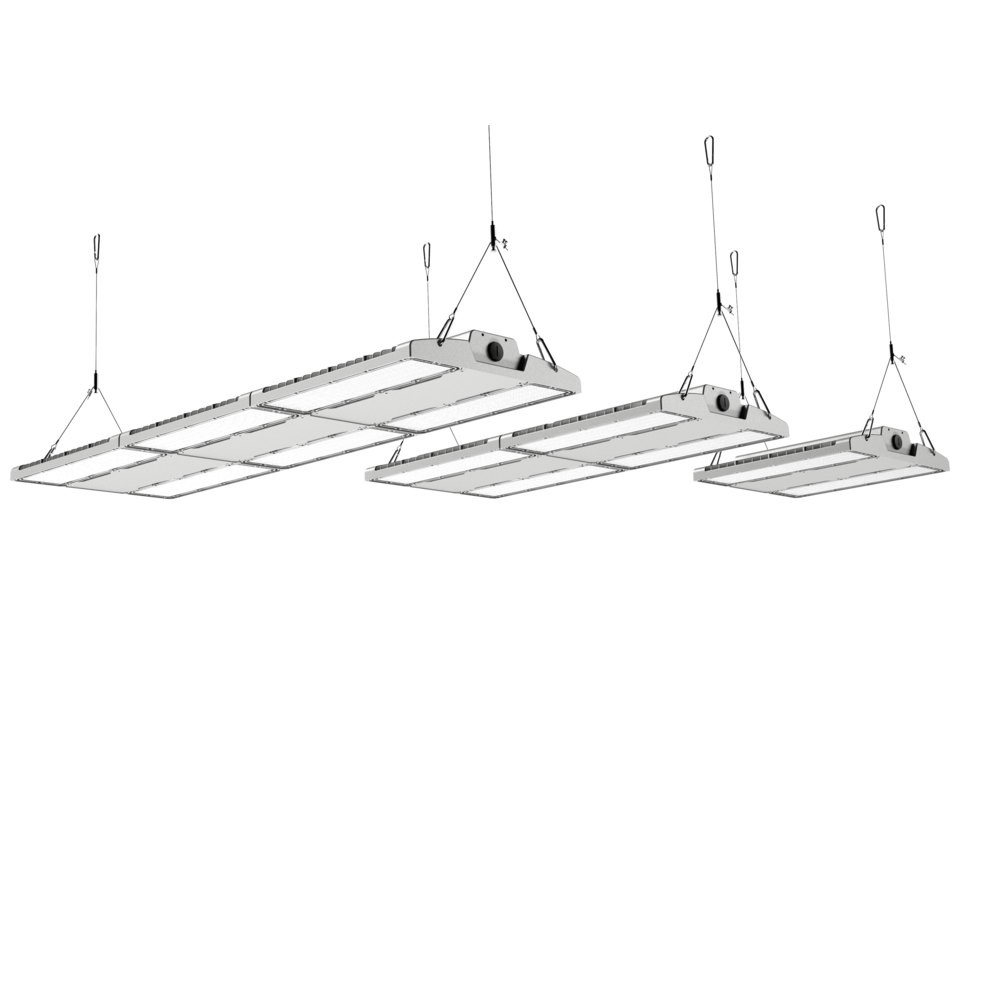

The Denver High bay range is a modular, linear style high bay luminaire designed for hi-rack installations seen in modern warehouse applications. Offered in a range of optimised optics to ensure minimal light wastage, the Denver high bay range has an option to suit your project.

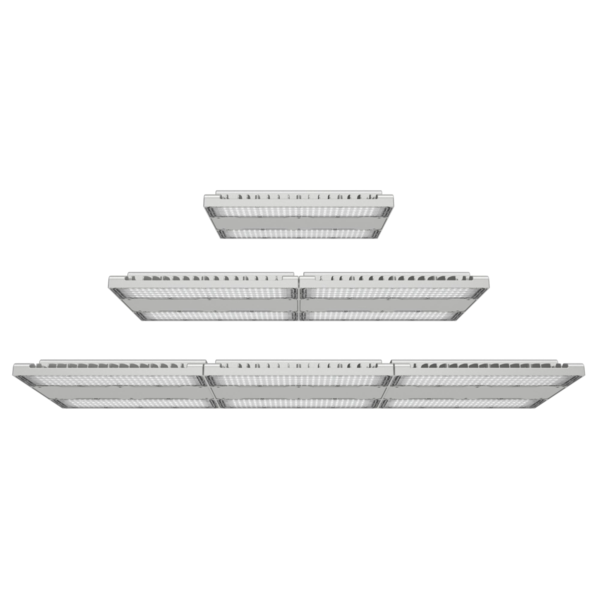

The range incorporates three sizes and 7 wattage options with a range of optics to suit most modern industrial applications.

  • Single module: 100W/150W
  • Double module: 200W, 240W, 300W
  • Triple module: 400W, 480W

Application

With a die-cast aluminium construction offering IP66 and IK10, and a temperature range of -30° to 50°, the Denver High-bay range is suited to a large range of applications:

Interior and Exterior applications, warehousing, industrial and exhibition halls.

Design Specifications

  • 155lm/W high efficiency LED technology

  • LED lifetime:

    - L70 @ 131,000 hours

    - L80 @ 82,000 hours

    - L90 @ 40,000 hours

  • Low glare LED optimised optics: Narrow, wide and multiple isle optics available

  • High efficiency polycarbonate lens

  • Available Options:

    • 4000K CCT
    • Suspension mounted (standard)
    • Ceiling/surface mount
    • Adjustable surface mount with 60° of adjustability
    • Plug and play motion sensor

  • 4000KCCT
  • 5000KCCT
  • 4000KCCT
  • 5000KCCT

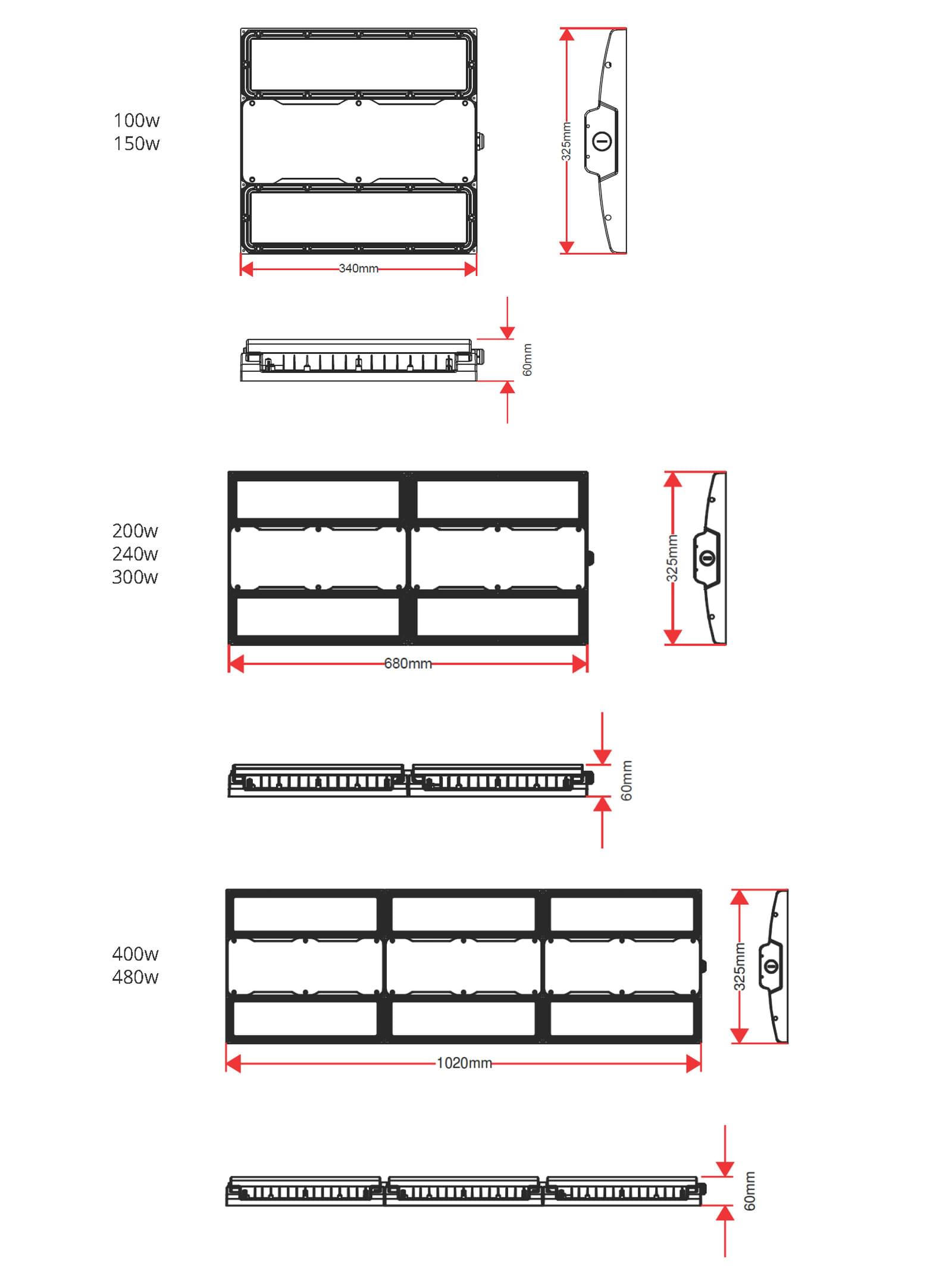

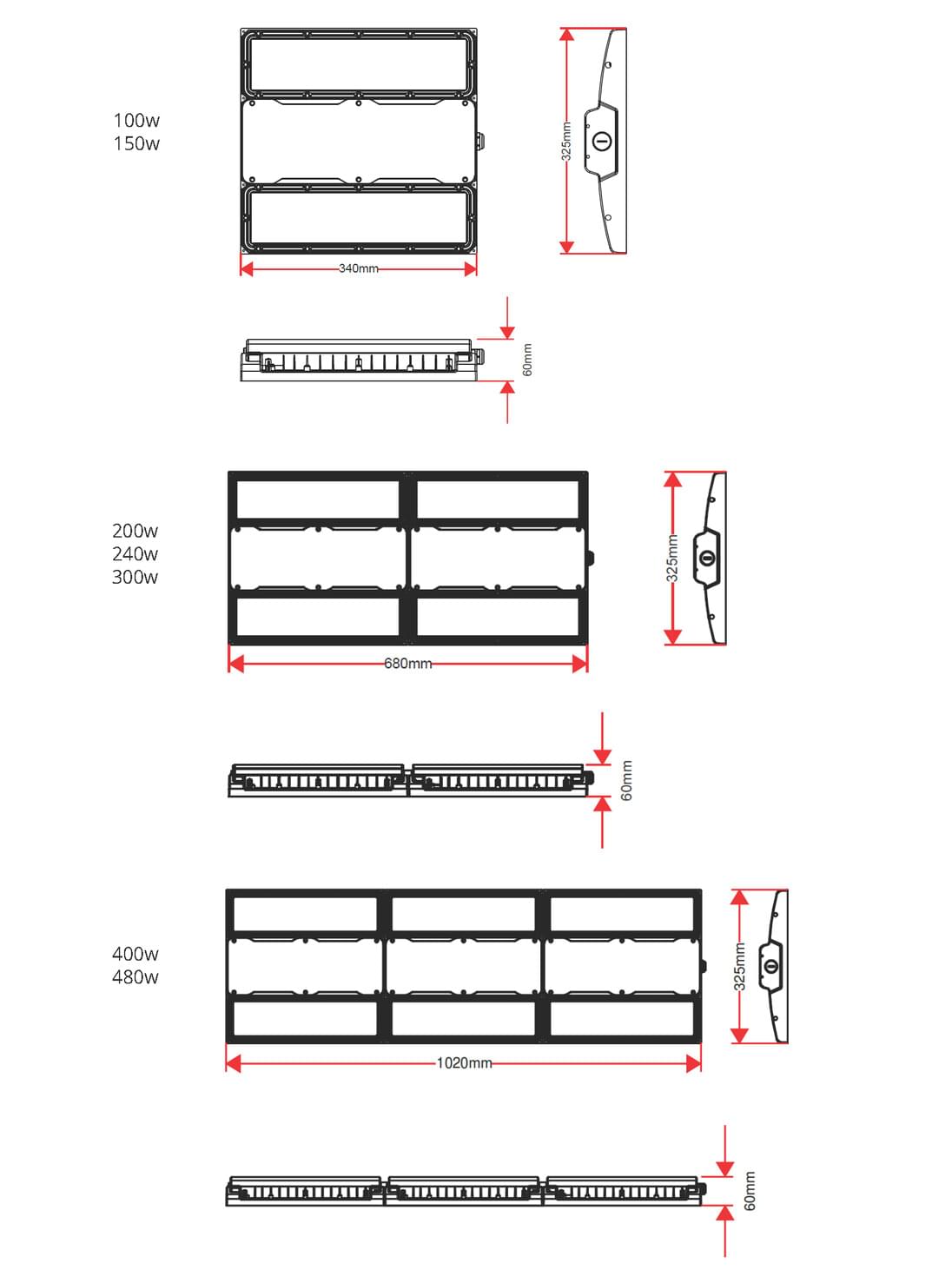

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Luminous
    Efficacy
    Colour Temp. Lumens Beam Angle CRI Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.IDV10050N DescriptionDenver linear LED high-bay, IP66, IK10, non-dimmable Power100 Luminous
    Efficacy
    155
    Colour Temp.5000 Lumens15500 Beam Angle60100 CRI80 Mass3.5 Add to Enquiry Add Remove Remove
    Model No.IDV15050N DescriptionDenver linear LED high-bay, IP66, IK10, non-dimmable Power150 Luminous
    Efficacy
    155
    Colour Temp.5000 Lumens23250 Beam Angle60100 CRI80 Mass3.7 Add to Enquiry Add Remove Remove
    Model No.IDV20050N DescriptionDenver linear LED high-bay, IP66, IK10, non-dimmable Power200 Luminous
    Efficacy
    155
    Colour Temp.5000 Lumens31000 Beam Angle60100 CRI80 Mass6.7 Add to Enquiry Add Remove Remove
    Model No.IDV24050N DescriptionDenver linear LED high-bay, IP66, IK10, non-dimmable Power240 Luminous
    Efficacy
    155
    Colour Temp.5000 Lumens37200 Beam Angle60100 CRI80 Mass6.8 Add to Enquiry Add Remove Remove
    Model No.IDV30050N DescriptionDenver linear LED high-bay, IP66, IK10, non-dimmable Power300 Luminous
    Efficacy
    155
    Colour Temp.5000 Lumens46500 Beam Angle60100 CRI80 Mass7.8 Add to Enquiry Add Remove Remove
    Model No.IDV40050N DescriptionDenver linear LED high-bay, IP66, IK10, non-dimmable Power400 Luminous
    Efficacy
    155
    Colour Temp.5000 Lumens62000 Beam Angle60100 CRI80 Mass10.7 Add to Enquiry Add Remove Remove
    Model No.IDV48050N DescriptionDenver linear LED high-bay, IP66, IK10, non-dimmable Power480 Luminous
    Efficacy
    155
    Colour Temp.5000 Lumens72000 Beam Angle60100 CRI80 Mass11.1 Add to Enquiry Add Remove Remove

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
