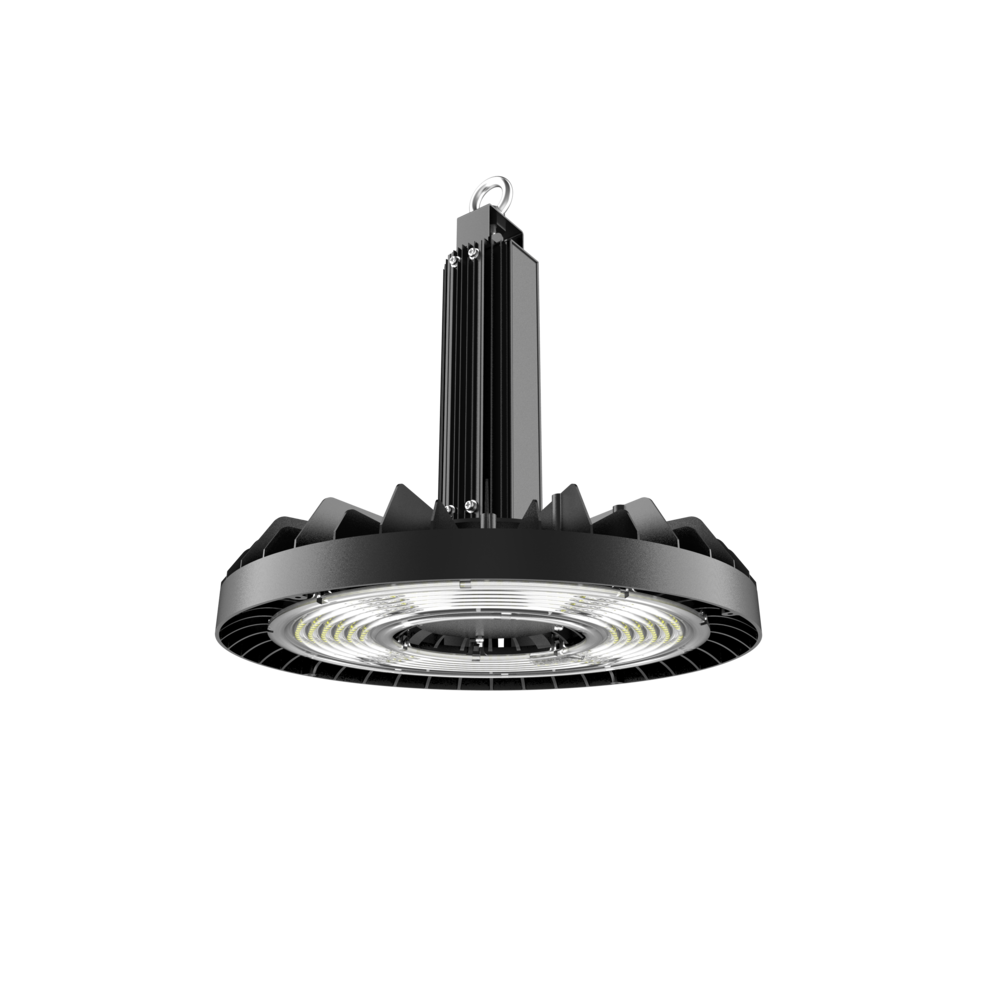

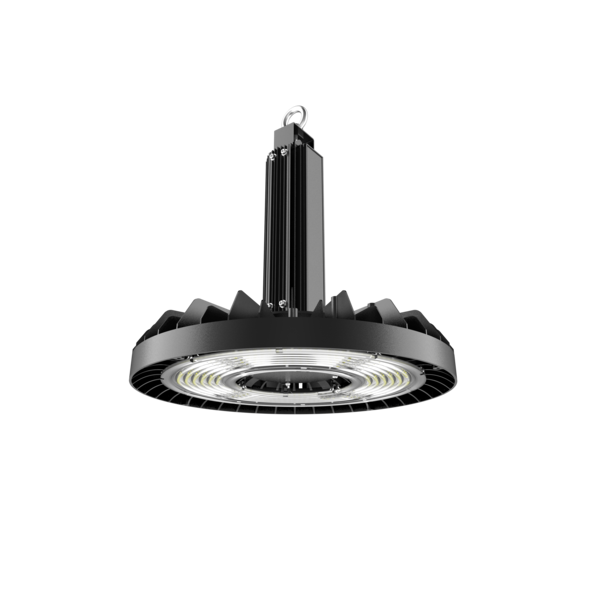

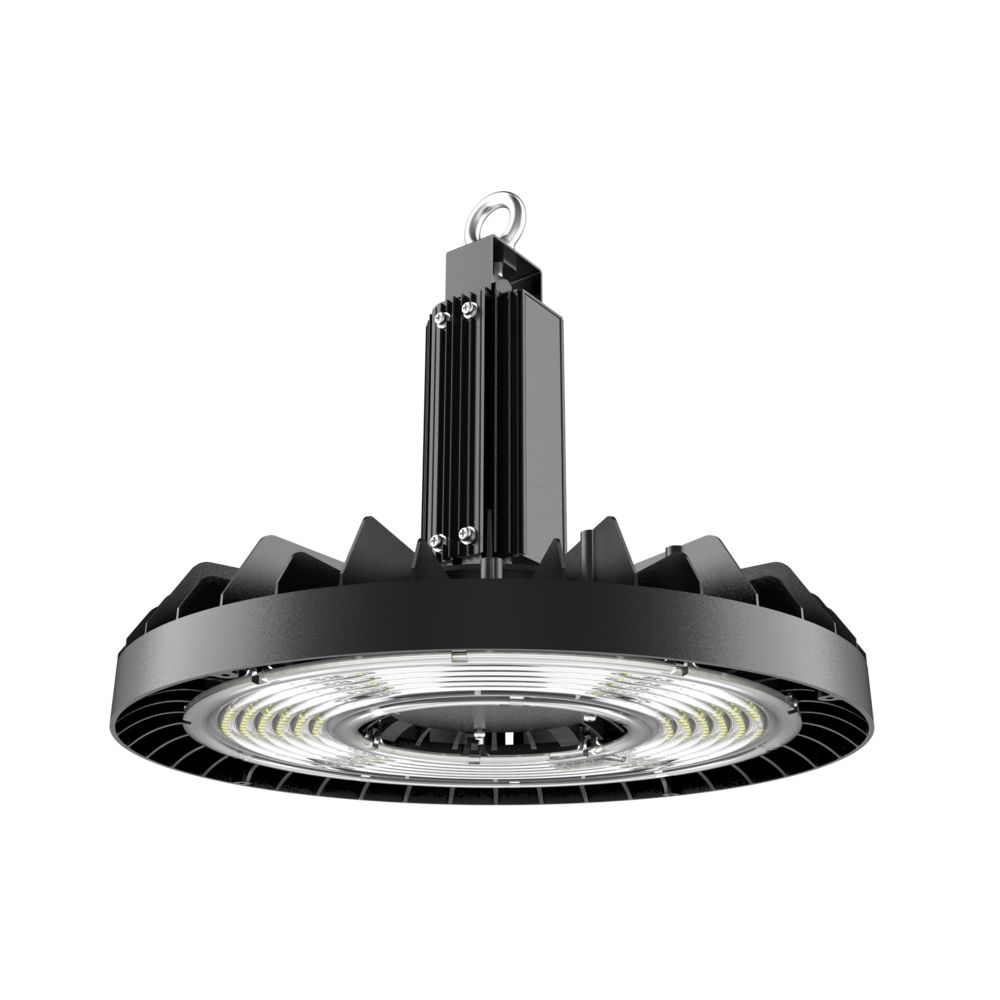

LED High Bay

Introducing the Richmond High-bay range. Utilising high quality componentry from Philips and Lumileds, the Richmond High-bay range has been designed to outlast the toughest conditions.

Application

The Richmond LED high bay is manufcatured from die-cast aluminium and supplied with a black powder coat finish. This luminaire is suited to a wide range of applications including:

  • Warehousing
  • Industrial facilities
  • Exhibition complex
  • Gymnasiums

Design Specifications

  • 150lm/w high efficiency SMD LED

  • L90/B10 >50,000 hours lifetime

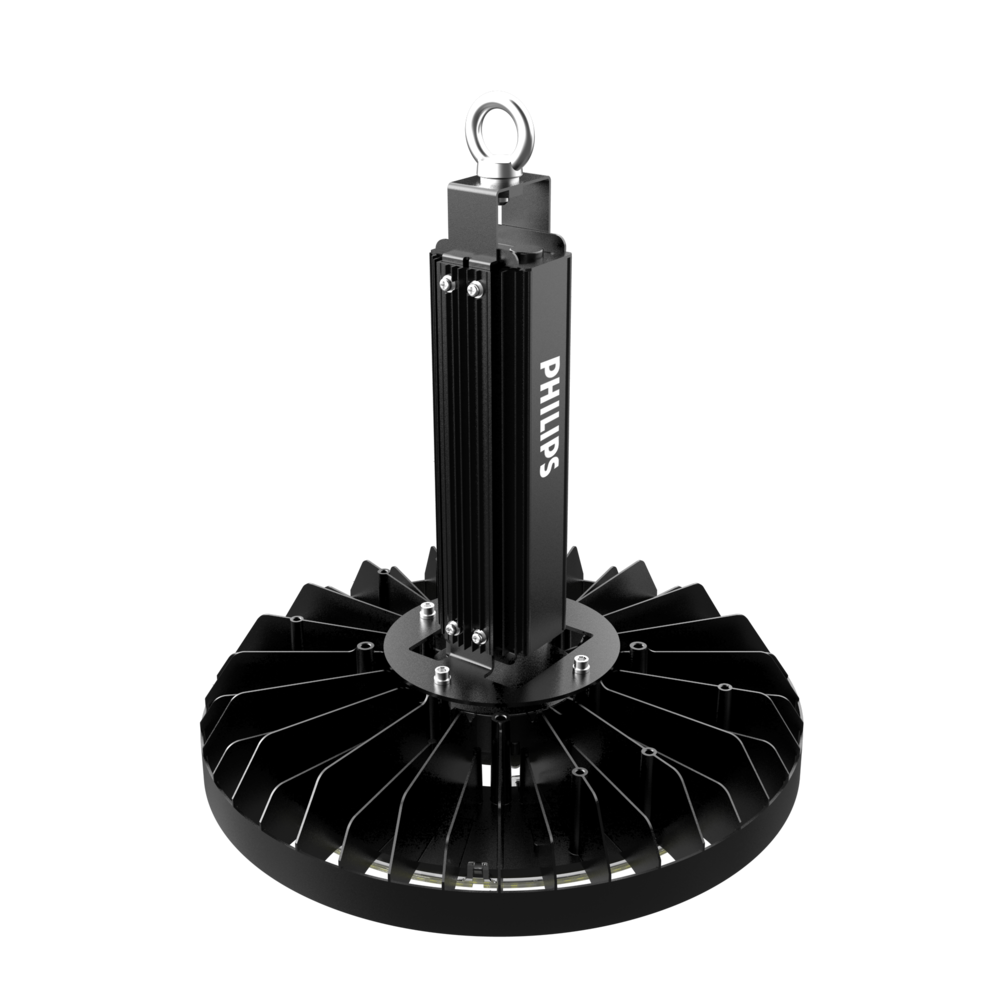

  • Philips driver 0-10v dimmable

  • Narrow, medium and wide (standard model) optics available

  • High efficiency polycarbonate lens

  • Available Options

    • 4000k CCT

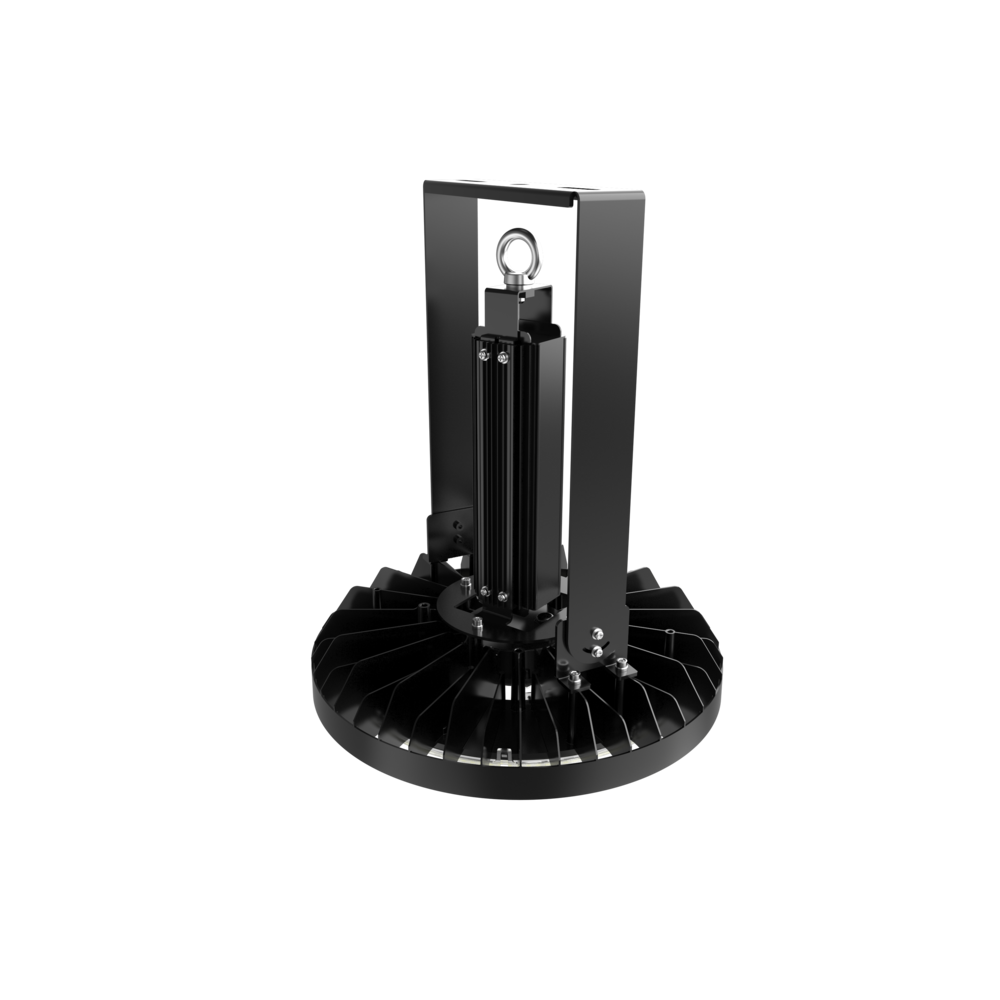

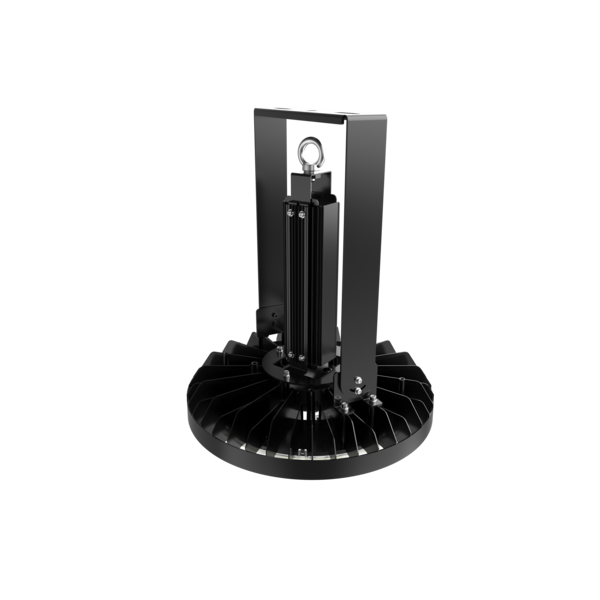

    • Surface mounting bracket

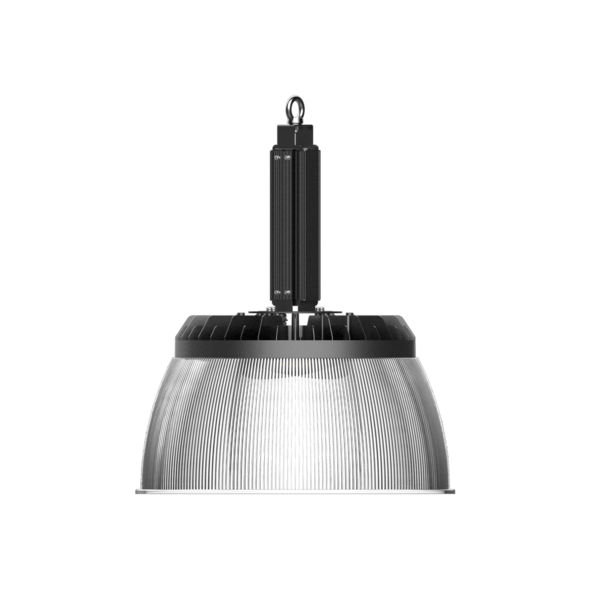

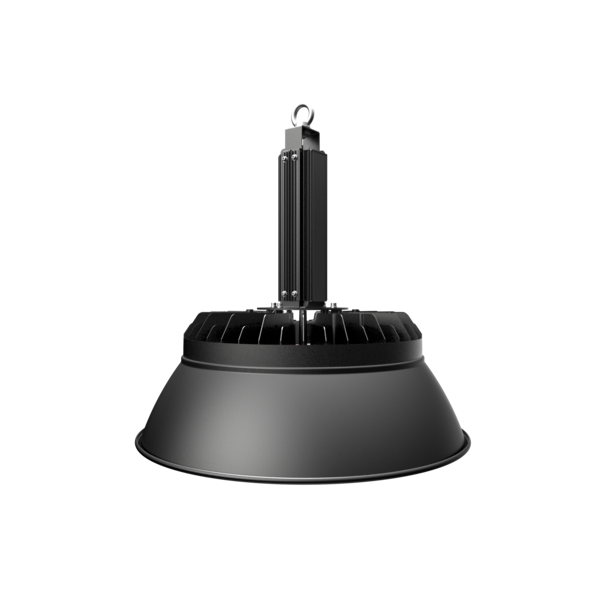

    • Reflector options: Polycarbonate, powder coated aluminium
    • Plug and play motion sensors: Microwave sensor (remote control available)

  • 4000KCCT
  • 5000KCCT
  • 4000KCCT
  • 5000KCCT

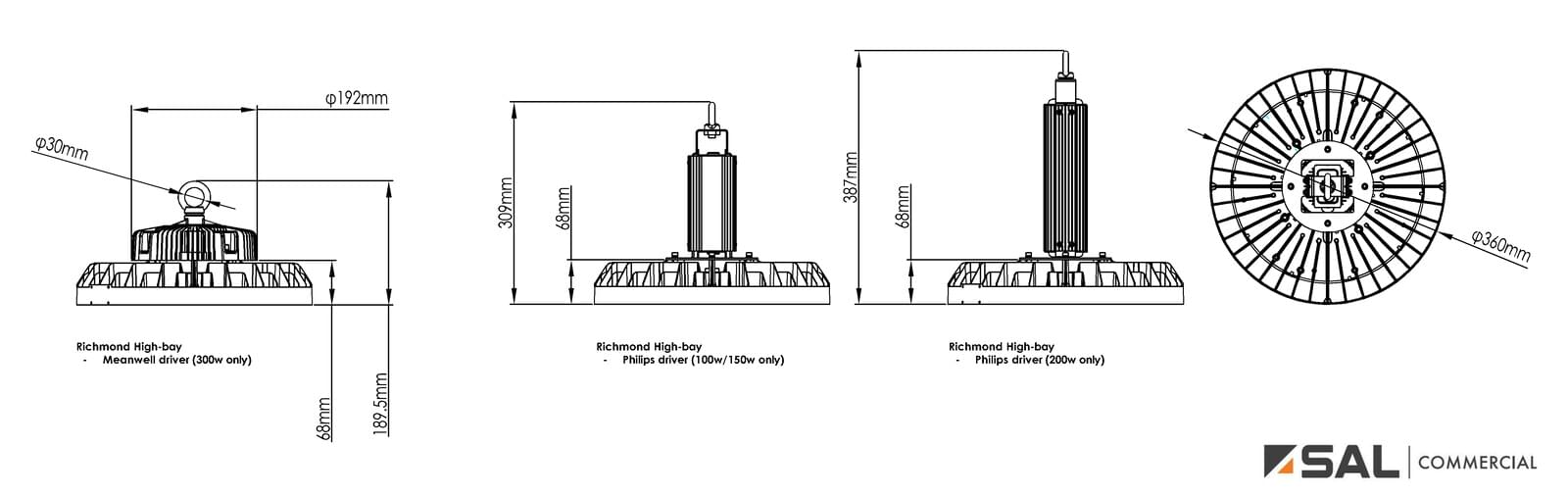

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Luminous
    Efficacy    		 Colour Temp. Lumens Beam Angle CRI Diameter Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.IRM10050PN DescriptionRichmond LED high-bay, Philips driver, non-dimmable Power100 Luminous
    Efficacy    150    		 Colour Temp.5000 Lumens15000 Beam Angle120 CRI80 Diameter360 Mass4 Add to Enquiry Add Remove Remove
    Model No.IRM15050PN DescriptionRichmond LED high-bay, Philips driver, non-dimmable Power150 Luminous
    Efficacy    150    		 Colour Temp.5000 Lumens22500 Beam Angle120 CRI80 Diameter360 Mass4 Add to Enquiry Add Remove Remove
    Model No.IRM20050PN DescriptionRichmond LED high-bay, Philips driver, non-dimmable Power200 Luminous
    Efficacy    150    		 Colour Temp.5000 Lumens30000 Beam Angle120 CRI80 Diameter360 Mass4.3 Add to Enquiry Add Remove Remove
    Model No.IRM30050N DescriptionRichmond LED high-bay, Meanwell driver, non-dimmable, 5 year warranty Power300 Luminous
    Efficacy    150    		 Colour Temp.5000 Lumens45000 Beam Angle120 CRI70 Diameter360 Mass5.1 Add to Enquiry Add Remove Remove

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
