• Commercial LED Industrial

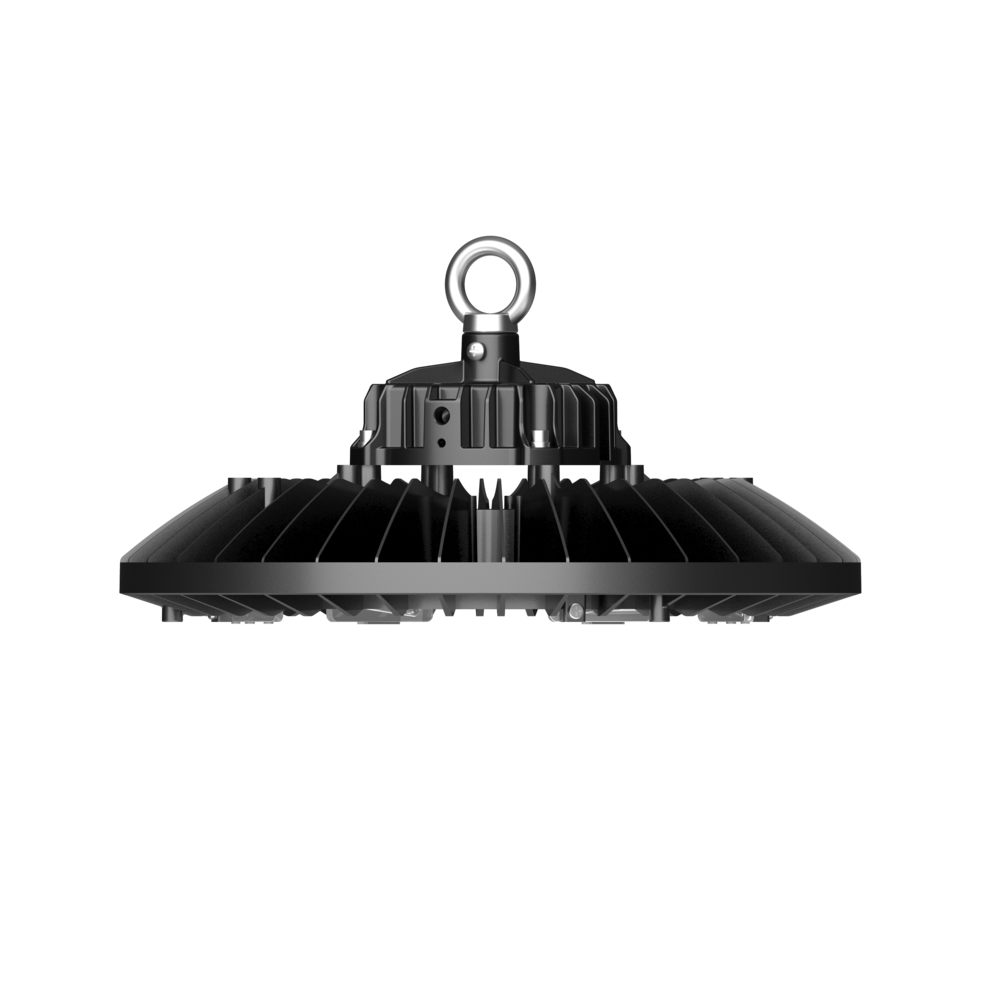

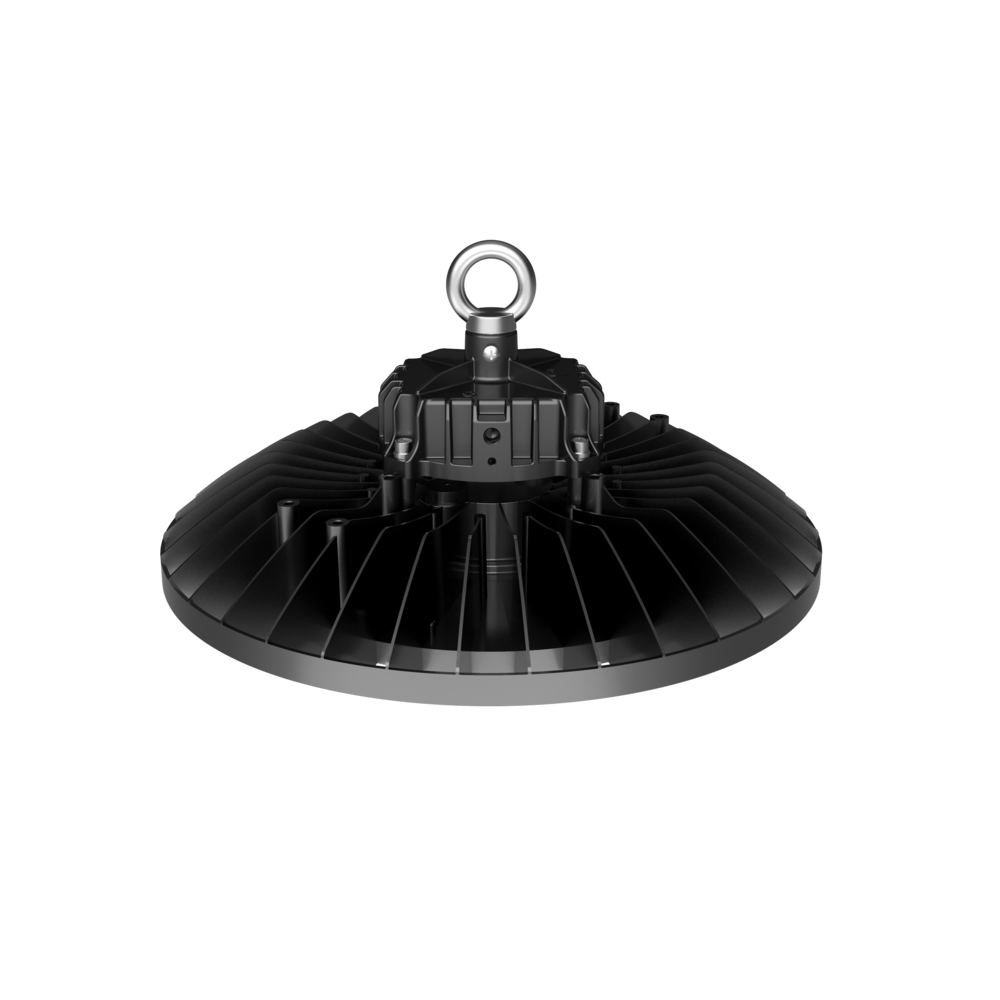

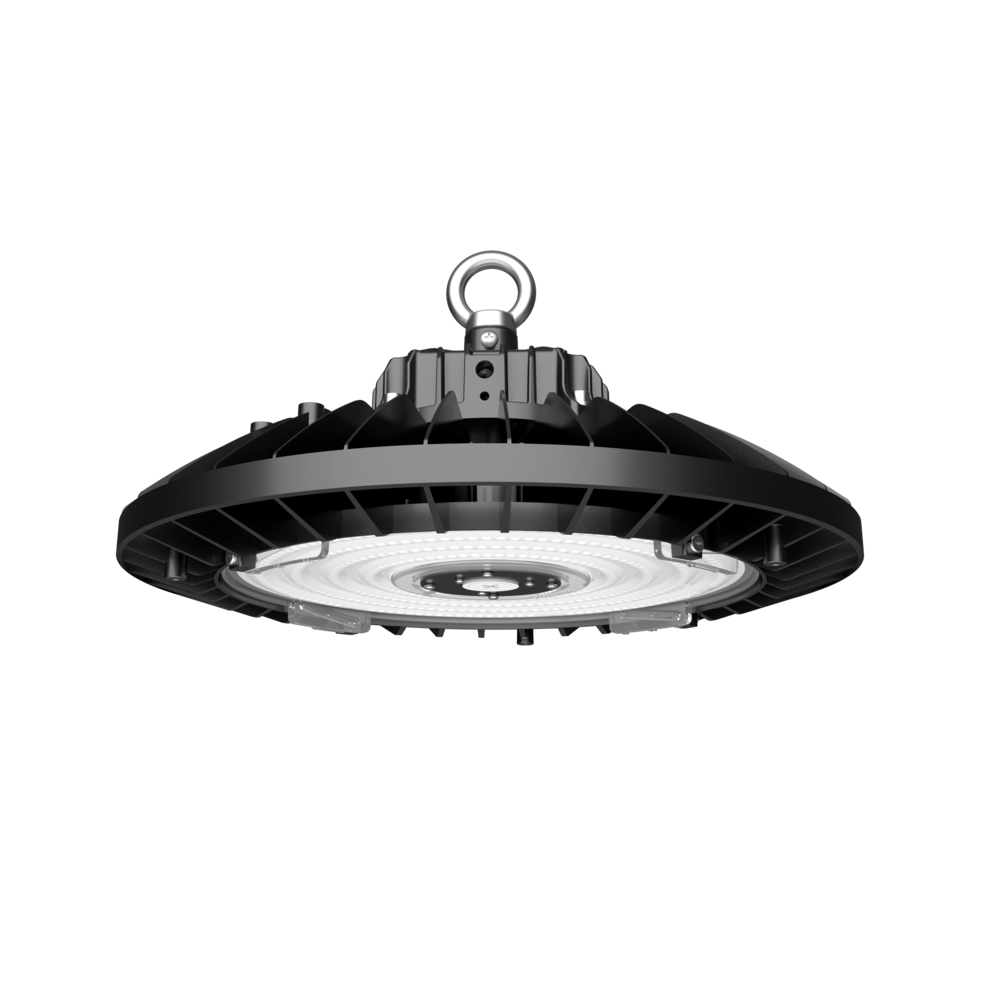

Toledo LED High Bay

Introducing the Toledo LED high-bay range. A complete solution in package for high-bay lighting applications.

Available in two models, boasting equal features including:

  • Selectable lumen output - installer adjustable
  • Adjustable beam optics - tool-free (narrow/medium/wide)

Application

The Toledo LED high bay is suited to a wide range of applications with its feature packed, in-built options. Key applications include:

  • Warehousing
  • Industrial facilities
  • Exhibition complex
  • Gymnasiums

Design Specifications

  • 170lm/w high output SMD LEDs

  • L80 >80,000 hours

  • Four lumen outputs selectable via dip-switch

  • Tool-free adjustable optics: Narrow, Medium, Wide

  • Polycarbonate optical lens



  • Available Options

    • 3000k, 4000k CCT
    • Surface mounting bracket
    • Reflector options: Polycarbonate, powder coated aluminium
    • CRI 80

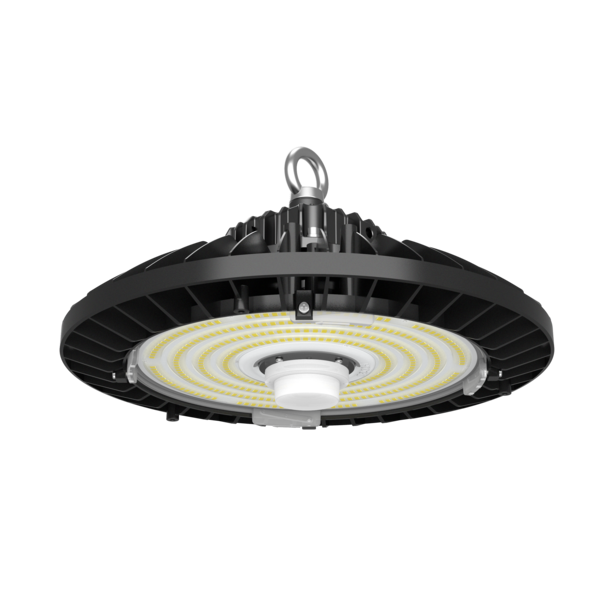

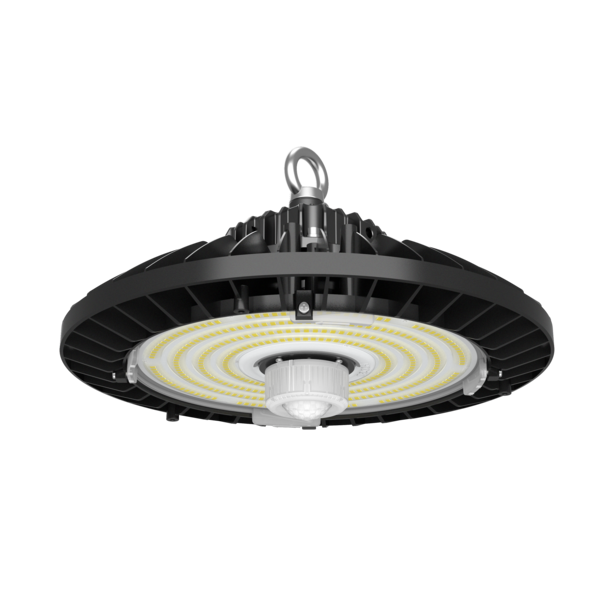

    • Plug and play motion sensors: Microwave, PIR (remote control available)

  • 3000KCCT
  • 4000KCCT
  • 5000KCCT
  • 3000KCCT
  • 4000KCCT
  • 5000KCCT

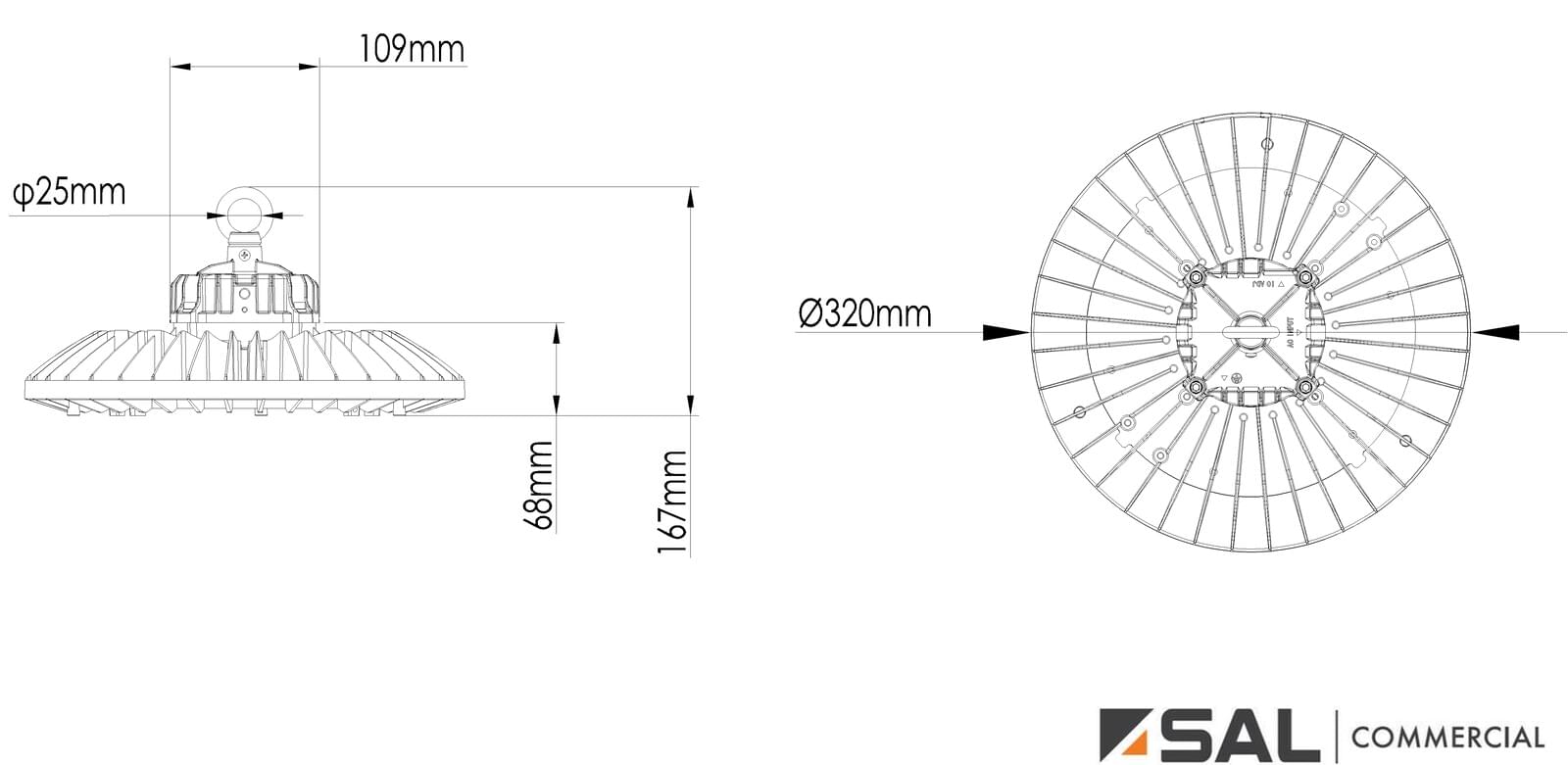

  • Dimensions - Wiring Diagrams
  • Design Options

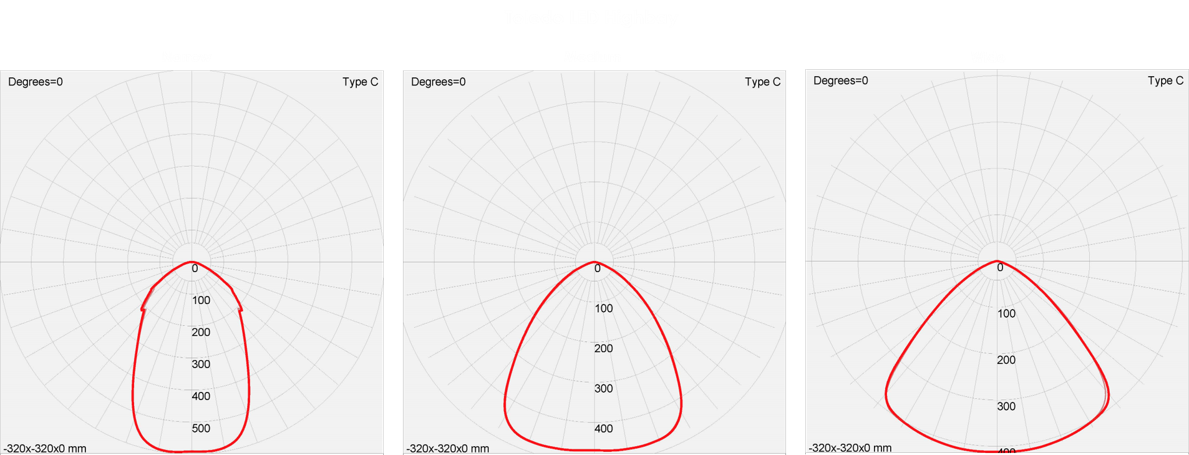

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Luminous
    Efficacy    		 Multiple Wattage Colour Temp. Lumens CRI Diameter Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.ITO15050A DescriptionToledo LED high-bay, selectable lumen, adjustable optic, 0-10v dimmable Power150 Luminous
    Efficacy    170    		 Multiple Wattage80/100/120/150 Colour Temp.5000 Lumens25500 CRI70 Diameter320 Mass3 Add to Enquiry Add Remove Remove
    Model No.ITO15050N DescriptionToledo LED high-bay, selectable lumen, adjustable optic, non-dimmable Power150 Luminous
    Efficacy    170    		 Multiple Wattage80/100/120/150 Colour Temp.5000 Lumens25500 CRI70 Diameter320 Mass3 Add to Enquiry Add Remove Remove
    Model No.ITO20050A DescriptionToledo LED high-bay, selectable lumen, adjustable optic, 0-10v dimmable Power200 Luminous
    Efficacy    170    		 Multiple Wattage80/100/120/150 Colour Temp.5000 Lumens34000 CRI70 Diameter320 Mass3 Add to Enquiry Add Remove Remove
    Model No.ITO20050N DescriptionToledo LED high-bay, selectable lumen, adjustable optic, non-dimmable Power200 Luminous
    Efficacy    170    		 Multiple Wattage100/120/150/200 Colour Temp.5000 Lumens34000 CRI70 Diameter320 Mass3 Add to Enquiry Add Remove Remove

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
